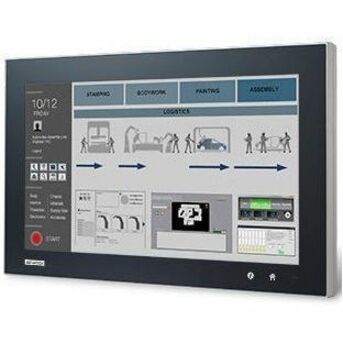

Advantech FPM-D15T-BE 15" Class LED Touchscreen Monitor - 4:3
15" Viewable - Projected Capacitive - Multi-touch Screen - 1024 x 768 - XGA - Thin Film Transistor (TFT) - 16.2 Million Colors - 300 Nit - LED Backlight
SKU
Category
Touchscreen Monitors
$674.65
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Touchscreen Monitors
Overview
Advantech's modular display BE series offers various display modules ranging between 12.1" and 21.5" inches in size to go with selections of computing boxes (TPC-B300/TPC-B510/ TPC-B610) for multiple configurations that can be flexibly adapted to various scenarios. Modular display series are equipped with industrial grade LCD and Projected Capacitive touch screens, providing the best user experience and reliable operation. The modular design ensures flexible configuration and easy maintenance/upgrades. Its robust enclosure is equipped with a die-cast aluminum alloy front bezel and IP66 rating for protection from dust and water ingress.
More from the Manufacturer
FPM-D15T-RE
【Resistive Touch】15" (4:3) modular front display design compatible with TPC-Bxxx Series
300 cd/m² luminance with 1024 x 768 resolution
High durability and performance with industrial-Grade LED LCD
5-Wire resistive touch technology
IP66-rated front panel and panel mount support
User-friendly system status LED indicators
Highlights
Modular front display design in three application-based module categories, enabling flexible configurations
Front panel module with P-CAP multi-touch sensor available in various sizes
Front panel module with 5-wire resistive touch control available in FPM-D12T-BE
Industrial-grade LED LCD
System status LED indicators in front panel
IP66-rated front panel and panel mount
Rear mounted computing box or monitor box module is compulsory to activate display module
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
FPM-D15T-BE
Brand Name
Advantech
Product Series
FPM-BE
Product Model
FPM-D15T-BE
Product Name
FPM-D15T-BE Touchscreen LED Monitor
Product Type
LED Touchscreen Monitor
Physical Characteristics
VESA Mount Compatible
Yes
Height
12.1"
Width
15.1"
Depth
1.1"
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Panel Technology
Thin Film Transistor (TFT)
Aspect Ratio
4:3
Horizontal Viewing Angle
176°
Vertical Viewing Angle
176°
Mount Type
Panel Mount
Backlight Technology
LED
Features
Anti-glare
Ingress Protection (IP) Rating
IP66
Touchscreen Information
Touchscreen Type
Projected Capacitive
Multi-touch Screen
Yes
Video
Maximum Resolution
1024 x 768
Color Supported
16.2 Million Colors
Native Contrast Ratio
2,000:1
Brightness
300 Nit
Environmental Conditions
Operating Temperature Range
-4°F (-20°C) to 140°F (60°C)
Miscellaneous
Package Contents
FPM-D15T-BE Touchscreen LED Monitor
10 x Clamper PPC-55 M1632611 A2
10 x Clamper Screw M4x25L R/S D=8.3 H=2.5 (2+) ST BZn
