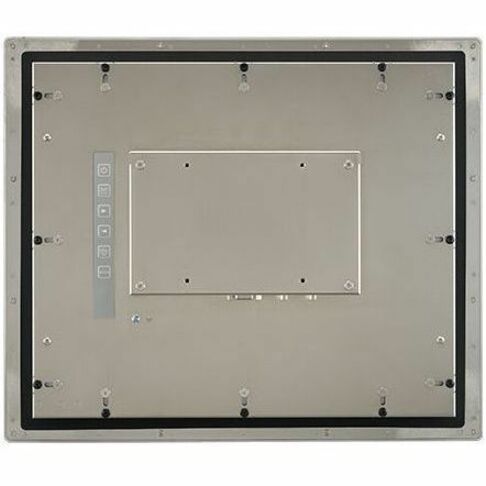

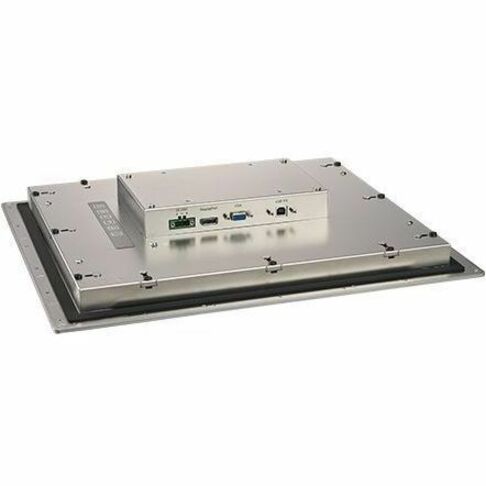

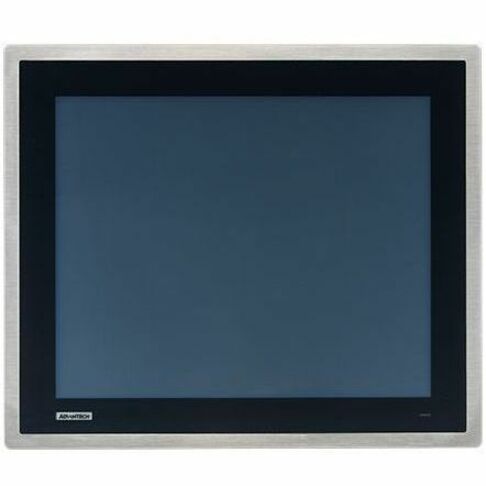

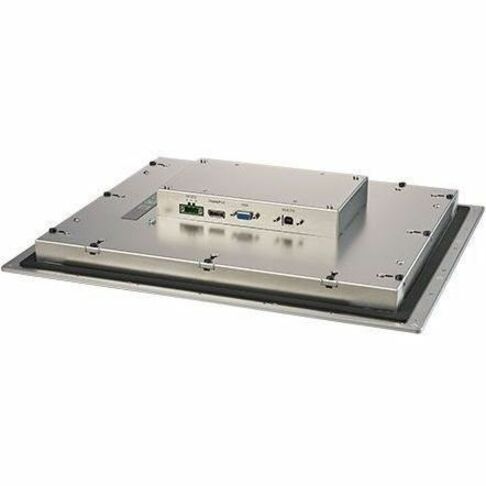

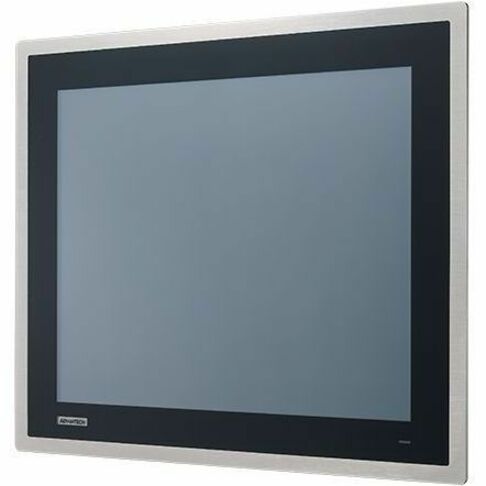

Advantech FPM-815S-R6AE 15" Class LED Touchscreen Monitor - 4:3
15" Viewable - 5-wire Resistive - 1024 x 768 - XGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 500 Nit - LED Backlight - USB - VGA - DisplayPort
SKU
Category
Touchscreen Monitors
$1,145.87
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Touchscreen Monitors
Overview
The FPM-800S series are rugged industrial monitors that support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), making them suitable for diverse applications. The true-flat front panel is IP66 rated for protection from water and dust to ensure easy cleaning. With the provision of a 304 stainless steel front bezel, FPM-800S is especially suitable for operation in hazardous and strict hygiene environments.
More from the Manufacturer
FPM-817S
17" SXGA Industrial Monitor with Resistive Touch Control, Direct VGA, DP Ports, and 304 Stainless Steel Front Bezel
17" SXGA TFT LED LCD with 50K backlight lifetime
Robust design with 304 stainless steel front bezel and anti-rust coated SPCC rear cover
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
Increased reliability with enhanced 5-wire resistive touch sensor
Anti-glare screen with tempered glass and IP66-certified front panel
Direct VGA & DP video input interface
OSD control pad with lockable function on rear panel
Supports panel, VESA, wall, desktop, and stand mounting
Highlights
15" XGA TFT LED LCD with 70K backlight lifetime
Robust design with 304 stainless steel front bezel and anti-rust coated SPCC rear cover
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
Increased reliability with enhanced 5-wire resistive touch sensor
Anti-glare screen with tempered glass and IP66-certified front panel
Direct VGA+DP video input interface
OSD control pad with lockable function on rear panel
Supports panel, VESA, wall, desktop, and stand mounting
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
FPM-815S-R6AE
Brand Name
Advantech
Product Series
FPM-800S
Product Model
FPM-815S-R6AE
Product Name
FPM-815S-R6AE Widescreen Touchscreen LED Monitor
Product Type
LED Touchscreen Monitor
Interfaces/Ports
USB
Yes
VGA
Yes
DisplayPort
Yes
Physical Characteristics
VESA Mount Compatible
Yes
Height
13"
Width
16"
Depth
2.3"
Weight (Approximate)
11.90 lb
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Panel Technology
Thin Film Transistor (TFT)
Aspect Ratio
4:3
Horizontal Viewing Angle
176°
Vertical Viewing Angle
176°
Mount Type
Panel Mount, Wall Mountable, Desk Mountable, Arm-mountable, Stand Mountable
