Wall Mount Network Racks: Comparing Middle Atlantic and StarTech Options

A wall mount network rack is often the right place to start when a branch office needs an organized home for switches, patch panels, and small network appliances. It can free up floor area and put related equipment in one defined location. The difficult part is choosing a rack that technicians can still work in after every port is connected.

The purchase should begin with a site assessment. A rack that fits the equipment on paper may interfere with a doorway, leave no room for a hinged section to open, or require a mounting arrangement the building cannot support.

Whether you are considering Middle Atlantic wall racks, StarTech rack options, or an exact replacement for an existing cabinet, use the equipment list and the service workflow to narrow the choices. Then request pricing for the complete installation configuration.

Think through a routine service visit. A technician may need to replace a switch, trace a cable, reach a rear power connection, or add another patch panel. Which tasks require rear access? Can they happen without disconnecting unrelated equipment? Where will the technician stand while the cabinet is open?

These questions help separate a useful rack feature from a feature that will go unused. A pivoting section can be valuable where rear access is frequent, but only if the site provides the required clearance and the cable layout accommodates movement. A fixed cabinet might be adequate for a simpler arrangement whose service points remain accessible.

Document who owns the rack after installation. A cabinet maintained by a local IT employee may have different labeling and access needs from one serviced by a contractor who visits several sites. Key custody, documentation location, and the list of authorized personnel belong in the operating plan.

Collect photographs and measurements of the proposed location. Include nearby doors, cabinets, existing cable pathways, power connections, and anything that could obstruct access. Photographs help a remote procurement team understand the space, but they do not replace an installation assessment.

Have a qualified installer or facilities professional determine whether the wall, mounting arrangement, and location are suitable for the selected product and complete installed load. Follow the current manufacturer instructions and applicable site requirements. Avoid treating a rack's published equipment capacity as approval for any wall surface. StarTech also calls for professional installation consistent with local safety and building requirements in its product safety guidance.

Agree on the installation responsibility before the order. If an installer needs to prepare the site or coordinate access with the building team, that work affects the deployment schedule even when the rack is available immediately.

The first comparison is about access and enclosure design. Brand selection comes after the operating requirements are clear.

Do not rank these options by appearance alone. Ask the installation team to walk through a switch replacement and a cable addition using the proposed arrangement. A less expensive enclosure can become inconvenient if every minor change requires removing other equipment first.

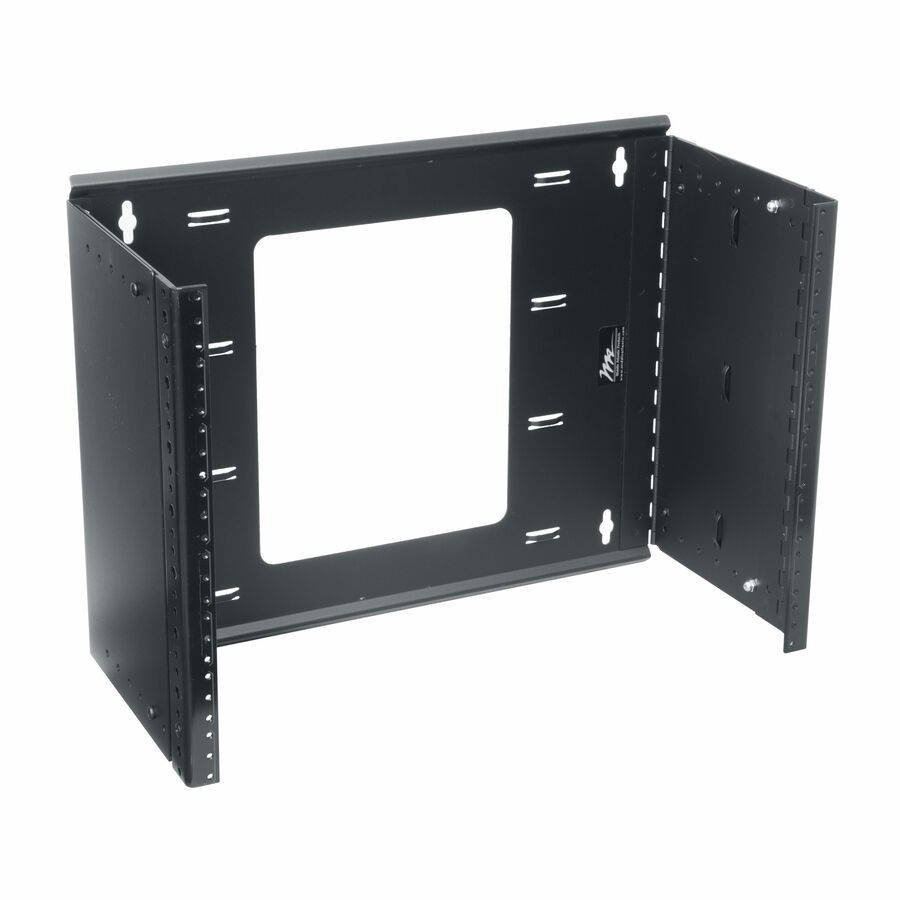

Middle Atlantic's DWR family is a relevant starting point for buyers investigating pivoting wall racks. Legrand's government buying guide identifies DWR-24-26 as a 24-rack-unit model with a listed 26-inch depth. It also describes the DWR center section as reversible and capable of being key-locked and padlocked. Those are specific published details, not a claim that every Middle Atlantic wall rack has the same configuration. Legrand AV buying guide, page 17.

Use the family name to begin research, then move to the exact part number and technical drawing. Ask which depth measurement is being stated, what the usable equipment space is, what access is needed when opened, and which doors or accessories are included.

If you are replacing an existing Middle Atlantic cabinet, provide a photograph of its model label and a list of accessories that must be retained. The same brand name does not establish that a new cabinet will accept every existing component.

Two similar model descriptions can hide a meaningful difference in usable space. StarTech's RK12WALHM is a 12U hinged enclosure with a stated maximum mounting depth of 16 inches and a 90 kg equipment capacity. The RK1224WALHM datasheet describes another 12U hinged enclosure with mounting depth adjustable to 19.7 inches. These are useful examples of why the full SKU matters. RK12WALHM specifications, RK1224WALHM datasheet.

Do not treat those dimensions as a recommendation for a particular switch. Check the equipment's mounting requirements, connector space, airflow, and servicing needs against the selected rack's drawing.

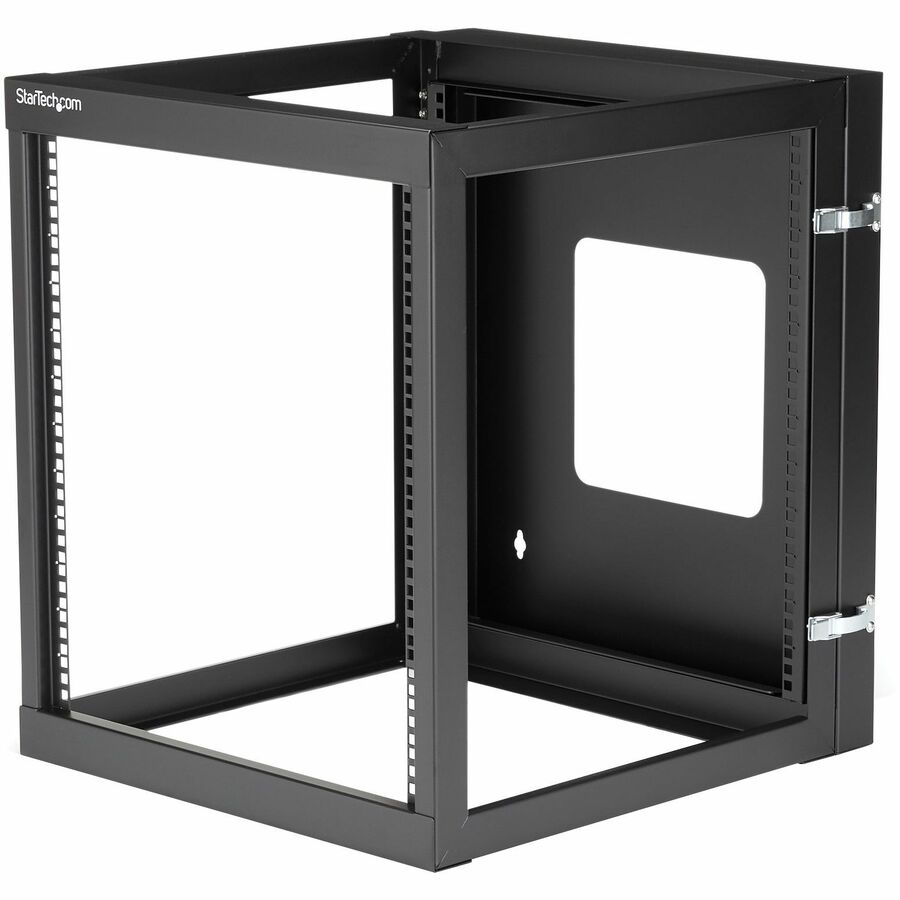

For an open-frame alternative, StarTech's RK1219WALLOH datasheet describes a hinged 12U design with a 19.8-inch maximum mounting depth. That makes it another configuration to evaluate where an enclosure is unnecessary. RK1219WALLOH manufacturer datasheet.

When requesting alternatives, ask the seller to identify functional differences rather than simply returning several “12U wall rack” part numbers. This keeps the comparison focused on whether the installation will work.

Build a list of every item going into the rack. Record its height, depth, weight, mounting method, power connection, and location of network ports. Include small appliances that need shelves, their power supplies, and any mounting adapters.

Next, review the installed arrangement. A front-mounted switch can need space behind it for power cables, while front patching requires room for connectors and cable management. A door that closes over an empty rack may not close over the finished installation.

Fiber connections deserve a specific routing review. Use the cable and equipment documentation to determine appropriate handling and bend limits. Do not assume a cable can be tightly folded simply because the cabinet is shallow.

Reserve space for a defined expansion plan. If another switch is expected next year, identify its likely size and supporting connections now. That is more useful than choosing a larger cabinet without considering how the additional equipment will be powered or serviced.

Equipment weight is only one constraint. A cabinet with enough load capacity may still be a poor choice for devices that require more space around their ventilation openings. Likewise, unused rack units do not mean the electrical supply can support additional equipment.

Ask the technical owner to review the heat and power requirements of the planned configuration. If the location is a small closet, include room conditions in that review. Additional fans, where supported, should be selected as part of a documented cooling approach rather than added as a substitute for understanding the problem.

Keep heavy or unusually deep devices visible in the quote request. A UPS, for example, should not appear as a last-minute addition after the mounting assessment. Give the installer the full equipment list so the site review reflects the intended finished installation.

Imagine a hypothetical public-service branch adding two access switches, patch panels, a small firewall, and supporting power equipment. The buyer initially searches for a compact 12U wall mount network cabinet because floor area is limited.

During review, the network team identifies frequent rear access as a priority. A hinged cabinet becomes a candidate. Photographs then show that the proposed swing direction would conflict with a nearby door, so facilities and the installer evaluate another location before selecting the model.

The equipment list also reveals that the intended shelf and deepest device cannot be evaluated from U height alone. The team asks for the rack drawing and revises the accessory list around verified dimensions.

The successful purchase is the one that resolves those issues before shipment. This example is not a report of an actual customer project; it illustrates how a few early checks can turn a broad product search into a clear specification.

A useful request for rack pricing includes enough detail for the proposed configuration to be reviewed without guessing. Attach a simple equipment list and the site information available to your team.

Ask for current availability by exact SKU. Request an estimated ship date and discuss transit and receiving requirements separately. Accessories can have different availability from the enclosure, so a single overall statement may not describe the complete order.

Before releasing a PO, compare it with the accepted quote and resolve any substitutions. Confirm payment terms directly; an intention to purchase by PO does not establish credit terms. Preserve the final approved equipment and accessory list for receiving and installation.

Explore Uniqcli rack equipment and request a wall rack quote with the model numbers, quantities, site constraints, and required accessories.

If you are comparing Middle Atlantic and StarTech options, identify the requirements that cannot change. A precise request gives your team a better basis for reviewing price, availability, and installation fit together.

Product specifications reviewed September 27, 2026. Confirm the current documentation for the exact quoted part number before ordering.
