Genuine Wilson Electronics through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
462079
Category
Wireless Signal Boosters
Overview
The WilsonPro IoT MIMO 2x2 is a Direct Connect solution for amplifying cellular network equipment with MIMO (multiple input/multiple output) capability, such as a cellular "hotspot" (ex. 'Cradlepoint' Device or similar), and other high data-rate applications. IoT MIMO is "carrier agnostic" and pre-approved by all major cellular carriers under FCC "part 20" rules. No additional carrier or FCC approvals are required.
Dual amplification paths and included MIMO antennas are ideal for achieving maximum available data-rates from your MIMO capable cellular devices.
The IoT MIMO's compact form factor is ideal for custom-designed IoT communication systems built within tightly constrained spaces. FCC certified, the IoT MIMO allows OEMs to source a compact, powerful, and highly compatible cell signal amplifier that comes ready to deploy. In locations where cellular connectivity is adversely affected by distance to cell towers, terrain obstructions, or building materials (like concrete and steel), the IoT MIMO is a proven go-to solution
Highlights
Links with data modems/routers as a direct-connect amplifier with 2x2 MIMO for higher data throughput.
Enhances connectivity for ATMs, PoS terminals, & more even in weak signal environments.
Power over coax allows flexible installation for optimal performance.
Passive RF bypass failover keeps data modem online even if the amplifier loses power.
Compact design ensures easy deployment in tight spaces.
Compatible with all U.S. carrier networks, including AT&T, Verizon, & T-Mobile.
Specifications
General Information
Manufacturer
Wilson Electronics
Manufacturer Part Number
462079
Brand Name
WilsonPro
Product Line
Pro IoT 5-Band
Product Model
462079
Product Name
Pro IoT 5-Band 462079 Cellular Phone Signal Booster
Packaged Quantity
1
Product Type
Cellular Phone Signal Booster
Physical Characteristics
Mount Type
Rack Mountable
Height
1.4"
Width
5.4"
Depth
4.2"
Weight (Approximate)
1.58 lb
Technical Information
Maximum Gain
15 dB
Miscellaneous

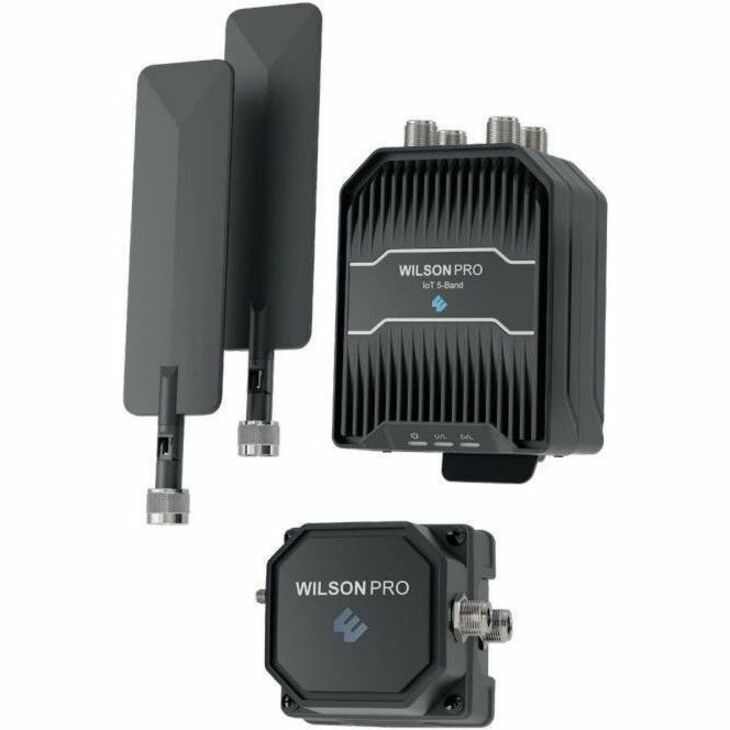

Package Contents
Pro IoT 5-Band 462079 Cellular Phone Signal Booster
Wall Mount Bracket
2 x External Hinged Antennas
Power Over Coax Units & Bracket
20' Conjoined N to N Cable & (2) 1' SMA to SMA Cables
