SKU
475079
Category
Wireless Signal Boosters
Overview

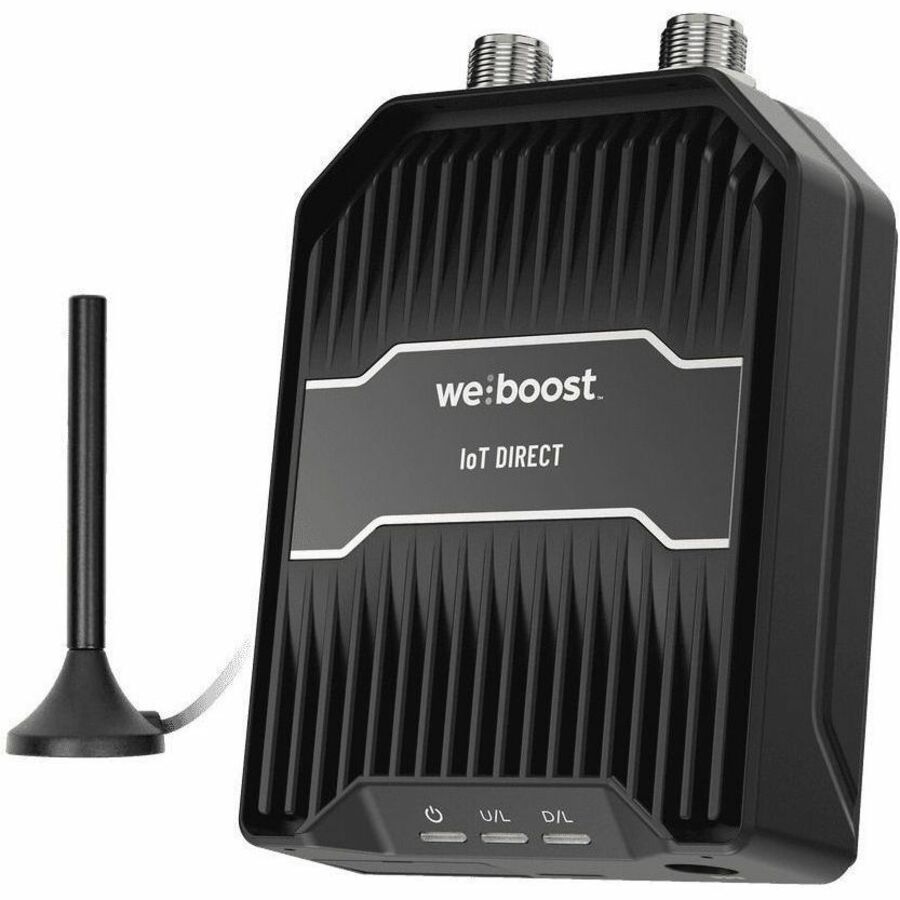

The IoT Direct is a "Direct-Connect" solution for cellular network capable equipment and IoT devices. Compatible with all U.S. carrier networks, the IoT Direct connects directly with cellular modems and provides strong, reliable cell signal to guarantee successful IoT data transfer. The 12V AC/DC power supply is ideal for ATMs, vending machines, or movie-rental kiosks with access to AC power outlets. The included MCX/ MMCX cables are provided to interface with cellular-based home or business security systems if necessary.
The IoT Direct compact form factor is ideal for custom-designed IoT communication systems built within tightly constrained spaces. FCC certified, the IoT Direct allows OEMs to source a compact, powerful, and highly compatible cell signal amplifier that comes ready to deploy. In locations where cellular connectivity is adversely affected by distance to cell towers, terrain obstructions, or building materials (like concrete and steel), the IoT Direct is a proven go-to solution.
Warranty
Limited Warranty: 2 Year
Highlights
Designed to link with a data modem as a direct-connect amplifier.
Improves overall cellular connectivity in weak signal environments.
Configurable to almost any Internet of Things (IoT) installation.
Pre-approved by all major cell carriers under FCC "part 20" rules.
Passive RF bypass failover keeps modem going if power is lost.
Auto-power control to help ensure maximum signal output.
Specifications
General Information
Manufacturer
Wilson Electronics
Manufacturer Part Number
475079
Brand Name
WeBoost
Product Model
460079
Product Name
475079 Cellular Phone Signal Booster
Packaged Quantity
1 Box
Product Type
Cellular Phone Signal Booster
Physical Characteristics
Height
1.4"
Width
4.2"
Depth
5.4"
Weight (Approximate)
1.58 lb
Technical Information
Maximum Gain
15 dB
Warranty
Limited Warranty
2 Year
Interfaces/Ports
RF Connector Type
N-Type
Miscellaneous
Package Contents
475079 Cellular Phone Signal Booster
IoT Direct Amplifier & Wall Mount Bracket
Mini Mag Antenna, N Male to SMA Female Adapter & Adhesive Pad
2 ft. SMA to N Male Cable, 1 ft. SMA to MMCX Cable & 1 ft. SMA to MCX Cable
