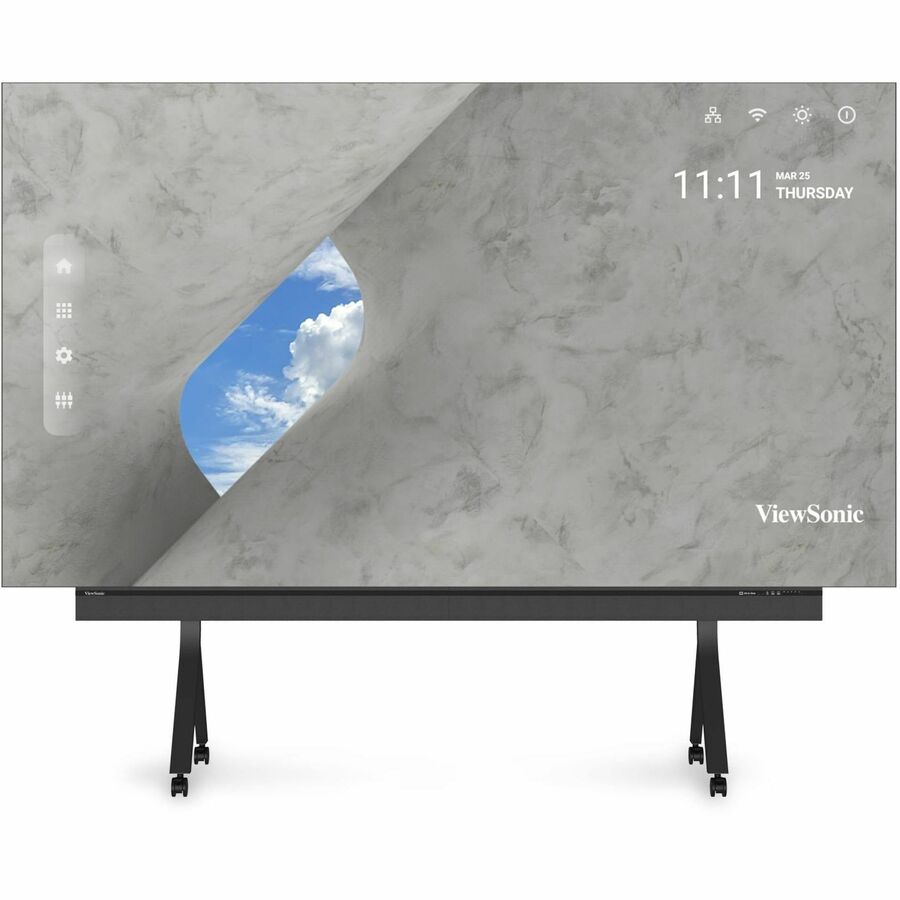

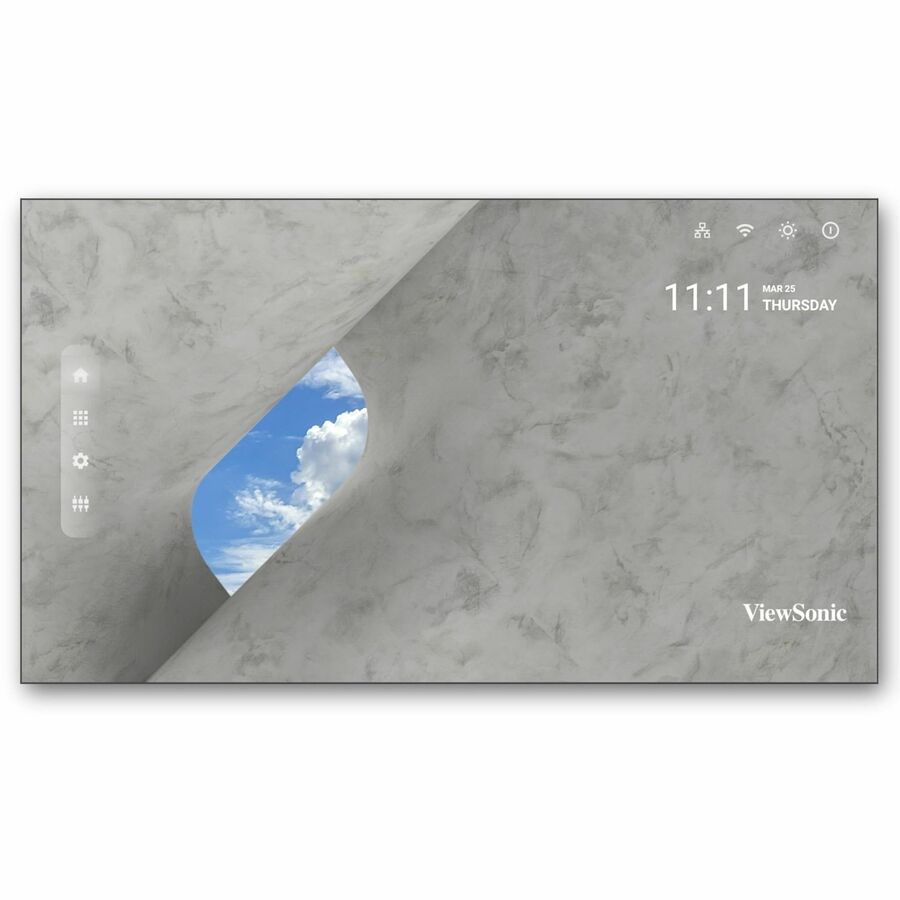

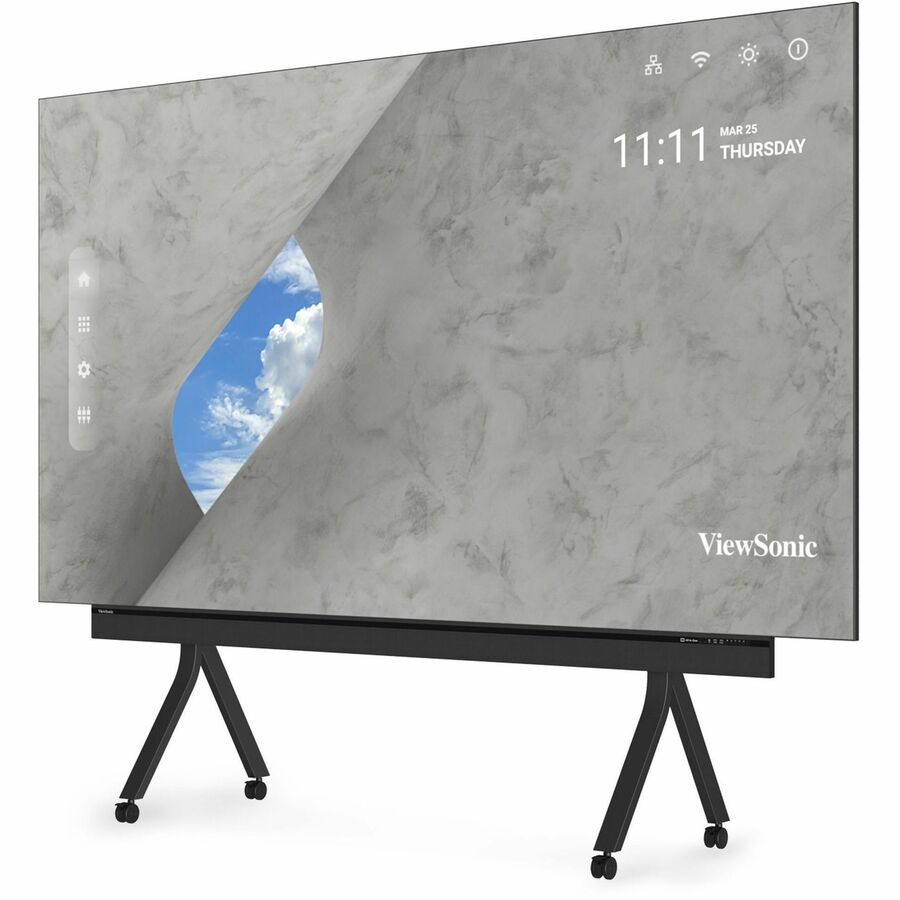

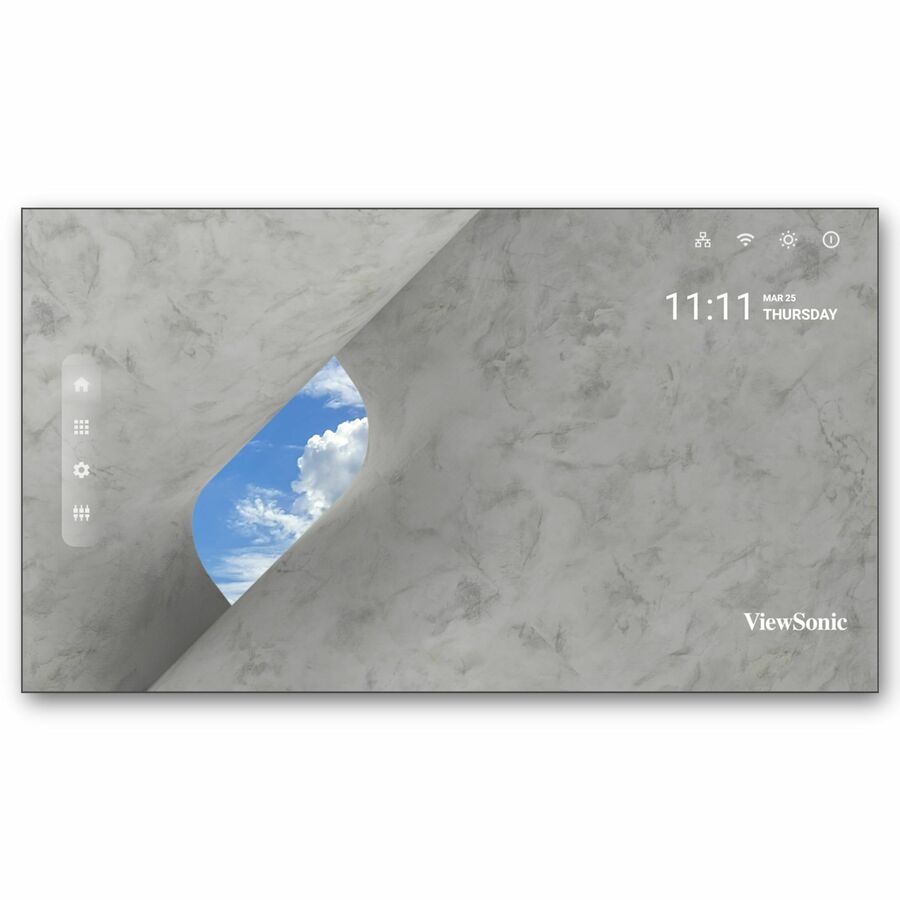

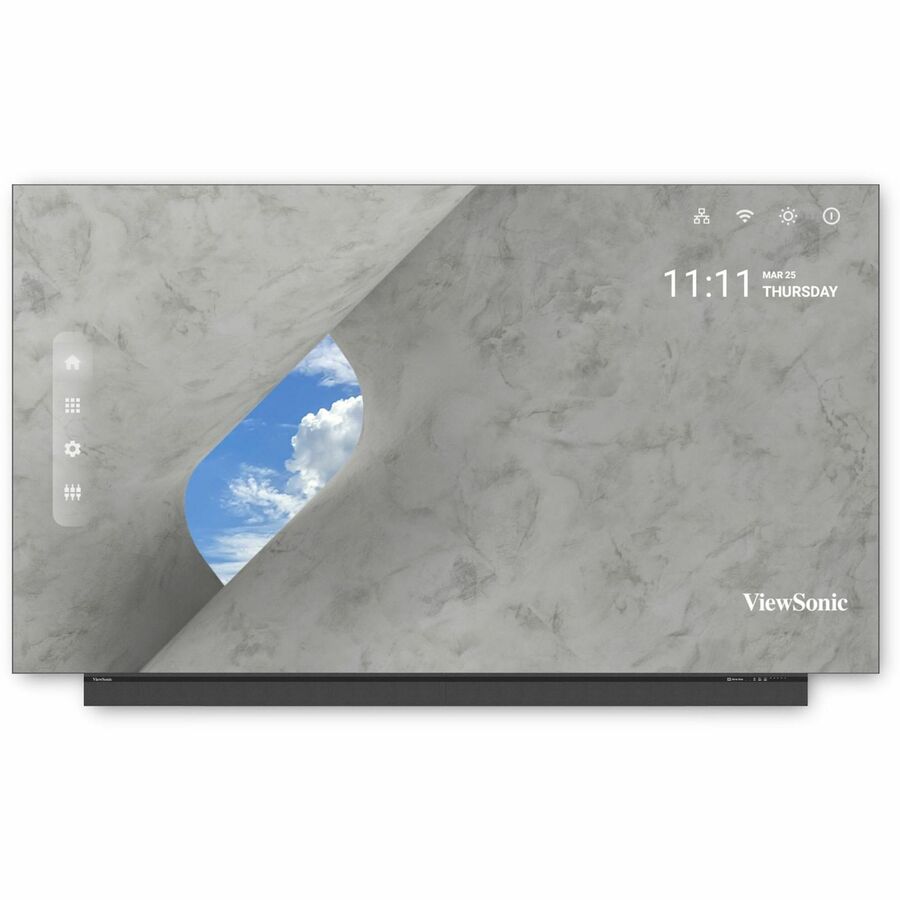

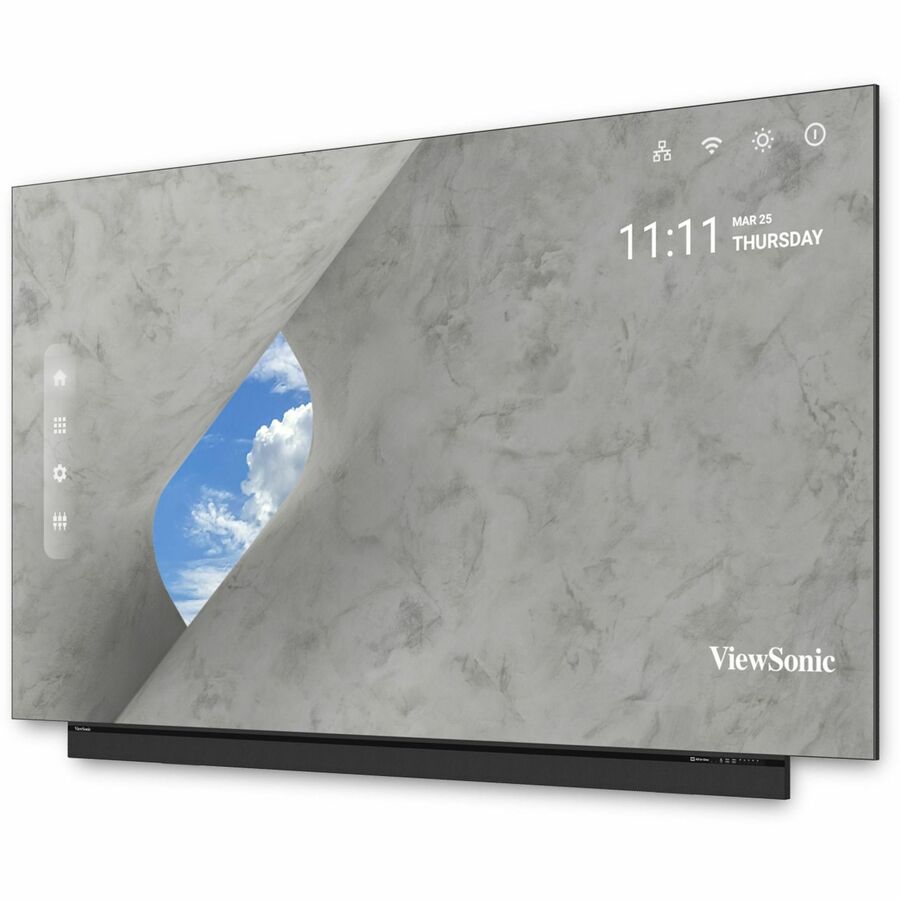

ViewSonic LDP163-091C 163" 4K All-In-One Direct View LED Displays
ViewSonic

ViewSonic LDP163-091C 163" 4K All-In-One Direct View LED Displays

13.58 ft LCD - Rockchip RK3399 - 4 GB DDR4 SDRAM - 3840 x 2160 - 16:9 - Direct View LED - 600 Nit - 2160p - HDMI - USB - Serial - Wireless LAN - Ethernet - Android 9.0 Pie

SKU
LDP163-091C
Category
Digital Signage Systems

MSRP$169,999.00

$117,494.80

Save 31%

In stock: 14

Get a quote

Genuine ViewSonic through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LDP163-091C
Category
Digital Signage Systems

Overview

Part of the ViewSonic® LDP Performance Series, the ViewSonic® LDP163-091C all-in-one Direct View LED display delivers the same easy installation and accessibility found in our acclaimed LDM series, but takes visuals to the next level with breathtaking 4K Ultra HD resolution and advanced Chip-on-Board (COB) technology. Built to be a stunning centerpiece in any high-end lobby, boardroom, or auditorium, this 163" Direct View LED display delivers stunning, larger-than-life images. As a true all-in-one solution, the LDP163-091C includes the display, controller, and all components in a single part number, making specification, purchasing, and setup incredibly simple. With a high brightness of 600 nits, an incredible 10,000:1 contrast ratio, and powerful dual 30W speakers, this display provides vibrant, high-impact visuals and immersive sound for an exceptional viewing experience.

More from the Manufacturer

Highlights

  • STUNNING 4K UHD RESOLUTION: 4K clarity, vibrant colors, and sharp visuals in any lighting environment.
  • DURABLE COB TECHNOLOGY: Tight pixel pitch, IP54 dust/moisture resistance, and IK08 impact protection.
  • ALL IN ONE INTEGRATION: Built in power, control, and image systems for quick, simple installation.
  • FLEXIBLE CONTROL BAR PLACEMENT: Detachable control bar can be mounted separately (up to 30 ft away) or hidden behind the dvLED with optional accessory kits.
  • EASY FRONT SERVICEABILITY: Front serviceable LED modules allow for fast maintenance with included suction tool.

Specifications

Additional Warranty Information3-year limited warranty on parts and labor on-site service
Application/UsageCommercial, Lobby, Boardroom, Auditorium
Aspect Ratio16:9
Package Contents
  • Preconfigured 4K All-In-One dvLED Displays
  • Power Cord
  • LAN Cable
  • IR Extender Cable
  • Remote Control
  • Installation Guide
  • Wall Mount
Product TypeDigital Signage Display
Input Voltage120 V AC
Manufacturer Part NumberLDP163-091C
Display Resolution3840 x 2160
Limited Warranty3 Year
Standard Memory4 GB
Weight (Approximate)511.47 lb
Brightness600 Nit
Operating SystemAndroid 9.0 Pie
ManufacturerViewSonic Corporation
Product ModelLDP163-091C
Product NamePreconfigured 4K All-In-One dvLED Displays
Mount TypeWall Mountable
Product SeriesLDP
Viewable Screen Size13.58 ft
Brand NameViewSonic
Memory TechnologyDDR4 SDRAM
Processor ModelRK3399
Country of OriginChina
Height85.5"
Width11.9 ft
Depth1.6"
Number of Screens1
Scan Format2160p
Processor ManufacturerRockchip
Graphics Controller ManufacturerARM
Graphics Controller ModelMali-T860MP4
EthernetYes
Wireless LANYes
Display Screen TypeLCD
USBYes
HDMIYes
Backlight TechnologyDirect View LED
Native Contrast Ratio10,000:1
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Number of Network (RJ-45) Ports3
Number of HDMI Inputs4
Number of HDMI Outputs1
Number of USB 2.0 Ports2
Number of USB 3.0 Ports1
SerialYes
Number of Audio Line Out2
TAA CompliantNo
Energy StarNo
Color Gamut120% Rec. 709
Screen Size Class13.58 ft
Ingress Protection (IP) RatingIP54
Impact Protection (IK) RatingIK08
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Maximum LED Life11.4 Year
Number of HDMI 2.0 Ports5
Mount SurfaceWall
