Fiber Optic Cable Testing, Tone Detection, Broadband Tester - 1 x USB - Optical Fiber - 2Number of Batteries Supported - AA - No - Battery Included - Battery Rechargeable - Alkaline, Nickel Metal Hydride (NiMH)
MSRP$665.00
$631.12
Save 5%Special order — estimated available by September 10, 2026.
Genuine Viavi Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

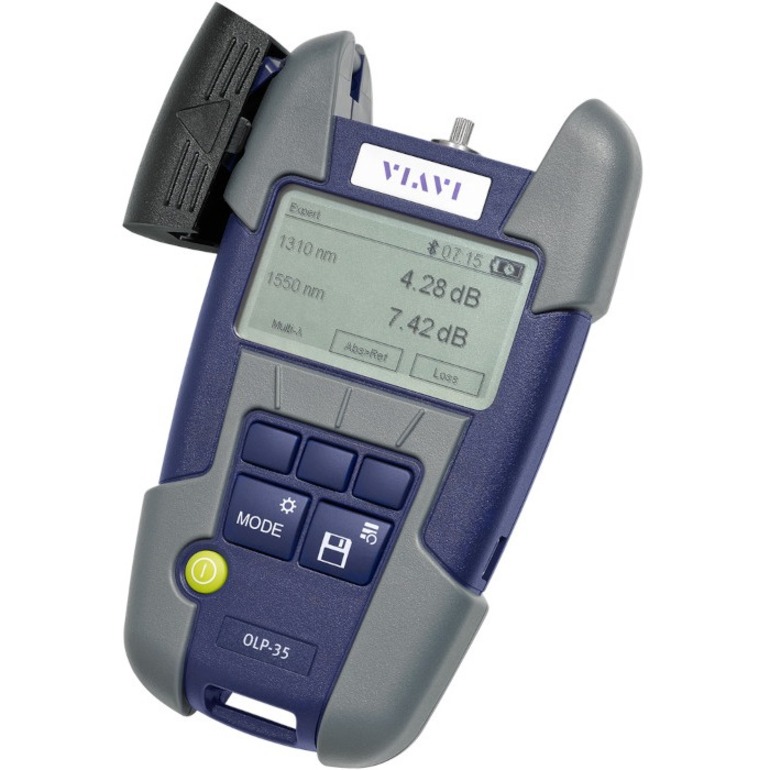

VIAVI Solutions new OLP-3xV2 Broadband Power Meters quickly, easily, and conveniently measure optical power levels and loss in fiber networks and fit perfectly in your pocket. Easy-to-use for technicians at any skill level SmartPocket V2 Broadband Power Meters (PM) complement VIAVI optical light sources (OLS) for insertion loss and continuity testing in both multimode and single-mode networks in all environments. They offer a dedicated and costoptimized solution for testing and troubleshooting fiber in the field. The smart and rugged OLP-3xV2 also includes unprecedented data storage capacity supported by result downloads to a PC or upload to the cloud.
Features and benefits | Ultra-reliable German design
Built for rugged, outdoor use Still fits in your pocket!
Improved protection cap
can be fully opened
Huge storage capacity
> 1000 test results
Softkey flexibility | Multiple power options (4-way)
2x Alkaline AA, 2x NiMH AA rechargeable, AC power adapter, USB
Bluetooth low energy connectivity
to the VIAVI Mobile Tech App
New high-visibility graphical display
with backlight
Innovative low-power design
exceptionally long battery life over 45 hrs. continuous operation
USB-C interface
powering, offload of results, connection to PC
Products:
• The OLP-35V2 is the optimal device for standard telecommunication networks and multimode or single mode applications
• The OLP-35SC provides the same capabilities as the OLP-35V2 and comes with a fixed SC adapter
• The OLP-38V2 is a higher-power (up to +26 dBm) version for CATV HFC (with analog RF transmission) or amplified DWDM systems applications
Instant On - Easy to use - Good to go in no time
Instant on means SmartPocket V2 is ready as soon as you are, no waiting for an instrument to boot up, it's there the instant you need it. A high visibility back-lit display makes SmartPocket V2 usable in all lighting conditions indoors and outdoors, and combined with the super simple user navigation plus universal optical connector test port with OptiChek mode means you can close out more jobs per day.
OptiChek Mode
A broadband power meter that does not require wavelength configuration! Ideal for situations where you do not know the exact service wavelength in use or for a basic quick check to determine if a fiber is lit and power level is in the predicted/expected range. Just turn it on, connect, and take the measurement.
| Battery Information | |
|---|---|
| Number of Batteries Supported | 2 |
| Battery Size Supported | AA |
| Built-in Battery | No |
| Battery Included | Yes |
| Battery Rechargeable | Yes |
| Battery Chemistry | Alkaline, Nickel Metal Hydride (NiMH) |
| General Information | |
| Manufacturer | Viavi Solutions Inc |
| Manufacturer Part Number | OLP-35V2 |
| Brand Name | Viavi |
| Product Line | SmartPocket V2 |
| Product Series | OLP-3xV2 |
| Product Name | Broadband Power Meter with UPP 2.5mm Mounted |
| Product Type | Fiber Optic Power Meter |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Height | 1.2" |
| Width | 3.1" |
| Depth | 5.9" |
| Weight (Approximate) | 7.05 oz |
| Power Description | |
| Input Voltage | 1.5 V DC, 1.2 V DC |
| Technical Information | |
| Device Function | Fiber Optic Cable Testing, Tone Detection, Broadband Tester |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
