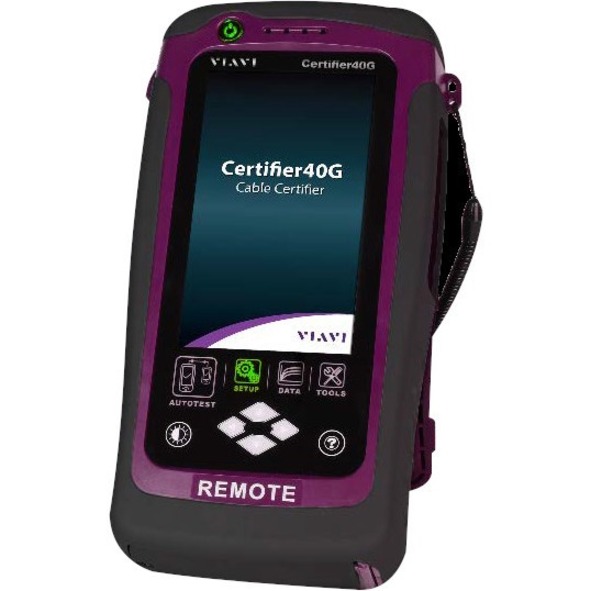

Viavi Certifier40G Cable Analyzer

Data consumption has exploded in the past few years and enterprise network owners are scrambling to meet the demanding requirements of 40 G and beyond to serve their buildings, data centers, and campuses. New technologies are driving change in every aspect of enterprise networks- new industry standards, new topologies, new types of connectivity, new test methods, and certainly new challenges for designers and technicians. Everything in the enterprise is new!

The VIAVI Solutions Certifier is the world's most comprehensive solution for enterprise network certification. Available in 2 models-the Certifier40G can test both copper and fiber cabling types to ensure network performance for all current and future cabling standards, and the Certifier10G-a cost-effective solution for testing and certifying copper up to Category 6A.

Drive User Efficiency

The Certifier40G is not only the most advanced solution available, it is also the fastest and most complete. Whether certifying copper or fiber, users will get the job done right and on time...the first time!

• The industry's fastest CAT6A solution can certify each cable within 9 seconds, saving users 30 minutes each time they test 150 CAT6A cables

• Tier 1 certification of multimode and single-mode fiber in less than 6 seconds

• Automate pass/fail end-face analysis for all fiber types

• Gain complete test visibility at both local and remote ends

• Pre-configured with all leading manufacturer's cabling specifications

Category-8-Ready Certification

Copper cabling systems are rapidly evolving to support new enterprise. With recent released standards* from IEEE, TIA, and IEEE, the need to test cabling systems to beyond 2000 MHz is on the horizon. With the ability to already test up to 2,500 MHz, the VIAVI Certifier40G is ready for these new standards. The VIAVI Certifier40G has been ETL verified to ANSI/TIA-1152 Level IIIe, IEC 61935-1 Levels IIIe and IV, and Level V draft accuracy specifications.

The current IEC 61935-1 proposed Level V draft accuracy standard addressed the needs up to Class FA (1000 MHz). The VIAVI Certifier40G is accurate beyond 2000 MHz and, therefore, will support the latest standards being developed to protect your investment.
