Vertiv Liebert ITA2 MBC Maintenance Bypass switch (rack/external) 10kVA - 208/120VAC (220/127VAC) - 3-phase 4 Wire |with cables (ITA2-08KMBC6USL4)
Vertiv

Vertiv Liebert ITA2 MBC Maintenance Bypass switch (rack/external) 10kVA - 208/120VAC (220/127VAC) - 3-phase 4 Wire |with cables (ITA2-08KMBC6USL4)

Rack-mountable/external | compatible with all PD3-xxx PODs - Includes interconnect cables

SKU
ITA2-10KMBC6USL5
Category
Transfer Switches

MSRP$3,275.00

$2,200.80

Save 33%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
ITA2-10KMBC6USL5
Category
Transfer Switches

Overview

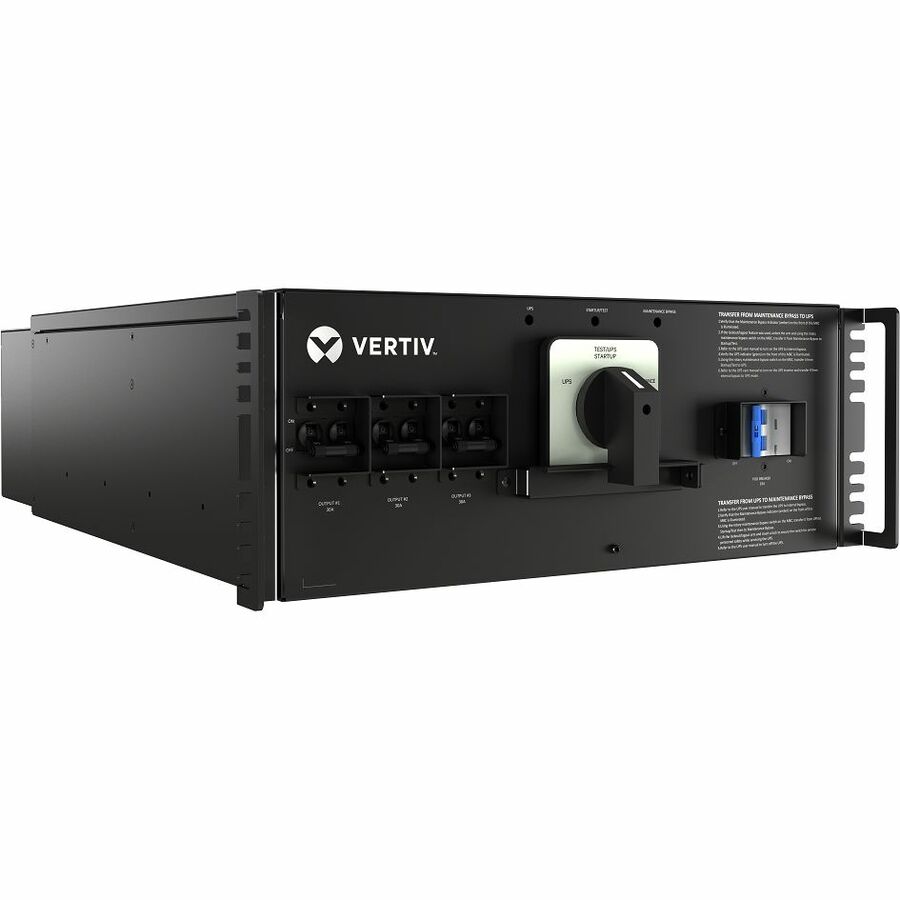

The rack-mount Vertiv Liebert ITA2 MBC provides maximum system availability to business-critical equipment by allowing transfer of connected equipment to an alternate power path allowing full isolation of the UPS for maintenance. The Liebert ITA2 MBC is designed to be used with the Liebert ITA2 10kVA UPS model. The Liebert ITA2 MBC includes input and output circuit breakers, manual maintenance bypass breaker (make-before-break), two integral distribution POD ports, rack-mount rail kit and securing flanges (handles). The Liebert ITA2 MBC has a 2-year warranty. This bundle comes with cable kits that are of adequate length for hard-wired connections for ease of installation and servicing. The Liebert ITA2 Cable Kit P/N: ITA2-10KMBCSL5 contains (3) cords 3 ft. (914mm) provided with ring lugs for hard wiring. This cable kit is designed to be used between the 10kVA UPS and external MBC for a single or dual input system. All cords are three-phase 4W+G.

More from the Manufacturer

Total Protection

Protect critical IT systems from all key electrical threats. The Vertiv Liebert ITA2 is a double conversion UPS that offer clean and consistent power.

Flexible and Scalable

To meet your needs, options are available to address specific runtimes, distribution, and availability requirements.

Optional lithium batteries

Compared to lead acid batteries, the Lithium-Ion batteries in Vertiv Liebert MPL EBC provide better features like lower TCO and longer life span.

Compact and Powerful

Built with a high-power factor in a small footprint, this UPS has more usable power to meet the needs of advanced IT operations.

ITA2-08KRT208C

Product Type: Online Double Conversion

Battery Characteristic: VRLA, User Replaceable, Hot Swappable

Rack Height: 3U

Height (inches): 5.1

Width (inches): 16.9

Depth (inches): 19.7

Weight (lbs): 50.7

Environmental Certification: RoHS2 (6 by 6)

REACH /WEEE Compliant

Energy Star 2.0

Warranty: 2-year standard; 1 & 3 Additional years optional

ITA2-10KRT208C

Product Type: Online Double Conversion

Battery Characteristic: VRLA, User Replaceable, Hot Swappable

Rack Height: 3U

Height (inches): 5.1

Width (inches): 16.9

Depth (inches): 19.7

Weight (lbs): 50.7

Environmental Certification: RoHS2 (6 by 6)

REACH /WEEE Compliant

Energy Star 2.0

Warranty: 2-year standard; 1 & 3 Additional years optional

ITA2-BCI0020K02

Product Type: VRLA External Battery Cabinet

Battery Characteristic: VRLA, User Replaceable, Hot Swappable

Rack Height: 2 x 2U per string (4U total per string)

Height (inches): 3.4

Width (inches): 16.9

Depth (inches): 19.7

Weight (lbs): 115 each cabinet (230 total per string)

Environmental Certification:

RoHS2 (6 by 6)

REACH / WEEE Compliant

Warranty: 2-year standard; 1 & 3 Additional years optional

ITA2-BCI0020KL1

Product Type: Li-Ion External Battery Cabinet

Battery Characteristic:

Li-Ion, User Replaceable, Hot Swappable

Rack Height: 2 x 1U per string (2U total per string)

Height (inches): 1.7

Width (inches): 16.9

Depth (inches): 29.5

Weight (lbs): 50 each cabinet (100 per string)

Environmental Certification:

RoHS2 (6 by 6)

REACH / WEEE Compliant

Warranty: 5-year standard

ITA2-BCI0020KL2

Product Type: Li-Ion External Battery Cabinet

Battery Characteristic:

Li-Ion, User Replaceable, Hot Swappable

Rack Height: 2 x 2U per string (4U total per string)

Height (inches): 3.4

Width (inches): 16.9

Depth (inches): 26.8

Weight (lbs): 77 each cabinet (154 per string)

Environmental Certification:

RoHS2 (6 by 6)

REACH / WEEE Compliant

Warranty: 5-year standard

Warranty

Additional Warranty Information: 2 year standard; 1 & 3 Additonal years optional <br /> Limited Warranty: 2 Year

About Vertiv

Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity​ As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!​

Highlights

  • Reliable 3-phase power protection for critical systems
  • Online Double Conversion UPS Technology
  • High operating efficiency (>93% in double conversion mode, 99% in eco mode)
  • Advanced battery monitoring
  • 0.9 Output Power Factor rating, Energy Star 2.0 certification

Specifications

Additional Warranty Information2 year standard; 1 & 3 Additonal years optional
Package Contents
  • ITA2 Bypass Cabinet
  • MBC to UPS Connection Cables
Product TypeBypass Cabinet
CompatibilityLiebert ITA2 Three Phase UPS
Input Voltage230 V AC, 120 V AC
Manufacturer Part NumberITA2-10KMBC6USL5
Limited Warranty2 Year
Output Voltage208 V AC, 120 V AC, 220 V AC, 127 V AC
Weight (Approximate)40 lb
Form FactorTower/Rack-mountable
ManufacturerVertiv
Product NameITA2 Bypass Cabinet
Protection TypeTransient, Overload, EMI / RFI, Under Voltage, AC Surge, Harmonics, Brownout, Over Temperature, Short Circuit, Output Over Voltage, AC Noise, No Load
Product SeriesITA2
ReceptaclesHardwired
Rack Height6U
Brand NameVertiv Liebert
Country of OriginChina
Height10.3"
Width16.9"
Depth22.4"
Environmentally FriendlyYes
Load Capacity (VA)10 kW
TAA CompliantNo
Energy StarYes
Product ColorBlack, Gray
Color FamilyDual Color
Energy Efficiency CertificationENERGY STAR 2.0
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
