Tripp Lite series Bypass Panel
Eaton

Tripp Lite series Bypass Panel

2 x NEMA L6-30R, 2 x NEMA L6-20R, 1 x Hardwired - 6000 W - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 25 A

SKU
SUPDMBP6K
Category
Transfer Switches

MSRP$880.26

$555.95

Save 37%

In stock: 338

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SUPDMBP6K
Category
Transfer Switches

Overview

Compatible with Select 5kVA/6kVA SmartOnline UPS Systems

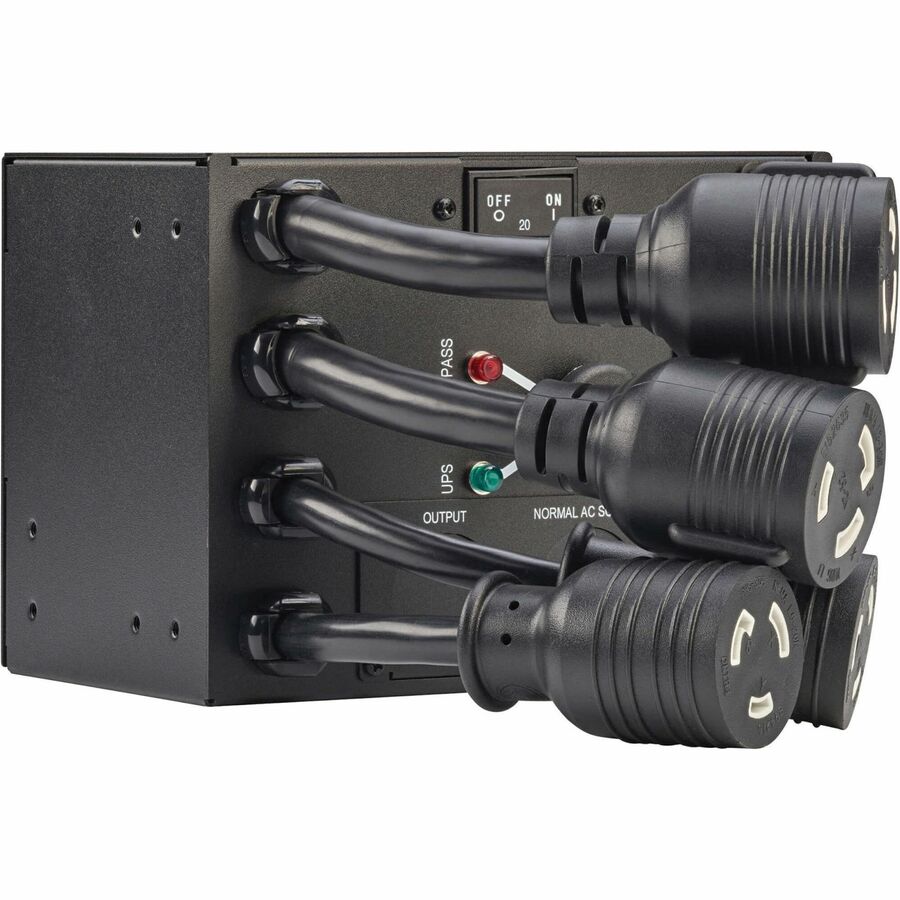

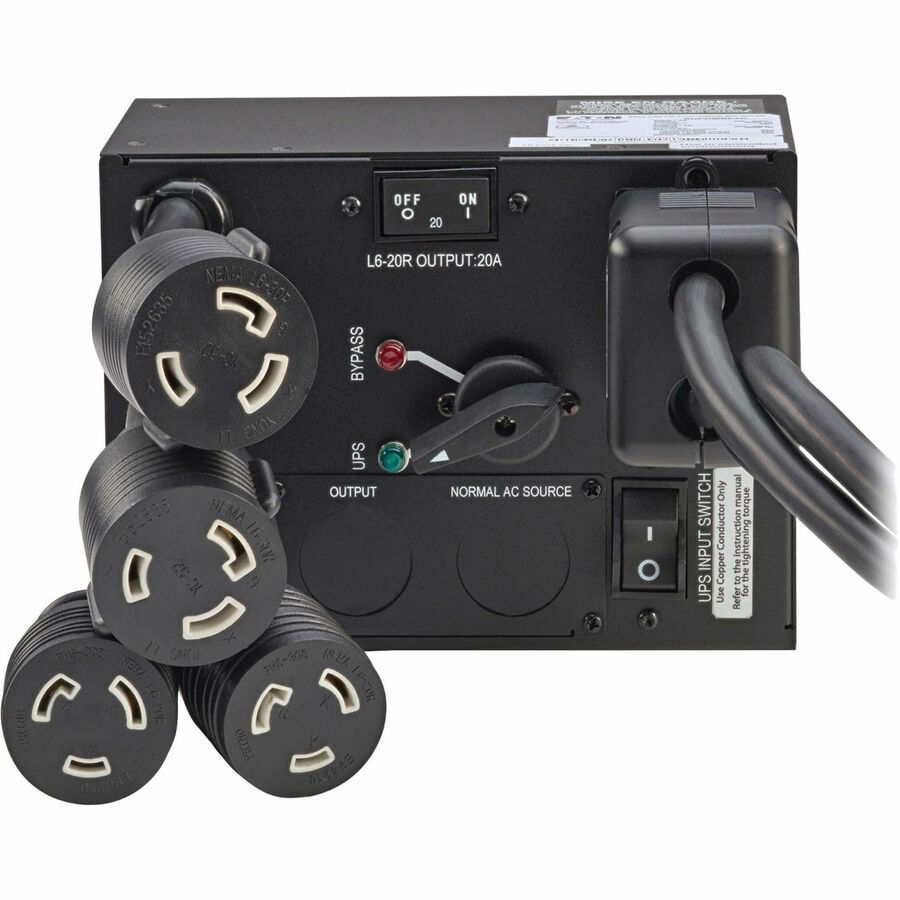

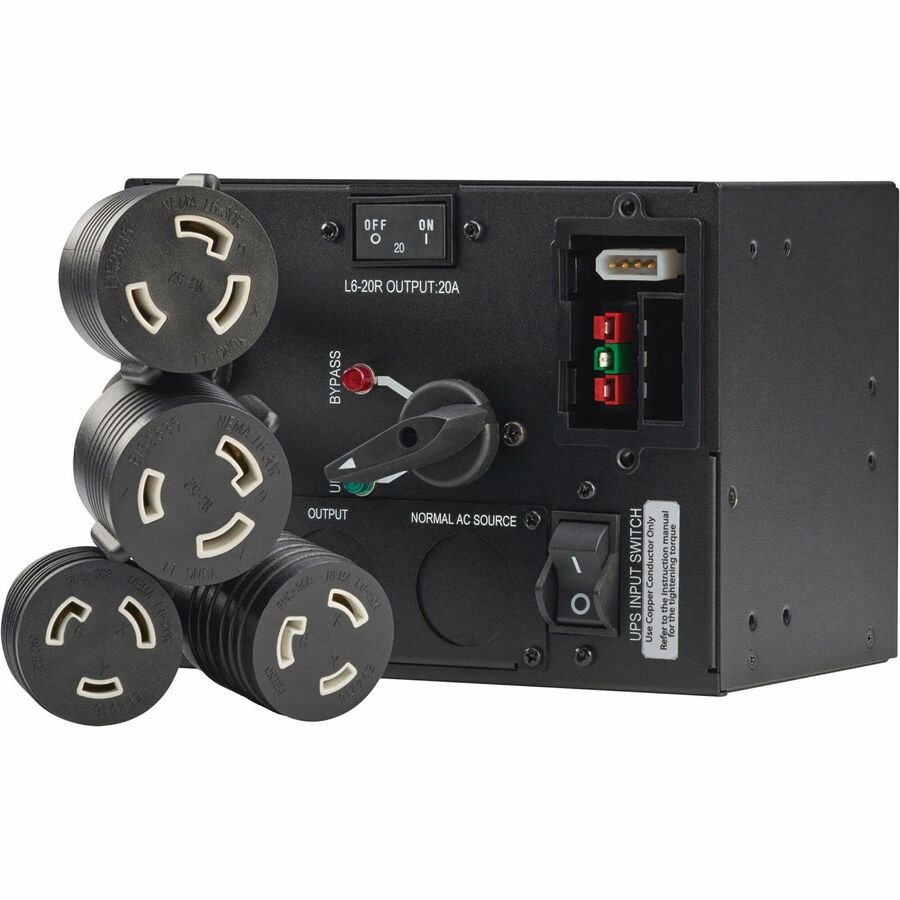

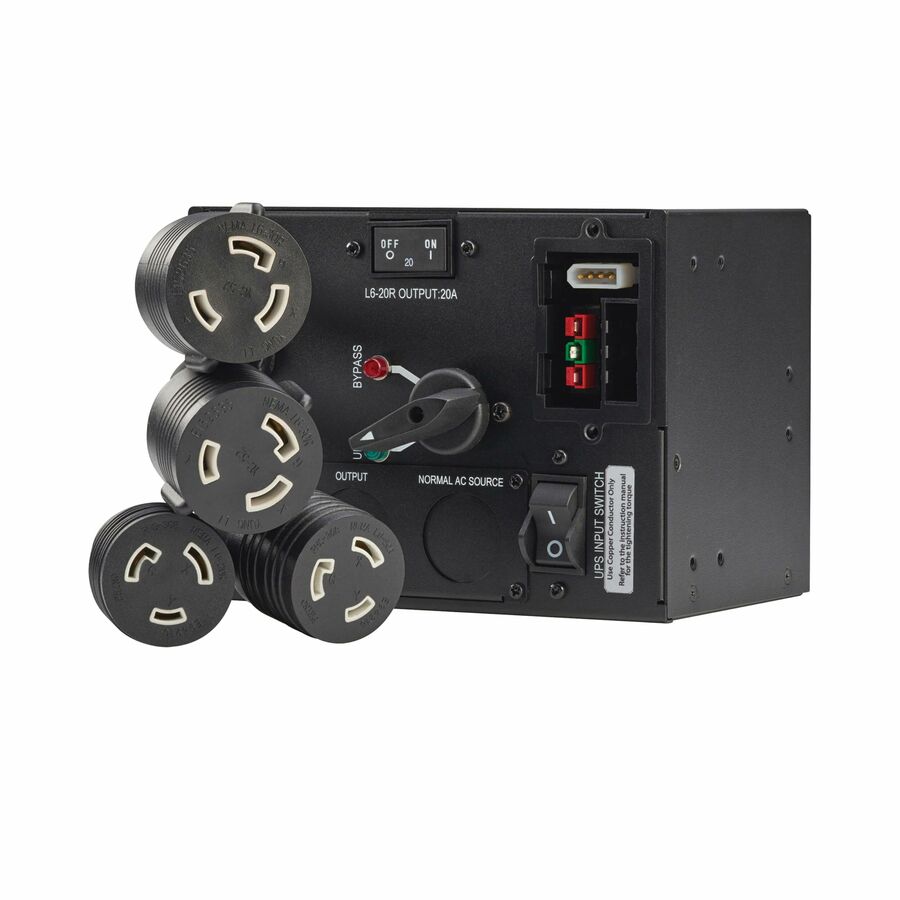

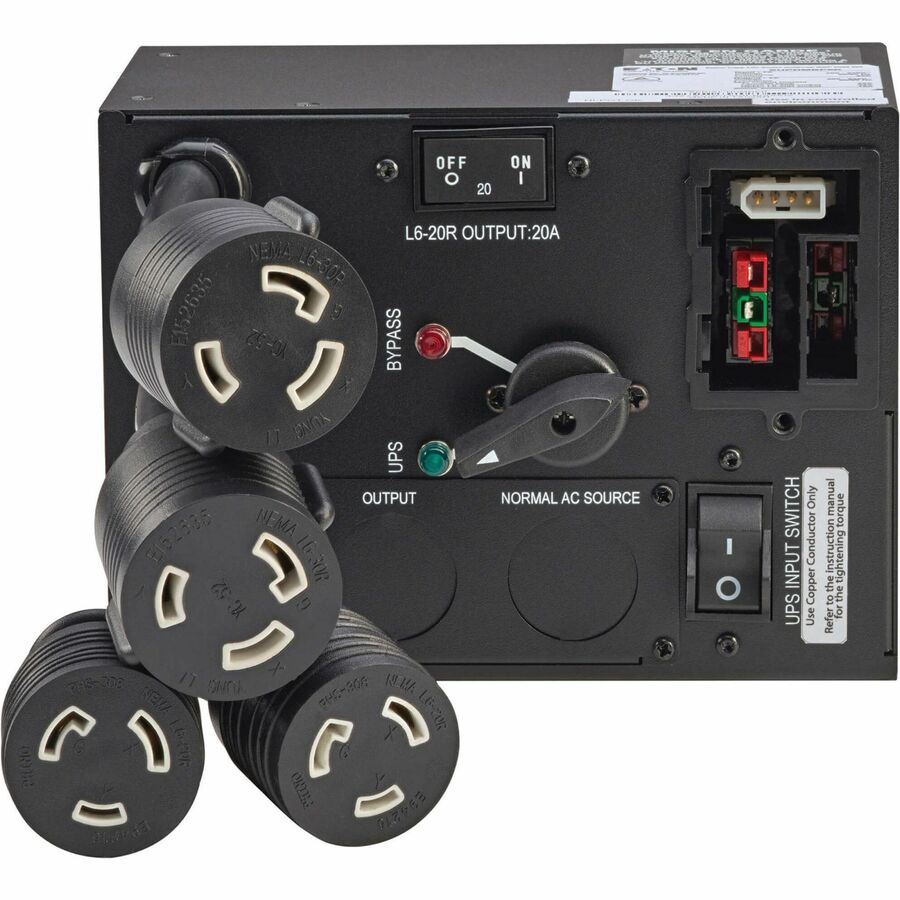

The SUPDMBP6K works with the SmartOnline® SU5000RT, SU5000RTF, SU6000RT and SU6000RTF UPS systems (it comes included with the SU5000RTMB, SU6000RTMB, SU5000RTFMB and SU6000RTFMB). The bypass switch transfers the load to utility power in case of an overload or internal fault in the UPS. This allows you to service or replace the UPS without powering down any connected equipment or risking costly downtime. Two NEMA L6-20R and two NEMA L6-30R dongle outlets allow load connection. The SUPDMBP6K supports 0U mounting to save space and increase airflow in a crowded rack enclosure. AC input connection options include a terminal block for hardwire input/output or use of a NEMA L6-30P cord (10-foot cord included with compatible UPS models).

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Isolates UPS from connected loads for maintenance without powering down equipment
  • Designed for 0U mounting to save space and increase airflow in a crowded rack
  • Compatible with SmartOnline SU5000RT and SU6000RT Series UPS systems
  • 2-year limited warranty

Specifications

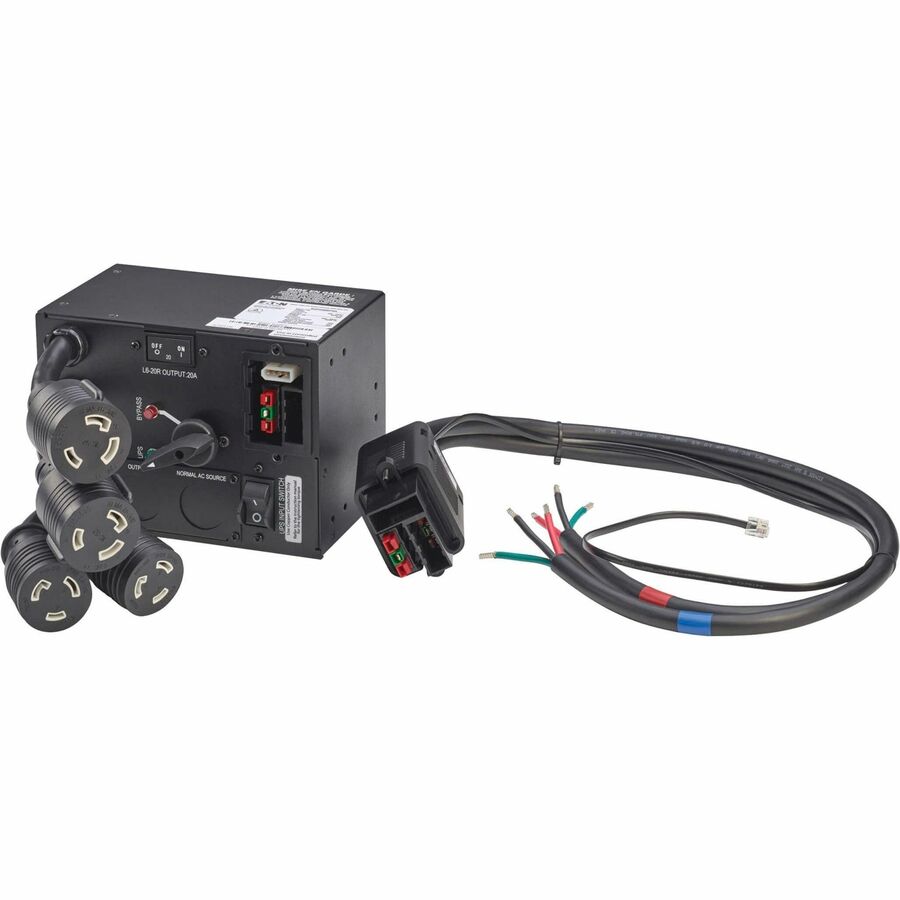

Package Contents
  • Bypass Panel
  • Input/output UPS Cable Set
  • 2 x Cable glands
  • Mounting Hardware
  • Quick Start Guide
Product TypeBypass Panel
CompatibilityTripp Lite SmartOnline Series UPS Systems: SU5000RT SU5000RTF SU6000RT SU6000RTF
Input Voltage200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Manufacturer Part NumberSUPDMBP6K
Limited Warranty2 Year
Weight (Approximate)12.15 lb
Current25 A
Form FactorRackmount/Tower/Wall-mountable
ManufacturerEaton Corporation
Product NameBypass Panel
Receptacles2 x NEMA L6-30R, 2 x NEMA L6-20R, 1 x Hardwired
Rack Height0U
Brand NameTripp Lite series
Plug/Connector TypeNEMA L6-30P, Hardwired
Country of OriginTaiwan
Height5.1"
Width466.7 ft
Depth7"
Environmentally FriendlyYes
Load Capacity (VA)6000 W
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
