Single-phase UPS | 1.0 Output Power Factor | Lowest TCO | Optional RDU120 Card| full-color LCD Interface| 5-Year Warranty | with (6) NEMA 5-15R Outlets, IntelliSlot, and Extended Runtime Capability
MSRP$2,917.00
$1,890.22
Save 35%In stock: 21
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment. More from the Manufacturer
Rack/Tower Online UPS from 1000VA to 3000VA
The Vertiv Liebert GXT5 Lithium-Ion UPS provides the highest level of power conditioning and power protection for critical IT systems in edge and distributed IT applications. Lithium-Ion batteries provide up to 3x the useful life of VLRA batteries, resulting in up to 50% TCO savings. They are environmentally friendly with fewer battery replacements, which means less waste
, battery disposals and recycling. They are smaller, lighter, and are more resilient to higher temperatures making this the perfect UPS for Edge and Distributed IT deployments. Add an optional Liebert IntelliSlot RDU101 communication card to enable secure remote monitoring and management with Vertiv Power Insight.
This UPS includes:
5-year advanced replacement warranty including batteries
4-post rack kit, and tower feet for external installation
4 individually programmable outlets to prioritize critical loads on backup power
Greater power density with reduced unit depth
Predictable Battery Health algorithm and Advanced Warning Status via early audible and visual alarms

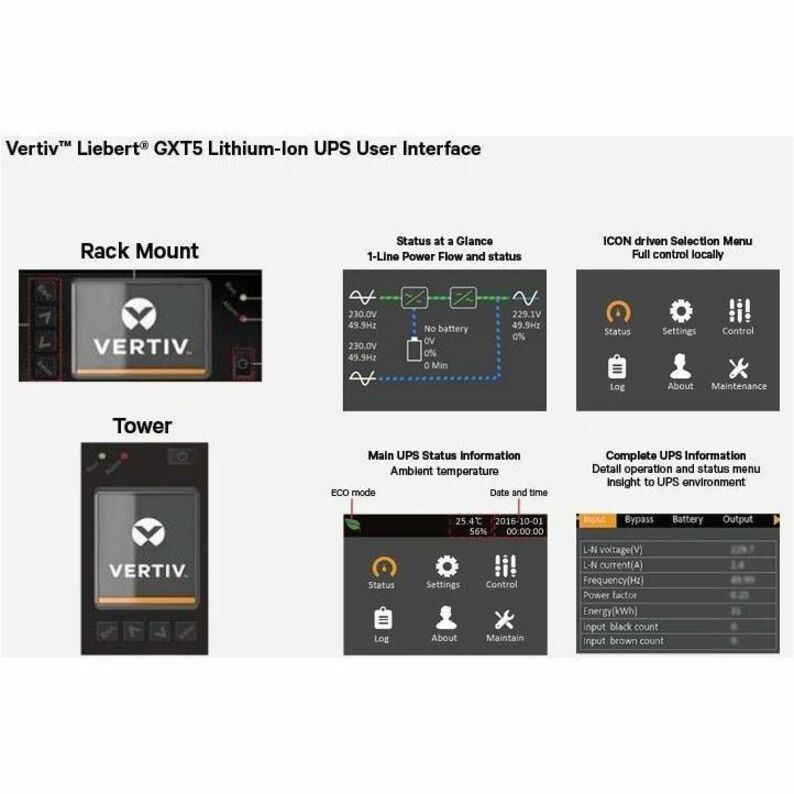

Intuitive full-color LCD interface with gravity-sensing orientation for easy installation and setup
The Liebert GXT5 UPS you love, just got better
The Vertiv Liebert GXT5 UPS uses true online double-conversion technology to completely isolate mission-critical infrastructure from utility power disruptions. Compared to VRLA batteries, Lithium-Ion batteries have up to 3x life expectancy. The typical lifespan of a VRLA battery is 3 to 5 years, lithium-ion UPS batteries can last 8 to 10 years and in many cases outlast the UPS providing higher availability. They have greater power density, recharge much more quickly, and can endure 10x more discharge cycles. They are also more resilient to high temperatures than VRLA batteries making them the most reliable solution available.
Save Money and the Environment
Lithium-Ion batteries offer the lowest total cost of ownership (TCO). You save not only on the cost of batteries, but also on the time and labor cost required to replace them – an especially significant issue at remote locations with limited IT personnel on site. Meet your budget needs for today and your growth for the future. This UPS is also a more environmentally friendly solution as it reduces lead-based battery disposals and recycling.
Complete Power Protection
The Vertiv Liebert GXT5 Online Lithium-Ion UPS protects equipment damage and prevents data loss from power disturbances. It offers continuous power conditioning to eliminate disturbances such as blackouts, brownouts, sags, surges or noise interference. During an outage, this UPS seamlessly transfers to battery with no interruption in power to connected equipment.
Greater Power Density, More Runtime, Shorter Depth
Lithium-Ion batteries offer higher power density, which means you need less space to deliver the same power. They offer more runtime (up to 14 minutes at full load (varies by model)), weigh less, recharge faster and can operate at higher temperatures. Lighter weight UPS models (less than 40lbs) allow for single-person installation. Each UPS is rack/tower convertible, providing flexibility in terms of installation options.
5-Year Advanced Replacement Warranty
Vertiv backs all Liebert GXT5 Lithium-Ion UPS systems with 5-year advanced replacement warranty including battery. This offers peace of mind that your investment is protected against potentially costly equipment failures. This covers all shipping fees and includes next-day delivery, which ensures customers will receive their replacement unit prior to returning their aged unit.
Business & Government Network Systems
The government and business sectors require secure, reliable data to make informed decisions daily but especially during a crisis. The Vertiv Liebert GXT5 Lithium-Ion UPS ensures that critical IT systems are always available such as servers and routers in offices, network closets and remote locations. This is ideal for small processing centers, applications requiring longer run times such as mission-critical application servers, IP and PBX based voice networks.
Network IDF/MDF Closets
Organizations drive towards smarter, simpler, more self-sufficient, powerful and low-latency edge of the network computing closer to the end-user with the Internet of Things (IoT) and the rollout of 5G networks. The Vertiv Liebert GXT5 Lithium-Ion online UPS provides the reliability and manageability needed for servers, network communications, switches, hubs, telecommunications equipment, and routing devices needed to support applications such as VoIP and IP Telephony or other critical call center applications.
Edge Processing – Banking/Finance, Retail
The virtual experience has become a critical component to the customer experience, AR and VR, contactless payments, AI, and predicative analytics are putting more demand at the Edge of network. The Vertiv Liebert GXT5 Lithium-Ion UPS provides complete protection for the unique requirements of centrally managed IT assets in distributed environments with limited trained IT/Infrastructure resources on-site. Where IT downtime can disrupt business and on-site personnel are unprepared to deal with service issues, this UPS delivers reliable and worry-free power protection. The online double-conversion technology makes this the perfect UPS for network closets, server racks, customer tracking and security systems, and other critical equipment at the edge.
Medical Systems and Applications
Digitalization of Healthcare has placed new demands on Healthcare networks to create a seamless clinician and patient experience. Reliability and speed in critical IT equipment are paramount when health and safety is concerned. Healthcare facilities require backup power supplies that are robust and provide 24/7/365 availability without compromise. The Liebert GXT5 Lithium-Ion UPS supports mission-critical technologies including medical imaging systems, image archiving, core networks, IDF/MDF closets, communications equipment, ULT Freezers, telehealth and EHR systems, lab equipment, and medical office information management systems. It’s also backup generator-friendly to support extended power outages.
K-12, Universities, and other Educational Institutions
Schools of today and the future will rely on IT systems for its teaching and learning in the classroom and remotely. It is important that the school or university IT network has the uninterruptible power supply (UPS) systems that ensure power continuity and quality for IT systems. You need continuous access to information, secure student and faculty data and manage day-to-day operations. The Lithium-Ion UPS is ideal for those with remote and challenging space constraints. Lithium-Ion batteries provide long-lasting set it and forget it protection and require less frequent replacements. They can be (up to) 70% more compact than VRLA batteries.
GXT5LI-1000LVRT2UXL
Power (VA/W): 1000VA/1000W
Output Power Factor: 1.0
Full-Load Runtime: 13 min
Half-Load Runtime: 28 min
Remote Management Capabilities: Add an optional Liebert IntelliSlot RDU101 communication card to enable remote monitoring / management (web based, SNMP, BACnet, MODBUS and relay contacts)
Recharge Time (from full discharge): < 2 hrs to 90%
Unit Weight: 37.5lbs (17kg)
Warranty: 5 years on UPS and Battery
Form Factor: 2U Rack/Tower
Outlets: (6) Total / (4) programmable NEMA 5-15R
GXT5LI-1500LVRT2UXL
Power (VA/W): 1500VA/1350W
Output Power Factor: 0.9
Full-Load Runtime: 14 min
Half-Load Runtime: 28 min
Remote Management Capabilities: Add an optional Liebert IntelliSlot RDU101 communication card to enable remote monitoring / management (web based, SNMP, BACnet, MODBUS and relay contacts)
Recharge Time (from full discharge): < 2 hrs to 90%
Unit Weight: 39.7lbs (18kg) Warranty: 5 years on UPS and Battery
Form Factor: 2U Rack/Tower
Outlets: (6) Total / (4) programmable NEMA 5-15R
GXT5LI-2000LVRT2UXL
Power (VA/W): 2000VA/1800W
Output Power Factor: 0.9
Full-Load Runtime: 10.5 min
Half-Load Runtime: 22.5 min
Remote Management Capabilities: Add an optional Liebert IntelliSlot RDU101 communication card to enable remote monitoring / management (web based, SNMP, BACnet, MODBUS and relay contacts)
Recharge Time (from full discharge): < 2 hrs to 90%
Unit Weight: 39.7lbs (18kg)
Warranty: 5 years on UPS and Battery
Form Factor: 2U Rack/Tower
Outlets: (7) Total / 1 NEMA L5-20R, 6 NEMA 5-15/20R (of which (4) are programmable)
GXT5LI-3000LVRT2UXL
Power (VA/W): 3000VA/2700W
Output Power Factor: 0.9
Full-Load Runtime: 6.5 min
Half-Load Runtime: 15 min
Remote Management Capabilities: Add an optional Liebert IntelliSlot RDU101 communication card to enable remote monitoring / management (web based, SNMP, BACnet, MODBUS and relay contacts)
Recharge Time (from full discharge): < 2 hrs to 90%
Unit Weight: 48.5lbs (22kg)
Warranty: 5 years on UPS and Battery
Form Factor: 2U
Rack/Tower Outlets: (7) Total / 1 NEMA L5-20R, 6 NEMA 5-15/20R (of which (4) are programmable)
Limited Warranty: 3 Year
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
| Application/Usage | Critical System, IT System, Server Room, Network Closet, Edge Computing |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Package Contents |
|
| Software Included | Yes |
| Product Type | Double Conversion Online UPS |
| Circuit Breaker | Yes |
| Display | LCD/LED |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | GXT5LI-1000LVRT2UXL |
| Sound Emission | 45 dB |
| Packaged Quantity | 1 |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 37.50 lb |
| Form Factor | Rack/Tower |
| Manufacturer | Vertiv |
| Product Model | GXT5LI |
| Product Name | GXT5LI 1000 LV UPS |
| Network Management | SNMP/Web |
| Waveform Type | Pure Sine Wave |
| Product Series | GXT |
| Rack Height | 2U |
| Brand Name | Vertiv Liebert |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 102 V AC - 150 V AC |
| Country of Origin | China |
| Height | 3.40" |
| Width | 16.90" |
| Depth | 17.30" |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 28 Minute |
| Backup/Run Time (Full Load) | 13 Minute |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 1000 W |
| Replaceable Battery | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Storage Temperature | -4°F (-20°C) - 140°F (60°C) |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 2 Hour |
| Receptacle Detail | 6 x NEMA 5-15R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) 2 |
