Uniqcli
Ubiquiti Door Lock Relay Cable
Ubiquiti

Ubiquiti Door Lock Relay Cable

500 ft Bare Wire Control Cable for Door Lock, Magnetic Lock, Electric Strike, Access Control Device - Plenum, VW-1 - 18/22 AWG - White

SKU
UACC-CableDoorLockRelay2P
Category
Connector Cables

$169.16

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Ubiquiti through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
UACC-CableDoorLockRelay2P
Category
Connector Cables

Overview

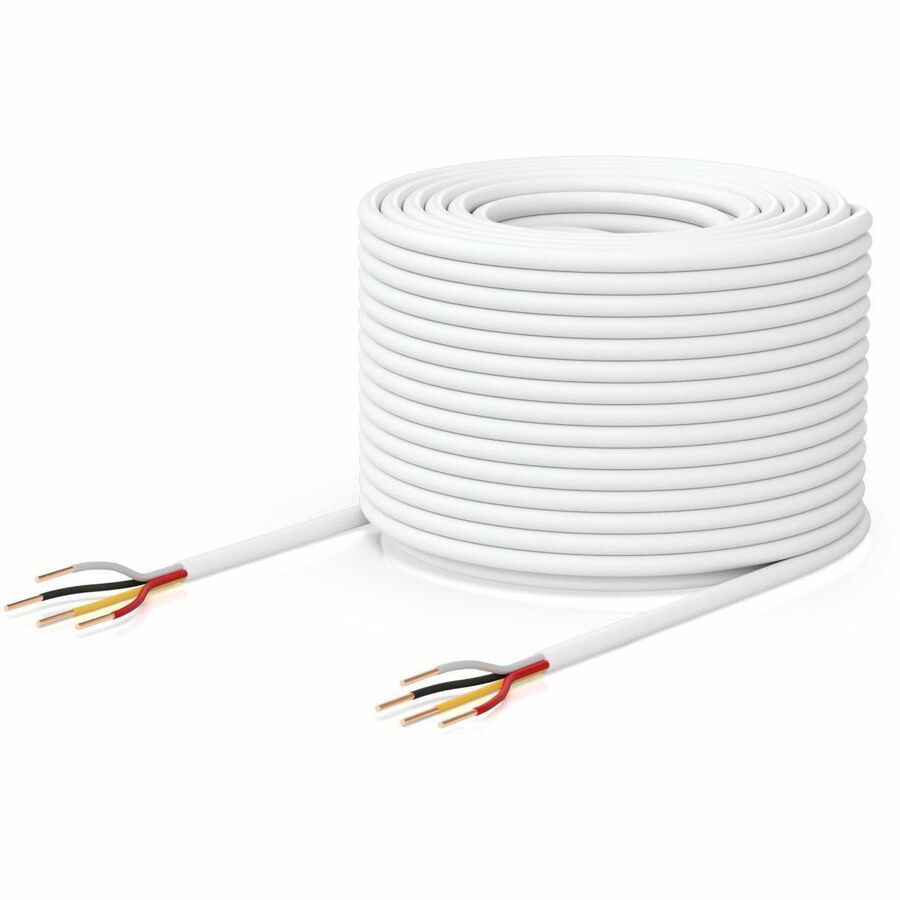

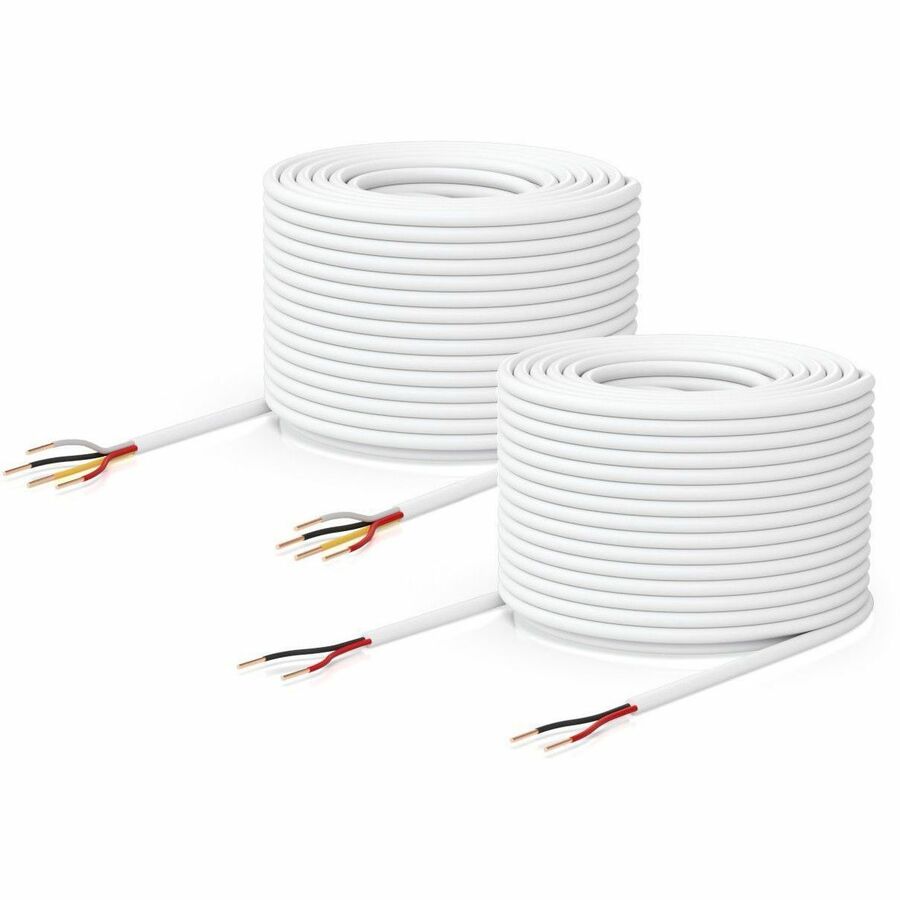

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub

2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

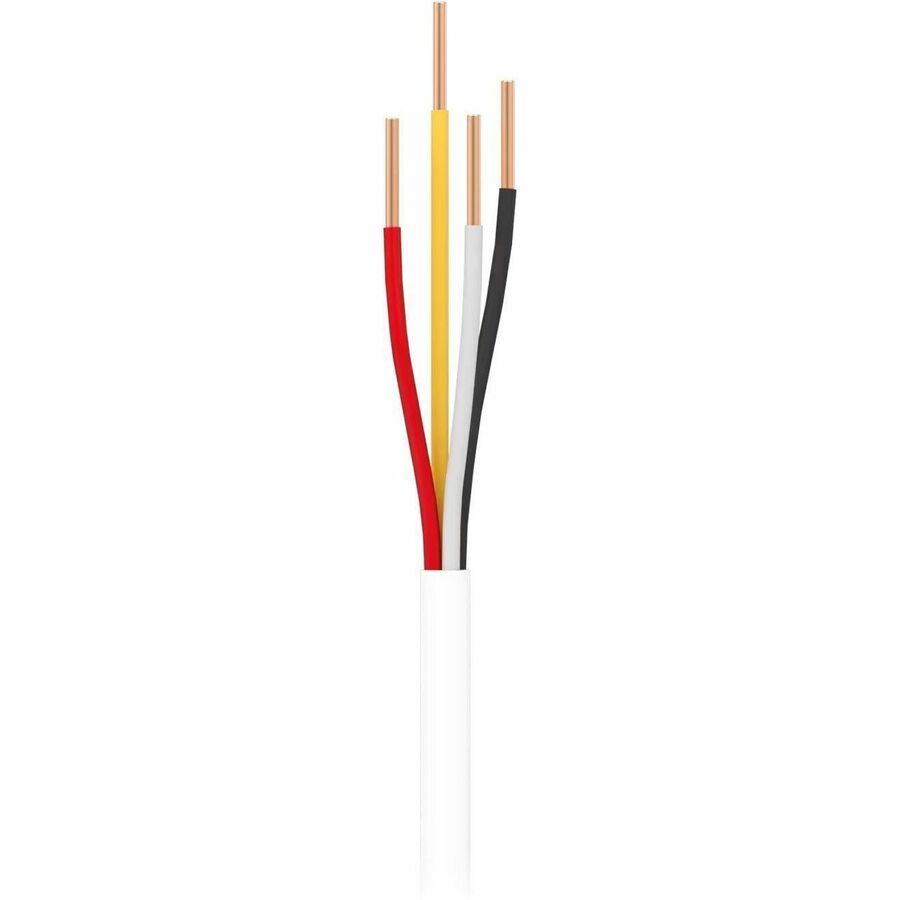

1-Pair Relay Cable:

- (2) 18 AWG conductors for an electric/magnetic lock

2-Pair Relay Cable:

- (2) 18 AWG conductors for an electric/magnetic lock

- (2) 22 AWG conductors for a door position sensor

Cable length 152.4 m

Plenum-rated

Highlights

  • Control the compatible device with ease
  • Features Bare Wire cable type to better accommodate your precise requirements with maximum productivity
  • Door Lock device supported for your convenience and better usability

Specifications

Cable Length500 ft
Product TypeControl Cable
CompatibilityUbiquiti: UA-Lock-Magnetic UA-G2-SK-Pro UA-Lock-Electric UA-G2-SK EAH-8 UA-G3-SK-Pro UA-Hub-Door UA-G3-SK UA-Hub-Gate UA-Hub-Door-Mini
Device SupportedDoor Lock, Magnetic Lock, Electric Strike, Access Control Device
Jacket TypePlenum, VW-1
Manufacturer Part NumberUACC-CableDoorLockRelay2P
Weight (Approximate)12.35 lb
ManufacturerUbiquiti Inc.
Product NameDoor Lock Relay Cable
Number of Conductors4
Brand NameUbiquiti
Cable TypeBare Wire
Connector Type on First EndBare Wire
Connector Type on Second EndBare Wire
Insulation MaterialSemi-rigid Polyvinyl Chloride (SR-PVC)
American Wire Gauge18/22 AWG
Jacket MaterialThermoplastic Elastomer (TPE)
Product ColorWhite
Color FamilyWhite
Jacket ColorWhite
Insulation ColorBlack, Red, White, Amber
Number of Pairs2
