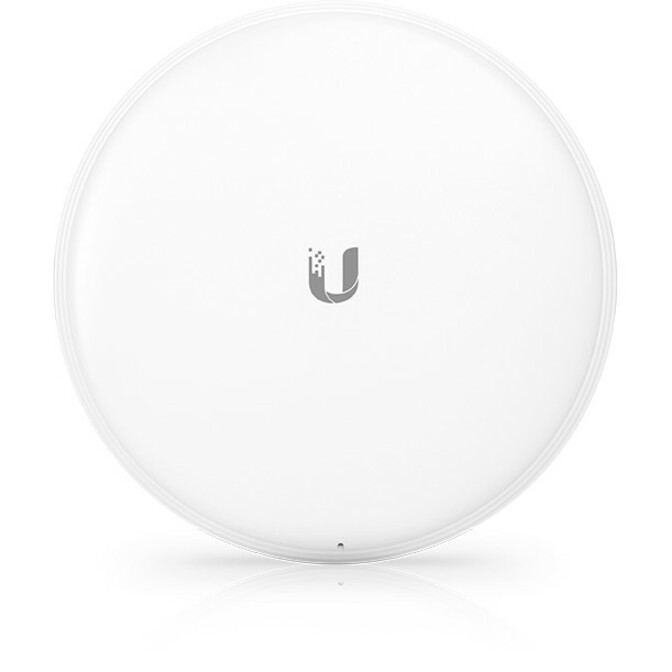

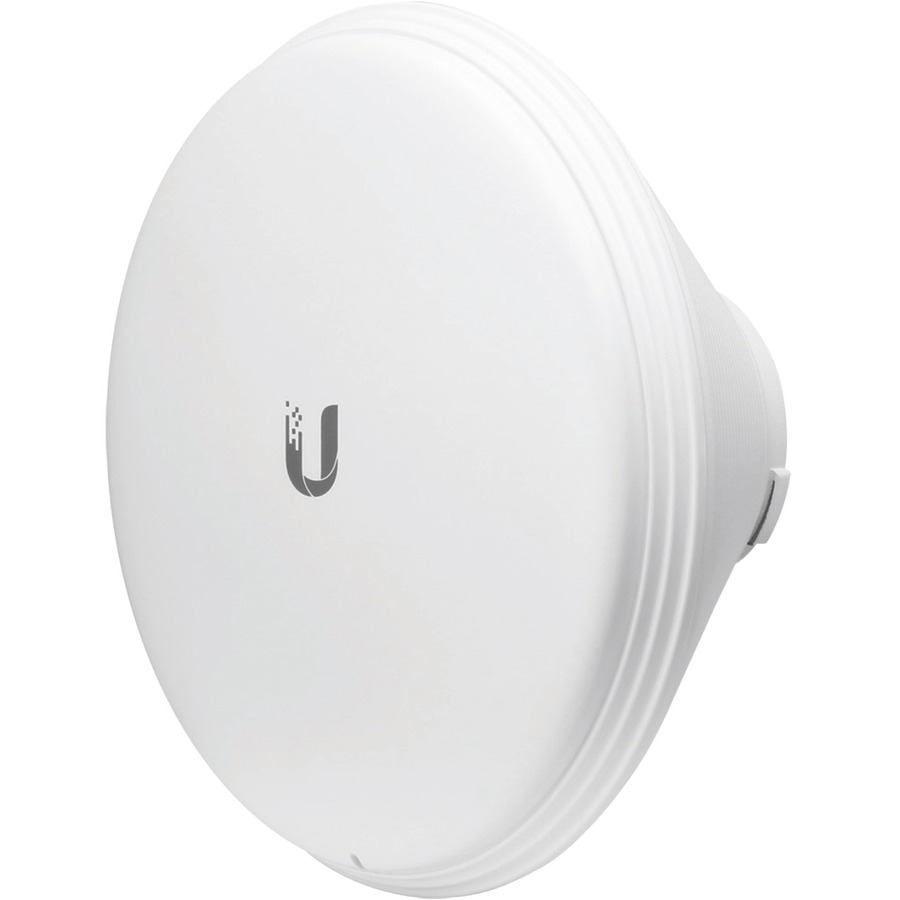

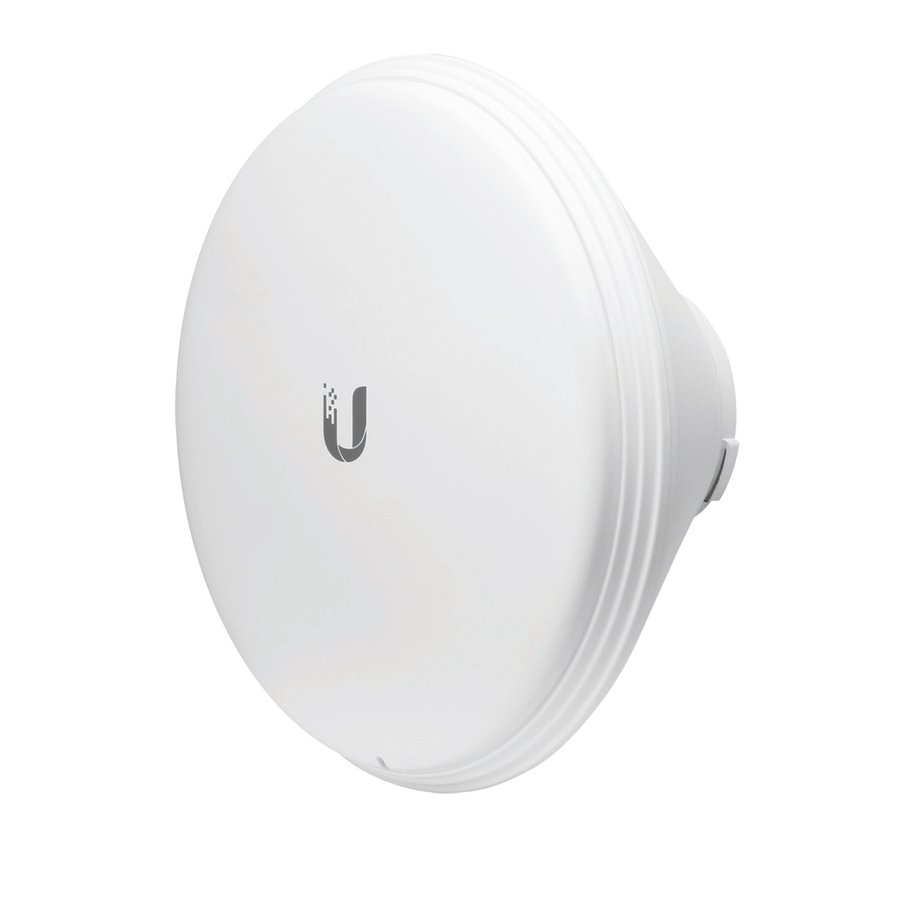

Ubiquiti 5 GHz Beamwidth Horn Antenna

Ubiquiti Networks launches a new family of beamwidth isolation horn antennas.

Modular Design

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co-location performance without sacrificing gain.

Scalability

There are two symmetrical horn antennas:

• Horn-5-30: 30° beamwidth

• Horn-5-45: 45° beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

There are two asymmetrical horn antennas:

• Horn-5-60: 60° beamwidth

• Horn-5-90: 90° beamwidth

These models have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.

Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Versatility

The horn antennas can be used with the following radios:

• airFiber LTU? AF-LTU

• IsoStation IS-5AC

• IsoStation IS-M5

• PrismStation PS-5AC

Modular Design

The horn antennas come with precise radiation angles for specific beam shaping, ranging from 30° to 90°, making them suitable for a wide range of installations.

• Horn designed for improved beam shaping

• Enhanced co-location performance

• Single button release for ease of changing antennas
