TRENDnet TI-WP100 Wi-Fi 5 IEEE 802.11ac Ethernet Wireless Router - TAA Compliant

TRENDnet's Industrial AC1200 Wireless Dual Band Gigabit PoE+ Router, model TI-WP100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network. It supports dual-WAN hybrid connections (Ethernet for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. Four gigabit PoE+ ports enable users to power access points, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget. The Industrial AC1200 gigabit router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° - 70° C (-22° - 158° F) for industrial environments.

Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. This wireless router features advanced management, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Intelligently manage your offices' web access with our advanced contenting filtering tool, increase employee productivity, and finally take control of your internet.

• DEVICE INTERFACE: Industrial AC1200 Dual-Band Wireless; 4 x Gigabit PoE+ ports, 1 x Gigabit WAN port

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-WP100, Industrial AC1200 Wireless Gigabit PoE+ Router is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial AC1200 Wireless Gigabit PoE+ Router, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• POWER SUPPLY SOLD SEPARATELY: Power supply sold separately (models: TI-S12048, TI S12024, TI-S24048; Optional Magnetic WiFi Antenna base, model TEW-LB101 (sold separately)

• PoE POWER BUDGET: 120W@48V DC input, 120W@24V DC input; PoE power scheduling, power limit, and port priority

• WIDE TEMPERATURE RANGE: A wide operating temperature range of -30° - 70° C (-22° - 158° F)*allows for installations in extreme hot or cold environments

• DIN-RAIL MOUNT: Metal enclosure with integrated DIN-rail mount

• VPN:Supports IPsec and SSL VPN protocols for encrypted remote access to local area network (LAN) resources over the internet

• INTER-VLAN ROUTING: Provides routing capabilities between VLANs

More from the Manufacturer

OVERVIEW

TRENDnet’s Industrial AC1200 Wireless Dual Band Gigabit PoE+ Router, model TI-WP100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network. It supports dual-WAN hybrid connections (Ethernet for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users). Four gigabit PoE+ ports enable users to power access points, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget. The Industrial AC1200 gigabit router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° – 70° C (-22° – 158° F) for industrial environments.

Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. This wireless router features advanced management, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Intelligently manage your offices’ web access with our advanced contenting filtering tool, increase employee productivity, and finally take control of your internet.

Dual-WAN

Connect up to two separate WAN internet connections (Ethernet & WiFi) to efficiently load-balance traffic, or configure for redundancy using the WAN fail-over mode.

PoE+

Four gigabit PoE+ ports power APs, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget.

AC1200 WiFi

Features dual-band AC1200 WiFi to maximize device networking speeds; it’s equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network.

Dual-WAN

Connect up to two separate WAN internet connections (Ethernet & WiFi) to efficiently load-balance traffic by distributing network traffic over the wired and wireless WAN connections, or configure for redundancy using the WAN fail-over mode

Dual-Band WiFi

Features dual-band WiFi to maximize device networking speeds; it’s equipped with an 867Mbps 802.11ac network, and a 300Mbps Wireless N network

Gigabit PoE+

Four gigabit PoE+ ports allow users to power access points, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W total PoE power budget

Ports

4 x Gigabit PoE+ ports, 1 x Gigabit WAN port

Pre-Encrypted Wireless

For your convenience the router’s WiFi bands are pre-encrypted with their own unique passwords

VPN

Supports IPsec and SSL VPN protocols for encrypted remote access to local area network (LAN) resources over the internet

Inter-VLAN Routing

Provides routing capabilities between VLANs

QoS

Intelligently prioritize voice, video, and other data traffic to improve network efficiency and overall performance

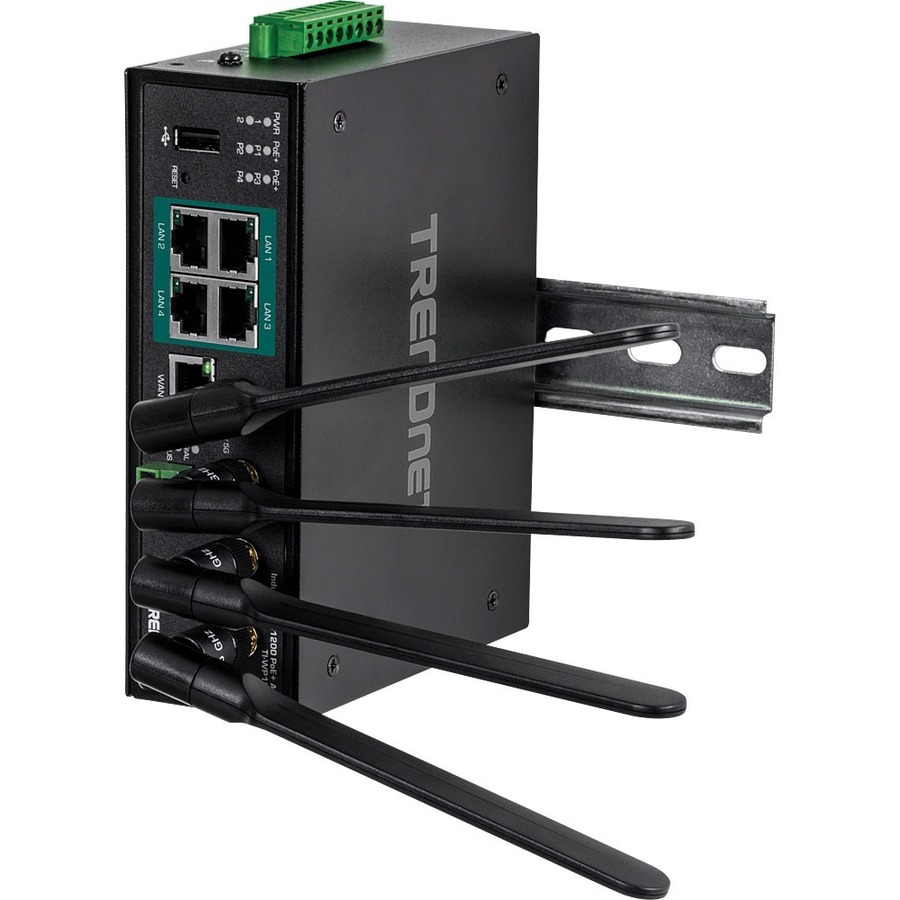

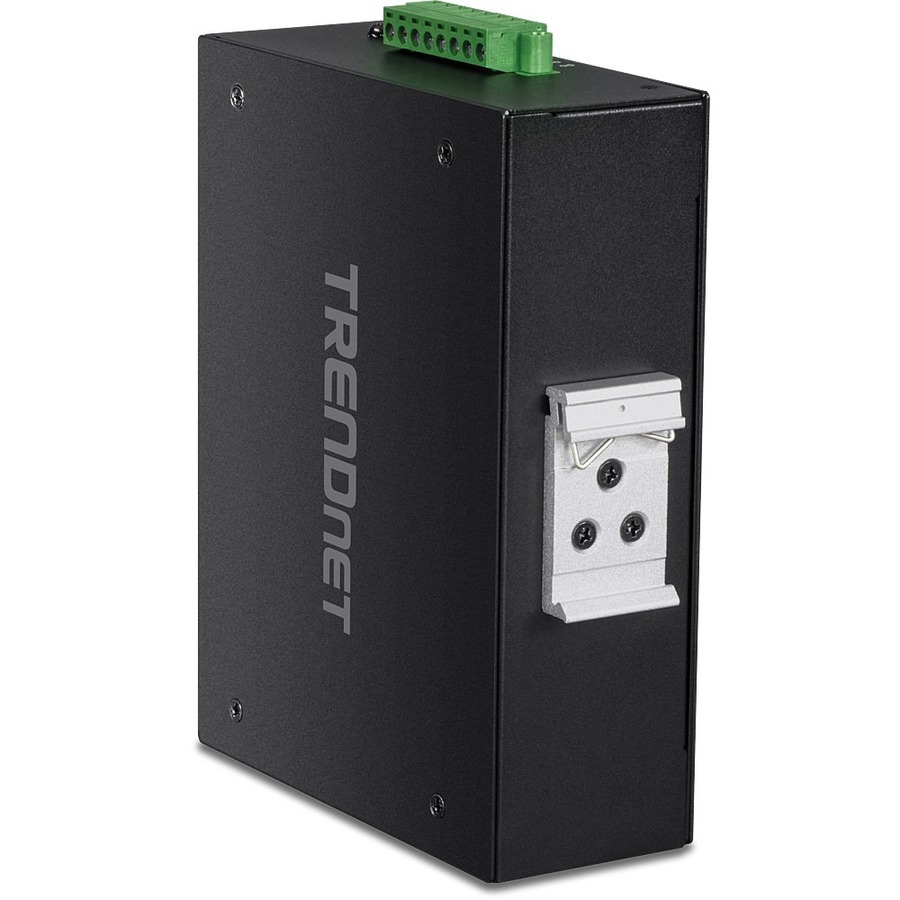

DIN-Rail Mount

Metal enclosure with integrated DIN-rail mount

Management

Supports web browser (HTTP, HTTPS), CLI (Telnet / SSHv2), SNMP, and TR-069 management

Wide Temperature Range

A wide operating temperature range of -30° – 70° C (-22° – 158° F)*allows for installations in extreme hot or cold environments

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.1Q

IEEE 802.1X

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (up to 300Mbps @ 256QAM)*

IEEE 802.11ac (5GHz: up to 867Mbps @ 256QAM)*

IEEE 802.3af

IEEE 802.3at

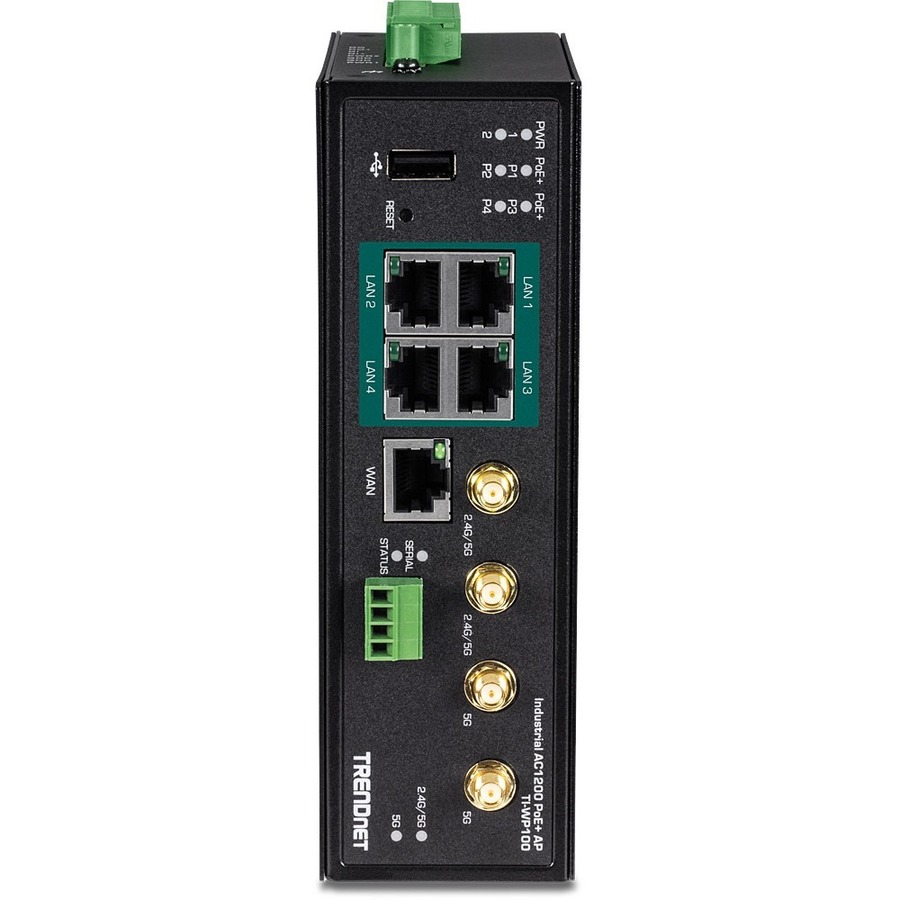

Device Interface

4 x Gigabit PoE+ ports

1 x Gigabit WAN port

2 x Wireless WAN uplink (2.4GHz or 5GHz)*

1 x USB 2.0 (Log Storage)

4 x RP-SMA antenna connectors (2 x 2.4GHz/5GHz WLAN, 2 x 5GHz)

8-pin removable terminal block (primary/RPS power inputs & digital input/output)

4-pin removable terminal block RS-232/RS-485 serial port (Modbus)

LED indicators

Reset button

Performance

NAT (LAN-to-WAN) throughput: 900Mbps

Routing performance: 900Mbps

Maximum concurrent sessions: 32,000

Maximum number of VLANs: 4 (ID: 1-4091)

IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 160Mbps

SSL VPN (OpenVPN®) Throughput (Blowfish/SHA-1/Server): 20Mbps

VPN

SSL VPN Tunnels: Up to 2

IPsec VPN Tunnels: Up to 16 tunnels

SSL OpenVPN Modes: Server, Client

SSL OpenVPN Encryption: Blowfish, AES-128/192/256

SSL OpenVPN Authorization: TLS with RSA, Static Key

SSL OpenVPN Hash Algorithm: MD4, MD5, SHA-1/256/512

IPsec VPN Modes: Site-to-Site, Client-to-Site or Dynamic VPN

IPsec Encryption: DES, 3DES, AES-128/192/256

IPsec Hash Algorithm: MD5, SHA-1/256

IPsec Key Exchange: IKEv1/2, Main/Aggressive Mode, Pre-shared key, X.509, DH Groups 1/2/5/14-18

IPsec Protocols: ESP/AH, PFS DH Groups 1/2/5/14-18, X-AUTH, DPD, Local/Remote ID: FQDN, User@FQDN, Key ID

IPsec NAT Traversal

Networking

WAN Modes: NAT, Classical Routing or Bridge Mode (NAT Disabled)

NAT Loopback Enable/Disable

NAT Modes: NAT, PAT, One-to-One NAT

VLAN tag assignment on WAN interface

IPv4 WAN Modes: Dynamic IP (DHCP), Static IP, PPPoE, PPTP, L2TP

Wireless WAN Mode: NAT enable/disable, Dynamic IP (DHCP), Static IP, fast roaming signal threshold/channels

IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE

VLAN ID assignment on WAN interface

IGMP proxy on WAN interface

WAN IP address alias

Routing: Static (Up to 64 entries), RIPv1/v2, OSPFv2, BGP4

Static ARP (Up to 32 entries)

VLAN: Port-based, 802.1Q (Up to 4 VLANs, 4 IP interfaces)

Inter-VLAN Routing

SSID per VLAN assignment

DHCP Server, Relay, Options 42/66/72/114/150/160

Dynamic DNS: dyn.com, no-ip.com

WAN Failover

Networking monitoring for WAN load balancing (DNS query or ICMP, latency threshold, fail threshold, query threshold)

WAN Traffic load balancing: Smart Weight (Automatic), Specific Weight Percentage, User defined traffic policy

VPN passthrough: IPsec, PPTP, L2TP

Up to 8 SSIDs per band

AP Router, WDS only, and WDS hybrid modes

WiFi scheduling

5G WiFi bandsteering

Access Control

Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-RADIUS

Wireless IDS

Certificate management (Root CA, SCEP, Local certificate, self-signed, RSA, Import PEM certificates)

NAT/SPI, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, allow/deny ping on WAN interfaces

ALG: PPTP/L2TP/IPsec VPN passthrough

MAC filtering

Custom scheduling for access control rules

MMI (max. password attempts, login timeout, HTTP/HTTPS, HTTPS certificate, HTTP compares/binding)

Wireless client isolation

Stealth Mode

DoS prevention

Quality of Service

Software-based priority queues

Hardware-based bandwidth control

WMM

Management

HTTP/HTTPS web-based GUI

CLI: Telnet / SSHv2

Command script

TR-069/STUN

SNMP v1, v2c, v3

SNMP trap (up to 4 receivers)

Modbus Slave, gateway for TCP, and RTU/ASCII master/slave access

Virtual COM RFC2217, TCP client, TCP server, UDP

Data logging (sniffer, offline proxy, full-time proxy)

Device configuration backup & restore, upgrade firmware, reboot, and reset to default

Scheduled auto reboot

Auto restore configuration

Set custom UI logo

Set custom CSS

Wake-on-LAN (WoL)

Diagnostic tools: Built-in ping, traceroute, speed test, and packet capture utilities

Event configuration and management: digital input/output, Modbus, syslog, SNMP trap, email alert, reboot

System time settings (NTP, manually set, or copy from PC, time zone, and daylight savings time)

FTP/FTPS/SFTP server

Creates groups (IP, MAC, or host name), external server object definition

MIB

MIB II RFC 1213

Frequency

2.412 - 2.462GHz

5.150 – 5.250GHz, 5.725 – 5.850GHz

Modulation

802.11b: CCK, DQPSK, DBPSK

802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM

802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Media Access Protocol

CSMA/CA with ACK

Antenna Gain

4 x 2.4GHz 2.5dBi / 5GHz: 3.5 dBi dual-band detachable/external

Wireless Output Power (max output power without antenna gain)

802.11a: FCC: 21 dBm (max.) / ETSI: 17.38 dBm (max.)

802.11b: FCC: 26 dBm (max.) / ETSI: 17.38 dBm (max.)

802.11g: FCC: 23 dBm (max.) / ETSI: 17.38 dBm (max.)

802.11n (2.4GHz): FCC: 21 dBm (max.) / ETSI: 14.38 dBm (max.)

802.11n (5GHz): FCC: 21 dBm (max.) / ETSI: 16.4 dBm (max.)

802.11ac: FCC: 21 dBm (max.) / ETSI: 16.4 dBm (max.)

Receiving Sensitivity

802.11a: -68 dBm (typical) @ 54Mbps

802.11b: -83 dBm (typical) @ 11Mbps

802.11g: -70 dBm (typical) @ 54Mbps

802.11n (2.4GHz): -66 dBm (typical) @ 300Mbps

802.11n (5GHz): -64 dBm (typical) @ 300Mbps

802.11ac: -55 dBm (typical) @ 867Mbps

Wireless Channels

2.4GHz: FCC: 1 – 11, ETSI: 1 – 13

5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48

Power

PWR (Primary) terminal input: 24 – 56V DC

RPS (Redundant) terminal input: 24 – 56V DC

Digital Input: Logic 0: 0V-2V, Logic 1: 5V-30V

Digital Output: Relay Mode, up to 30V/1A

Compatible power supply: TI-S15052 (150W), TI-S24052 (240W), TI-S12048 (120W), TI-S12024 (120W), TI-S24048 (240W) sold separately

Max. Consumption: 20W (no PoE load), 140W (full PoE load)

PoE

PoE budget: 120W@48V DC input, 120W@24V DC input

802.3at: Up to 30W per port

PoE Mode A: Pins 1, 2, 3, and 6 for power

PoE auto classification

PoE port priority/power limit/power scheduling/PD alive check

Over current/short circuit protection

Terminal Block

Redundant power inputs, alarm relay contact, 8 pin

Wire range: < 2.5 mm^2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Wire strip length: 5mm

Enclosure

IP30 rated metal enclosure

Fanless passive cooling

DIN-Rail mount

Grounding point

ESD (Ethernet) Protection: 8KV DC

Surge (Power) Protection: 2KV DC

MTBF

333,367 hours @ 25° C

222,166 hours @ 70° C

Operating Temperature

-30° – 70° C (-22° – 158° F)*

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 51mm (6.3 x 4.72 x 2.01 in.)

Weight

1.09kg (2.4 lbs.)

Certifications

CE

FCC

Freefall (IEC 60068-2-32)

Warranty

3 year

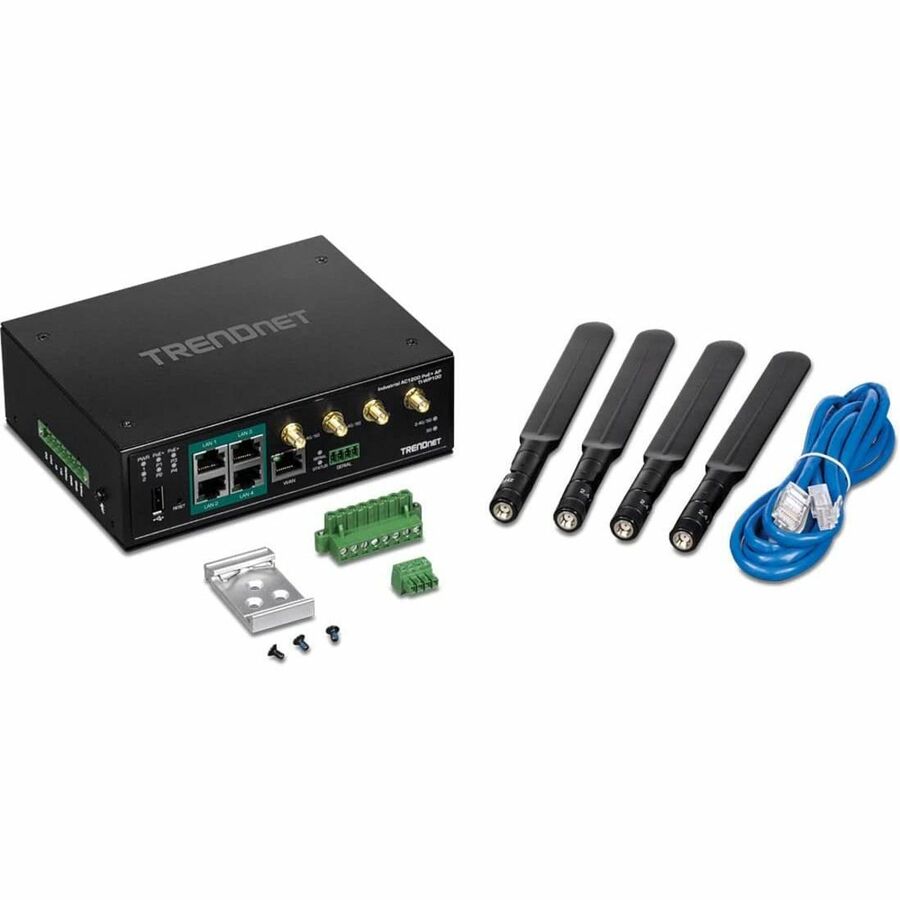

PACKAGE CONTENTS

TI-WP100

Quick Installation Guide

4 x detachable dual-band antennas

Network cable (1.5m / 5 ft.)

1 x 8-pin removable terminal block (Power & digital input/output)

1 x 4-pin removable terminal block (Serial)

DIN-Rail mounting bracket

*WiFi performance will be degraded if device ambient temperature is above 60° C.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with a 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300 Mbps, use with a 300 Mbps 802.11n wireless adapter.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
