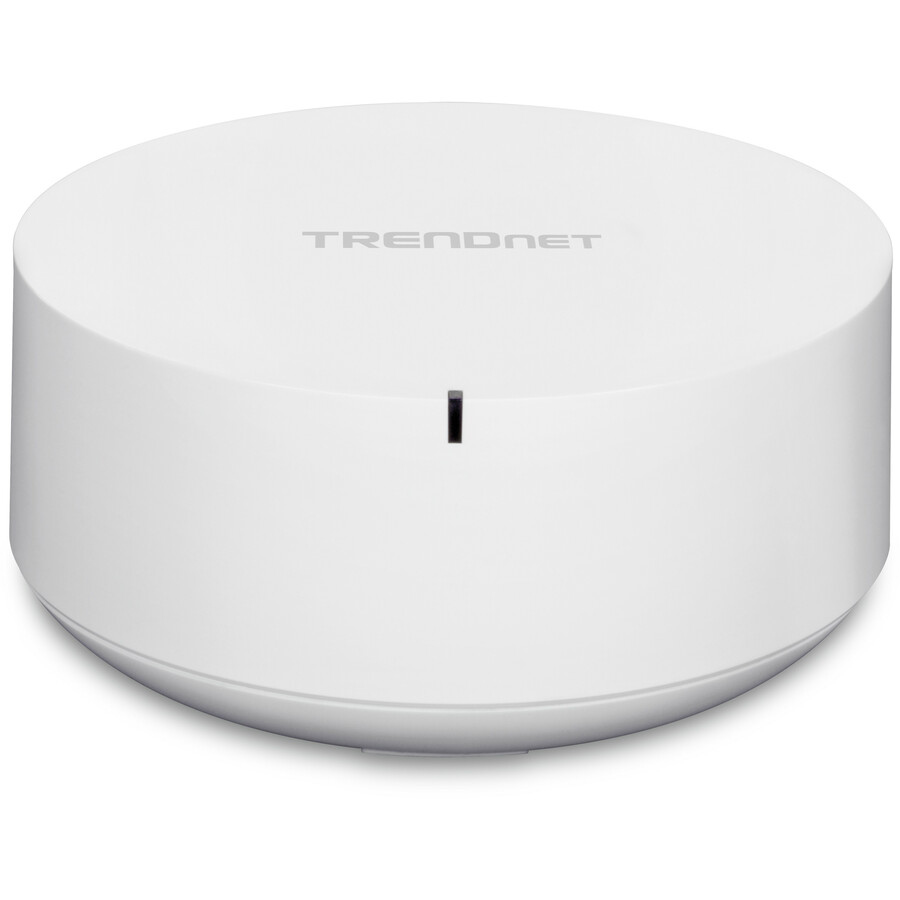

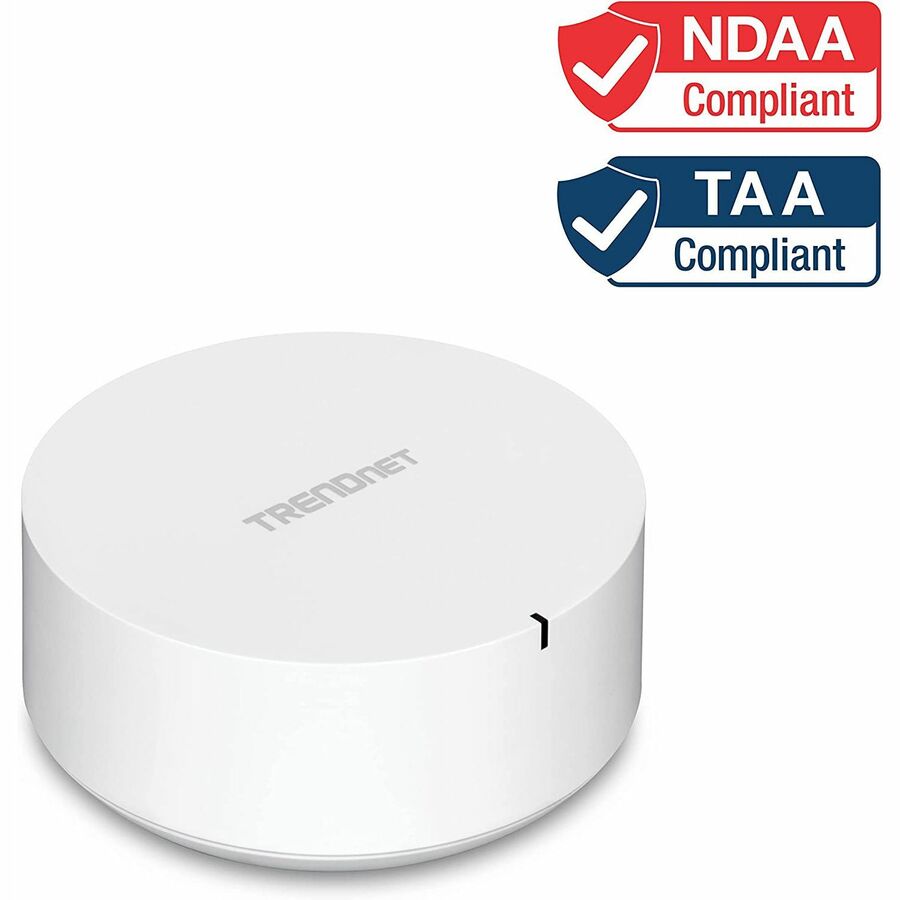

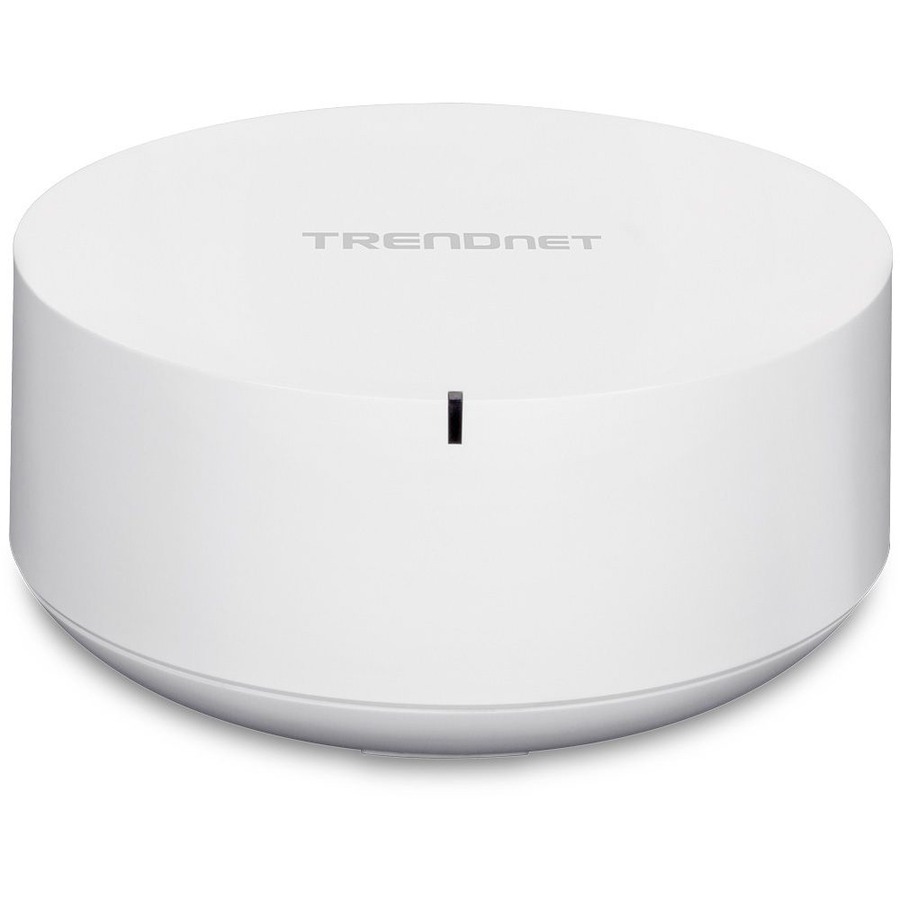

TRENDnet AC2200 WiFi Mesh Router;TEW-830MDR;1xAC2200 WiFi Mesh Router;App-Based Setup;Expanded Wireless Internet(Up to 2;000 Sq Ft.Home);Supports 2.4GHz/5GHz

• AC2200 MESH ROUTER: 1 x AC2200 WiFi Mesh Router pre-encrypted for your convenience. Includes 1 x Gigabit WAN Port, 1 x Gigabit LAN Port. AC2200: 5GHz1: 867Mbps WiFi AC | 5GHz2: 867Mbps WiFi AC | 2.4GHz: 400Mbps WiFi N

• WHY MESH Designed to replace older WiFi routers, extenders, and signal boosters. Intelligent WiFi mesh technology always connects users to the best WiFi Mesh Router with seamless WiFi roaming.

• MESH MADE SIMPLE: The WiFi mesh router uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app.

• AIRTIME FAIRNESS: A smart WiFi feature of the AC2200 router calculates and determines which clients have priority over others. Clients that are faster and closer to the mesh router will have the highest priority, while clients that are slower and farther away will have lower priority, freeing up valuable WiFi resources.

• WHOLE HOME WIFI COVERAGE: The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage

• TARGETED BEAMFORMING: Implicit/Explicit Beamforming increases real-time performance by directing stronger wireless signals to your specific location. Beamforming improves wireless range, reception, and throughput

• USB 3.0 SHARE PORT: Share content across the network with the USB 3.0 share port with Samba Support on each AC2200 mesh router

• LAN/WAN IPv6 support

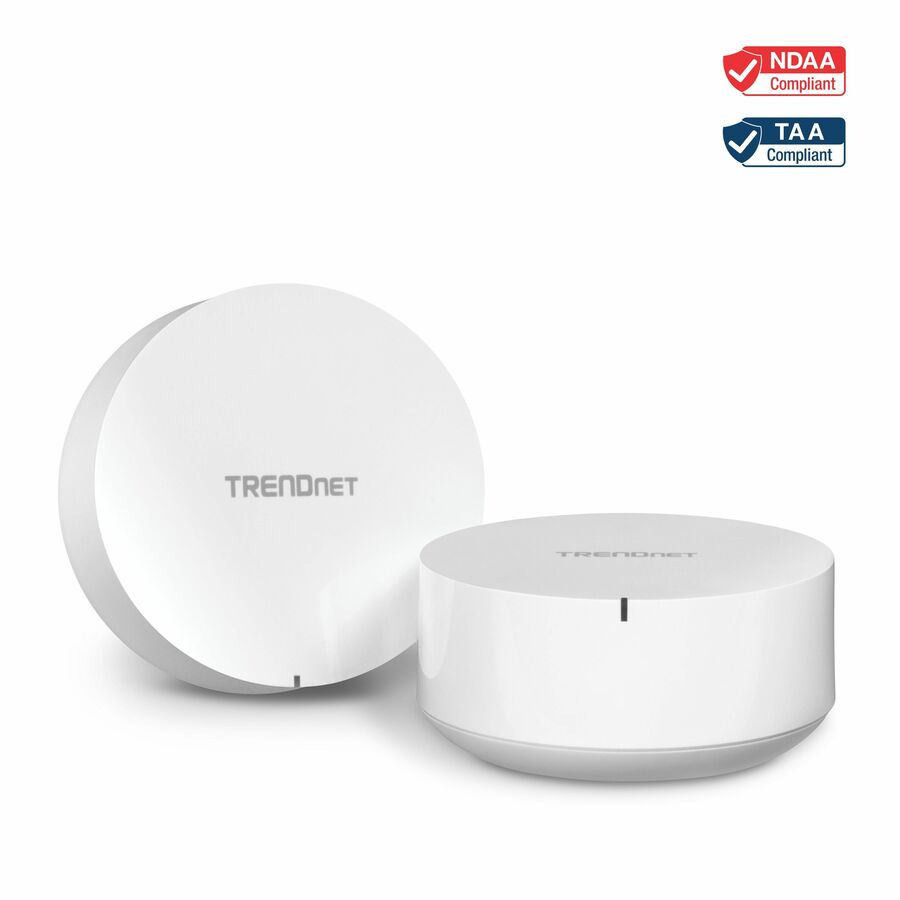

• NDAA / TAA compliant (U.S. and Canada only)

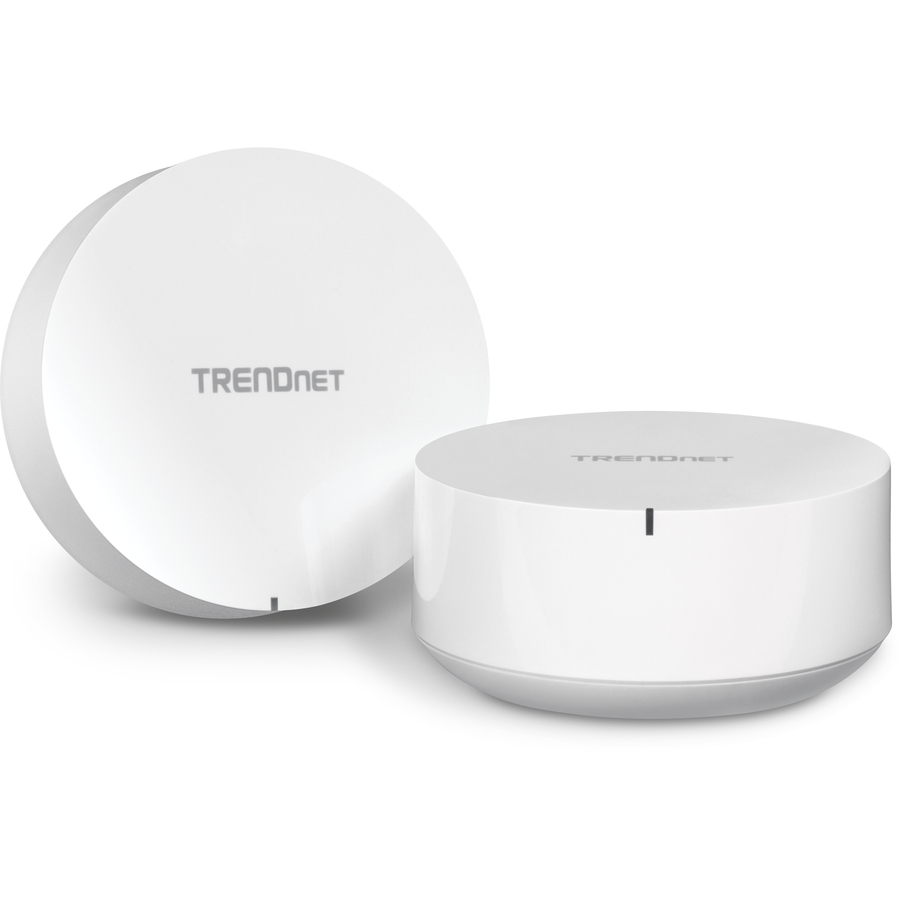

TRENDnet's AC2200 WiFi Mesh Router System is designed to blanket your home or small office in seamless WiFi coverage. The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage.

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you'll have your AC2200 WiFi Mesh Router System up and running providing whole home WiFi coverage.

More from the Manufacturer

OVERVIEW

TRENDnet’s AC2200 WiFi Mesh Router System is designed to blanket your home or small office in seamless WiFi coverage. The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage.

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you’ll have your AC2200 WiFi Mesh Router System up and running providing whole home WiFi coverage.

Mesh Made Simple

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app.

Airtime Fairness

This smart WiFi feature calculates and determines which clients have priority over others. Clients that are faster and closer to the mesh router will have the highest priority, while clients that are slower and farther away will have lower priority, freeing up valuable WiFi resources.

Mesh Made Simple

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app

Whole Home WiFi Coverage

The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage

Router Limits

Router Limits' innovative tools offers an enhanced user experience for device-level scheduling and filtering capabilities. Offering access to these advanced web content filtering and productivity tools allows you to take control of your Internet, whether it be for business or home

Airtime Fairness

This smart WiFi feature calculates and determines which clients have priority over others. Clients that are faster and closer to the Mesh Router will have the highest priority while clients that are slower and farther away will have lower priority, freeing up WiFi resources

Band Steering

With band steering technology, the mesh router system alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the 5GHz band

Targeted Beamforming

Beamforming increases real-time performance by directing stronger wireless signals to your specific location. Beamforming improves wireless range, reception, and throughput

Monitoring

The TRENDnet WiFi Mesh app allows you to monitor each WiFi mesh router and connection status of network devices

Parental Controls

Limit access to specific websites and control connected device access to the network

Guest Network

Create an isolated WiFi network for guest internet access

Pre-Encrypted

For your convenience, the wireless network on the mesh router system is pre-encrypted with its own unique password

IPv6

IPv6 network support

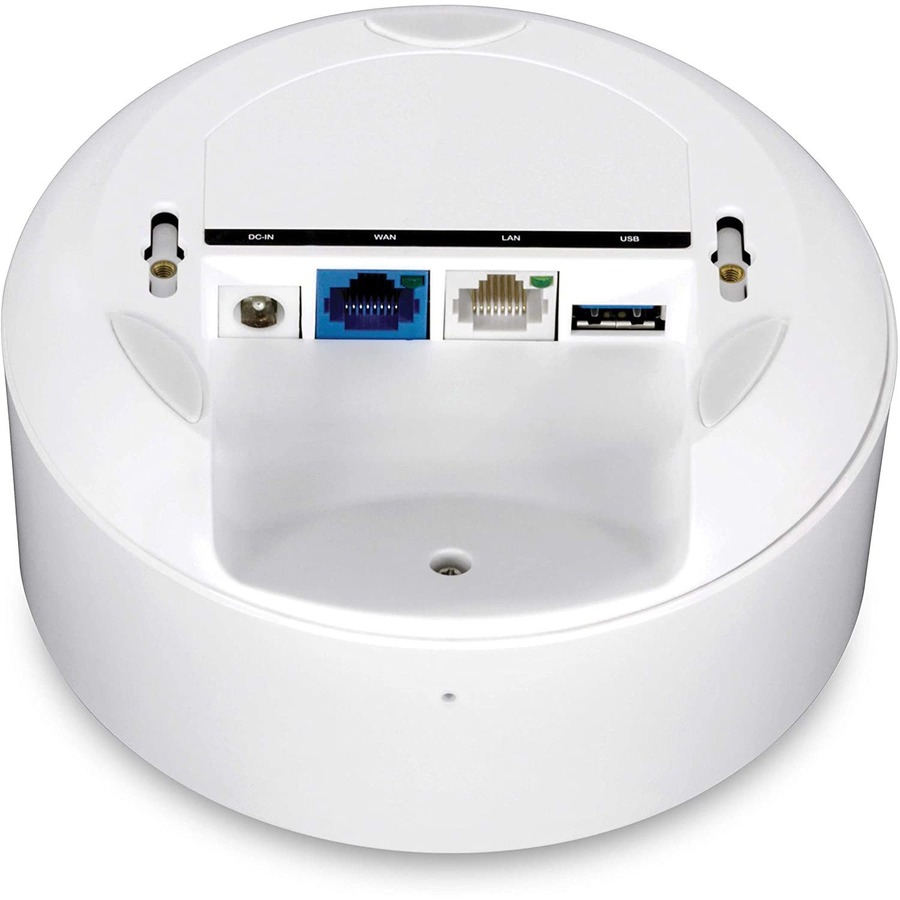

Gigabit Ports

1 x Gigabit WAN Port, 1 x Gigabit LAN Port

USB 3.0 Share Port

Share content across the network with the USB 3.0 share port on each mesh router

TRENDnet AC2200 WiFi Mesh Router System

AC2200: 5GHz1: 867Mbps WiFi AC | 5GHz2: 867Mbps WiFi AC | 2.4GHz: 400Mbps WiFi N

Includes 1 x AC2200 WiFi Mesh Router

Designed to replace older WiFi routers, extenders, and signal boosters

Intelligent WiFi mesh technology always connects users to the best WiFi Mesh Router

Add to existing AC2200 Mesh Router System for expanded WiFi coverage in larger home applications

Airtime fairness balances wireless client bandwidth resources

Pre-encrypted for your convenience

LAN/WAN IPv6 support

Multi-User MIMO for increased bandwidth efficiency and better user experience*

Seamless WiFi roaming

USB 3.0 port with Samba support

Implicit/Explicit Beamforming

NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (up to 400Mbps @ 256QAM)*

IEEE 802.11ac (5GHz1: up to 867Mbps, 5GHz2: up to 867Mbps @ 256QAM)*

Device Interface

1 x Gigabit LAN port

1 x Gigabit WAN port

1 x USB 3.0 (Samba)

Reset button

LED indicator

Special Features

Easily expand your WiFi mesh network coverage with additional TRENDnet WiFi mesh router

Multi-User MIMO for increased bandwidth efficiency and better user experience*

Seamless WiFi roaming

Multi-Language app interface: English, Traditional Chinese, German, Italian, Swedish, French, Spanish, Dutch

IPv6 support

Samba support

Implicit/Explicit Beamforming

Band Steering

Access Control

WiFi encryption: WPA/WPA2-PSK AES

WiFi Guest network

Hide WiFi Name/SSID

Wireless client isolation

NAT

Port forwarding

DMZ host

UPnP

DoS prevention

Allow/deny WAN ping requests

Parental controls (Set schedules for Internet access or filter by keyword or custom websites)

Manage screen time, filter content, monitor bandwidth, and track browsing history with Router Limits™ web management system

Quality of Service

Set client device priority (Normal/High priority)

WMM

Internet Connection Types

Dynamic IP (DHCP)

Static IP (Fixed)

PPPoE (Dynamic IP/Static IP)

PPTP (Dynamic IP/Static IP)

L2TP(Dynamic IP/Static IP)

IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6rd)

Management/Monitoring

HTTP/HTTPS local/remote web-based management

Internal system logging

Mesh connection quality display

Client device list

Internet speed test

Manual or online firmware upgrade and notification

Backup and restore configuration

Internal logging

Restore to factory default

Router/Bridge operation modes

Static routes

Frequency

2.412 - 2.472GHz

5.180 – 5.825GHz

Modulation

802.11b: CCK, DQPSK, DBPSK

802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM

802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Media Access Protocol

CSMA/CA with ACK

Antenna Gain

2.4GHz: 2 x 4.03 dBi (max.) / 5GHz: 4 x 5.64 dBi internal antennas

Receiving Sensitivity

802.11a: -73 dBm (typical) @ 54Mbps

802.11b: -90 dBm (typical) @ 11Mbps

802.11g: -76 dBm (typical) @ 54Mbps

802.11n (2.4GHz): -89 dBm (typical) @ 300Mbps

802.11n (5GHz): -86 dBm (typical) @ 300Mbps

802.11ac: -83 dBm (typical) @ 867Mbps

Wireless Channels

2.4GHz: FCC: 1–11

5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165

Power

Input: 100 – 240V AC, 50/60Hz

Output: 12V DC, 1.5A external power adapter

Max. Consumption: 15.12W

Operating Temperature

0° – 40° C (32° – 104° F)

Operating Humidity

Max. 90% non-condensing

Certifications

FCC

IC

Dimensions

126 x 126 x 60mm (4.96 x 4.96 x 2.36 in.)

Weight

372g (13.1 oz.)

Warranty

3 year

PACKAGE CONTENTS

TEW-830MDR

Quick Installation Guide

Network cable 0.5m (1.6 ft.)

Power adapter (12V DC, 1.5A)

Wall mount screws

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials, and other conditions. For maximum performance of up to 867Mbps, use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 400Mbps, use with a 400Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.
