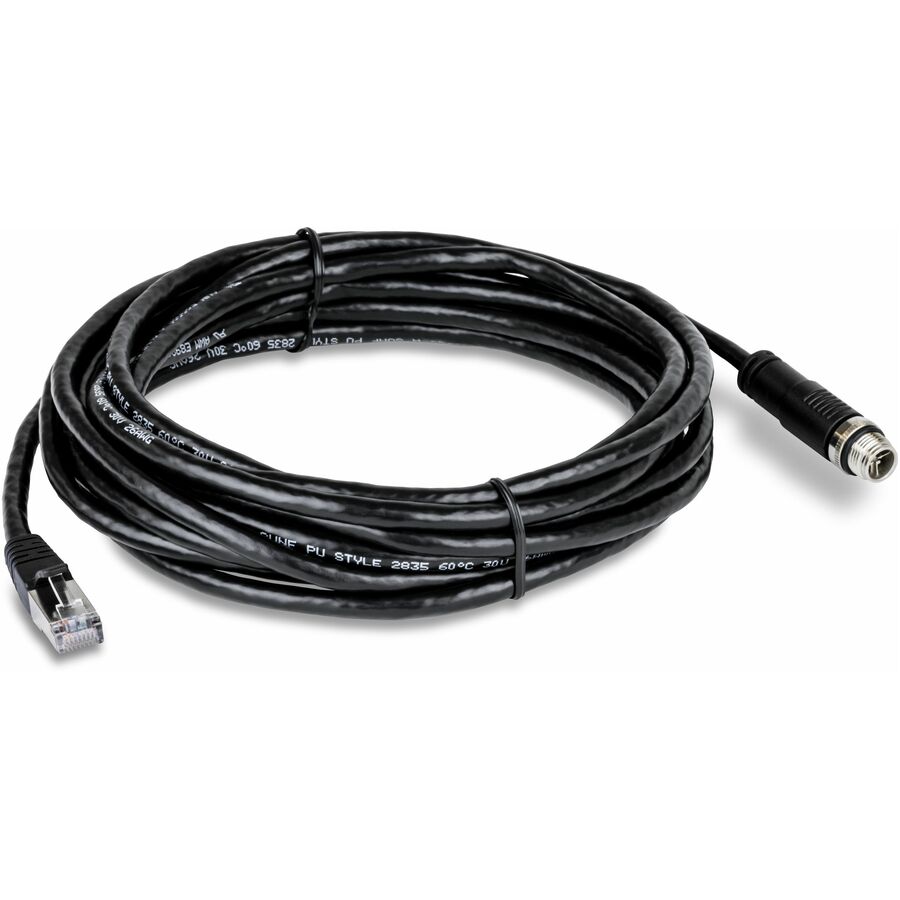

TRENDnet M12 to RJ-45 Industrial Ethernet Cable, 5m (16.4 ft.)
16.40 ft M12/RJ-45 Network Cable for Network Device, Switch - First End: 1 x 8-pin M12 - Male - Second End: 1 x RJ-45 Network - Male
- SKU
- TI-CD05
- Category
- Connector Cables
$92.27
Back ordered — ships when restocked.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TI-CD05
- Category
- Connector Cables
Overview

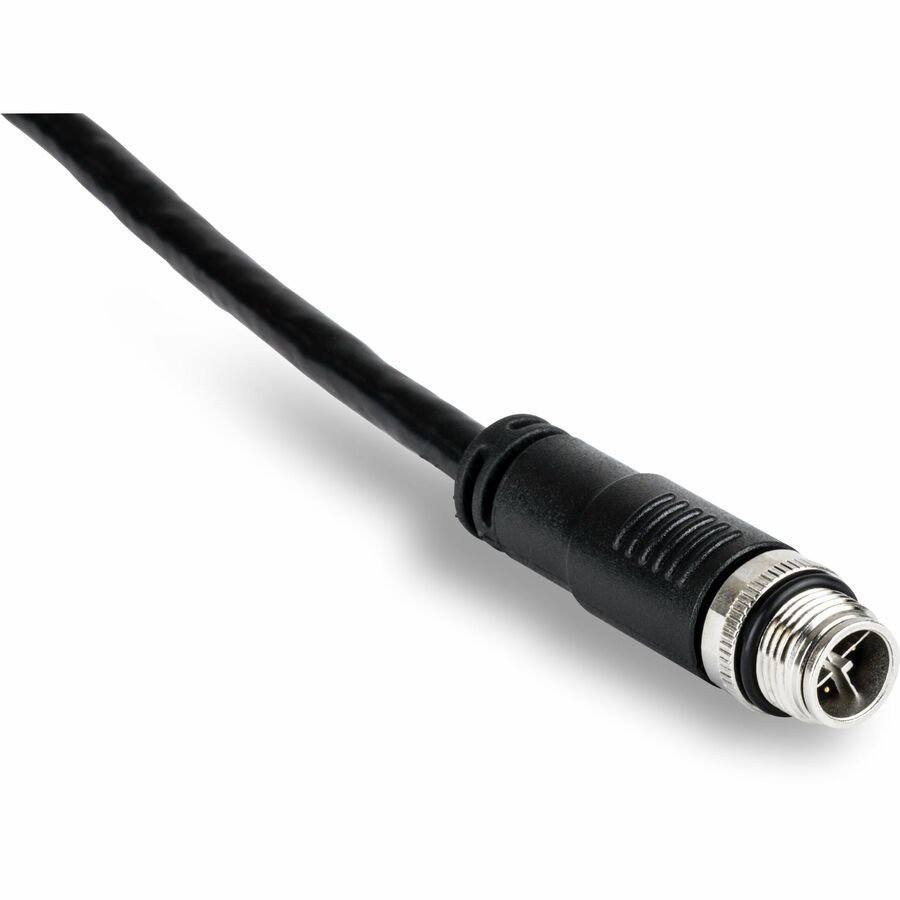

• DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 5m (16.4 ft.) cable length
• TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50)
• INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° - 80° C (-13° - 176° F)
• PUR JACKET: The ultra-durable polyurethane "PUR" jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
• MAX CONTACT RESISTANCE: 20?

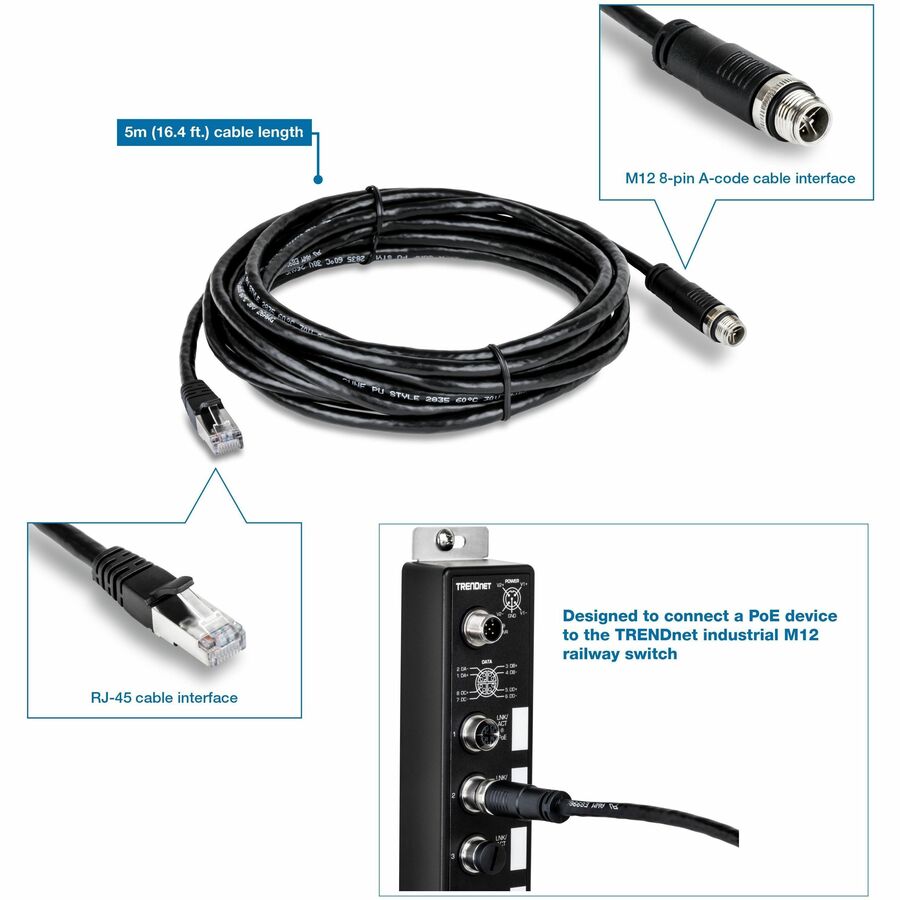

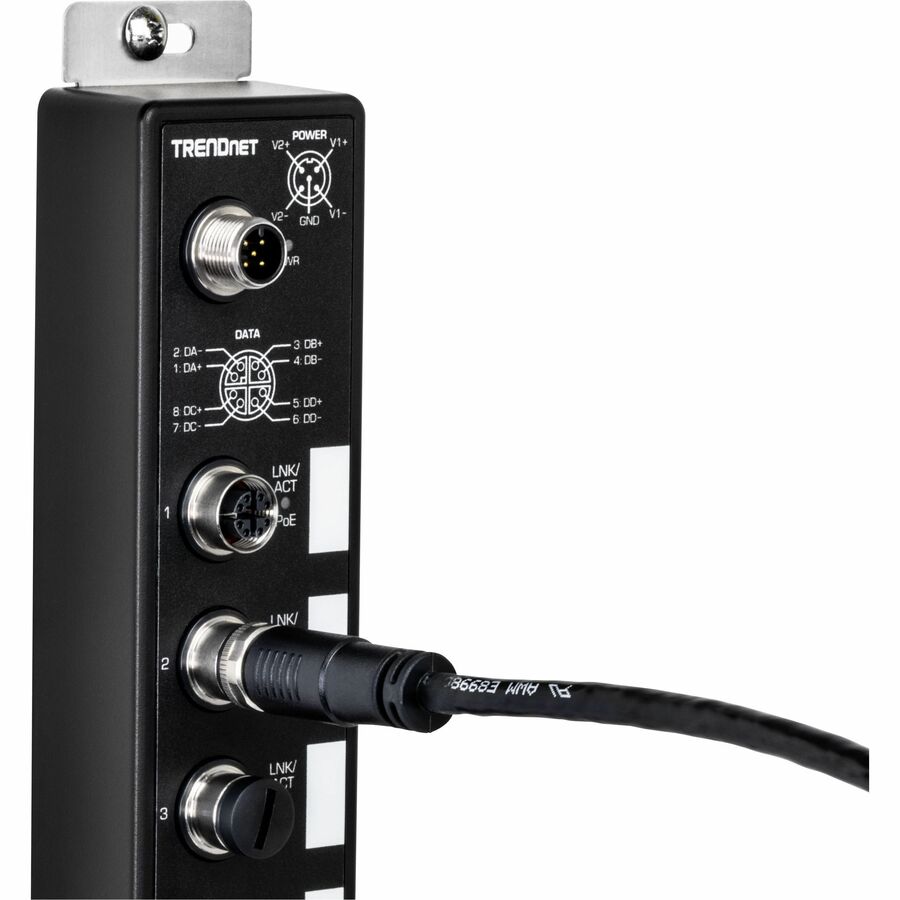

TRENDnet's M12 to RJ-45 Industrial Ethernet Cable, 5m (16.4 ft.), model TI-CD05, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.

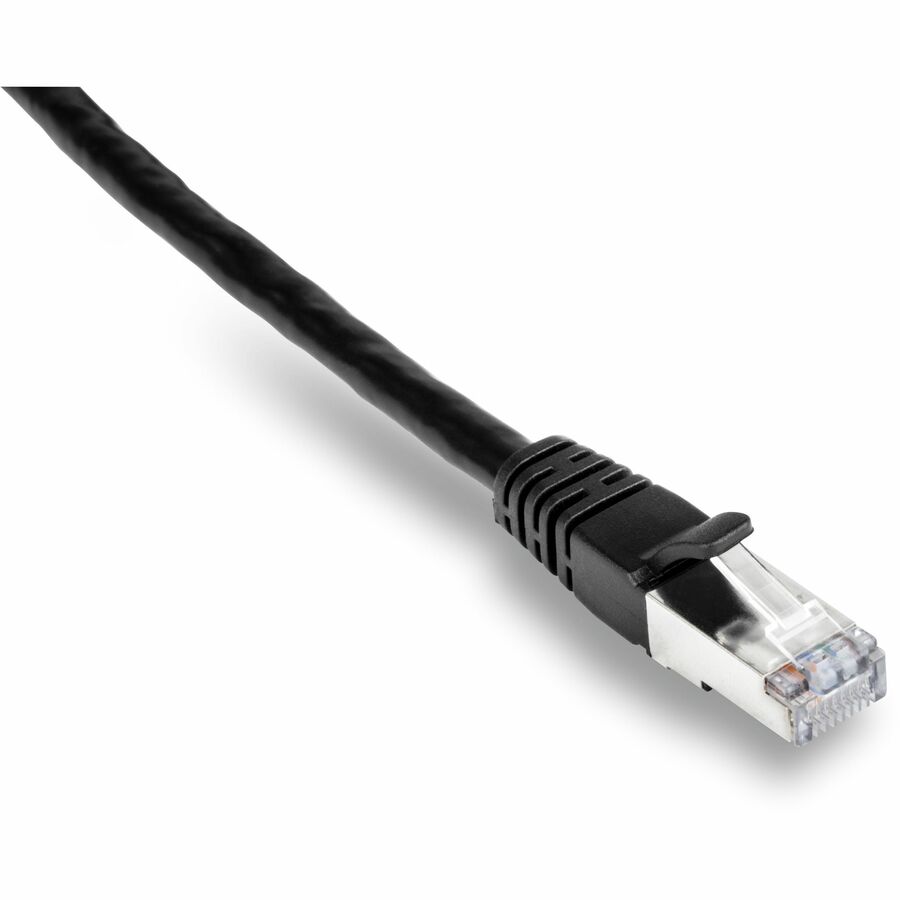

Cable Interfaces Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch
Cable Length 5m (16.4 ft.) cable length
IP67 Rated Cable Rugged IP67 weather rated cable
More from the Manufacturer
Highlights
- Cable Interfaces: Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch
- Cable Length: 5m (16.4 ft.) cable length
- IP67 Rated Cable: Rugged IP67 weather rated cable
Specifications
| Cable Length | 16.40 ft |
|---|---|
| Product Type | Network Cable |
| Compatibility | TRENDnet Industrial Switches: TI-XPG50 EN50155 |
| Device Supported | Network Device, Switch |
| Manufacturer Part Number | TI-CD05 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 0.55 lb |
| Features | Moisture Resistant, Rugged, Weather Resistant, PoE, Oil Resistant |
| Manufacturer | TRENDnet |
| Product Model | TI-CD05 |
| Product Name | M12 to RJ-45 Industrial Ethernet Cable, 5m (16.4 ft.) |
| Brand Name | TRENDnet |
| Country of Origin | Taiwan |
| Cable Type | M12/RJ-45 |
| Connector Type on First End | M12 - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on First End Details | 1 x 8-pin M12 - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
