6.56 ft M12/RJ-45 Network Cable for Network Device, Switch - First End: 1 x 8-pin M12 - Male - Second End: 1 x RJ-45 Network - Male
$87.91
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

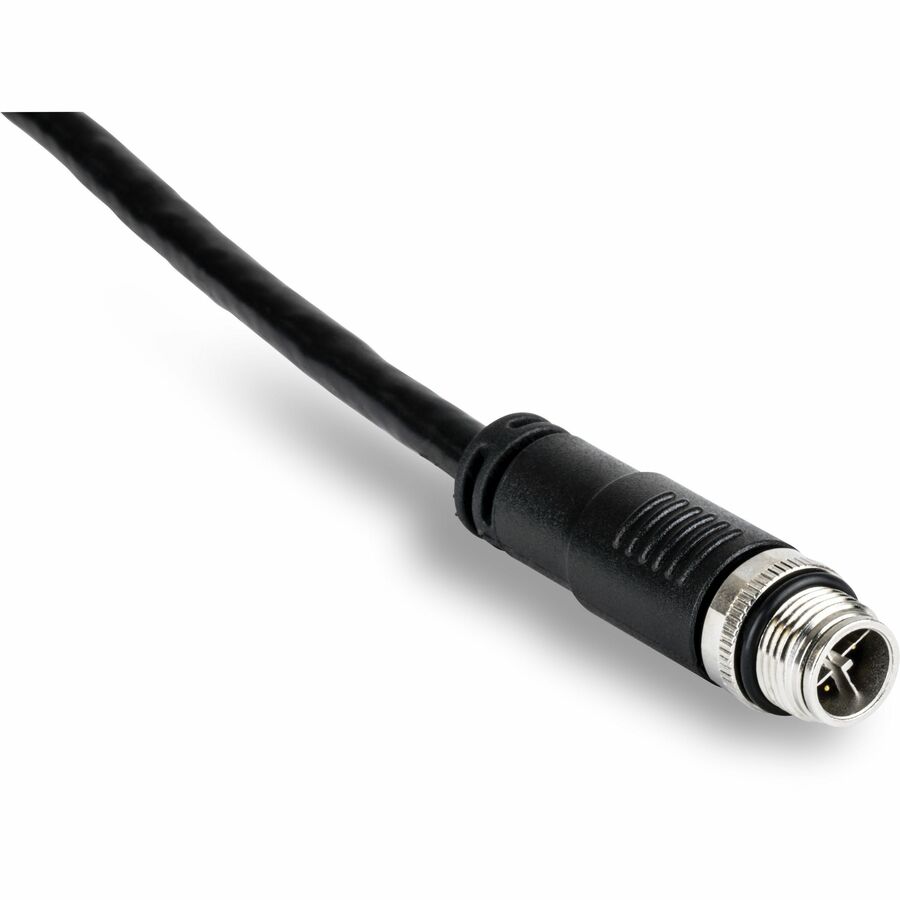

• DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 2m (6.5 ft.) cable length

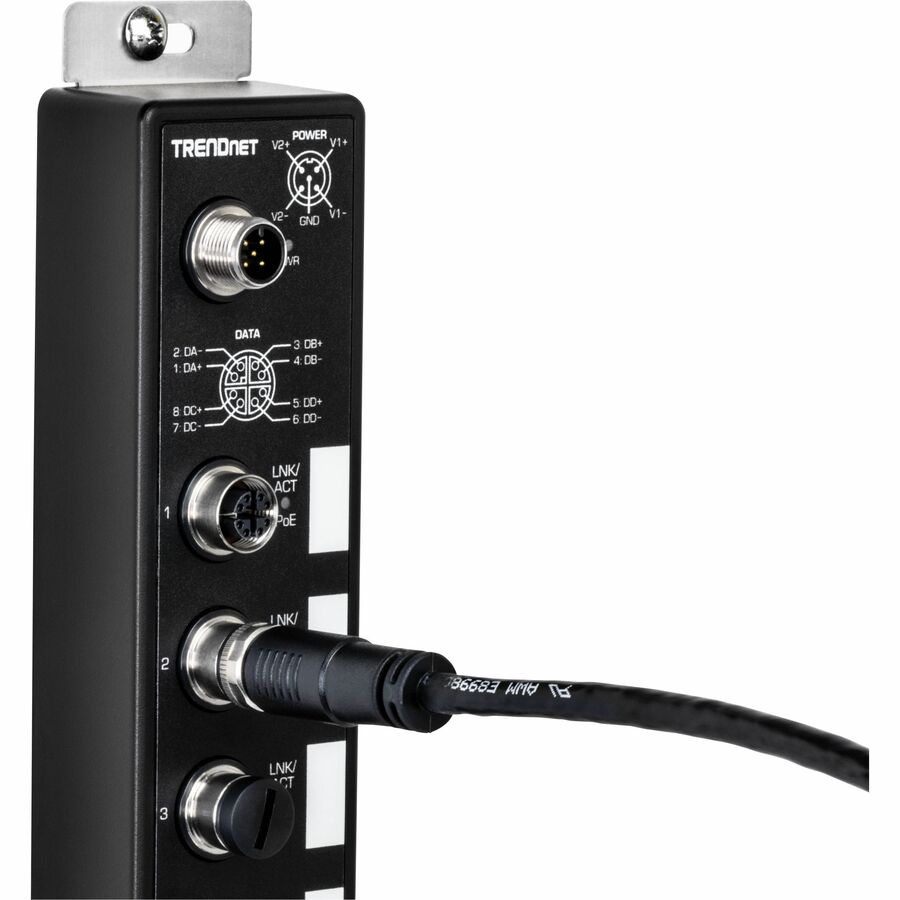

• TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50)
• INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° - 80° C (-13° - 176° F)
• PUR JACKET: The ultra-durable polyurethane "PUR" jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
• MAX CONTACT RESISTANCE: 20?

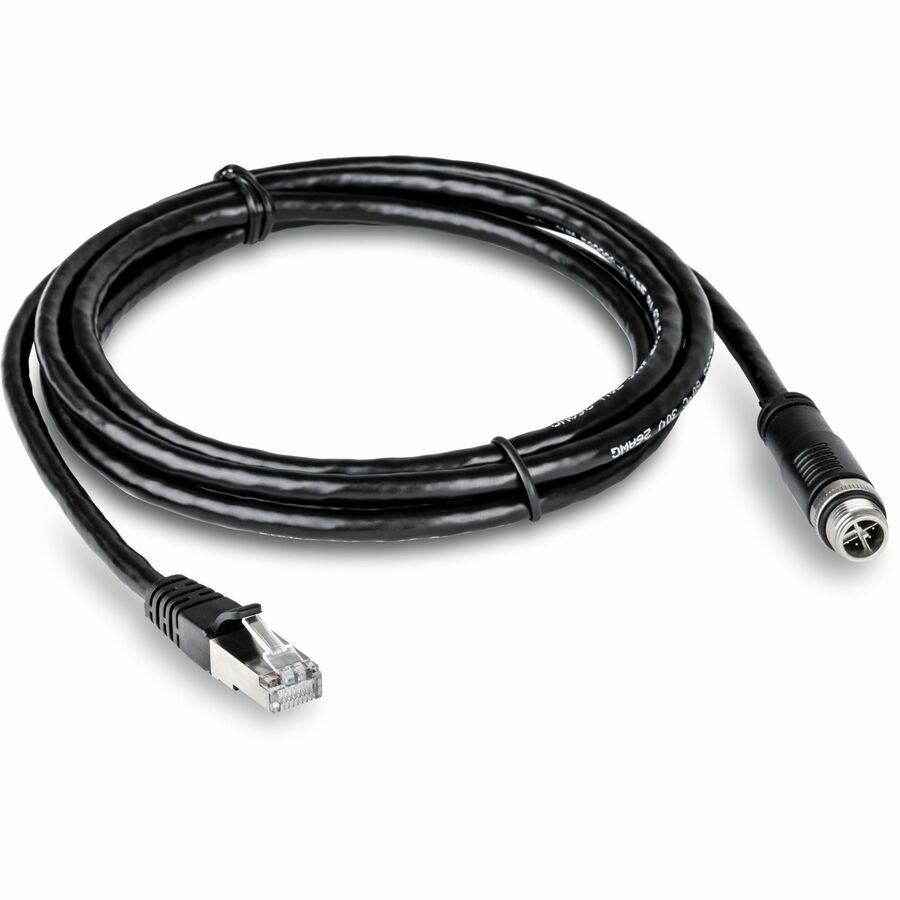

TRENDnet's M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.), model TI-CD02, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.

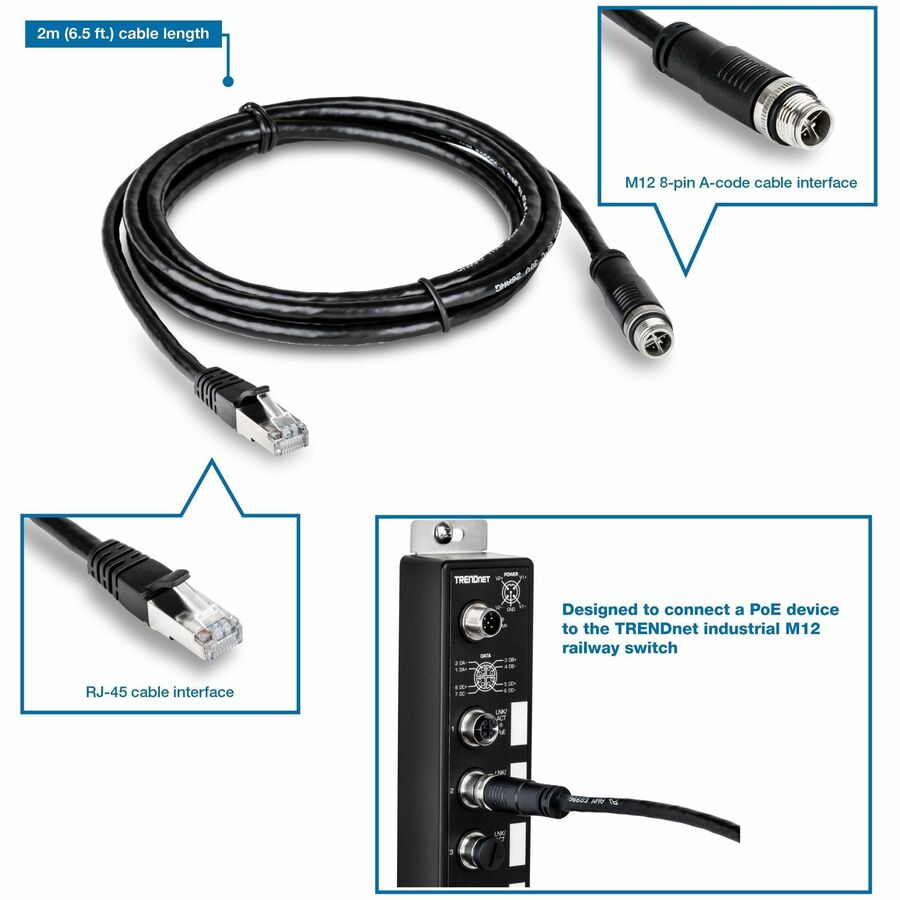

Cable Interfaces Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch
Cable Length 2m (6.5 ft.) cable length
IP67 Rated Cable Rugged IP67 weather rated cable
More from the Manufacturer
TRENDnet’s M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.), model TI-CD02, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.
Cable Interfaces
Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch
Cable Length
2m (6.5 ft.) cable length
IP67 Rated Cable
Rugged IP67 weather rated cable
DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 2m (6.5 ft.) cable length
TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50)
INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° – 80° C (-13° – 176° F)
PUR JACKET: The ultra-durable polyurethane “PUR” jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
MAX CONTACT RESISTANCE: 20Ω
SPECIFICATION S
Interface
1 x M12 8-pin A-code male interface
1 x RJ-45 network interface
IP67 rated
Features
Max. contact resistance: 20Ω
Min. insulation resistance: DC 200V 10ms 10MΩ
IP67 rating ensures protection from liquid moisture and fine particulates
PUR jacket resists oil and other contaminants
Operating Temperature
-25° – 80° C (-13° – 176° F)
Operating Humidity
Max. 90 % non-condensing
Length
2m (6.5 ft.)
Weight
112g (4 oz.)
Warranty
1 year
PACKAGE CONTENTS
TI-CD02
Limited Warranty: 1 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-CD02 |
| Brand Name | TRENDnet |
| Product Model | TI-CD02 |
| Product Name | M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.) |
| Product Type | Network Cable |
| Physical Characteristics | |
| Weight (Approximate) | 0.25 lb |
| Technical Information | |
| Cable Type | M12/RJ-45 |
| Cable Length | 6.56 ft |
| Connector Type on First End | M12 - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 8-pin M12 - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Device Supported | Network Device, Switch |
| Features | Moisture Resistant, Rugged, Weather Resistant, PoE, Oil Resistant |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Compatibility | TRENDnet Industrial Switches: TI-XPG50 EN50155 |
| Country of Origin | Taiwan |
