TRENDnet Outdoor IP68 Weatherproof Enclosure with 350W Power Supply…

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply, model TI-CA4K, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting holes of the outdoor network cabinet provide a safe and convenient way to install industrial devices while protecting them from the elements. An extreme operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in very hot or cold environments. This durable, outdoor network enclosure comes with a power supply that provides up to 350W (55V DC, 6.3A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.

Outdoor Rated

This outdoor network enclosure is IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.

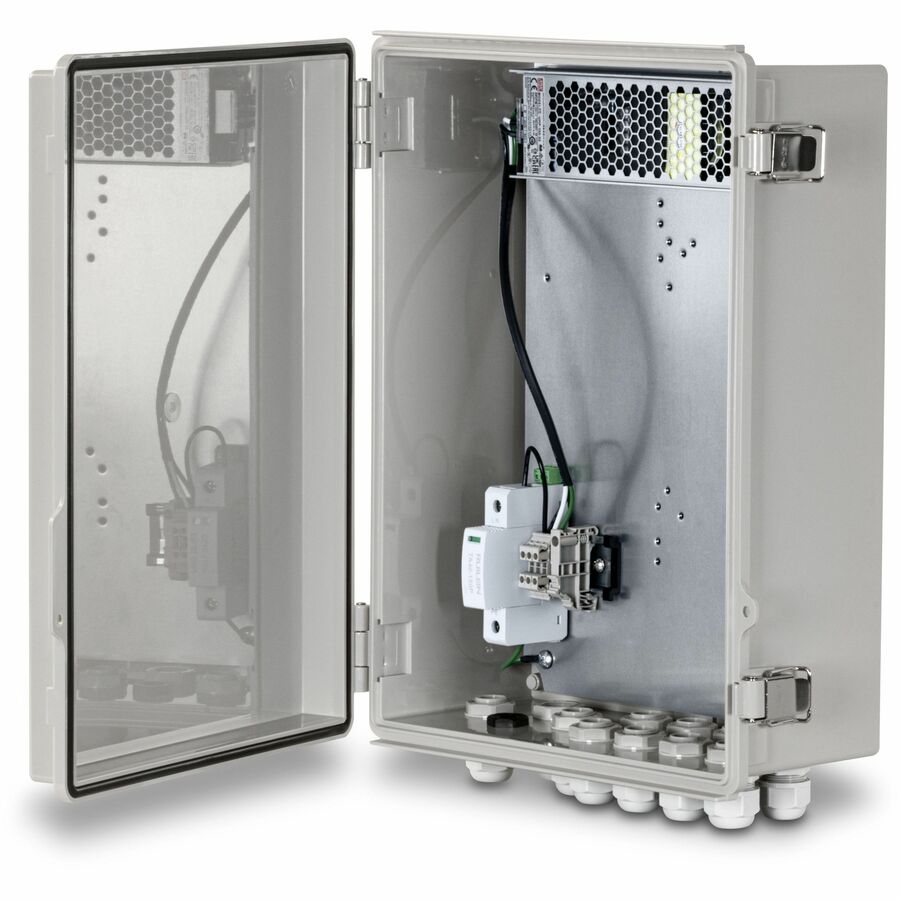

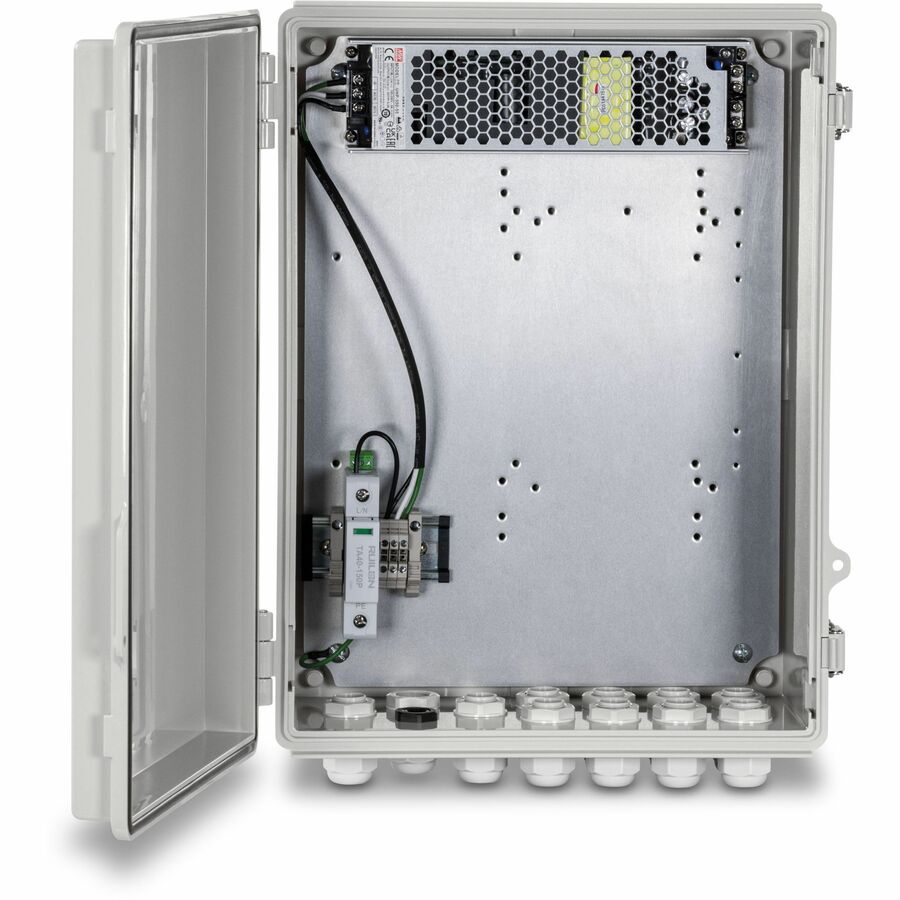

Internal Mounting Design

The internal mounting design of the outdoor network cabinet provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements

Wide Temperature Range

A wide operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments.

Surge Protection

20kA @ 8/20 µs surge protection

Wide Temperature Range

A wide operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments

Impact Protection

This outdoor network cabinet features an IK10 impact protection

Wall Mount

This wall-mount network cabinet is designed to be installed on vertical surfaces

Housing Design

The outdoor network cabinet features a rugged polycarbonate construction with IP68 weather protection

Power Supply

Provides up to 350W power to PoE and non-PoE devices

More from the Manufacturer

OVERVIEW

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply, model TI-CA4K, is well suited for use with TRENDnet’s line of industrial switches, fiber converters, and PoE injectors. The internal mounting holes of the outdoor network cabinet provide a safe and convenient way to install industrial devices while protecting them from the elements. An extreme operating temperature range of -30° – 70° C (-22° – 158° F) allows for installations in very hot or cold environments. This durable, outdoor network enclosure comes with a power supply that provides up to 350W (55V DC, 6.3A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.

FEATURES

Outdoor Rated

This outdoor network enclosure is IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.

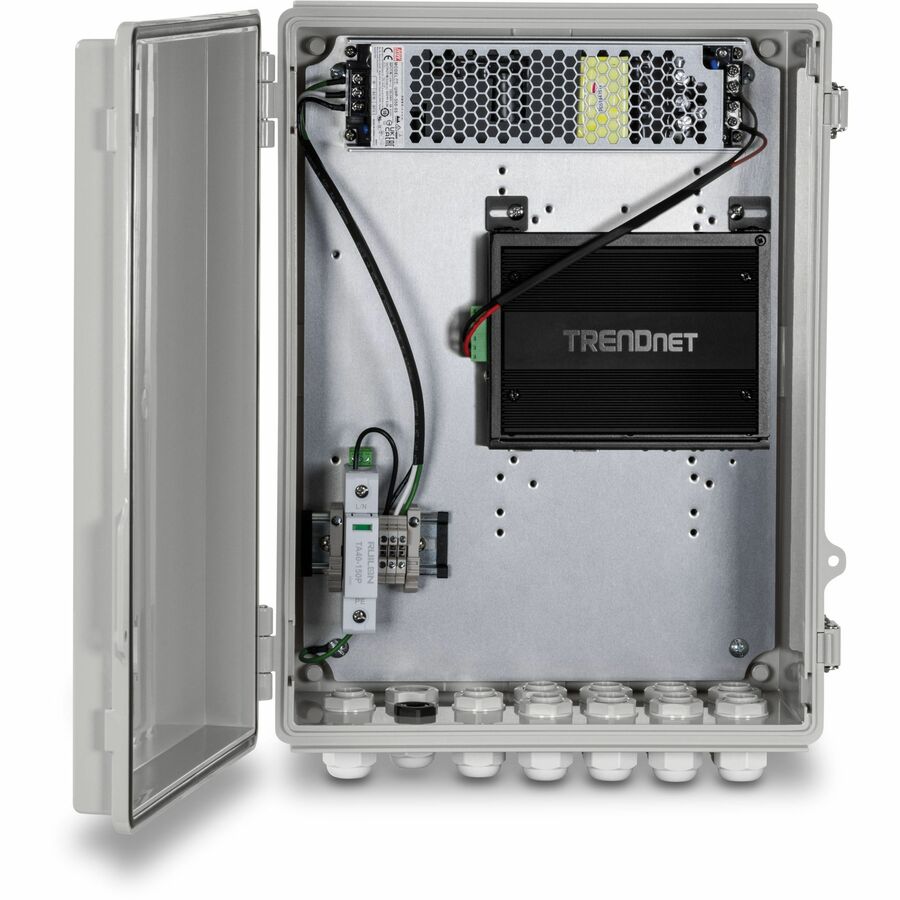

Internal Mounting Design

The internal mounting design provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements.

Wide Temperature Range

A wide operating temperature range of -30° – 70° C (-22° – 158° F) allows for installations in extreme hot or cold environments.

Outdoor Rated

IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors

Impact Protection

This outdoor network cabinet features an IK10 impact protection

Power Supply

Provides up to 350W power to PoE and non-PoE devices

Surge Protection

20kA @ 8/20 μs surge protection

Lorem ipsum dolor sit amet

Wall Mount

This wall-mount network cabinet is designed to be installed on vertical surfaces

Internal Mounting Design

The internal mounting design of the outdoor network cabinet provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements

Wide Temperature Range

A wide operating temperature range of -30° – 70° C (-22° – 158° F) allows for installations in extreme hot or cold environments

Housing Design

The outdoor network cabinet features a rugged polycarbonate construction with IP68 weather protection

SPECIFICATIONS

Hardware

IP68

IK10

Polycarbonate

FIPFG sealing (Gasket material: Polyurethane foam)

Hinged door

Waterproof door lock

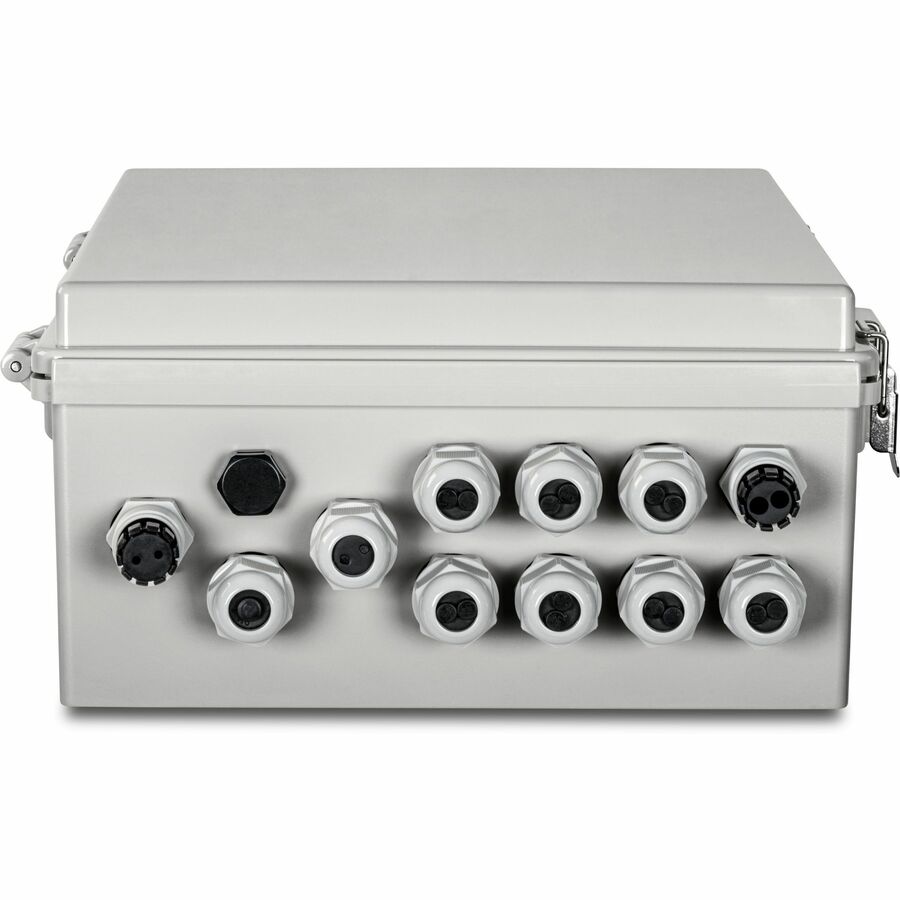

11 cable glands

Wall mount

Flammability: UL 94 V-0

UV resistance: UL 746C

Salt spray: IEC 60068-2-52

Halogen free

Power

Input: 100-240V AC

Output: 350W, 55V DC 6.3A

DIN-Rail: TS-35/7.5 or 15

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

18 AWG power cable included

Operating Temperature

-30° – 70° C (-22° – 158° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

400 x 300 x 150mm (15.75 x 11.8 x 5.9 in.)

Weight

3.7kg (8.2 lb.)

Surge Protector

Maximum Continuous Operating Voltage

Current Impulse (8/20μs)

Voltage Protection Level (@ln)

Temporary Overvoltage

Working Current

Uc (Vac)

Ucpv (Vdc)

In (kA)

Imax (kA)

Up (kV)

TOV (V/5s)

IPE (mA)

150

200

20

40

<0.8

175

<0.1

Certifications (for power supply)

CE

FCC

UL 62368

CB IEC 62368

Warranty

Case: Lifetime

Power supply: 1 year

Surge protector: 1 year

PACKAGE CONTENTS

TI-CA4K

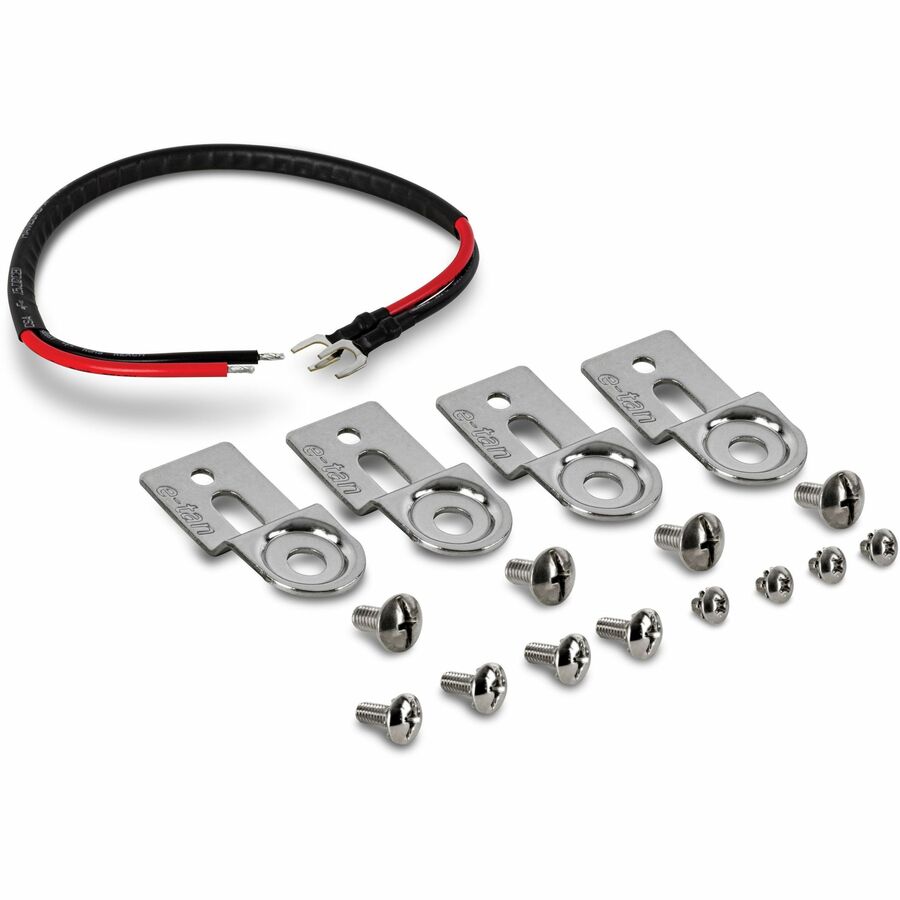

Wall-mount accessories and power cable

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
