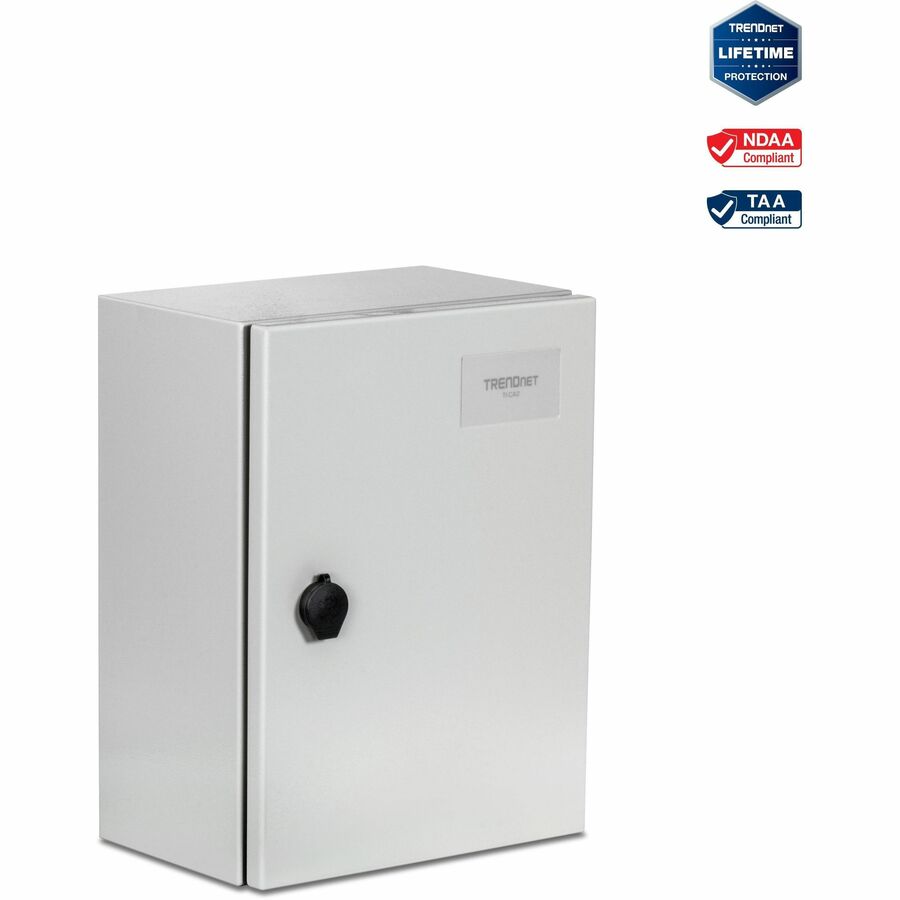

The TRENDnet Outdoor IP66 Steel Enclosure with Lockable Hinged Door, model TI-CA2, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements. A wide operating temperature range of -40° - 60° C (-40° - 140° F) allows for installations in extreme hot or cold environments. This durable steel enclosure with lockable hinged door protects devices from exposure to the elements.
Outdoor Rated
IP66 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors

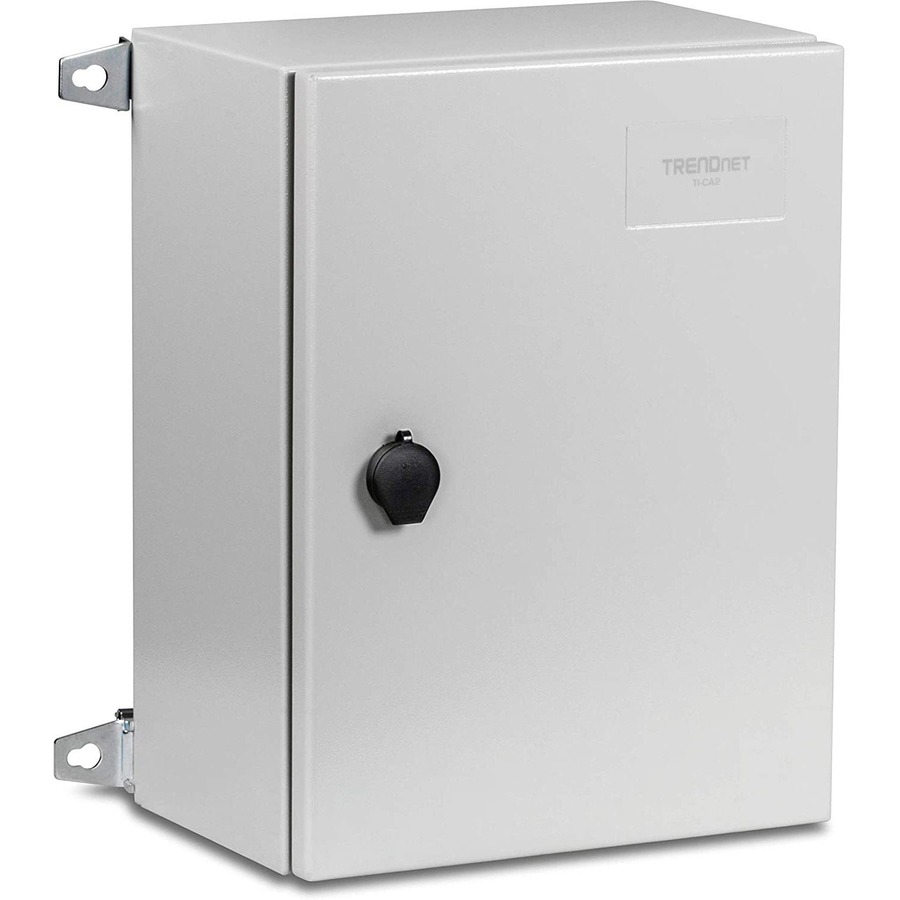

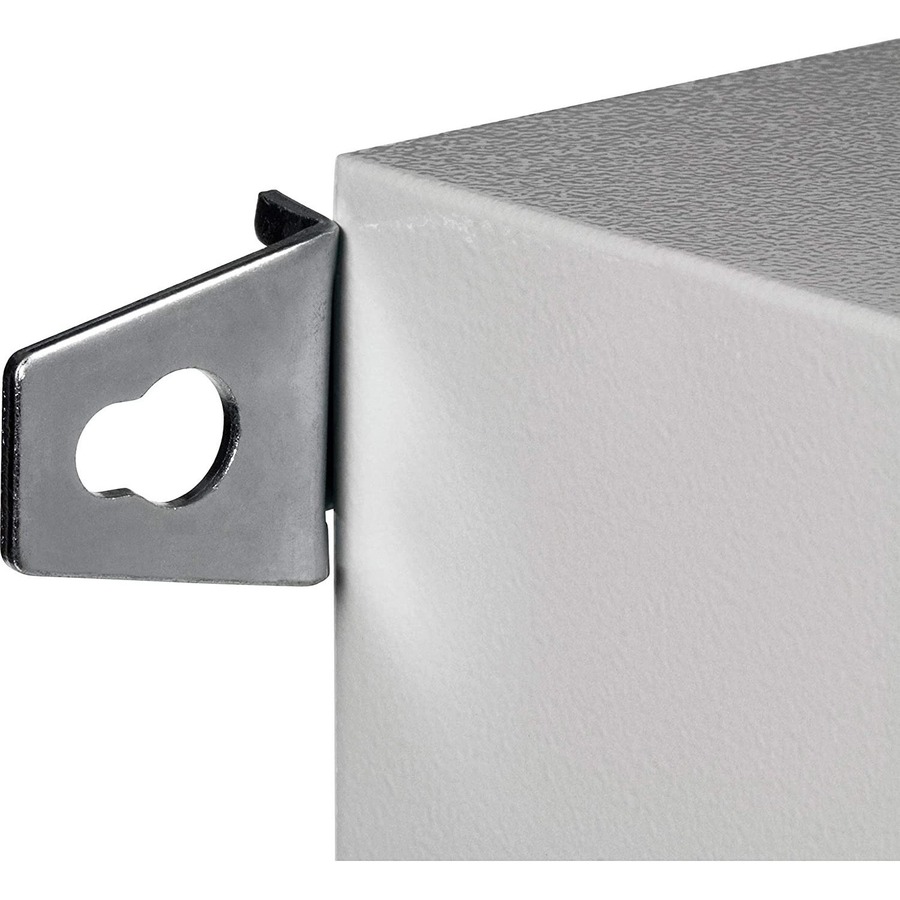

Wall Mount
Designed to be installed on vertical surfaces with the removable bottom plate facing downward

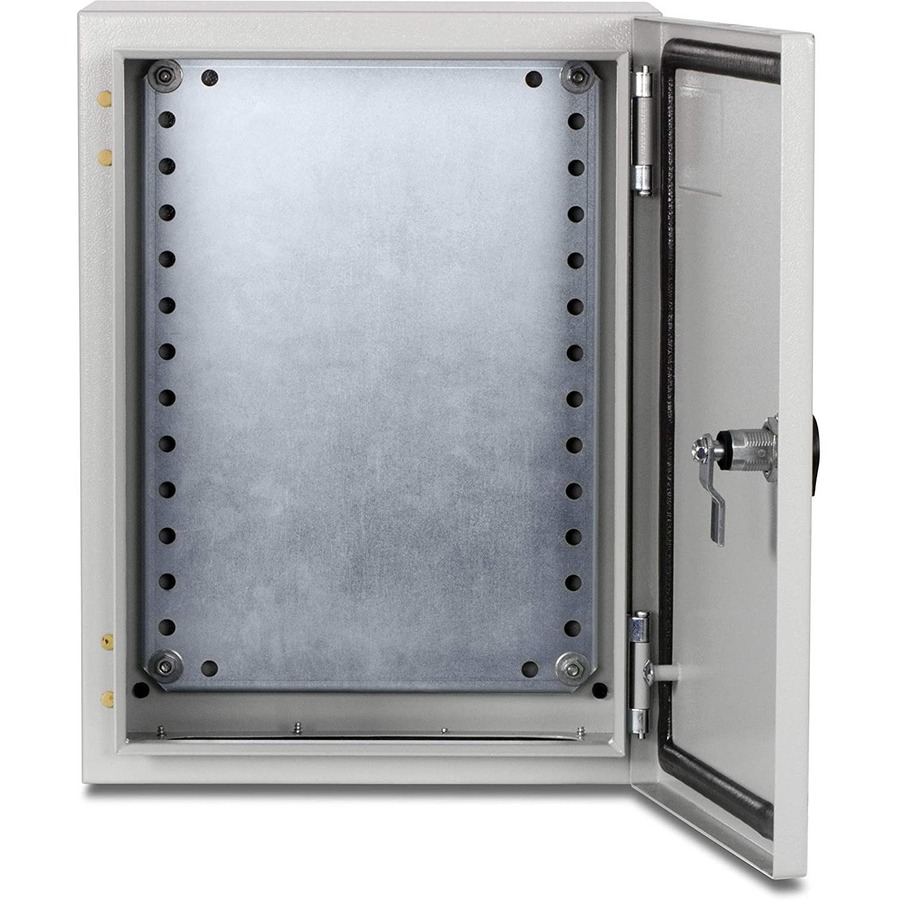

Internal Mounting Plate
Internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements
Wide Temperature Range
A wide operating temperature range of -40° - 60° C (-40° - 140° F) allows for installations in extreme hot or cold environments

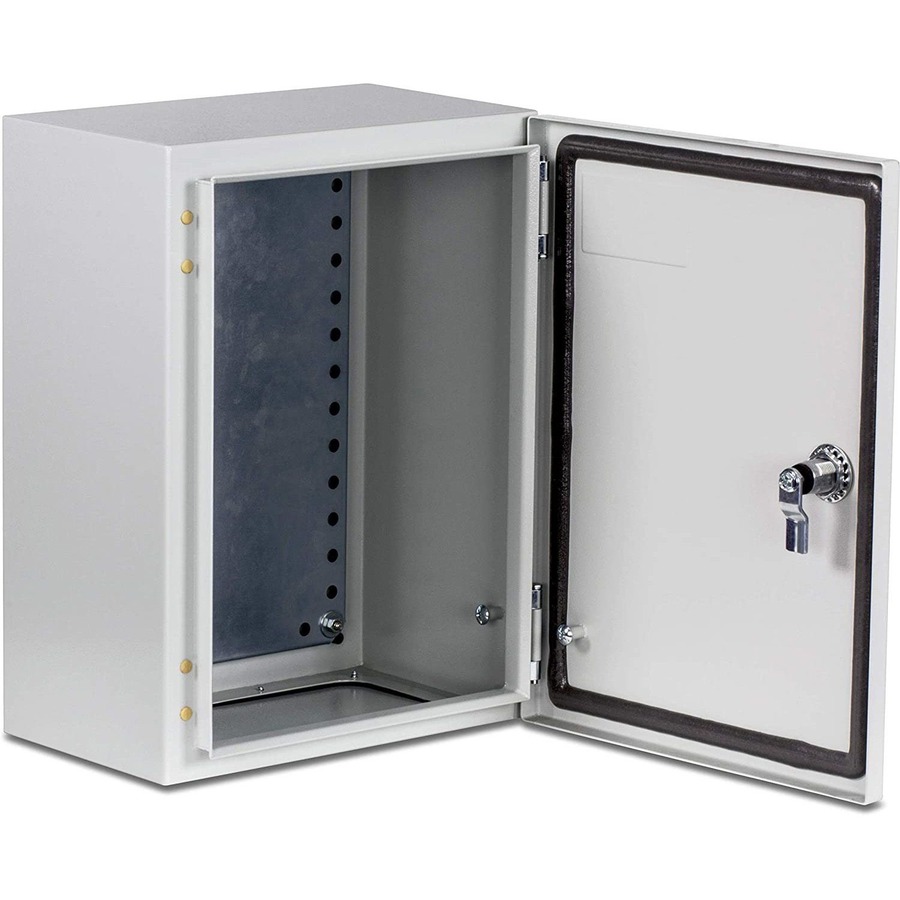

Housing Design
Rugged steel construction with IP66 weather sealed lockable hinged door
More from the Manufacturer
Overview
The TRENDnet Outdoor IP66 Steel Enclosure with Lockable Hinged Door, model TI-CA2, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements. A wide operating temperature range of -40° – 60° C (-40° – 140° F) allows for installations in extreme hot or cold environments. This durable steel enclosure with lockable hinged door protects devices from exposure to the elements.
Outdoor Rated
IP66 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors
Internal Mounting Plate
The internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements
Wide Temperature Range
A wide operating temperature range of -40° – 60° C (-40° – 140° F) allows for installations in extreme hot or cold environments
Wall Mount
Designed to be installed on vertical surfaces with the removable bottom plate facing downward
Outdoor Rated
IP66 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors
Housing Design
Rugged steel construction with IP66 weather sealed lockable hinged door
Wide Temperature Range
A wide operating temperature range of -40° – 60° C (-40° – 140° F) allows for installations in extreme hot or cold environments
Specifications
Hardware
IP66
1.6mm SPHC hot rolled steel case
1.66mm SGCC hot dip steel (mounting plate)
FIPFG sealing
Waterproof door lock
Removable bottom plate
Wall mount
Operating Temperature
-40° – 60° C (-40° – 140° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
400 x 300 x 200mm (15.75 x 11.8 x 7.9 in.)
Weight
9.5kg (21 lb.)
Warranty
Lifetime Warranty
PACKAGE CONTENTS
TI-CA2
Quick Installation Guide
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-CA2 |
| Brand Name | TRENDnet |
| Product Model | TI-CA2 (Version V1) |
| Product Name | Outdoor IP66 Steel Enclosure with Lockable Hinged Door |
| Product Type | Outdoor Network Enclosure |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor | Wall Mountable |
| Mount Surface | Wall |
| Weight (Approximate) | 20.94 lb |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Fiber Converter |
| Indoor/Outdoor | Outdoor |
| TAA Compliant | Yes |
