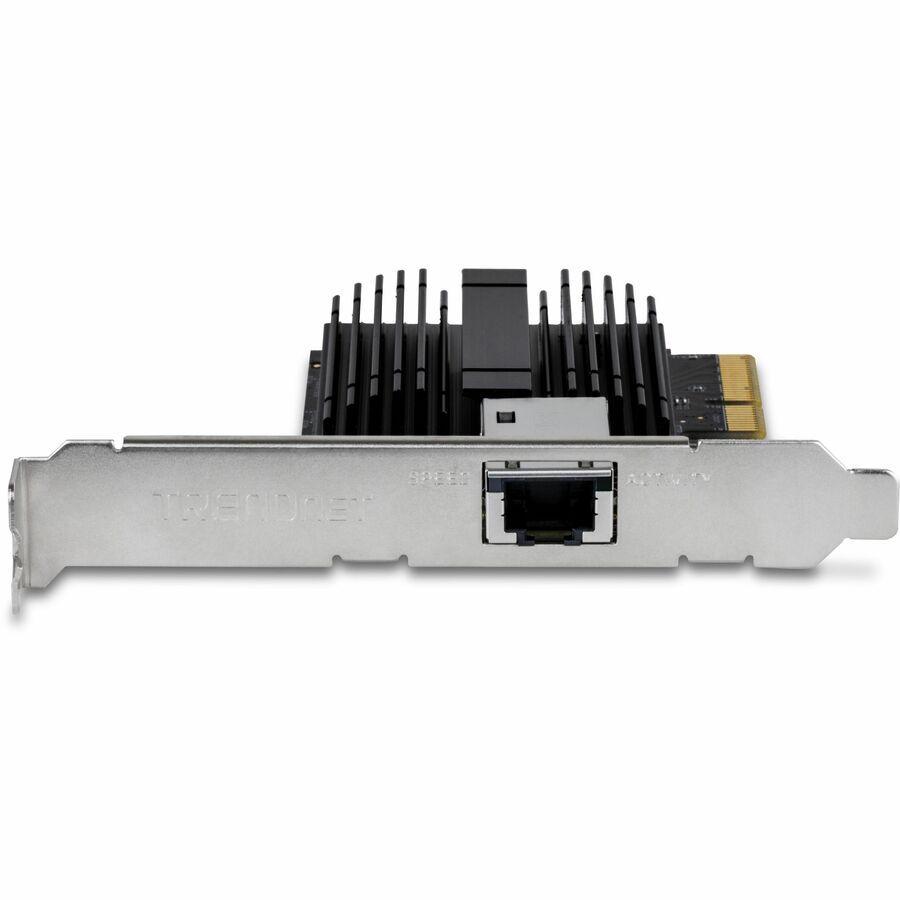

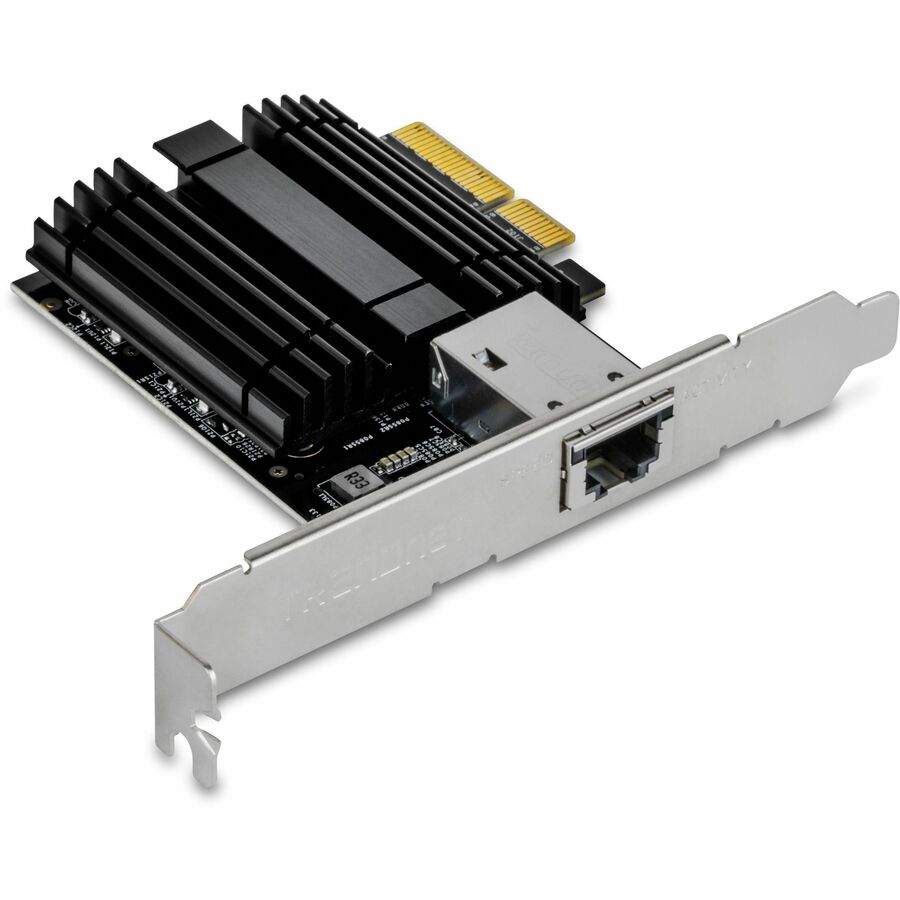

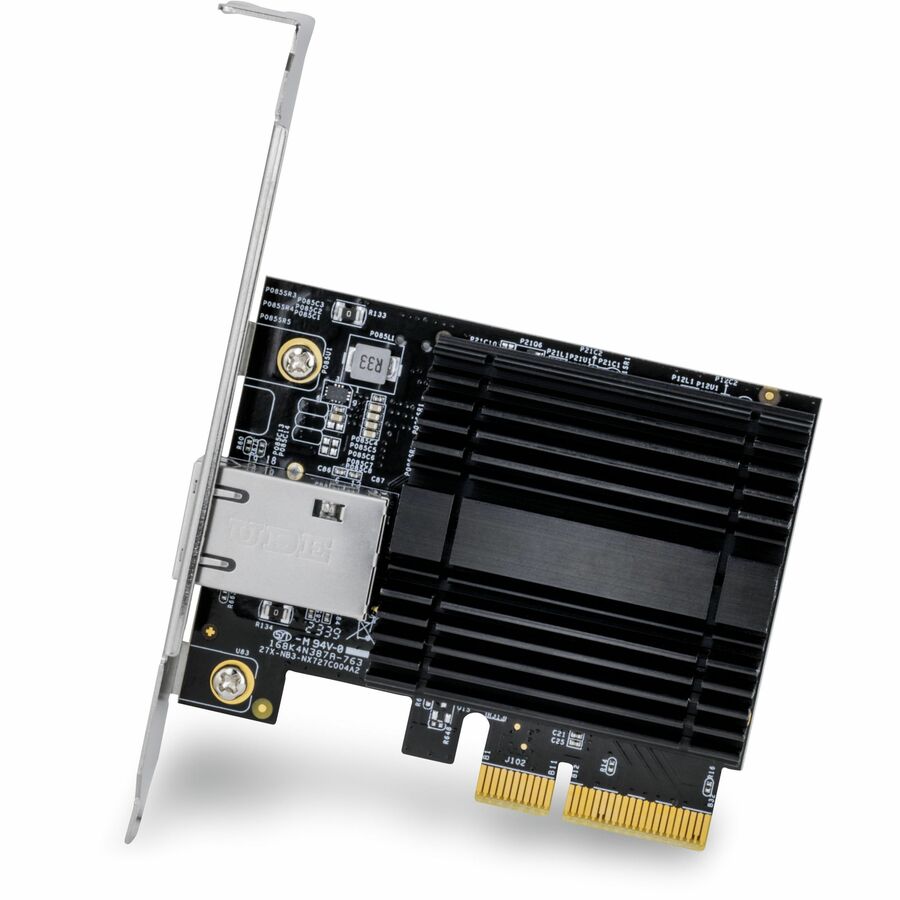

TRENDnet 10 Gigabit PCIe Network Adapter, Converts A PCIe Slot Into A 10G Ethernet Port, Supports 802.1Q Vlan, Includes Standard & Low-Profile Brackets, PCIe 2.0, PCIe 3.0, Silver, TEG-10GECTX

TRENDnet's 10G PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port. The 10G PCIe card includes advanced features, such as jumbo frames and VLAN tagging support. The standard and low-profile brackets included with the 10G PCIe card are compatible with Windows® and Windows Server® desktop computer designs.

• HARDWARE INTERFACE: 1 x 10Gbps RJ-45 Ethernet port (Supported Speeds: 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps), PCIe Gen 2 3.0 x4 interface, LED indicators

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Network Adapters, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TEG-10GECTX 10 Gigabit PCIe Network Adapter is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• PCI EXPRESS: This 10GbE PCIe network card converts a PCIe 3.0 x4 slot into a 10G Ethernet Port

• 10G PORT: 10G PCIe card adapter supported speeds: 10Gbps, 2.5Gbps, 1Gbps

• 2.5G BASE-T SUPPORT: 2.5GBASE-T specification (802.3bz) supports 2.5G and 5G speeds over standard Cat5e cables at distances up to 100m

• COMPATIBLE OPERATING SYSTEMS: The 10G adapter is compatible with Windows, Windows Server. Windows 11, 10, 8.1, Windows Server 2022, 2019, 2016, 2012,R2

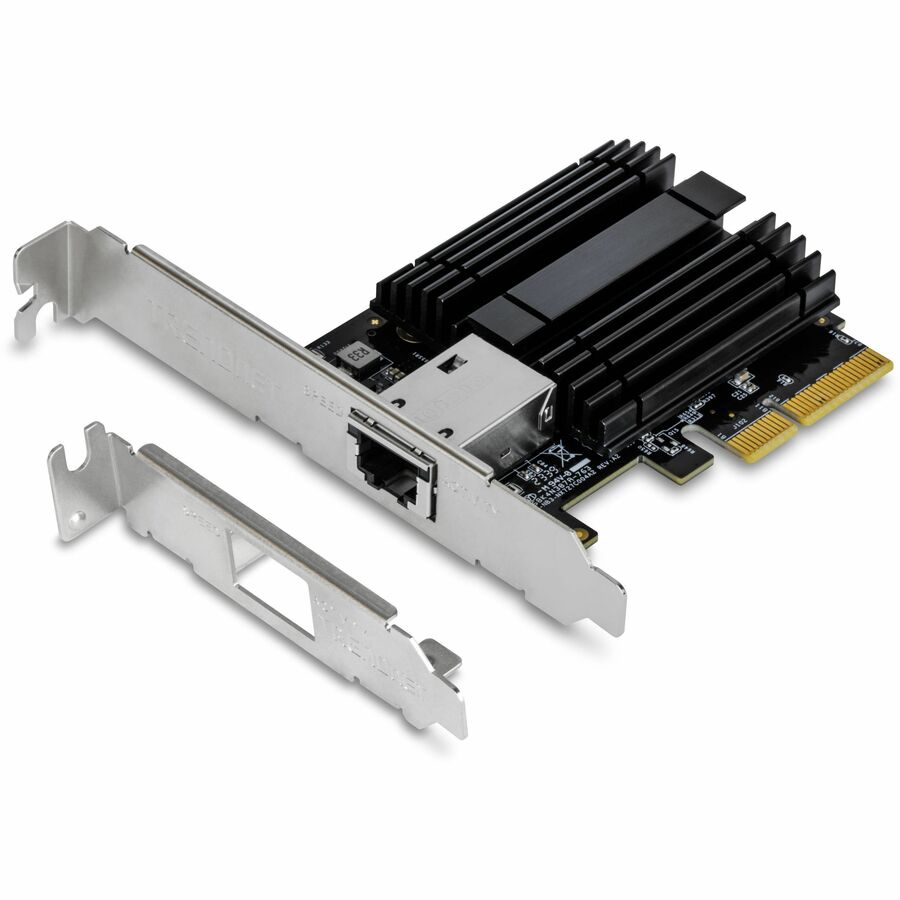

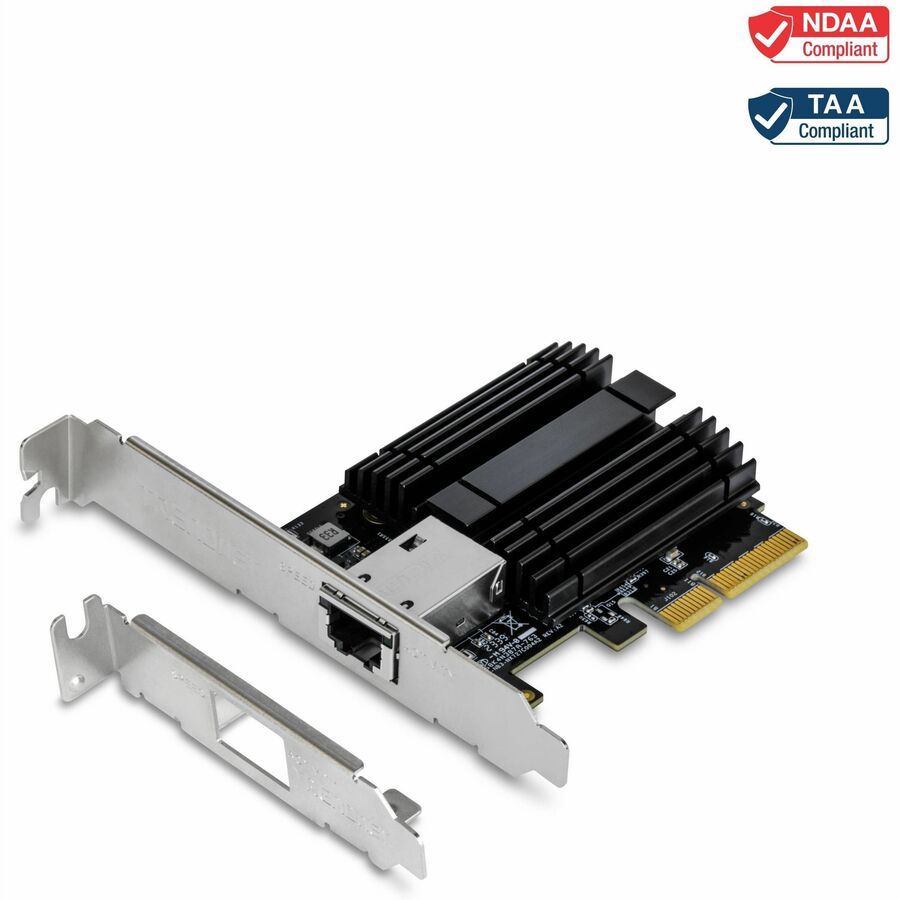

• BRACKETS INCLUDED: The network adapter supports most installations and standard and low-profile brackets are included

• COMPLIANT STANDARDS: IEEE 802.3ab; IEEE 802.3bz 2.5GBASE-T; IEEE 802.3an 10GBASE-T; IEEE 802.1Q; IEEE 802.3ad

More from the Manufacturer

TRENDnet’s 10G PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port. The 10G PCIe card includes advanced features, such as jumbo frames and VLAN tagging support. The standard and low-profile brackets included with the 10G PCIe card are compatible with Windows and Windows Server desktop computer designs.

FEATURES

10 G Port

Supports five selectable speeds: 10 Gbps, 2.5 Gbps, 1 Gbps

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

Operating Systems

Compatible with Windows, Windows Server

10G Port

10G PCIe card supports connection speeds: 10Gbps, 2.5Gbps, and 1Gbps

PCI Express

10GbE PCIe card converts a PCIe 3.0 x4 slot into a 10G Ethernet Port

2.5GBASE-T Support

2.5GBASE-T specification (802.3bz) supports 2.5Gbps speeds over standard Cat5e cables at distances up to 100m

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16KB), for increased performance

VLAN Support

IEEE 802.1Q tagged-based VLAN support

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows and Windows Server operating systems

LED Indicators

LED indicators on the 10G PCIe card convey port status, link speed and activity

SPECIFICATIONS

Standards

IEEE 802.3ab

IEEE 802.3bz 2.5GBASE-T

IEEE 802.3an 10GBASE-T

IEEE 802.1Q

IEEE 802.3ad

Hardware Interface

PCIe Gen 2 3.0 x4 interface

1 x 10Gbps RJ-45 Ethernet port (Supported Speeds: 10Gbps / 2.5Gbps / 1Gbps )

LED indicators

Cable Requirements

10GBASE-T (10Gbps): Cat6 twisted pair @ 55m / 180 ft. (max.) / Cat6A twisted pair @ 100m / 328 ft. (max.)

2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)

1000BASE-T (1Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)

Compatibility

Windows® 11, 10, 8.1

Windows® Server 2022, 2019, 2016, 2012 R2

Jumbo Frames

Up to 16KB

Special Features

10GBASE-T (10Gbps) & 2.5G (2.5Gbps) support for high-speed network connectivity

Windows Server support

Additional Support

802.1Q VLAN Tagging

Receive-side scaling (RSS)

Message Signaled Interrupts (MSI)

IP, TCP, and UDP checksum offloading

Minimize overhead with reduced host bus traffic and CPU utilization

Power

Max. consumption: 6.1W

Operating Temperature

0° – 70° C (32° – 158° F)

Operating Humidity

Max. 90% non-condensing

Certifications

CE

FCC

Dimensions

120 x 63 x 17mm (4.7 x 2.5 x 0.7 in.)

Weight

76g (2.6 oz.)

Warranty

3 year

PACKAGE CONTENTS

TEG-10GECTX

Quick Installation Guide

CD-ROM (Driver)

Standard & low-profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

10G PCIe Network Adapter

Converts a PCIe 3.0 x4 slot into a 10G Ethernet port

Supports connection speeds of 10Gbps, 2.5Gbps, and 1Gbps

Supports 802.1Q VLAN Tagging

Includes standard and low-profile brackets

Windows® and Windows Server® support

IEEE 802.3an and 802.3bz compliant

NDAA / TAA compliant (U.S. and Canada only)
