Inline PoE Tester
$82.31
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
• PORTS: This Inline PoE tester is equipped with 1 x Gigabit port for PSE connection, and 1 x Gigabit port for PoE Device connection
• TESTING MODES: The TC-NTP1 supports three testing functions. T-mode allows you to test your PSE device to determine the PoE switch's or injector's supported PoE standards, as well as voltage output. N-mode is used for non-standard passive PoE devices. I-mode is used for PoE inline testing, which displays the voltage, amperage, and wattage of the connected PD
• USER FRIENDLY: The TC-NTP1 PoE cable tester provides battery-free operation, and is ready for use right out of the box; just plug-in to start testing
• COMPATABILITY: The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V - 60V.
• STEP BUTTON: The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.
• TROUBLESHOOT IN REAL TIME: Troubleshoot PoE issues in real-time on-the-go and accurately test 4PPoE, PoE+, PoE, and passive PoE technologies with this compact and lightweight PoE testing tool.
• NDAA compliant

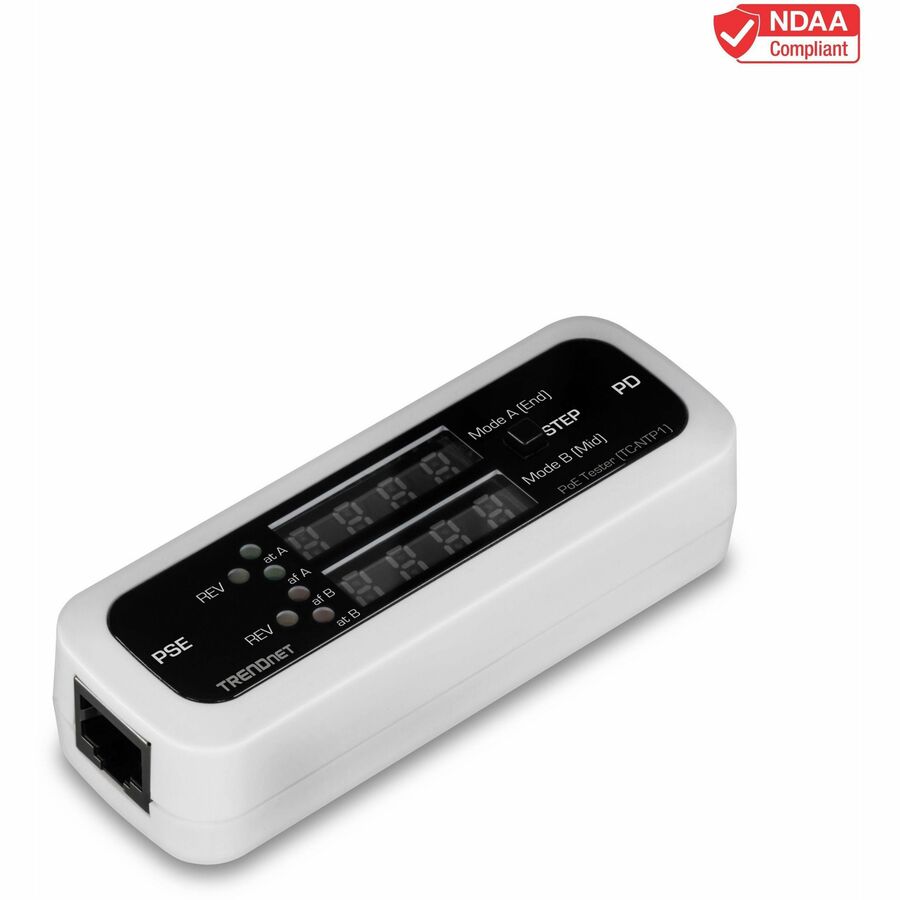

TRENDnet's Inline PoE Tester, model TC-NTP1, is a comprehensive PoE cable tester for network professionals. This compact tool accurately tests PoE++, PoE+, PoE, and passive PoE technologies. The TC-NTP1 PoE cable tester works on active connections, and is designed to sit inline between the PoE source and PoE device. The PoE cable tester then displays real-time PoE information such as wattage, voltage, and amperage for that connection.
Testing Modes
The TC-NTP1 has three testing functions: T-mode (for testing ports on your PSE device to determine the PoE switch's or injector's PoE type, and voltage output); N-mode (for non-standard passive PoE devices); and I-mode (for PoE inline testing, displaying voltage, amperage, and wattage of the connected PD).
Step Button
The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.
Compatibility
The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V - 60V.
PACKAGE CONTENTS
• TC-NTP1
• Quick Installation Guide
More from the Manufacturer
Testing Modes
The TC-NTP1 has three testing functions: T-mode (for testing ports on your PSE device to determine the PoE switch's or injector's PoE type, and voltage output); N-mode (for non-standard passive PoE devices); and I-mode (for PoE inline testing, displaying voltage, amperage, and wattage of the connected PD).
Step Button
The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring.
Compatibility
The PoE cable tester is compatible with IEEE 802.3af/at/bt PoE devices up to 100W, and non-standard passive PoE devices from 11V – 60V.

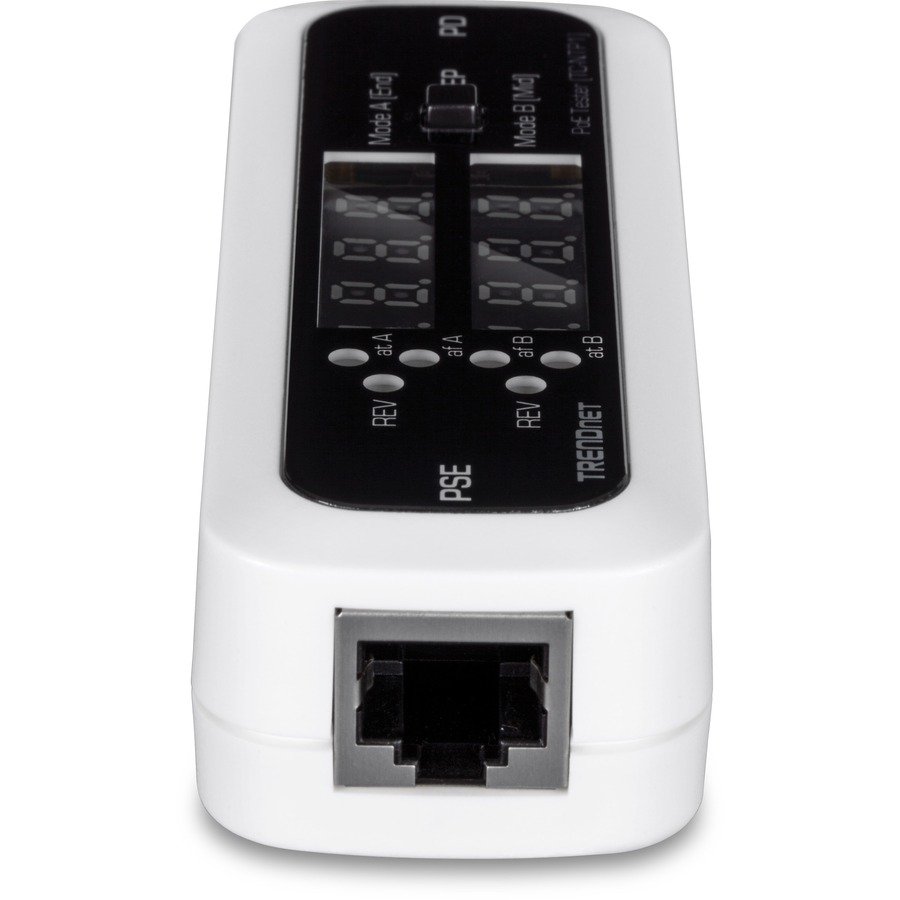

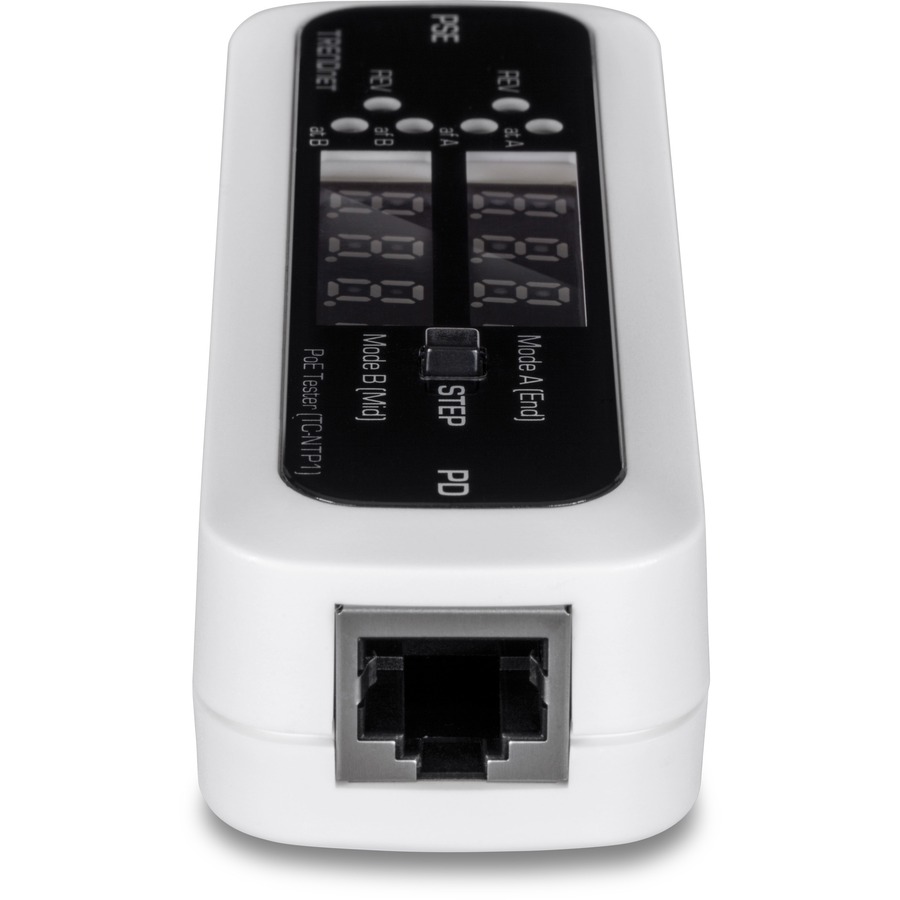

Ports
Equipped with 1 x Gigabit port for PSE connection, and 1 x Gigabit port for PD connection

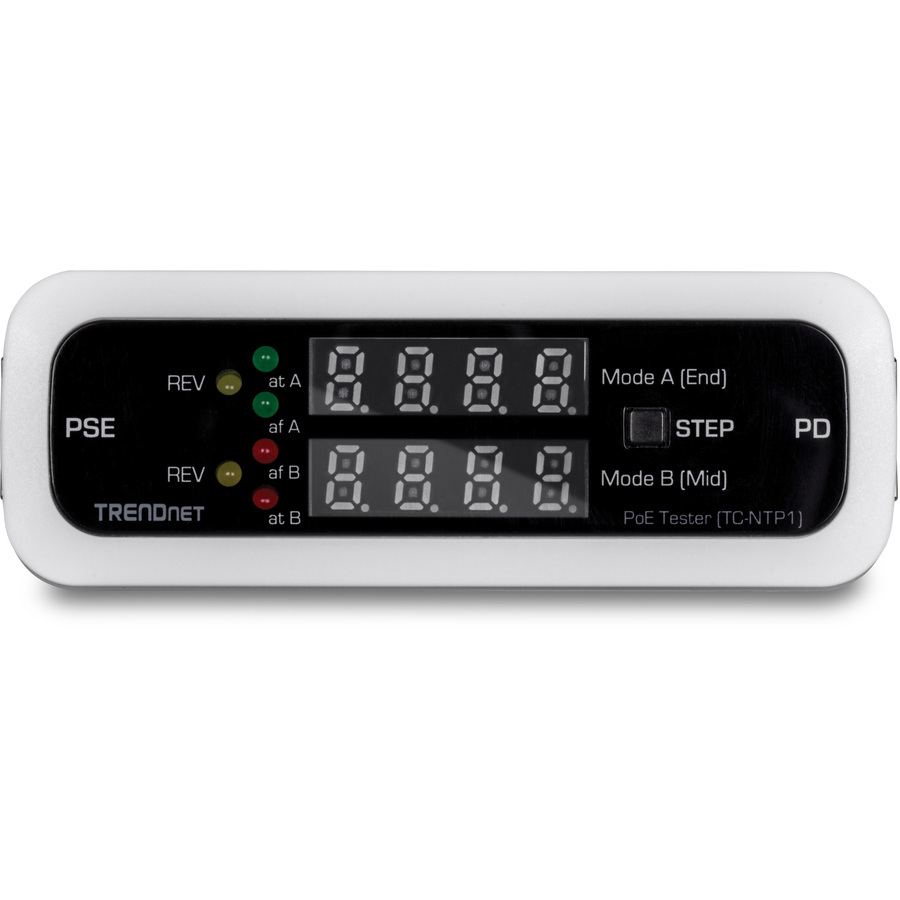

Blue LED Display
Convenient front-panel 4-digit seven-segment LED display on the PoE cable tester cycles between voltage, wattage, and amperage readings
Step Button
The convenient step button on the PoE cable tester allows users to cycle through voltage, amperage, and wattage readouts. It also allows users to lock the display to a specific readout (e.g. wattage) for real-time monitoring
Compact Design
Small and compact design of the PoE cable tester is perfectly pocketable for on-the-go PoE testing
TRENDnet's Inline PoE Tester, model TC-NTP1, is a comprehensive PoE cable tester for network professionals. This compact tool accurately tests PoE++, PoE+, PoE, and passive PoE technologies. The TC-NTP1 PoE cable tester works on active connections, and is designed to sit inline between the PoE source and PoE device. The PoE cable tester then displays real-time PoE information such as wattage, voltage, and amperage for that connection.
Inline PoE Tester
Comprehensive PoE cable tester for network professionals
Three testing modes with convenient dip-switch toggle
Troubleshoot PoE issues in real-time
For use with IEEE 802.3af/at/bt, and non-standard passive PoE devices
PoE inline testing measures voltage, amperage, polarity, and wattage of the connected PD
Four digit 7-segment LED display for clear and accurate readings
User-friendly design with battery-free operation
Compact and lightweight for on-the-go testing
NDAA compliant (U.S. and Canada only)
Limited Warranty: 2 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TC-NTP1 |
| Brand Name | TRENDnet |
| Product Model | TC-NTP1 |
| Product Name | Inline PoE Tester |
| Product Type | PoE Tester |
| Interfaces/Ports | |
| PoE (RJ-45) Port | Yes |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Standard | 1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Height | 1" |
| Width | 3.9" |
| Depth | 1.4" |
| Weight (Approximate) | 1.60 oz |
| Technical Information | |
| Device Function | PoE Testing, Cable Signal Testing |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
