SIIG HDMI 2.0 4K HDR Pattern Generator / Analyzer
SIIG

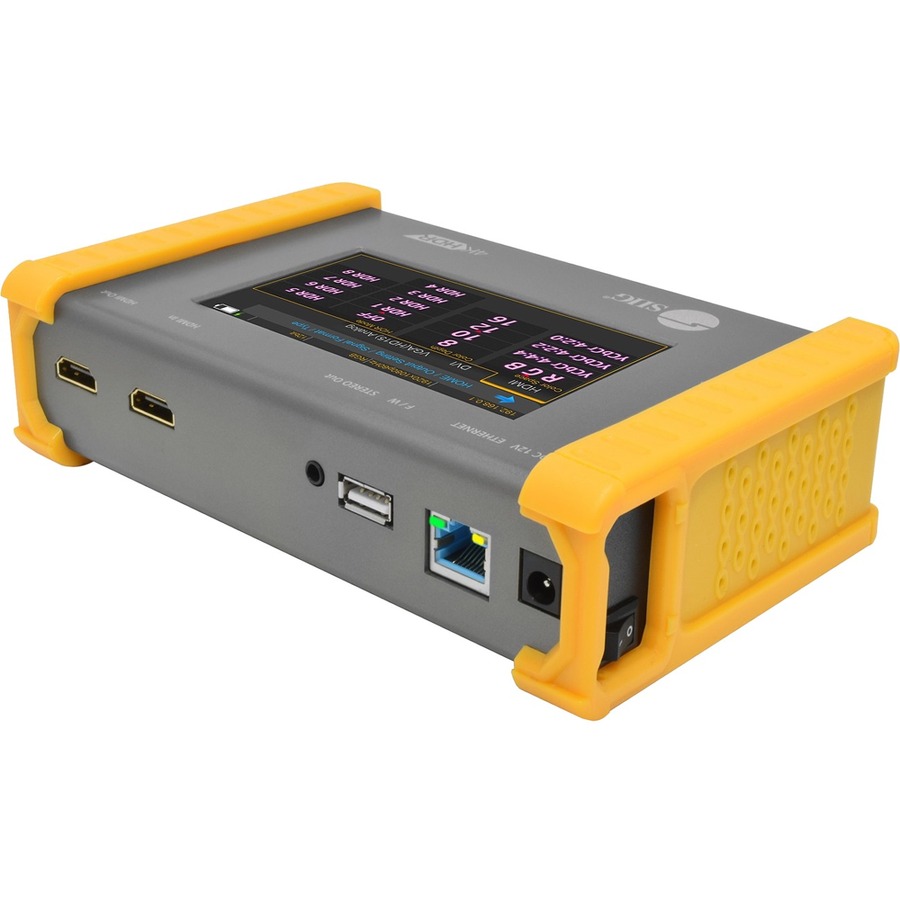

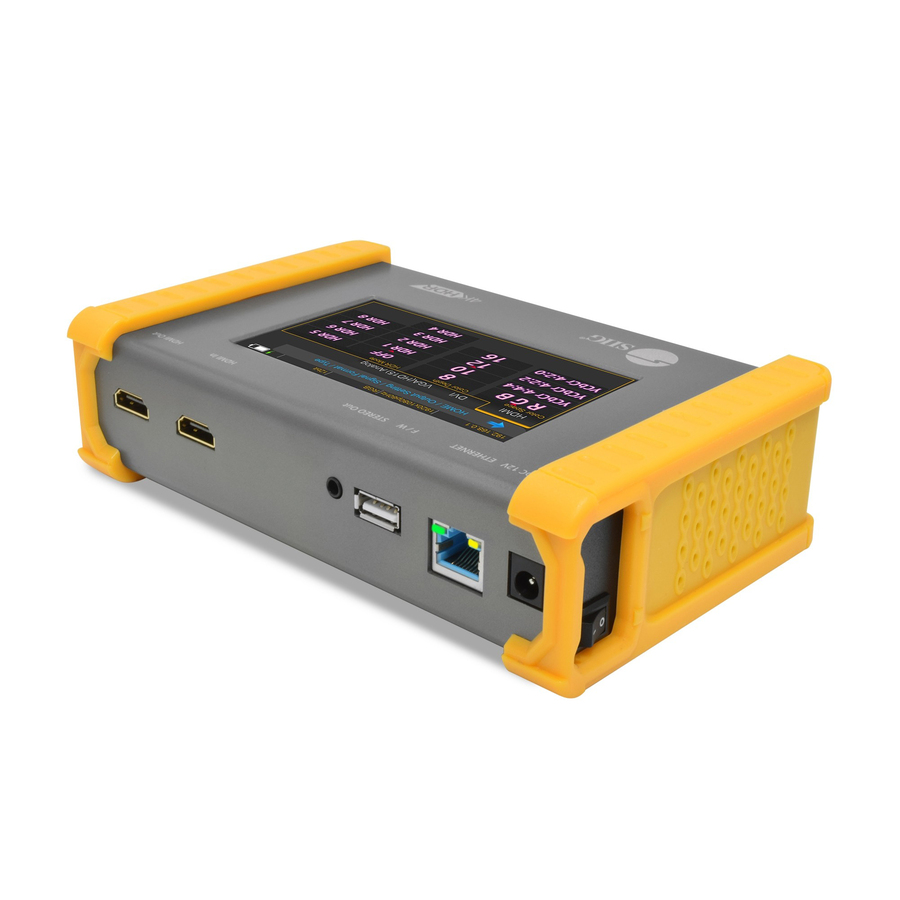

SIIG HDMI 2.0 4K HDR Pattern Generator / Analyzer

HDCP Test, EDID Test, Loop Test, Firmware Upgrade-able - Battery Powered

SKU
CE-H23N11-S1
Category
Test Equipment

MSRP$2,759.95

$2,233.41

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H23N11-S1
Category
Test Equipment

Overview

Advanced pattern generator with 5 major functions including full bandwidth HDCP 2.2 support is a versatile HDMI tool for AV installers and system integrators

Highlights

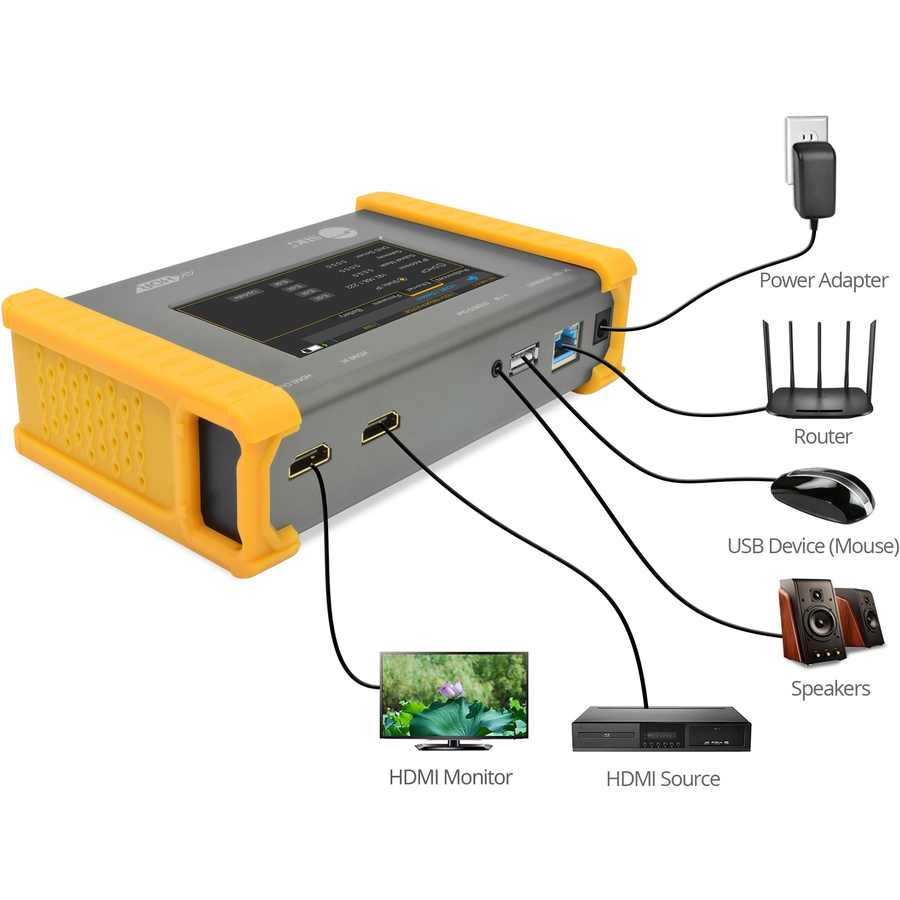

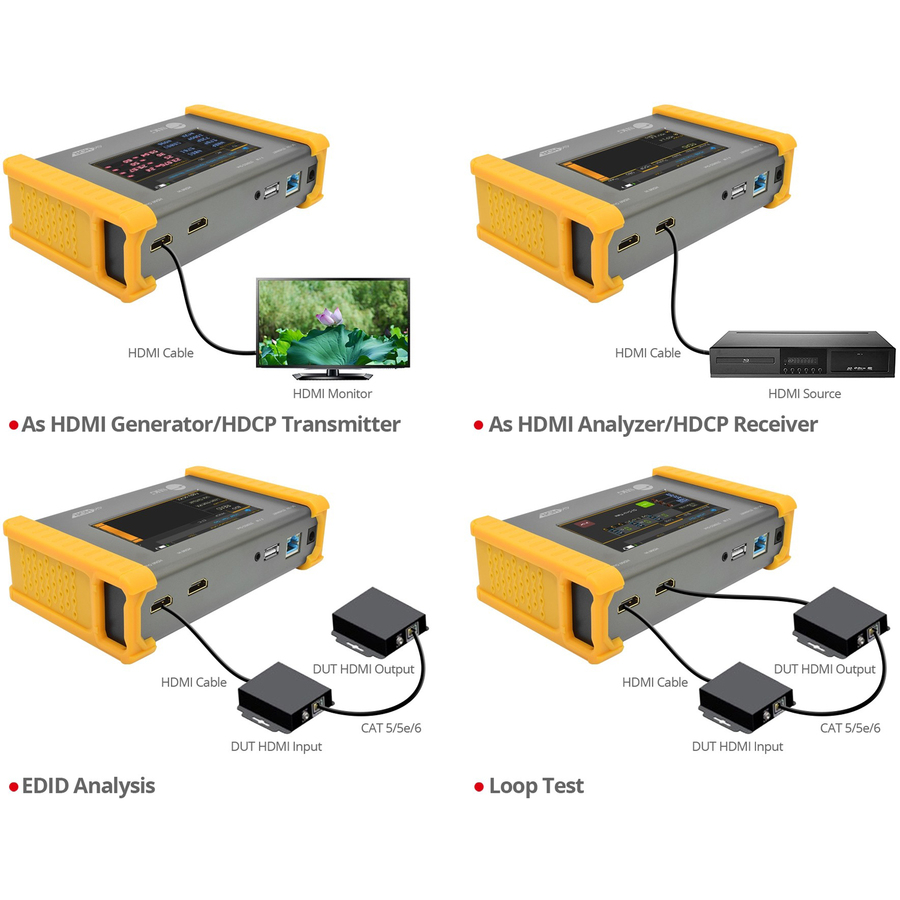

  • Major Functions - HDMI Generator/Analyzer/Receiver (Display), HDCP Test, EDID Test, Loop Test, Firmware upgradeable
  • HDMI Signal Generator - Compliant with HDMI 2.0a, HDCP 2.2. 18Gbps video bandwidth
  • HDMI Resolution Support - 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz YUV 4:2:0 16-bit (HDR)

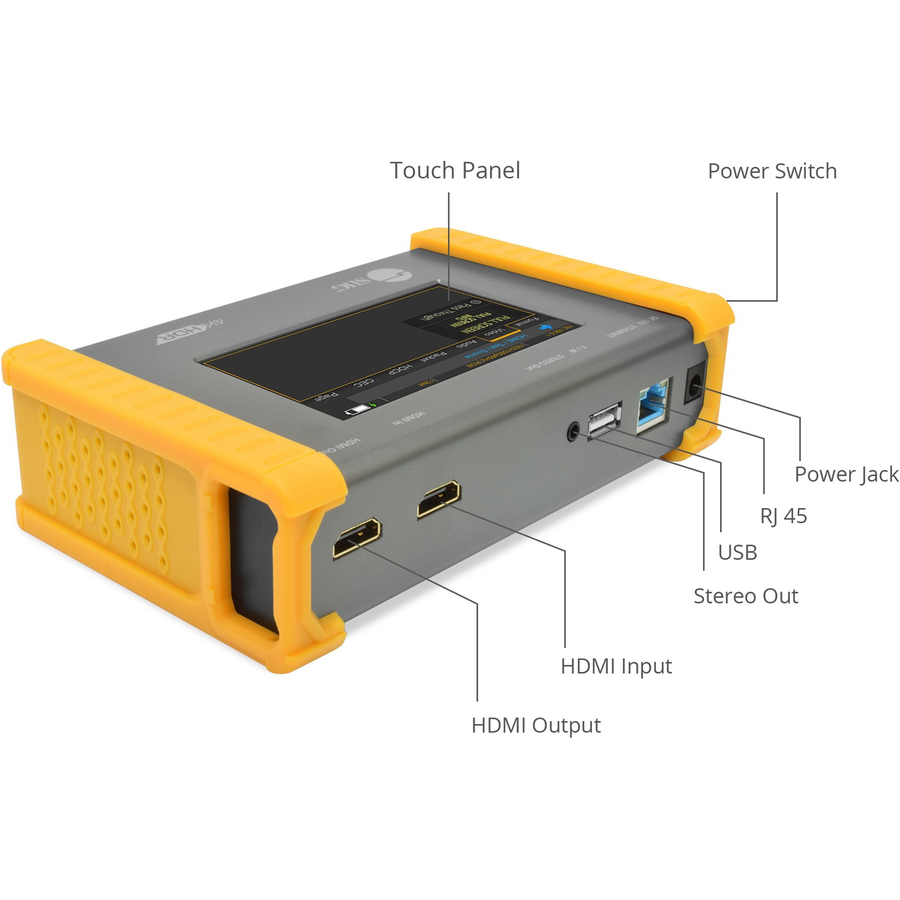

  • Finger Tip Control - Built-in 4.3" touch screen, USB mouse and Ethernet to allow users to verify HDMI sources instantly
  • Battery Powered - Rechargeable battery for portability. Up to 4 hours operating time at full charge

Specifications

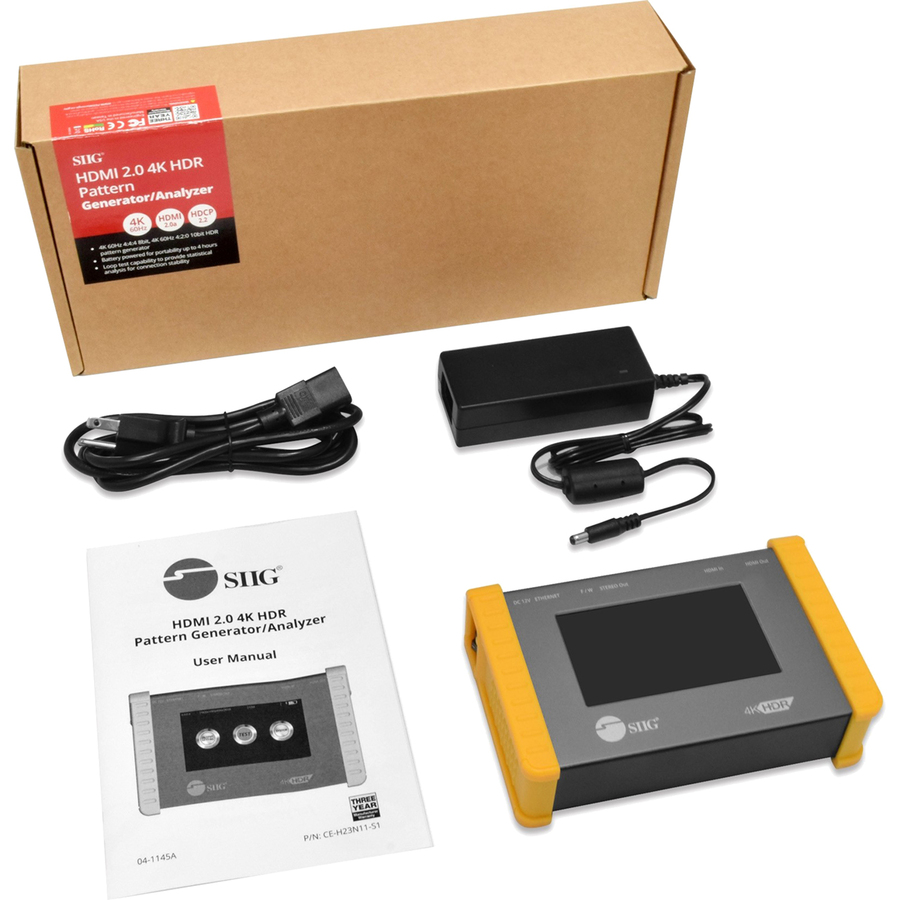

Package Contents
  • HDMI 2.0 4K HDR Pattern Generator/Analyzer
  • Power Adapter
  • Power Code
  • User Reference Guide
Product TypeTesting Device
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberCE-H23N11-S1
Limited Warranty3 Year
Weight (Approximate)1.72 lb
ManufacturerSIIG, Inc
Product NameHDMI 2.0 4K HDR Pattern Generator/Analyzer
Brand NameSIIG
Country of OriginTaiwan
Height2"
Width5.2"
Depth6.9"
Battery Size SupportedProprietary Battery Size
Environmentally FriendlyYes
Battery RechargeableYes
Ethernet TechnologyEthernet
USBYes
HDMIYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Audio Line OutYes
Media Type SupportedTwisted Pair
Device FunctionVideo Testing, Video Signal Testing
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
