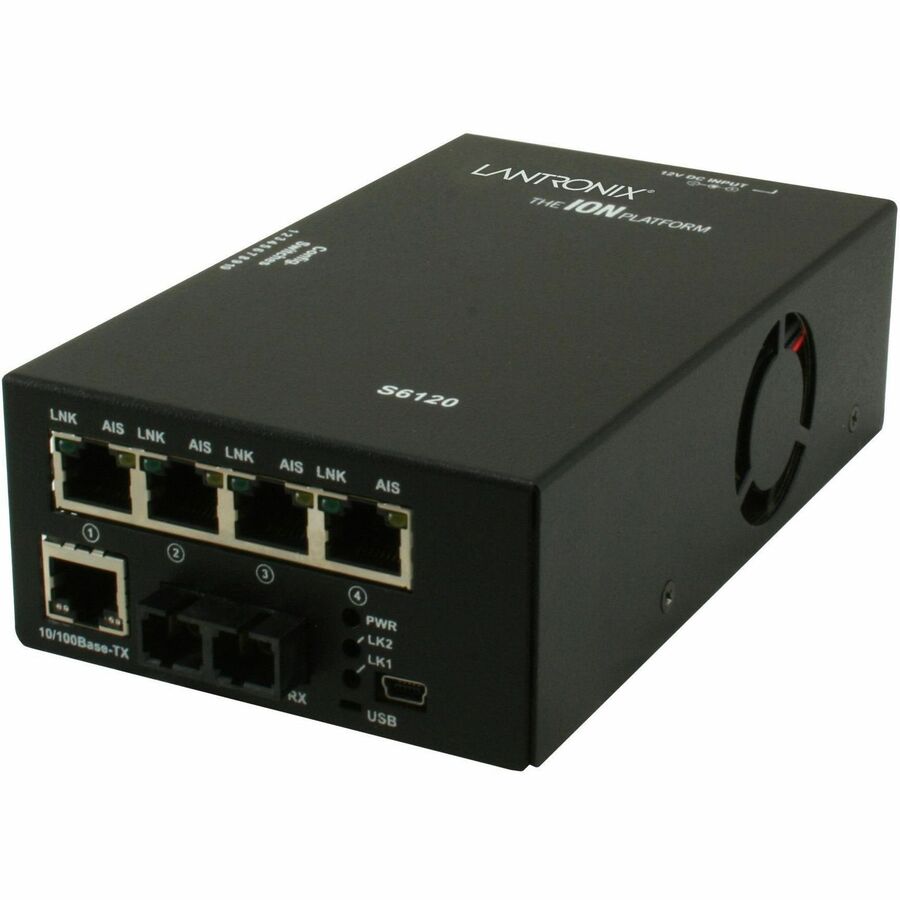

Stand-alone DS1 - T1/E1/J1 Network Interface Device 4 x DS1 - T1/E1/J1 + 10/100 Ethernet over Fiber
4x T1/E1 ION WITH ETHERNET, 1xSFP
SKU
Category
Modules
MSRP$1,198.00
$931.56*
Save 22%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Transition Networks through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Modules
Country of origin
United States
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
A managed stand-alone DS1 - T1/E1/J1 mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. NDAA Compliant, TAA Compliant
Warranty
Limited Warranty: Lifetime
Highlights
(4) RJ-48 copper interfaces
(1) fiber interface (fixed or SFP)
(1) RJ-45 10/100Mbps Ethernet port
Auto-MDI/MDIX
Pause (Flow Control on Ethernet port)
Loopback via test set
Local and remote loopbacks
LEDs for device status and troubleshooting
Settings for line code, line build out, loopbacks and Alarm
Indication Signal (AIS)
Access to complete status and configuration on local and remote device
Remote firmware upgrade
Remote management
Extended operating temperature

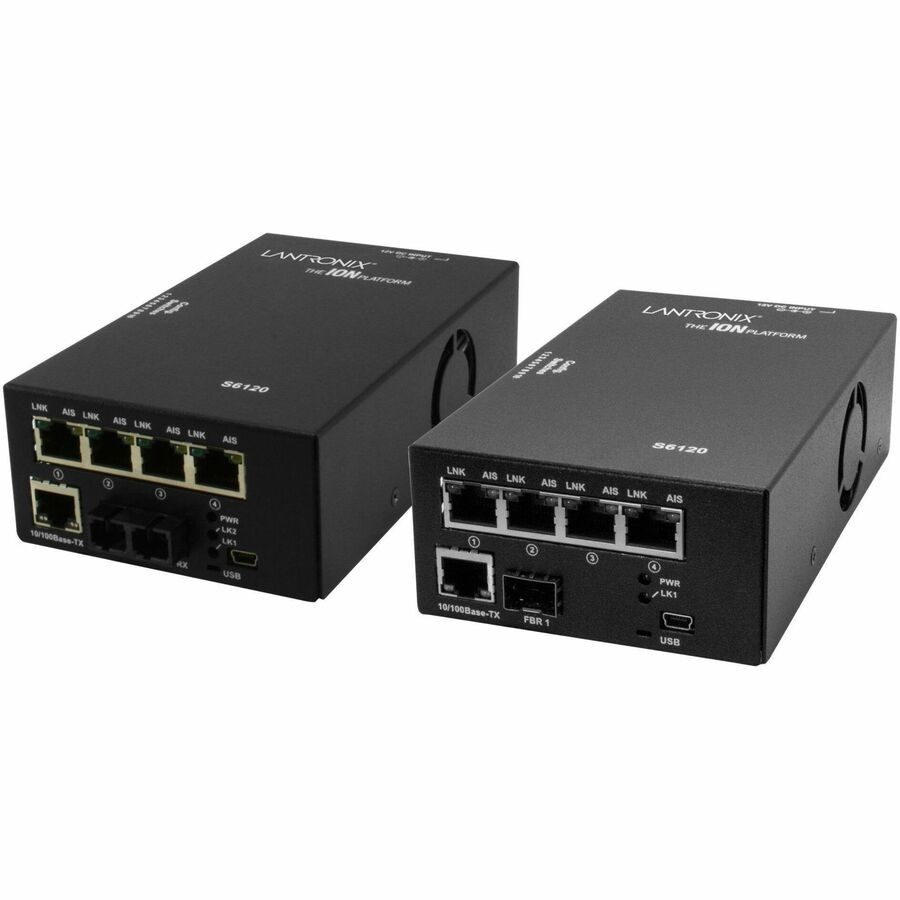

Must be used in pairs
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
S6120-1040-NA
Brand Name
Transition Networks
Product Series
S6120
Product Model
S6120-1040
Product Name
S6120-1040 Interface Module
Product Type
Interface Module
Interfaces/Ports
Total Number of Ports
5
Connector Type
RJ-45, RJ-48
Interfaces/Ports Details
4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX LAN
Media & Performance
Media Type Supported
Optical Fiber, Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
T1/E1/J1, 100Base-TX, 100Base-X/OC-3
Physical Characteristics
Height
1.8"
Width
3.7"
Depth
6.5"
Weight (Approximate)
2 lb
Technical Information
Application/Usage
Optical Network, Data Networking
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Miscellaneous
Package Contents
S6120-1040 Interface Module
Power Supply
Compatibility
Transition Networks ION Chassis
Country of Origin
United States
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
