Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot - 4-Port PCI Express Gigabit network adapter card - Quad-port Gigabit NIC - Network card w/ 4x 10/100/1000 RJ45 ports - Full-Duplex Flow Control support
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ST1000SPEX43
Category
Network Interface Cards
Overview

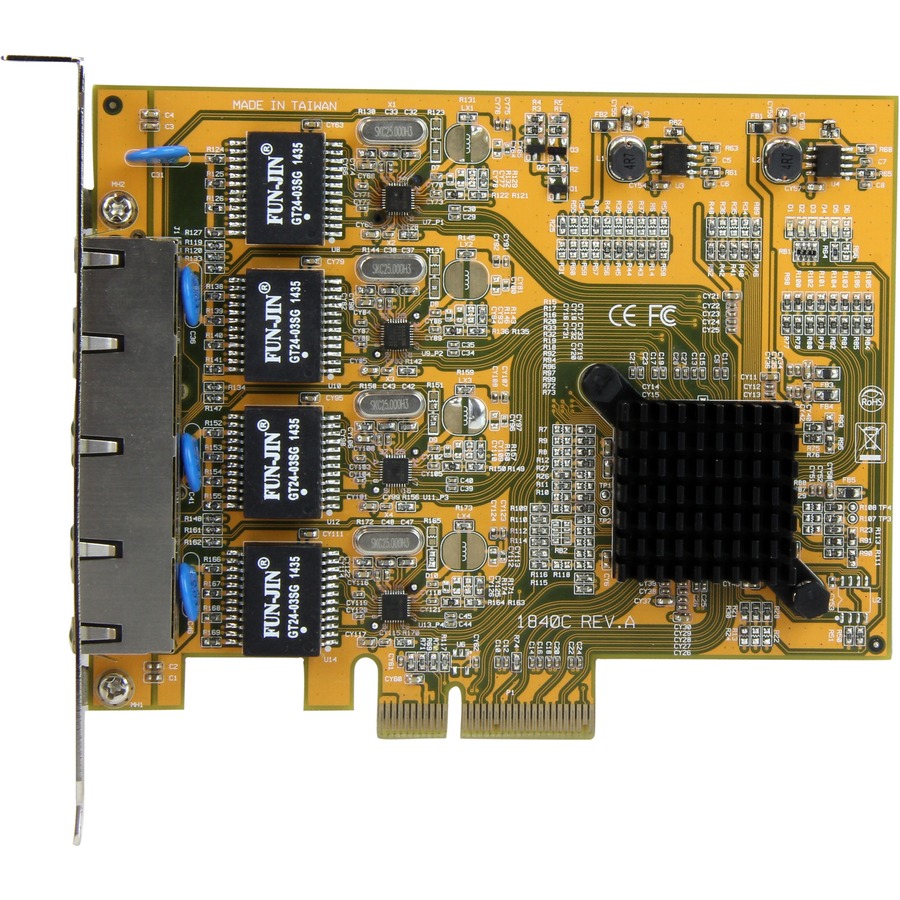

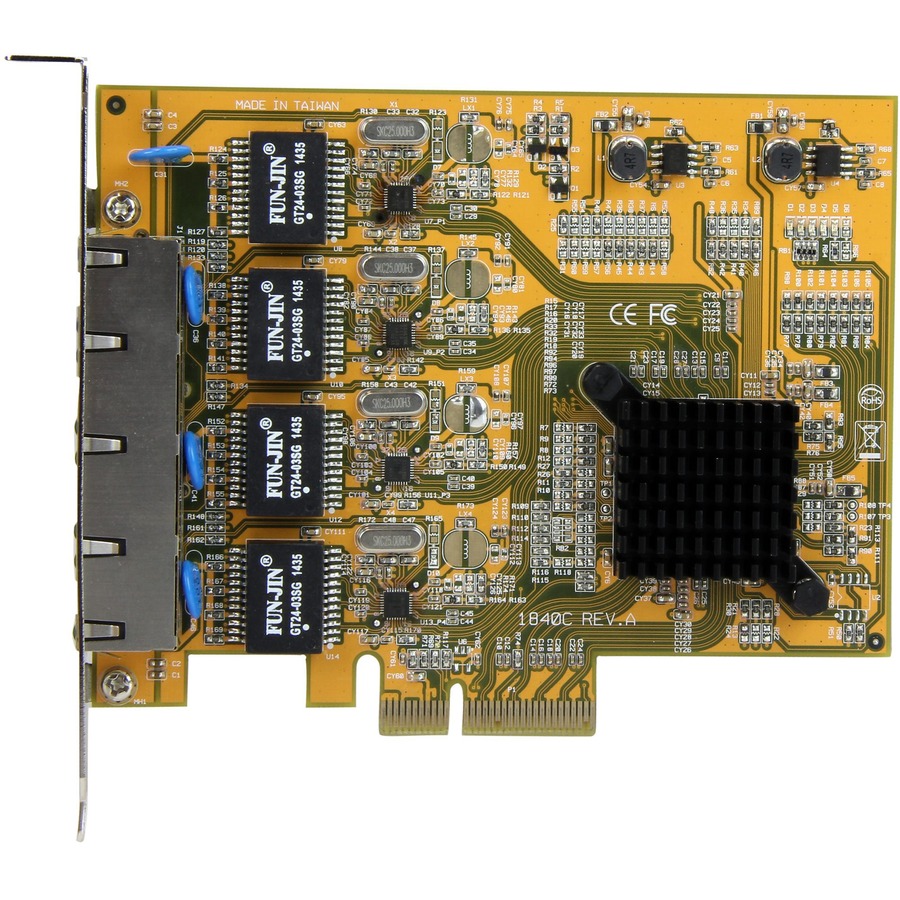

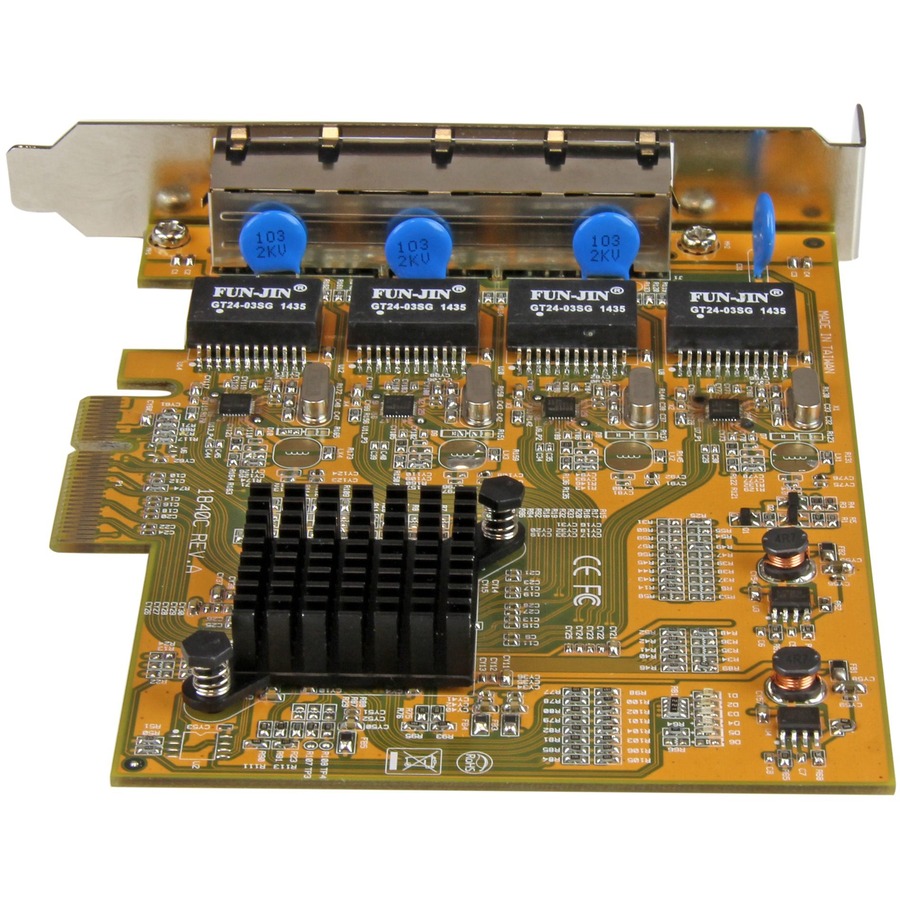

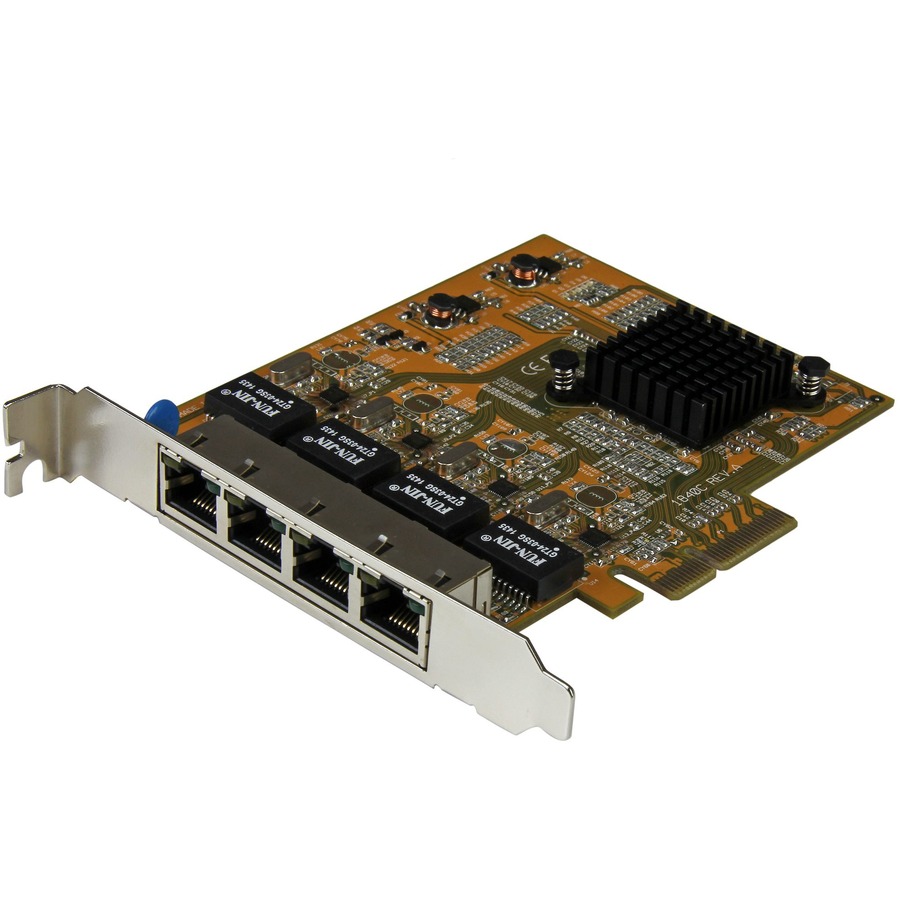

Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget. Reliable connectivity to multiple networks This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer. A versatile and cost-effective solution This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility). The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights

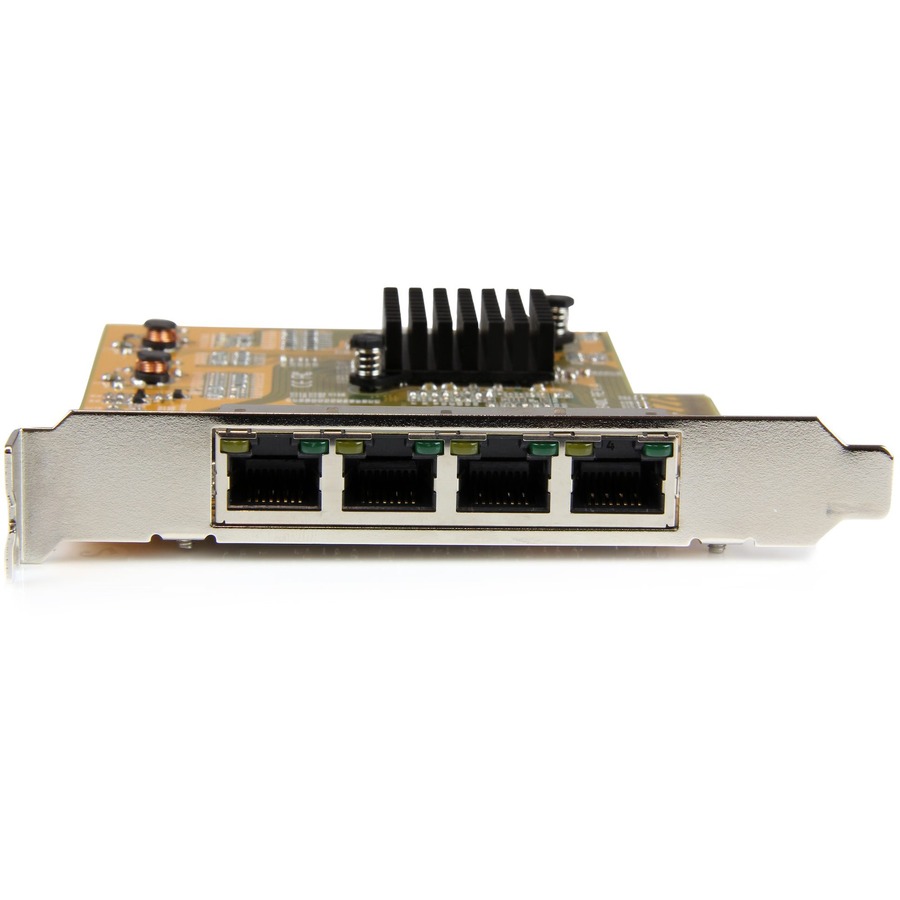

Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
Realtek RTL8111G chipset for reliable performance
Supports full-duplex flow control
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks
Supports autonegotiation with next-page capacity
Crossover detection and auto-correction (Auto-MDIX)
Up to 9K jumbo frame support
Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P layer 2 priority encoding
Microsoft NDIS5 checksum offload (IP, TCP, UDP) and large send offload support
Specifications
Host Interface
PCI Express x4
Product Type
Gigabit Ethernet Card
Device Supported
Computer, Server, Workstation
Manufacturer Part Number
ST1000SPEX43
Packaged Quantity
1 Each
Weight (Approximate)
3.40 oz
Form Factor
Plug-in Card
Manufacturer
StarTech.com
Product Name
4-Port PCIe Gigabit Network Adapter Card
Network Technology
10/100/1000Base-T
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
0.7"
Width
4.7"
Depth
5.4"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Chipset Manufacturer
Realtek
Chipset Model
RTL8111G
Maximum Data Transfer Rate
1.95 Gbit/s
Number of Network (RJ-45) Ports
4
Media Type Supported
Twisted Pair
Total Number of Ports
4
TAA Compliant
Yes
Product Color
Yellow
Color Family
Yellow
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
