Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SPSMLCSC-OS2-10M
Category
Connector Cables
Overview
OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
Highlights
Provides a simple and efficient way to connect multiple devices within your business network, ensuring smooth communication and reliable data transfer
Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
Ultra Physical Contact (UPC) feature ensures dependable operation and improved usability, delivering consistent performance for everyday connectivity needs
SC Network - Male delivers stable signal routing to network devices for uninterrupted communication and system integration
Specifications
Cable Length
32.81 ft
Product Type
Network Cable
Data Transfer Rate
100 Gbit/s
Device Supported
Network Device, Server, Switch, Storage Device
Jacket Type
LSZH
Manufacturer Part Number
SPSMLCSC-OS2-10M
Packaged Quantity
1
Limited Warranty
Lifetime
Features
Ultra Physical Contact (UPC), Bend Insensitive, Flame Retardant, Bend Resistant, Passive
Manufacturer
StarTech.com
Product Name
Fiber Optic Simplex Patch Network Cable
Brand Name
StarTech.com
Cable Characteristic
Patch Cable
Environmentally Friendly
Yes
Cable Type
Fiber Optic
Connector Type on First End

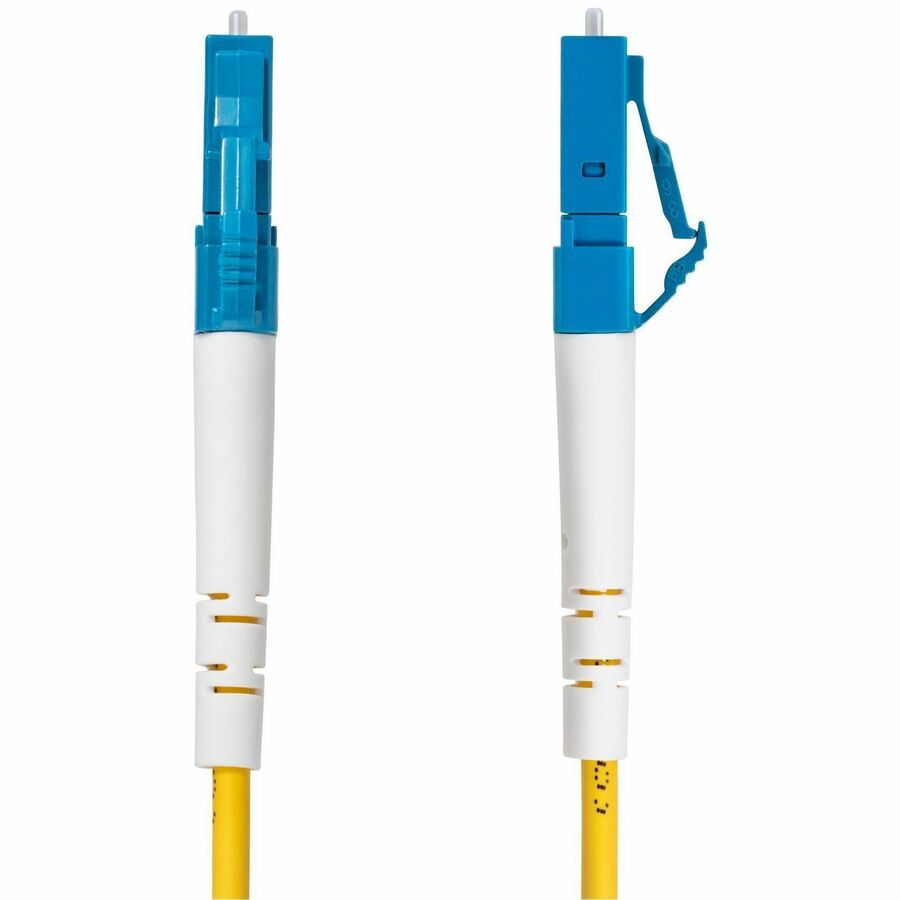

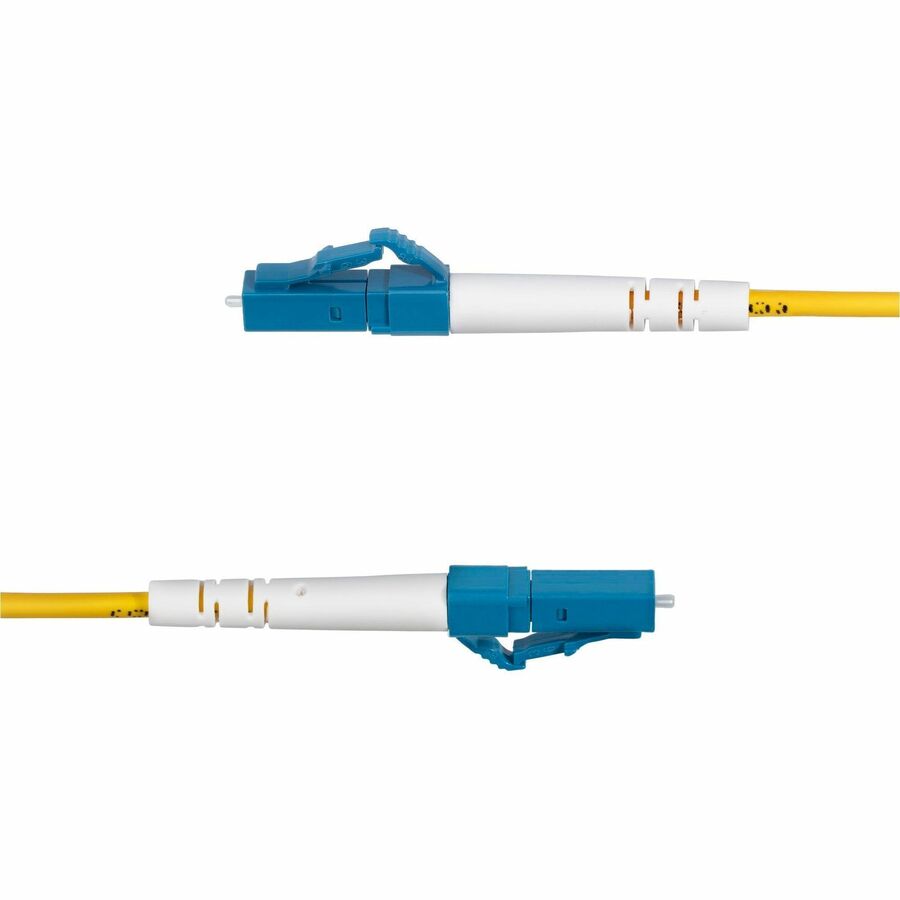

LC Network - Male
Connector Type on Second End

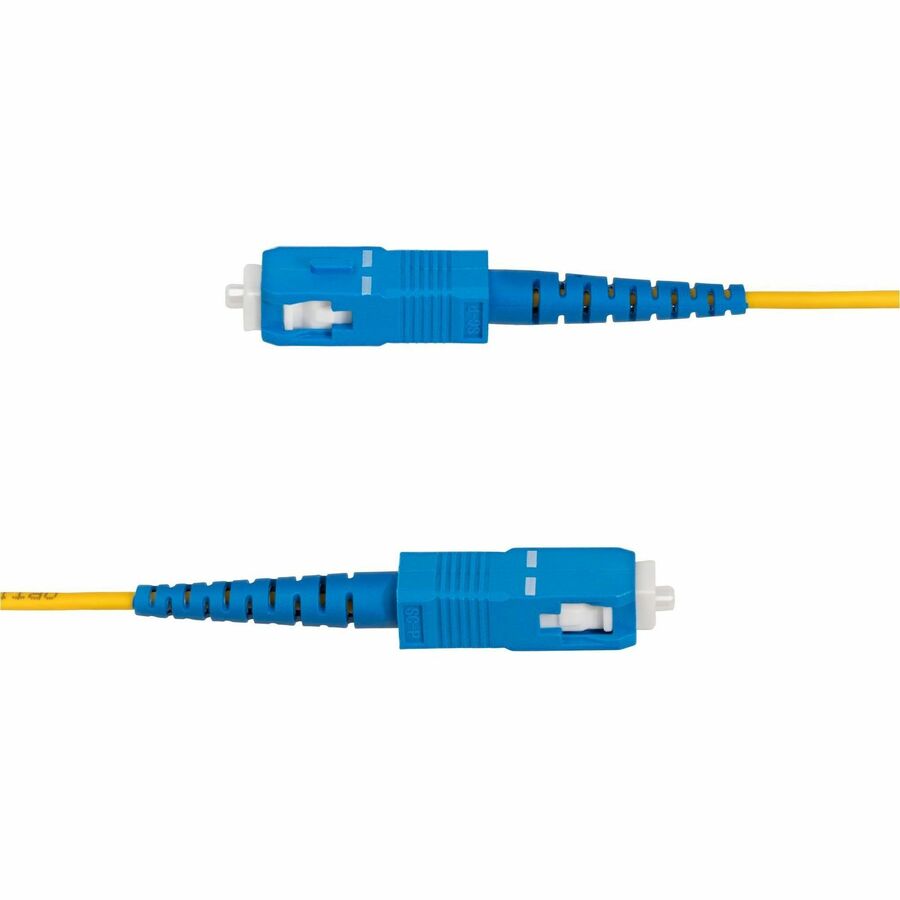

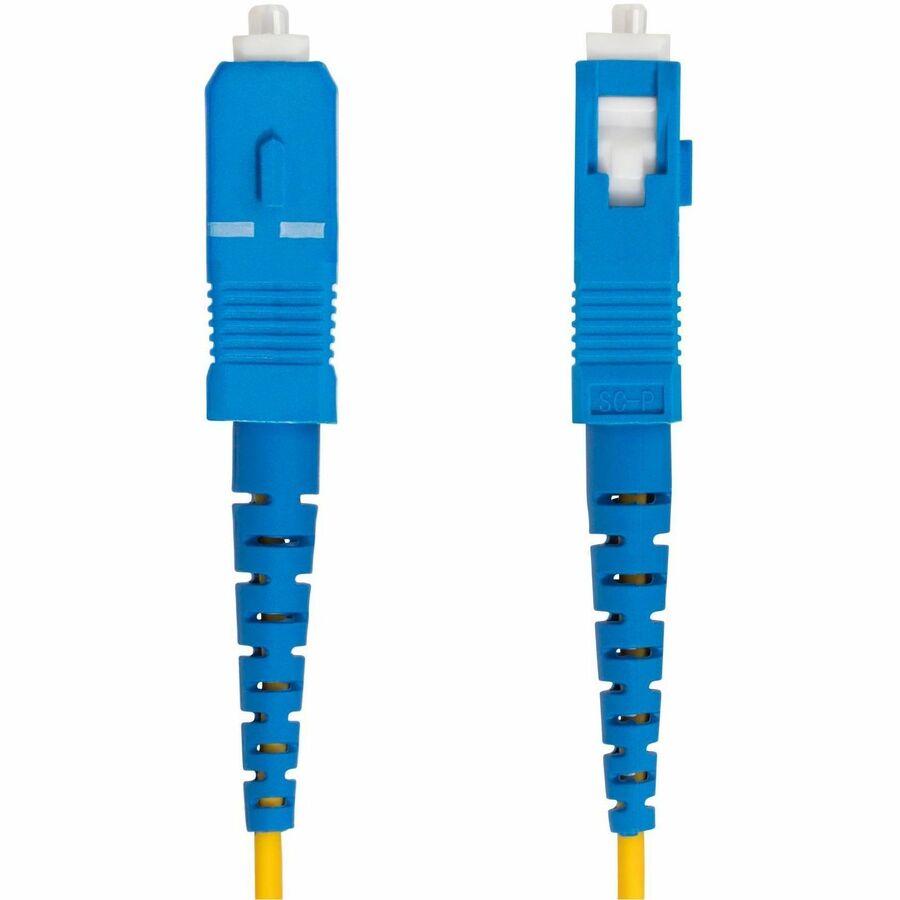

SC Network - Male
Fiber Optic Mode
Single-mode
Jacket Material
Low Smoke Zero Halogen
Product Color
Yellow
Color Family
Yellow
Fiber Type
Simplex
Connector on First End Details
1 x LC Network - Male
Connector on Second End Details
1 x SC Network - Male
Product Material
Polypropylene
Connector Gender on First End
Male
Connector Gender on Second End
Male
Fiber Category
OS2
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
