Overview

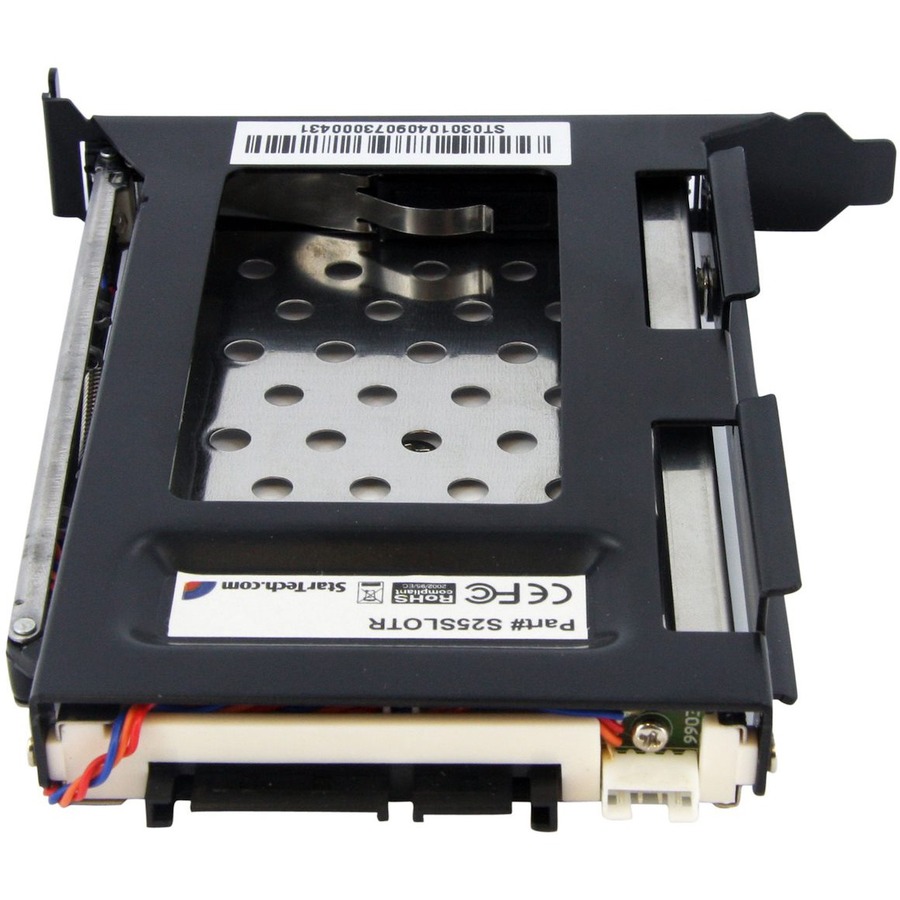

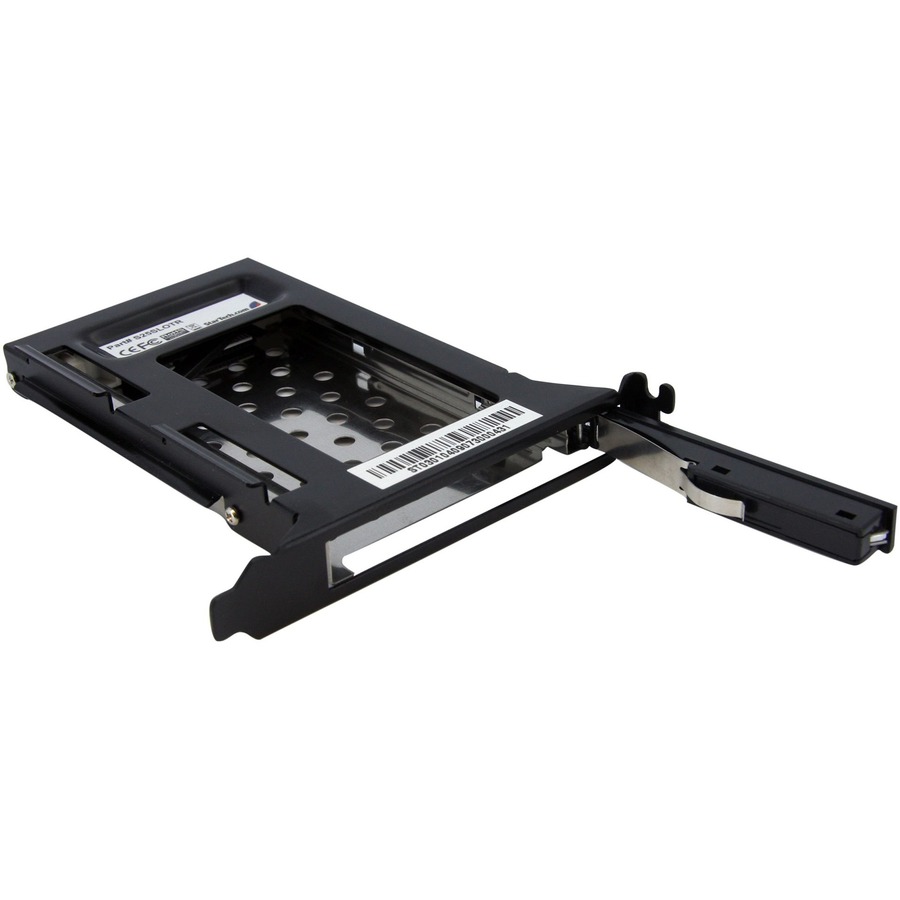

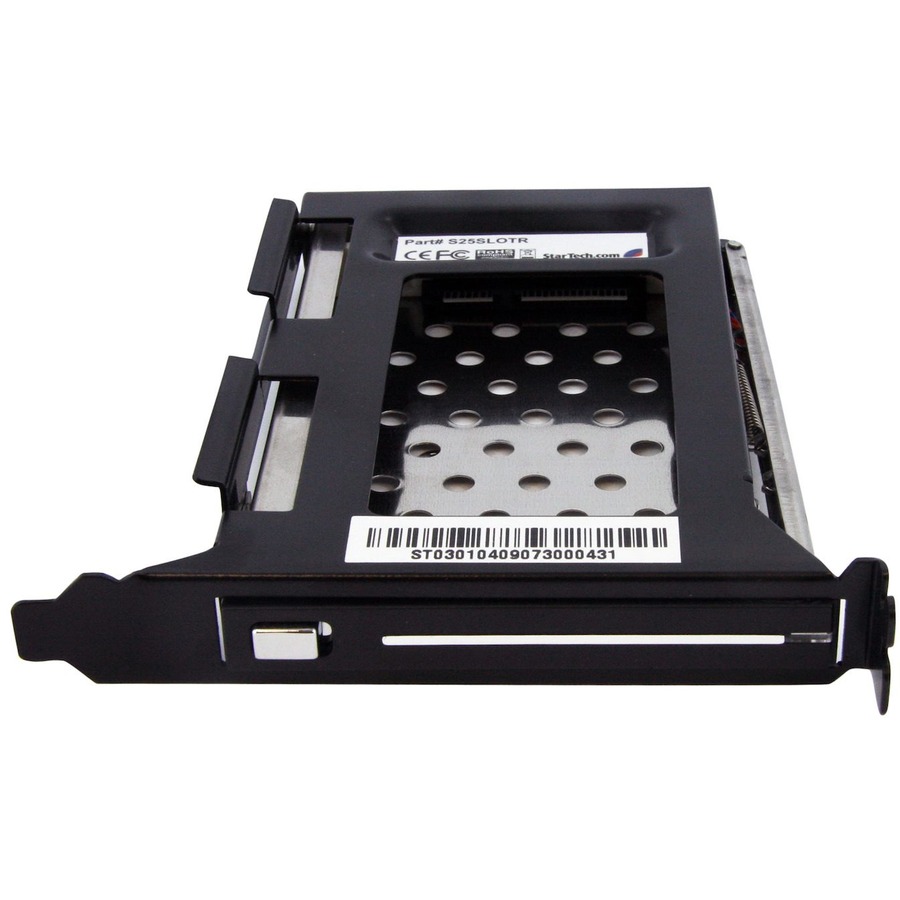

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case. Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive. More from the Manufacturer More from the Manufacturer
Highlights
Fits a 2.5" SATA drive into a rear full profile expansion card slot
Trayless design: drive is not mounted into a tray or enclosure
Latching drive door
50,000+ insertion rating
Vented aluminum and steel construction
Door mounted Power/Activity LED indicator
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
Plug-and-Play and Hot-Swap compatible
Specifications
Package Contents
2.5in SATA Removable HDD Bay for PC Slot
1 x 20in SATA Cable
1 x LP4 SATA Breakout Cable
1 x Hard Drive Protective Film
1 x Mounting Screws
1 x Instruction Manual
Host Interface
Serial ATA/600
Product Type
Drive Slot Adapter
Manufacturer Part Number
S25SLOTR
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
5.90 oz
Form Factor
Internal
Manufacturer
StarTech.com
Product Name
2.5in SATA Removable HDD Bay for PC Slot
Controller Type
Serial ATA/600
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
4.7"
Width
0.8"
Depth
5.7"
Environmentally Friendly
Yes
Wireless LAN
No
Number of Total Expansion Bays
1
Number of Hard Drives Supported
1
Number of Hard Drives Installed
No
Number of Solid State Drive Supported
1
Number of Solid State Drive Installed
No
Number of 2.5" Bays
1
Drive Interface
SATA/600
Product Color
Black
Color Family
Black
Product Material
Aluminum, Steel
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
