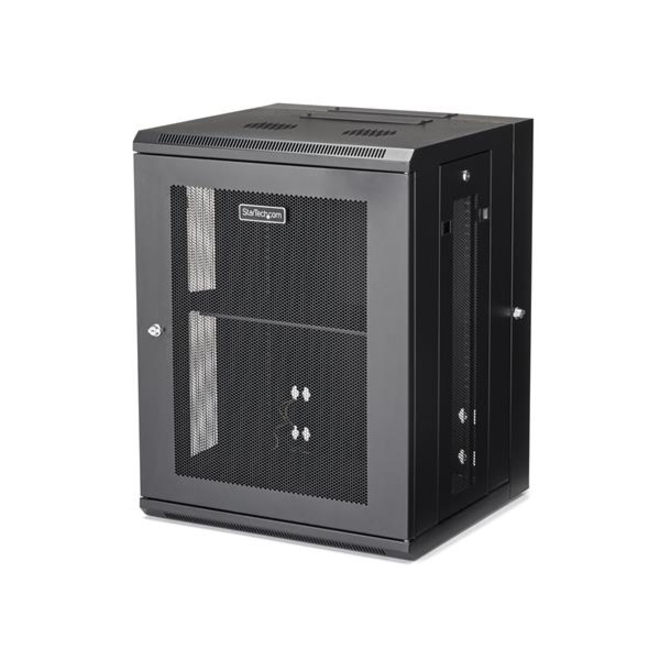

StarTech 4-Post 15U Wall Mount Network Cabinet, 19" Hinged Wall-Mounted Server Rack for Data / IT Equipment, Lockable Rack Enclosure
StarTech.com

StarTech 4-Post 15U Wall Mount Network Cabinet, 19" Hinged Wall-Mounted Server Rack for Data / IT Equipment, Lockable Rack Enclosure

Wall-Mount Server Rack for rackmount equipment - Data rack features a hinged design with easy access to the devices - 4 Post 15U wall-mounted network cabinet - Ships fully assembled and includes a shelf and accessories - EIA/ECA-310-E Compliant

SKU
RK1520WALHM
Category
Rack Equipment

$572.05

In stock: 186

Get a quote

Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
RK1520WALHM
Category
Rack Equipment

Overview

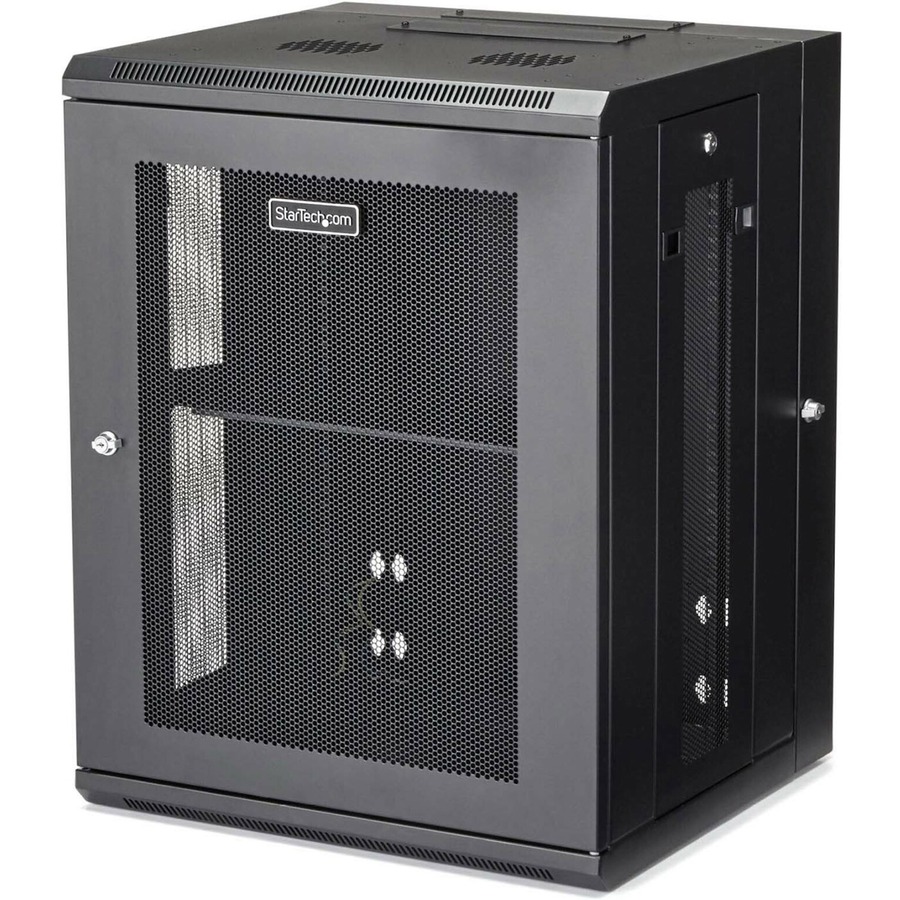

This 15U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2 to 16 in. to provide a robust storage solution for your rack-mount equipment. To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lbs. (90 kg). Save space in your office or server room Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools. Easily access your servers and network equipment The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending upon your preference. The 15U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment. Securely protect your equipment This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails. To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow. For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs. More from the Manufacturer

Highlights

  • 4-POST 15U RACK CABINET: Wall-Mount Server Rack with adjustable mounting depth (2.4-16.0in/6.0-40.6cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room
  • EASY ACCESS: Wall-mount data rack features a 180° hinged, enclosed and lockable rack design with easy access to the rear of the mounted devices; Flexible locking server cabinet with reversible and removable front door and removable side panels
  • BUILT TO LAST: The 15U wall-mounted network cabinet offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg)
  • FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant
  • DESIGNED FOR COOLING: Vented IT rack enclosure has mesh front doors and side panels to provide fresh airflow and supports active cooling with up to four optional 120mm fans (ACFANKIT12)

Specifications

Application/UsageServer, LAN Switch, Patch Panel

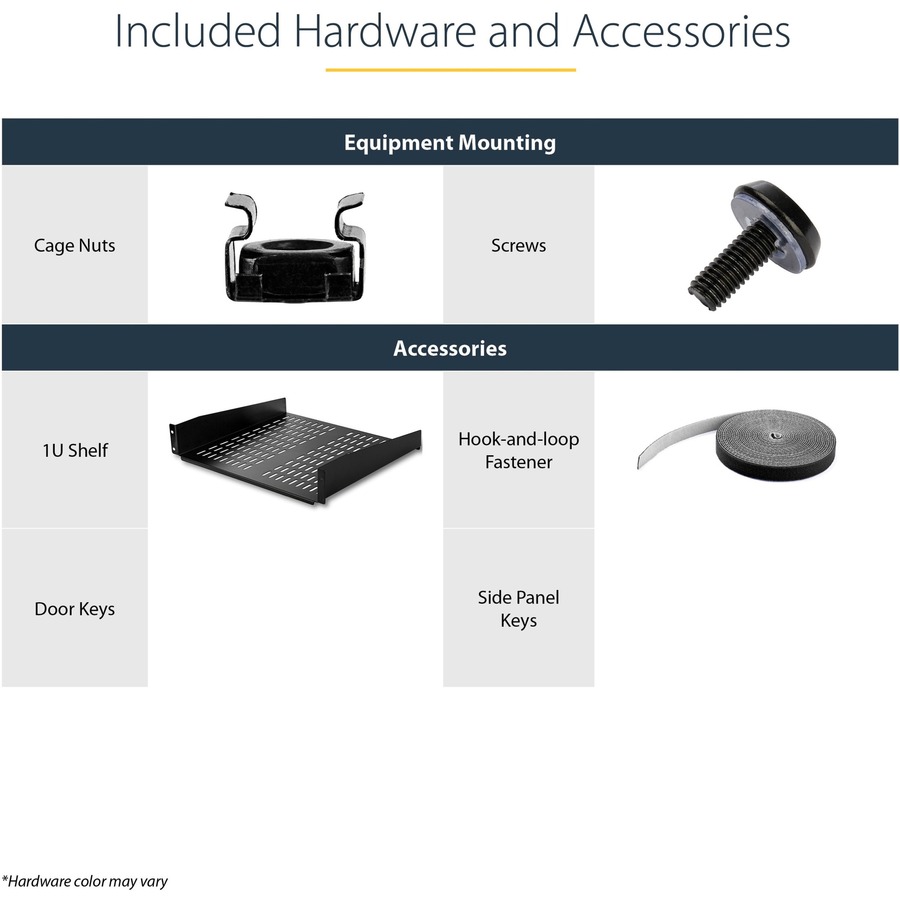

Package Contents
  • 1 x Wall-mount Enclosure
  • 1 x 1U Shelf
  • 1 x 10 ft Hook and Loop
  • 60 x 12-24 Cage Nuts
  • 60 x 12-24 Screws
  • 2 x Door Keys
  • 2 x Side Panel Keys
  • 1 x Instruction Manual
Product TypeRack Cabinet
Manufacturer Part NumberRK1520WALHM
Packaged Quantity1 Each
Limited Warranty5 Year
Form FactorWall Mountable

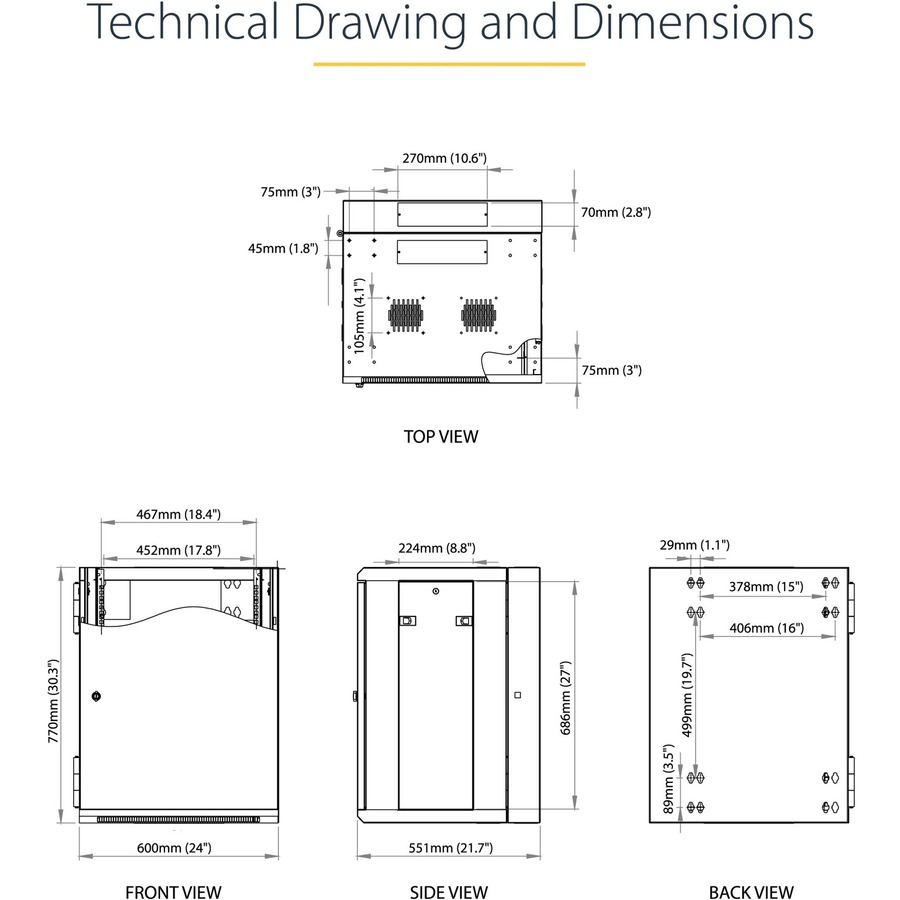

Length21.8"
ManufacturerStarTech.com
Product Name15U Wall-Mount Server Rack Cabinet - 16.1 in. Deep - Hinged
Rack Height15U
Brand NameStarTech.com
Country of OriginChina
Assembly RequiredNo

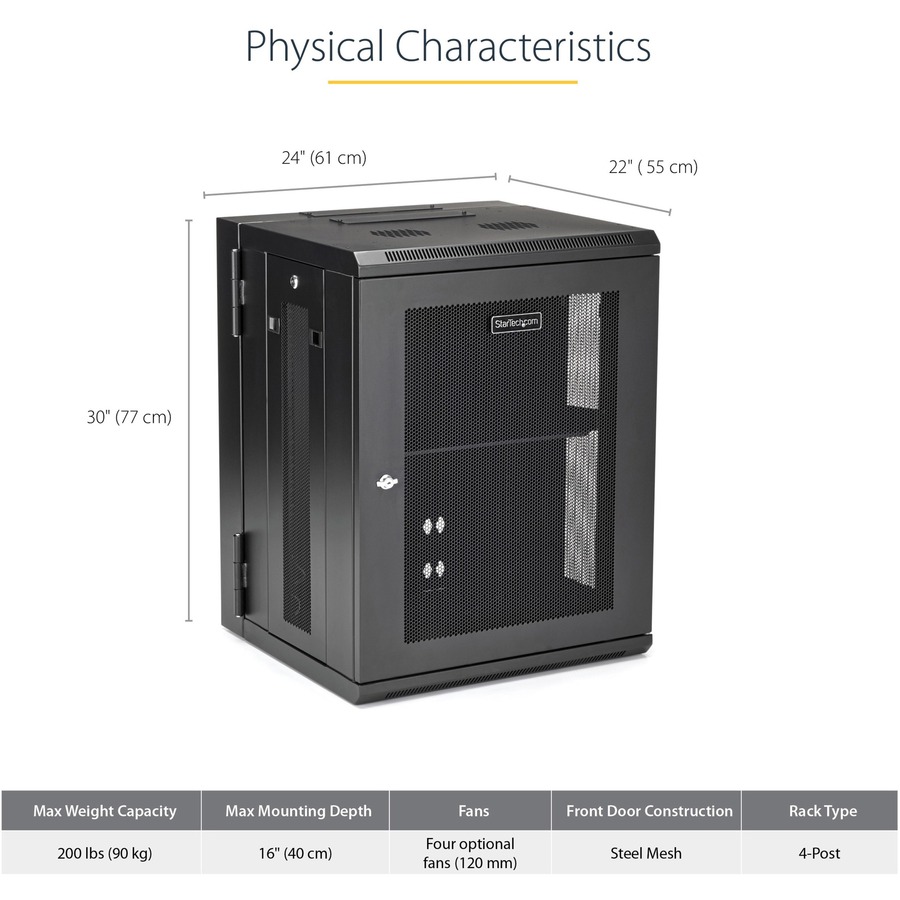

Height30.4"
Width24"
Environmentally FriendlyYes
Static/Stationary Weight Capacity198.42 lb
Rack Depth16.10"
Product ColorBlack
Color FamilyBlack
Product MaterialSteel, Steel Mesh
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
