StarTech 4-Port SATA PCIe Card, SATA Expansion Card, 6Gbps, Stacked Connectors, Non-RAID, PCI Express to SATA Converter/Adapter, TAA
SATA III 6Gbps PCIe 3.0 x2 card - SATA expansion adapter card - 4-Port SATA to PCIe Card w/ASM1164 controller for 16Gbps combined max - PCI Express 3.0/SATA 3.2/AHCI 1.4 - ATA/ATAPI for HDD/SSD/ODD support - Windows/macOS/Linux - Full/low-profile
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
4P6G-PCIE-SATA-CARD
Category
SCSI/RAID Controllers
Overview
This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

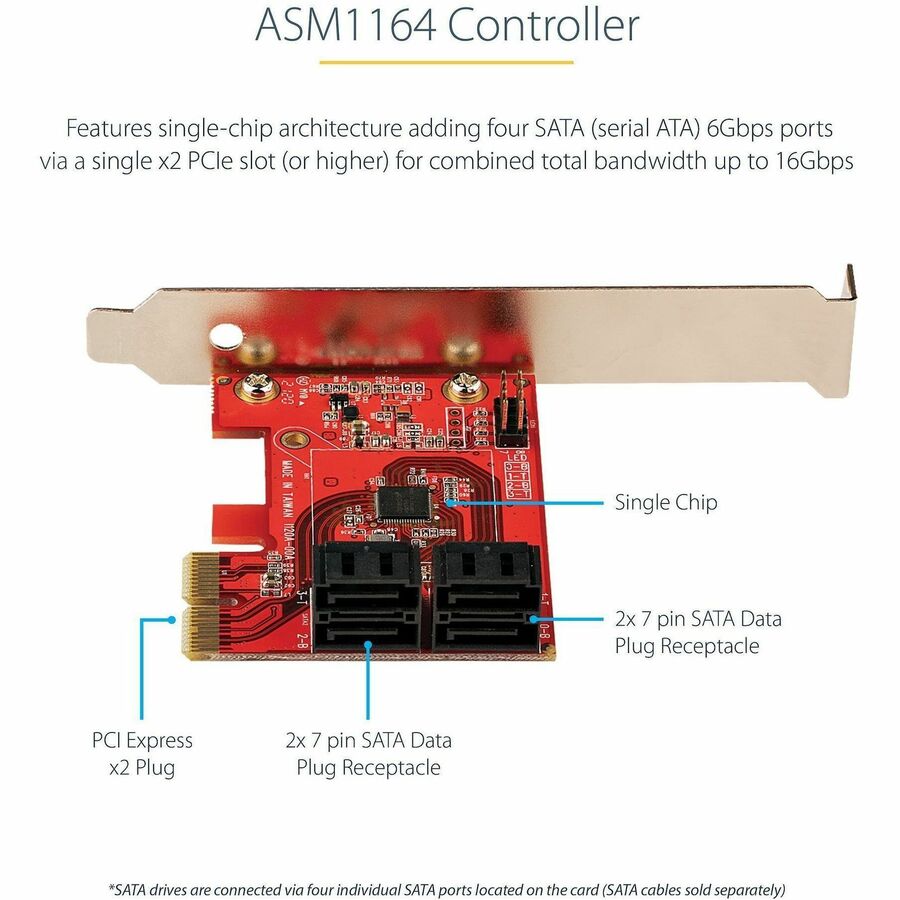

ASM1164 to Deliver 4-Port SATA 6Gbps Performance
Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

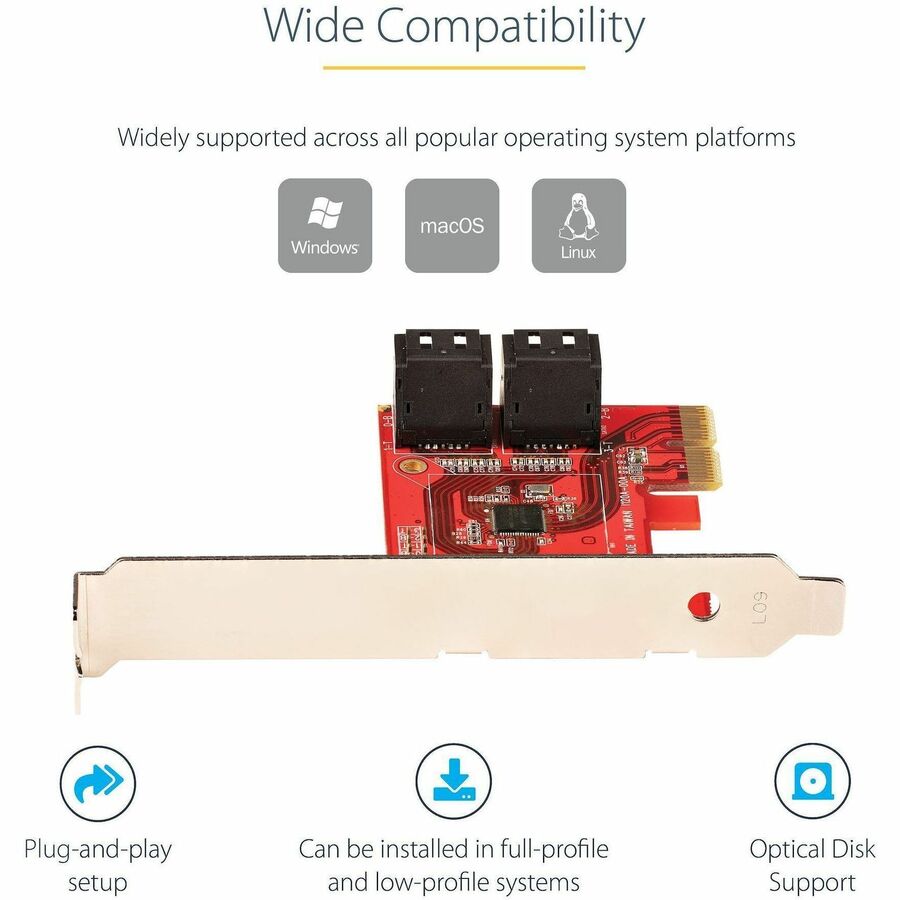

Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.

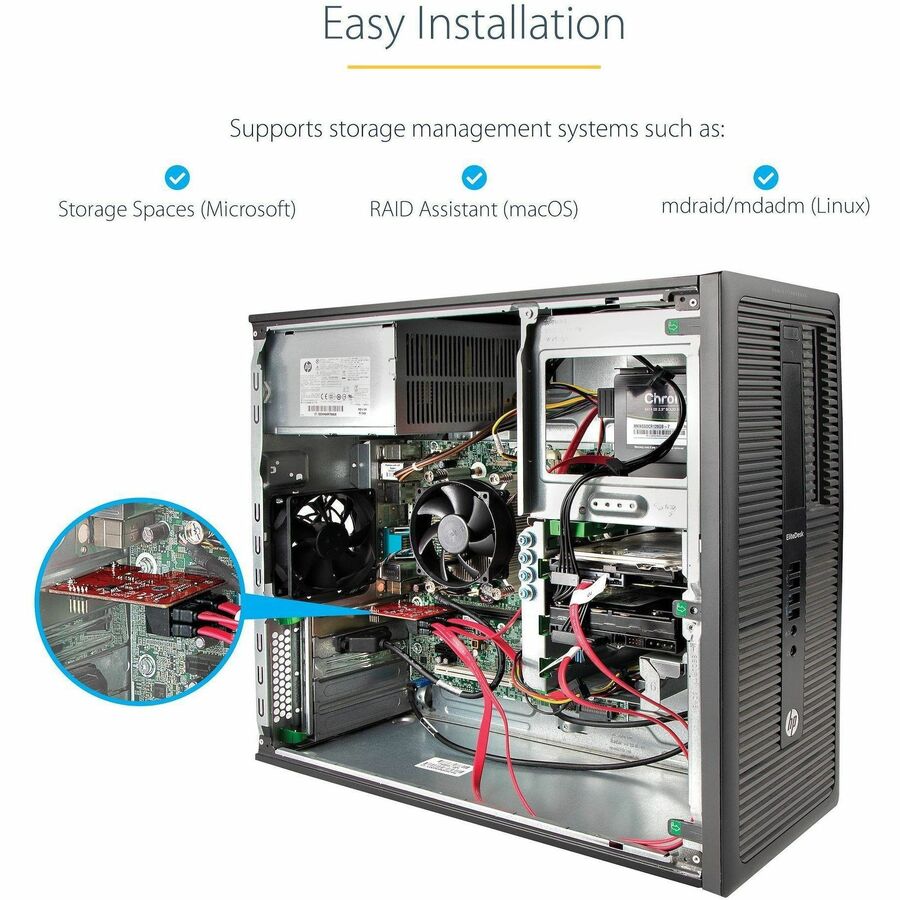

Hassle-Free Installation

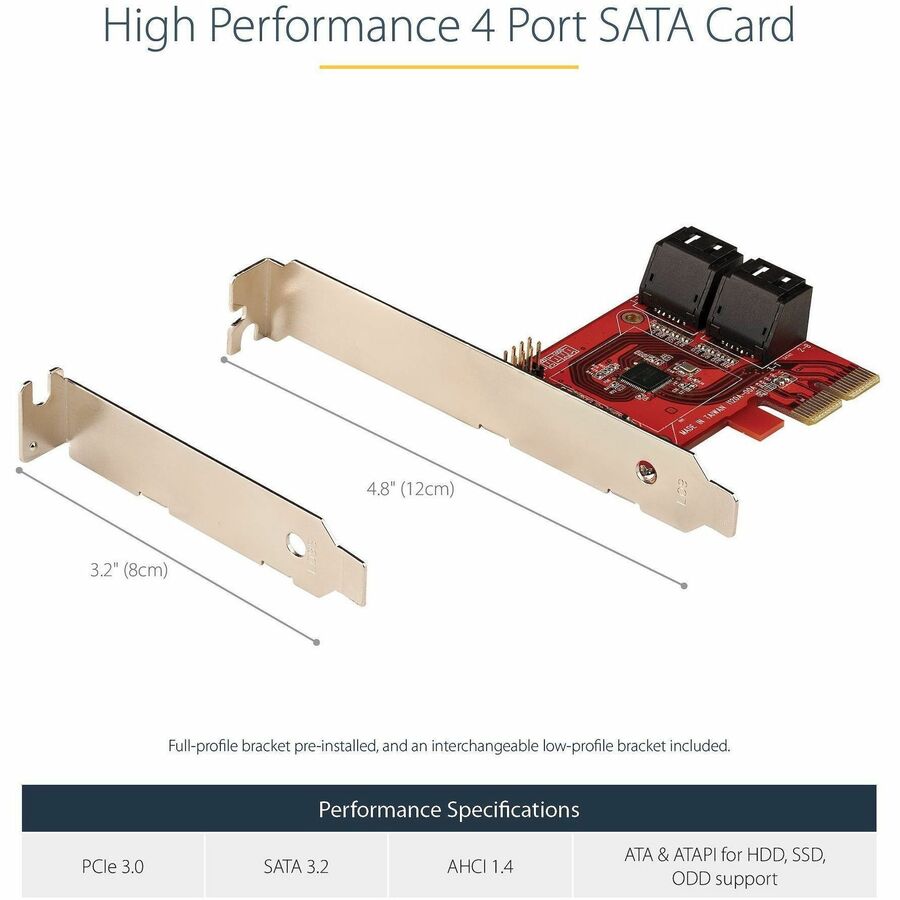

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
More from the Manufacturer
More from the Manufacturer
Highlights
SATA Controller offers maximum storage efficiency and convenience
Serial ATA/600 controller type for faster, efficient data transfer rates with maximum dependability
Server device support for dependable storage expansion with optimal data transfer speed
Windows 7 OS support offers a reliable and simplified user-interface
The PCI Express 3.0 x4 interface provides smooth data transfer and outstanding performance
Plug-in Card form factor for added reliability and dependability
SATA Controller provides an affordable storage expansion solution for your PC
Specifications
Package Contents
PCIe SATA Card
Full-Profile Bracket (Installed)
Low-Profile Bracket
Quick-Start Guide
Host Interface
PCI Express 3.0 x4
Product Type
SATA Controller
Device Supported
Server
Manufacturer Part Number
4P6G-PCIE-SATA-CARD
Platform Supported
PC, Mac, Linux
Limited Warranty
2 Year
Weight (Approximate)
2.65 oz
Form Factor
Plug-in Card
Length
2.8"
Manufacturer
StarTech.com
Product Name
PCIe SATA Card
Controller Type
Serial ATA/600
Brand Name
StarTech.com
Operating System Supported
Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Linux 2.6.32
Country of Origin
Taiwan
Height
0.6"
Width
2.2"
Environmentally Friendly
Yes
RAID Supported
No
Total Number of SATA Ports
4
Number of SATA Ports (Internal)
4
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
