StarTech 2-Port SATA PCIe Card, SATA Expansion Card, 6Gbps SATA, PCI Express to SATA Adapter, Non-RAID, PCIe to SATA Converter, TAA
SATA III 6Gbps PCIe 2.0 x1 card - SATA expansion adapter card - 2-Port SATA to PCIe Card w/ASM1061 controller for 4Gbps combined max - PCI Express 2.0/SATA 3.2/AHCI 1.4 - ATA/ATAPI for HDD/SSD/ODD support - Windows/macOS/Linux - Full/low-profile
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
2P6G-PCIE-SATA-CARD
Category
SCSI/RAID Controllers
Overview

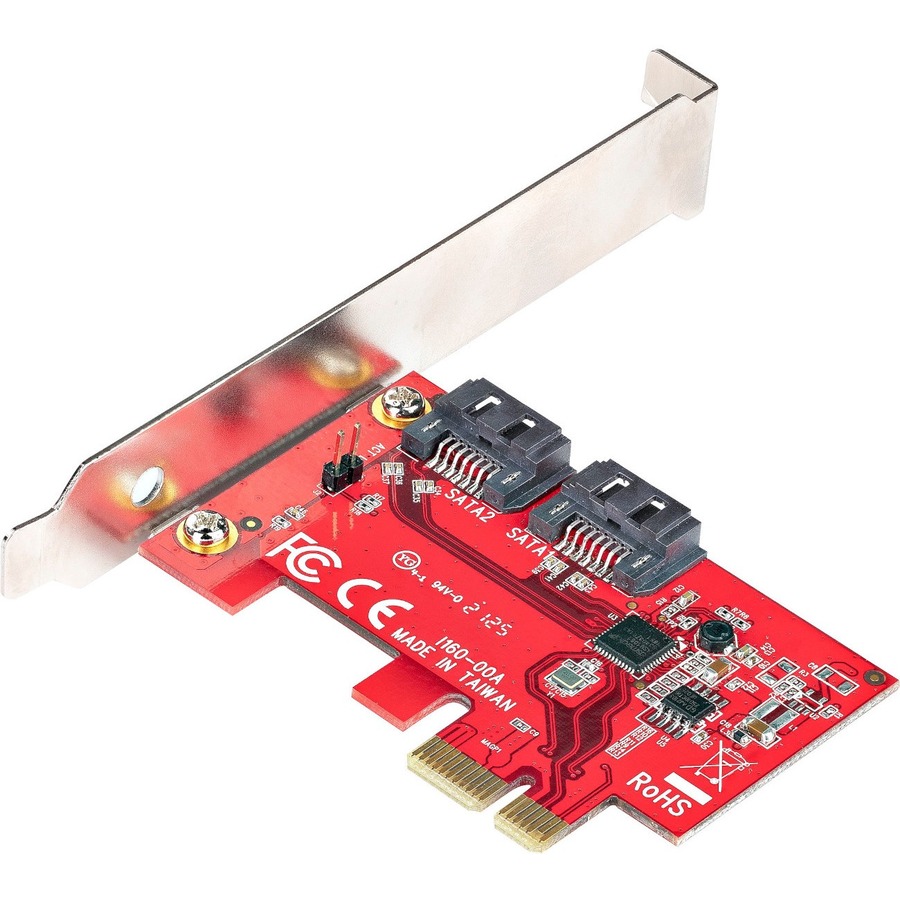

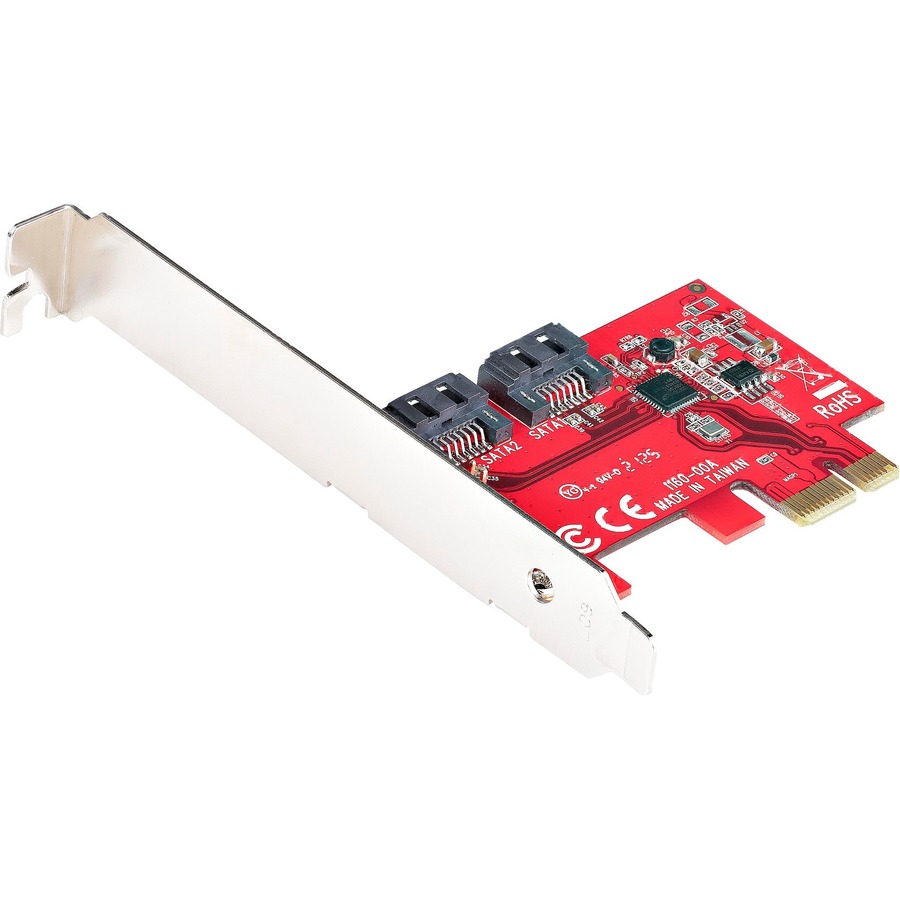

This 2-port SATA III (6Gbps) controller enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x1 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
ASM1061 to Deliver 2-Port SATA 6Gbps Performance

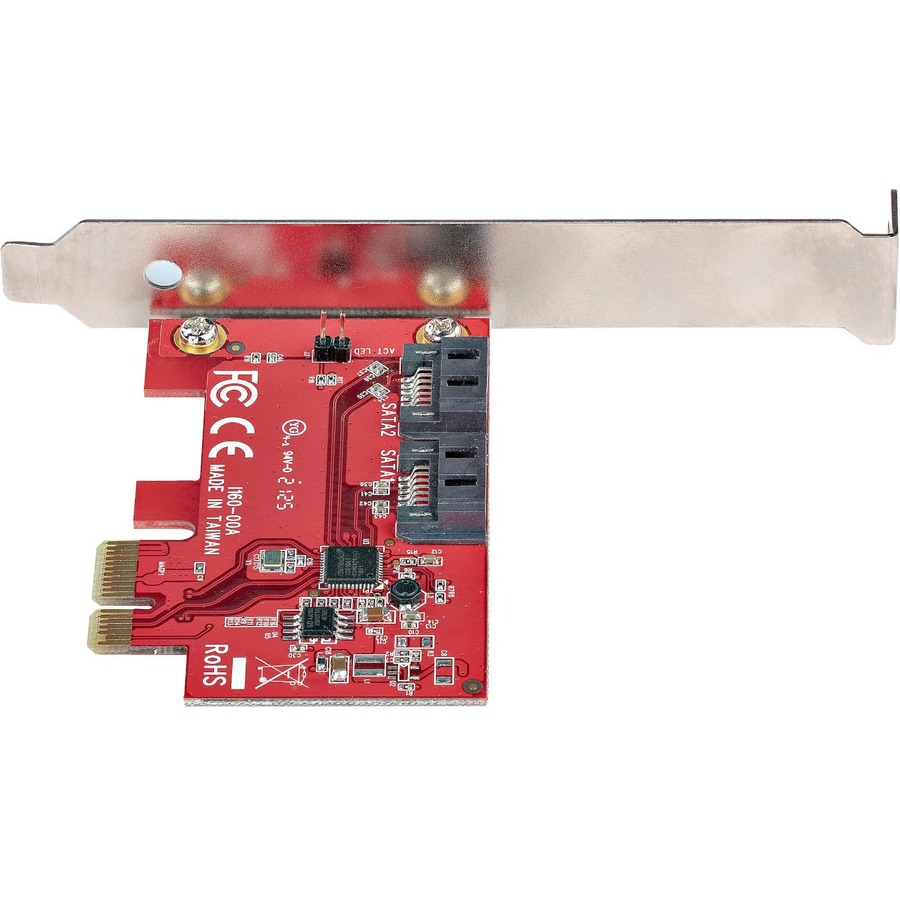

Featuring the ASM1061 controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 4Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.6.8 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
Hassle-Free Installation

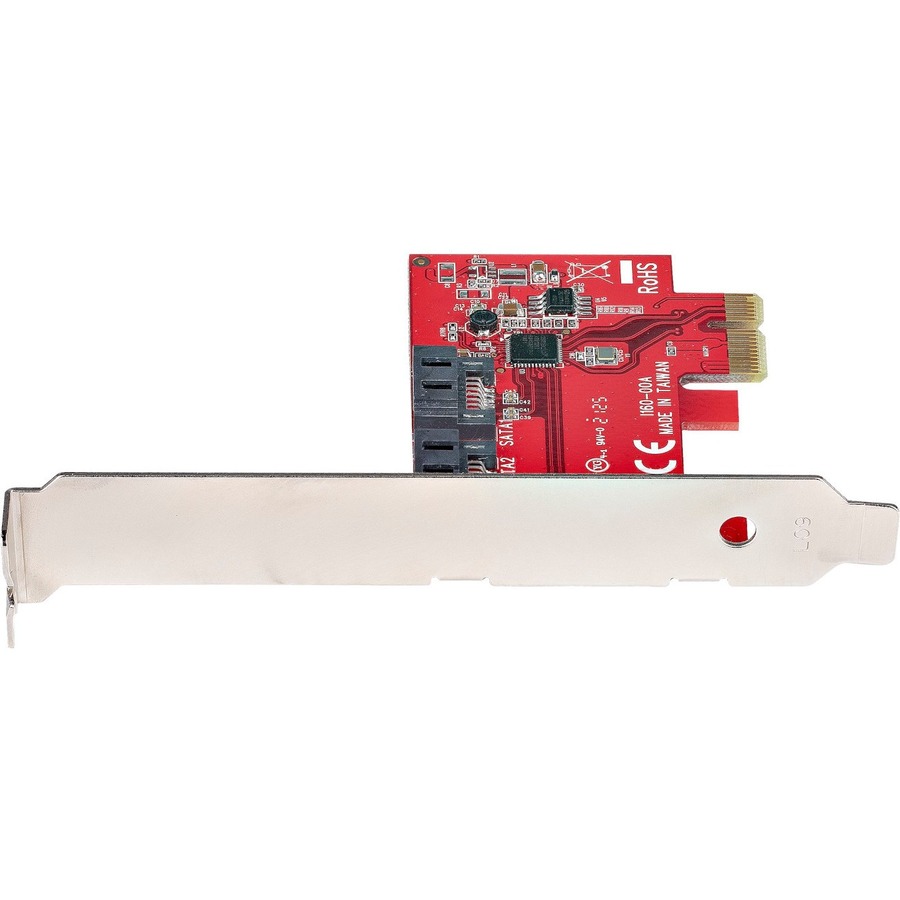

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
2P6G-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.
More from the Manufacturer
More from the Manufacturer
Highlights
HIGH-PERFORMANCE: Add two SATA III 6Gbps ports to your desktop computer or server using a PCIe x1 slot to connect SATA drives (HDD/SSD); 2-Port SATA PCIe card features 2x SATA connections for connecting drives using SATA cables (sold separately)
ASM1061 CONTROLLER: This PCI Express SATA 3 6Gbps card features single-chip architecture adding two SATA (serial ATA) 6Gbps ports via a single x1 PCIe slot, combined total bandwidth up to 4Gbps; Supports Port Multiplier & NCQ (Native Command Queue)
COMPATIBILITY: Supports PCIe 2.0, SATA 3.2 & AHCI 1.4 Specs, and previous gens at lower performance; Windows (7+), macOS (10.6.8+), Linux (2.6.32+); Improved motherboard compatibility with no built-in RAID; Supports ATA & ATAPI (HDD, SSD, Optical Disc)
EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux)
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
Specifications
Package Contents
PCIe SATA Card
Full-Profile Bracket (Installed)
Low-Profile Bracket
Quick-Start Guide
Host Interface
PCI Express 2.0 x1
Product Type
SATA Controller
Device Supported
Server, Desktop PC
Manufacturer Part Number
2P6G-PCIE-SATA-CARD
Platform Supported
PC, Mac, Linux
Limited Warranty
Lifetime
Weight (Approximate)
1.20 oz
Form Factor
Plug-in Card
Length
2.7"
Manufacturer
StarTech.com
Product Name
PCIe SATA Card
Controller Type
Serial ATA/600
Brand Name
StarTech.com
Operating System Supported
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, macOS 10.6.8+, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Linux 2.6.32
Country of Origin
Taiwan
Height
4.8"
Width
0.7"
Environmentally Friendly
Yes
RAID Supported
No
Total Number of SAS Ports
2
Number of SAS Ports (Internal)
2
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
