SIIG Single USB 3.2 Type-C Gen 2x2 20G PCIe Card Dual Profile Design
3A Power Output - Compliant with UASP Revision 1.0 - Plug-n-Play
SKU
Category
USB/Firewire Adapters
$91.99
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
USB/Firewire Adapters
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Compatible with USB 3.2 Gen 2x2 specification - supports multi-lane operation allowing for 2 lanes of 10Gbps to achieve 20Gbps data rate. Note: Both hosts and devices must support the new USB 3.2 standard to achieve the 20Gbps transfer speed
Compliant with Intel's eXtensible Host Controller Interface (xHCI) specification v1.1
Compliant with UASP Revision 1.0
Supports plug-n-play, hot-swapping, and backward compatible with USB 3.1 /3.0 / 2.0 / 1.1 devices
USB-C provides up to 3A power output to support the power required of connected devices
Supports the following data transfer rates - 1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps / 20Gbps
Hot-swapping feature allows you to connect / disconnect devices without powering down the system

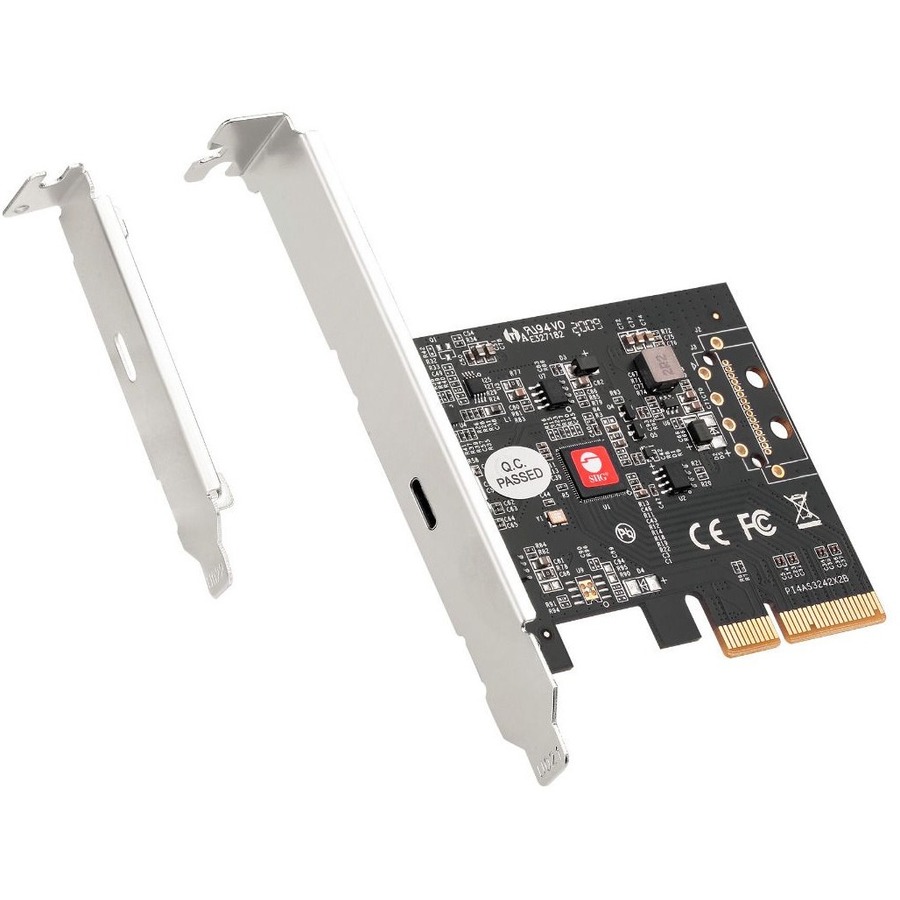

Dual-profile design allows installing into either full height or low-profile system chassis with the included brackets
USB-C port features over-current protection to protect your device against power surges
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
JU-P20D11-S1
Brand Name
SIIG
Product Name
Single Type-C USB 3.2 Gen 2x2 20G PCIe Card
Product Type
USB Adapter
Interfaces/Ports
Total Number of USB Ports
1
Number of USB 3.2 Ports
1
Media & Performance
UASP Support
Yes
Physical Characteristics
Product Color
Black
Form Factor
Plug-in Card
Height
3.2"
Depth
0.8"
Length
4.7"
Weight (Approximate)
1.44 oz
Technical Information
Host Interface
PCI Express 3.0 x4
Warranty
Limited Warranty
2 Year
Miscellaneous

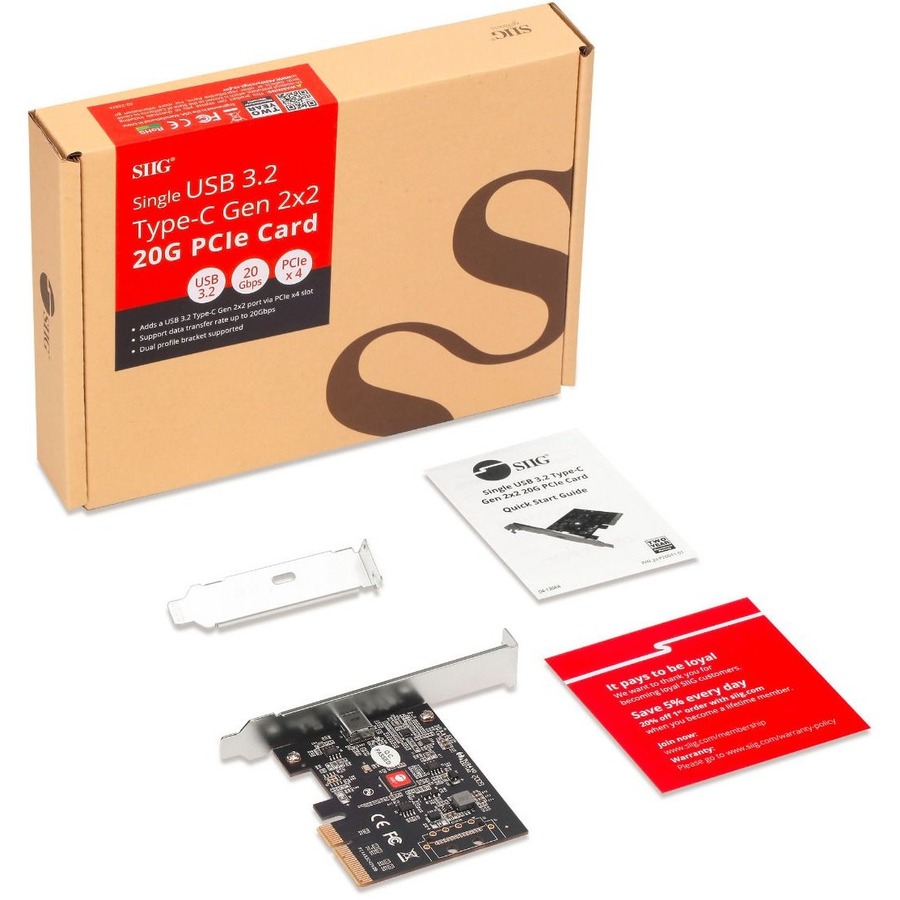

Package Contents
Single Type-C USB 3.2 Gen 2x2 20G PCIe Card
Spare Low profile bracket
Quick Start Guide
Platform Supported
PC
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
