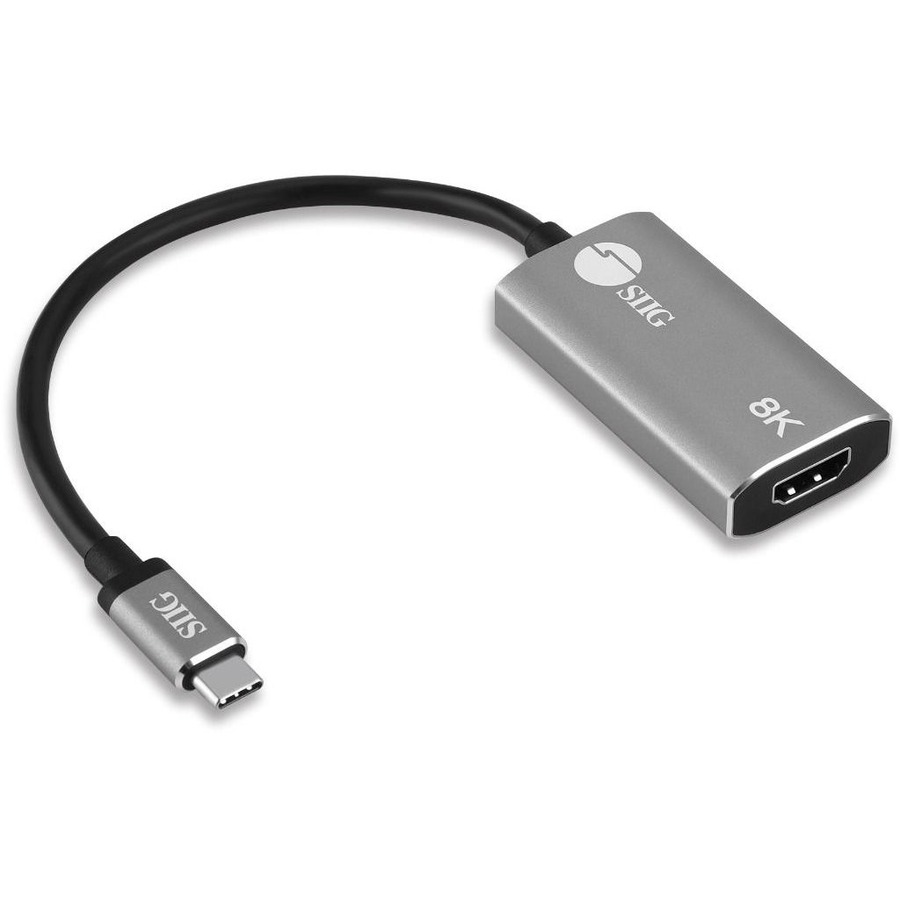

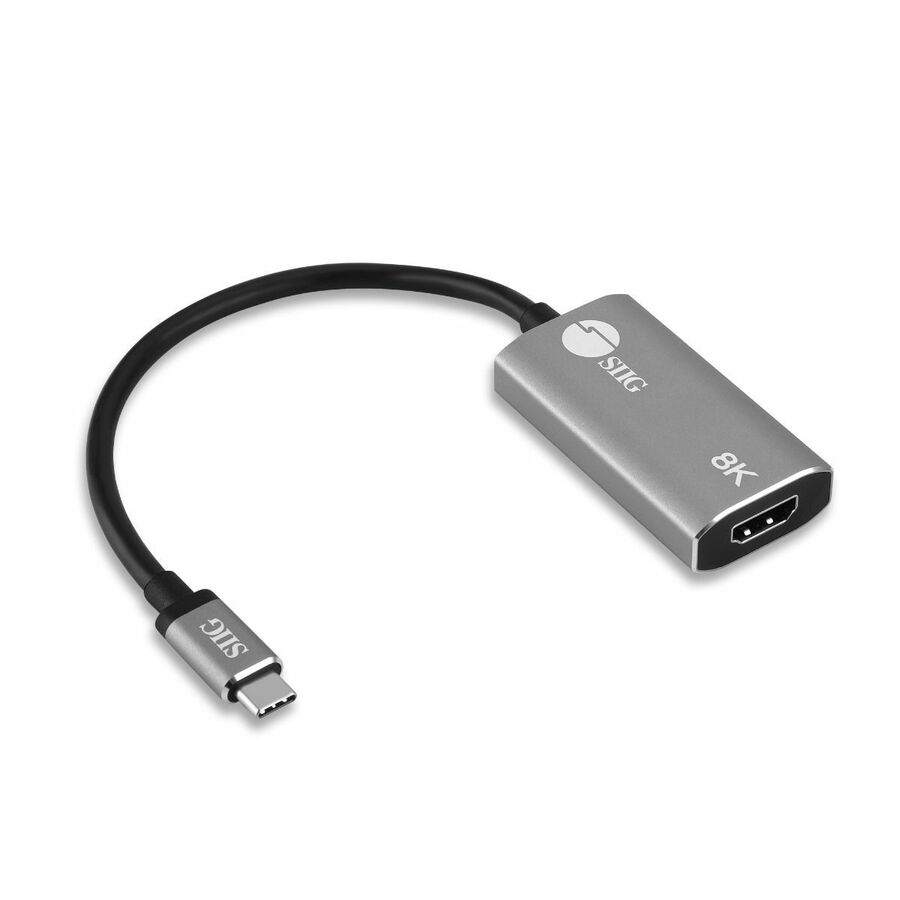

Easily converts an USB-C output into a HDMI video output allowing you to add a HDMI display
Note:
- This is NOT a bi-directional adapter. Does not work for HDMI to USB-C conversion;
- Requires a USB-C port that supports "DisplayPort Alternate Mode" (DP Alt Mode) or Thunderbolt 3 technology. Not all USB-C ports/systems support DP Alt Mode or Thunderbolt 3 functionality.
Supports high resolutions up to 7680x4320@60Hz & 3840x2160@120Hz with DSC function and also supports 7680x4320@30Hz and is backward compatible with 4K resolution without DSC
Compact Aluminum Design, insures superior durability and efficient heat dissipation
Perfect for gaming, video editing, and other tasks that require uncompromising resolution needed
USB Type-C interface with reversible connection design supports non-directional plug-in connection
Plug and play, no software and no external power adapter required
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CB-TC0L11-S1
Brand Name
SIIG
Product Name
USB-C to HDMI Adapter - 8K
Product Type
A/V Adapter
Physical Characteristics
Product Color
Space Gray
Product Material
Aluminum
Height
0.6"
Width
2.4"
Depth
1.2"
Weight (Approximate)
1.44 oz
Technical Information
Adapter Type
HDMI/USB-C
Connector Type on First End
USB Type C - Male
Connector on First End Details
1 x 24-pin USB Type C USB Male
Connector Type on Second End
HDMI 2.1 Type A Digital Audio/Video - Female
Connector on Second End Details
1 x 19-pin HDMI (Type A) HDMI 2.1 Digital Audio/Video Female
Maximum Resolution Supported
7680 x 4320
Features
HDCP 2.2, HDCP 1.4, Reversible, Plug and Play
Warranty
Limited Warranty
2 Year
Miscellaneous

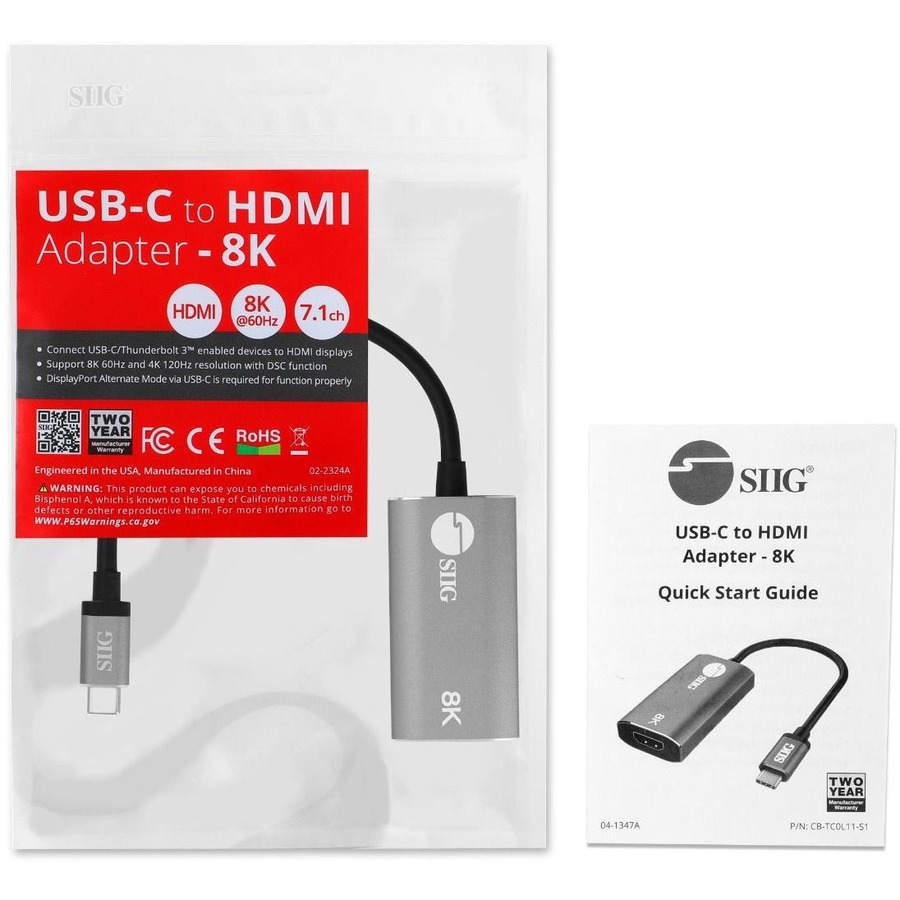

Package Contents
USB-C to HDMI Adapter - 8K
Quick Start Guide
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
