SKU
CB-H21811-S1
Category
Connector Adapters
Overview

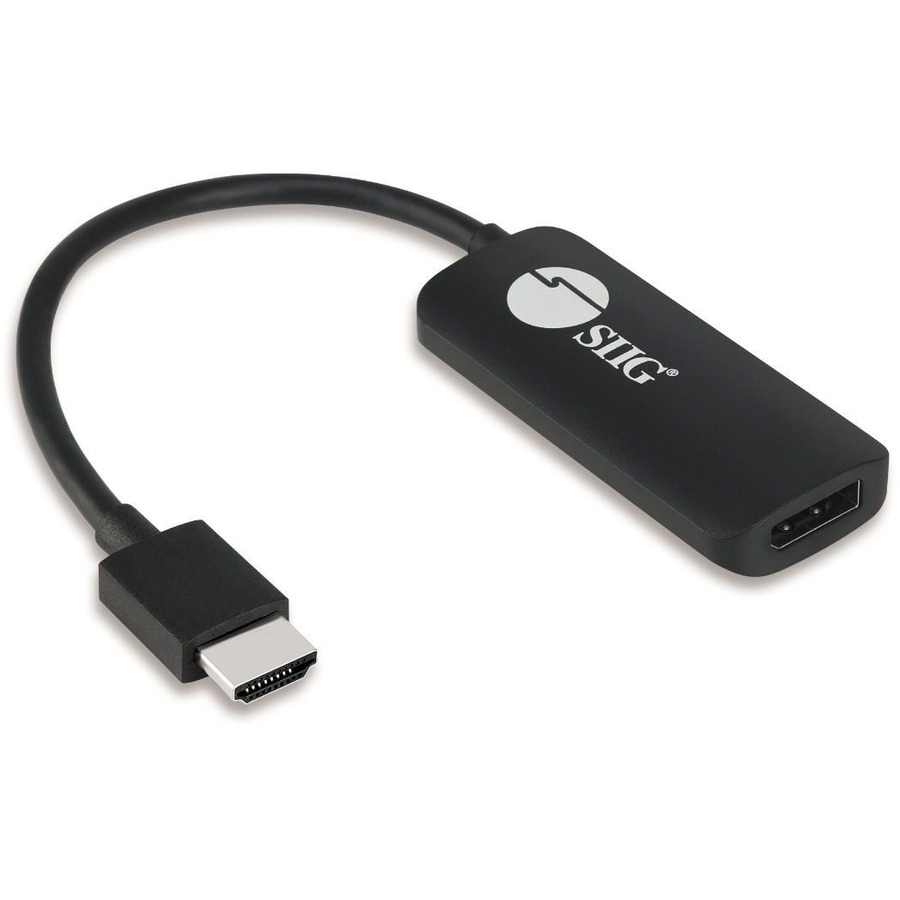

Easily add a DisplayPort 1.2 display to your HDMI compatible computer, Laptop, notebook, game console, etc...
Features
• Easily converts an HDMI output into a DisplayPort video output allowing you to add a DisplayPort display

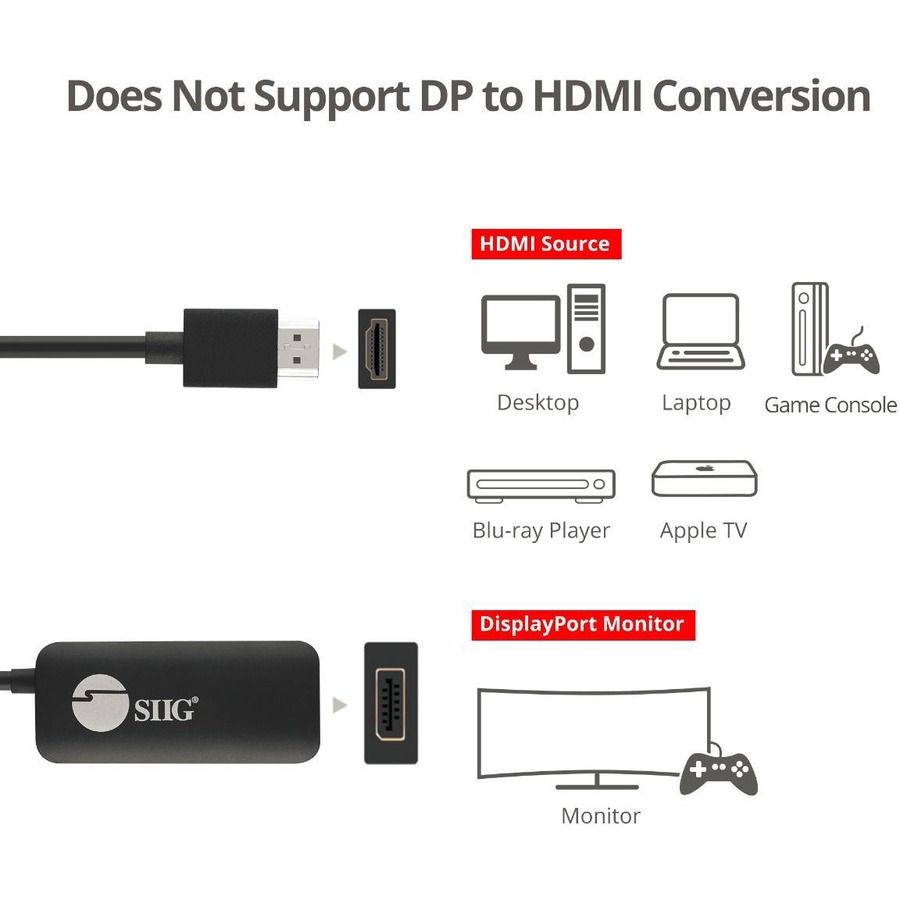

Note : This is NOT a bi-directional adapter. Does not work for DisplayPort to HDMI 2.0 conversion
• Compliant with DisplayPort 1.2 specification for 1.62, 2.7Gbps and 5.4Gbps video bandwidth
• Supports up to 3840x2160@60Hz YUV 4:4:4 8-bit / HDR and 1920x1080@60/120/144Hz high resolutions
Note : 4K@60 YUV 4:2:0 video sources will display in 4K@30Hz resolution. Does Not support 4K@60Hz YUV 4:2:0 10bit HDR
• Active HDMI to DisplayPort 1.2 converter lets you connect an HDMI enabled video source, such as Laptop, PC, desktop, Nintendo Switch, Xbox one, PS4 Pro, video game console...etc, to DisplayPort 1.2 displays
• Compliant with HDMI 2.0a, HDCP 2.2
• Supports 2-ch stereo audio

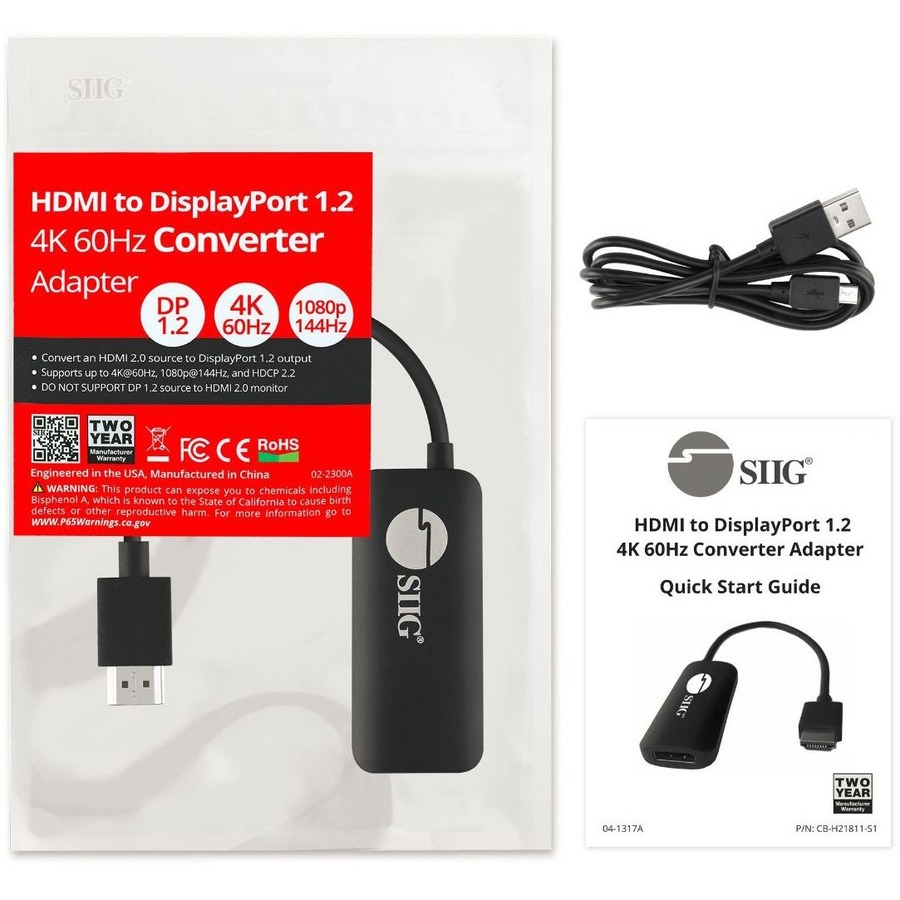

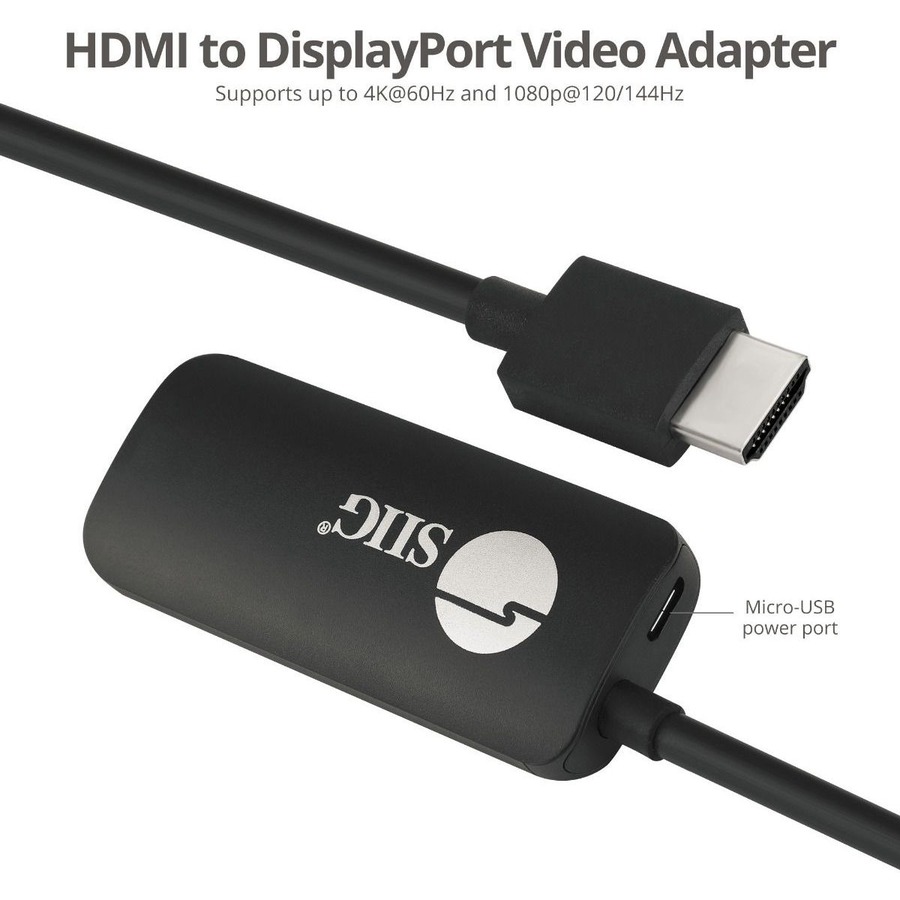

• The included Micro USB Power cable connects to either an available USB port on your source device or a USB wall charger to power the HDMI to DisplayPort converter

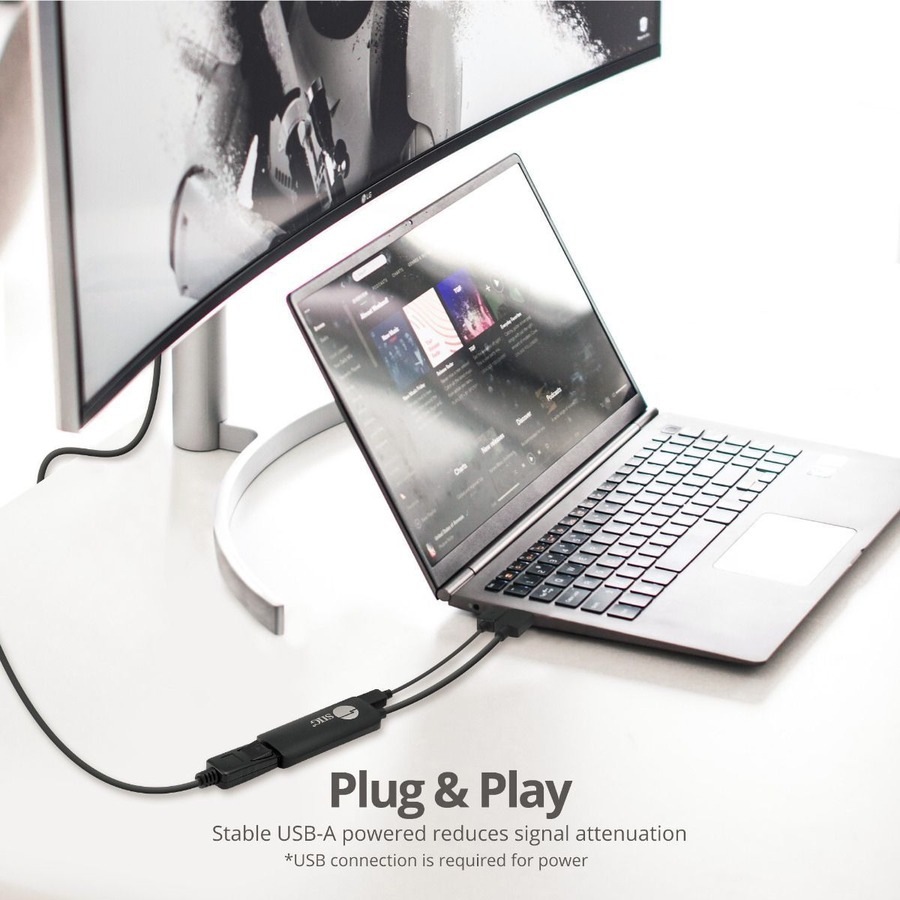

• USB-Powered, Plug and play, no software required
Easily converts an HDMI output into a DisplayPort video output allowing you to add a DisplayPort display
This is NOT a bi-directional adapter. Does not work for DisplayPort to HDMI 2.0 conversion
Compliant with DisplayPort 1.2 specification for 1.62, 2.7Gbps and 5.4Gbps video bandwidth
Supports up to 3840x2160@60Hz YUV 4:4:4 8-bit / HDR and 1920x1080@60/120/144Hz high resolutions
4K@60 YUV 4:2:0 video sources will display in 4K@30Hz resolution. Does Not support 4K@60Hz YUV 4:2:0 10bit HDR
Active HDMI to DisplayPort 1.2 converter lets you connect an HDMI enabled video source, such as Laptop, PC, desktop, Nintendo Switch, Xbox one, PS4 Pro, video game console...etc, to DisplayPort 1.2 displays
Compliant with HDMI 2.0a, HDCP 2.2
Supports 2-ch stereo audio
The included Micro USB Power cable connects to either an available USB port on your source device or a USB wall charger to power the HDMI to DisplayPort converter
USB-Powered, Plug and play, no software required
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
CB-H21811-S1
Brand Name
SIIG
Product Name
HDMI To DisplayPort 1.2 4K 60Hz Converter Adapter
Product Type
A/V Adapter
Physical Characteristics
Product Color
Black
Product Material
ABS
Height
0.5"
Width
2.8"
Depth
1.2"
Weight (Approximate)
1.12 oz
Technical Information
Adapter Type
DisplayPort/HDMI/Micro USB
Connector Type on First End
HDMI 2.0a Type A Digital Audio/Video - Male
Connector on First End Details
1 x 19-pin HDMI (Type A) HDMI 2.0a Digital Audio/Video Male
Connector Type on Second End
DisplayPort 1.2 Digital Audio/Video - Female, Micro USB - Female
Connector on Second End Details
1 x 20-pin DisplayPort DisplayPort 1.2 Digital Audio/Video Female, 1 x 5-pin Micro USB Female
