Internal - 264 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 V DC Output - Active PFC - 3 +12V Rails - 1 Fan(s) - 85% Efficiency
SKU
Category
Power Supplies
MSRP$149.99
$136.07
Save 9%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 3 and Nov 7, then process your delivery right after.
Genuine Shuttle through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Power Supplies
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

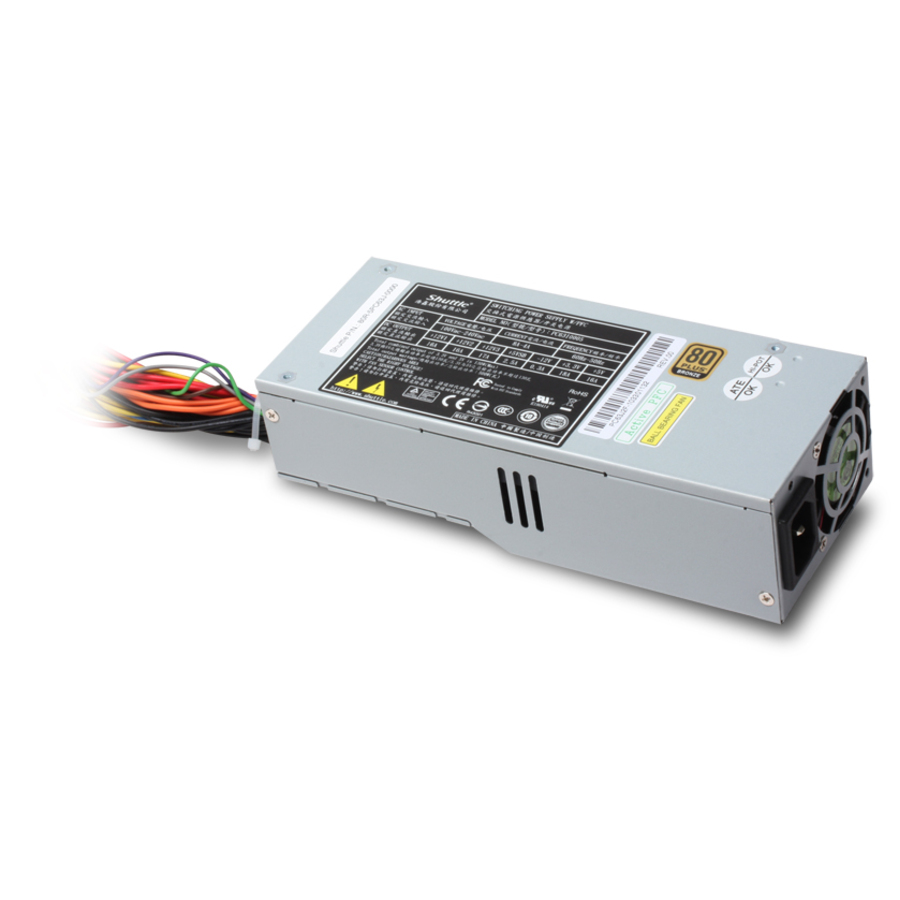

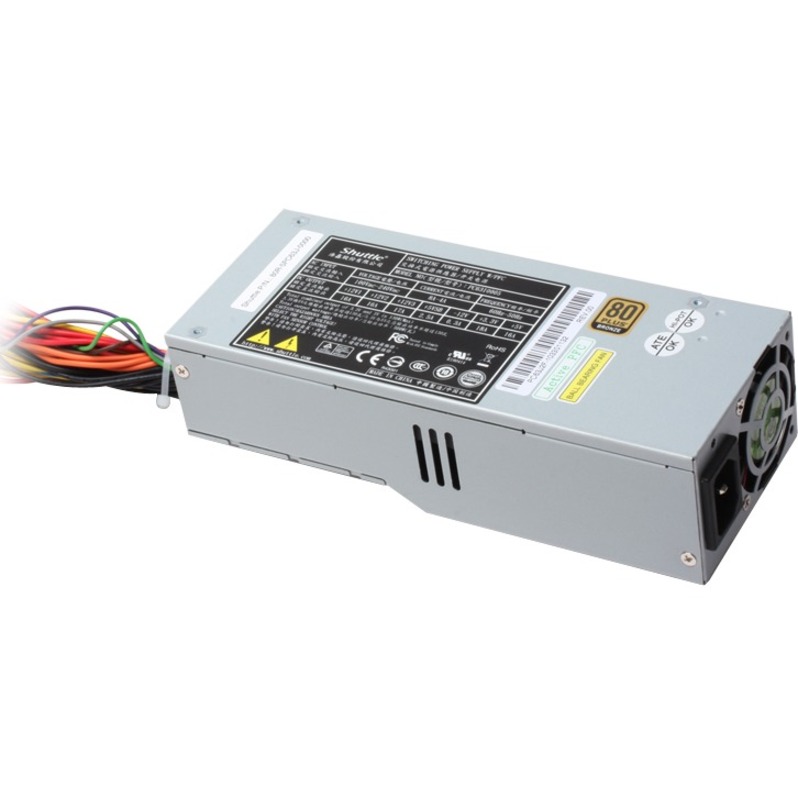

The Shuttle XPC Accessory PC63J is a new high-end power supply with a maximum output wattage of 500W suitable for XPCs with J-series case. With a low noise level of only 30dB, it is ideal for use in any noise-sensitive environments such as a library and offices. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STAR compliant systems. Benefit from less power consumption and less energy costs using PC63J.
Highlights
Supplies power to the electrical load to keep up with the power requirements
The constant 3.3 V DC ensures smooth functioning
Specifications
General Information
Manufacturer
Shuttle, Inc
Manufacturer Part Number
PC63J
Brand Name
Shuttle
Product Model
PC63J
Product Name
PC63J ATX12V & EPS12V Power Supply
Product Type
Power Supply
Physical Characteristics
Form Factor
Internal
Height
2.1"
Width
3.2"
Depth
7.9"
Weight (Approximate)
2.43 lb
Power Description
Input Voltage
264 V AC
Number of +12V Rails
3
Output Voltage
3.3 V DC, 5 V DC, 12 V DC, -12 V DC
Output Voltage Detail
3.3 V DC @ 18 A, 5 V DC @ 16 A, 12 V DC @ 16 A, 12 V DC @ 17 A, -12 V DC @ 300 mA, 5 V DC @ 2.5 A
Output Current
18 A, 16 A, 17 A, 300 mA, 2.50 A
Reliability
MTBF
100000 Hour
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
85%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
Short Circuit, Over Power, Over Current, Over Temperature, Over Voltage, Under Voltage
