Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
XP1K9NN42RCC
Category
General Purpose UPS
Overview
Proven Industrial UPS power protection for control applications and harsh environments.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC industrial UPS solution provides reliable protection.
More from the Manufacturer
Warranty
Limited Warranty: 3 Year
Highlights

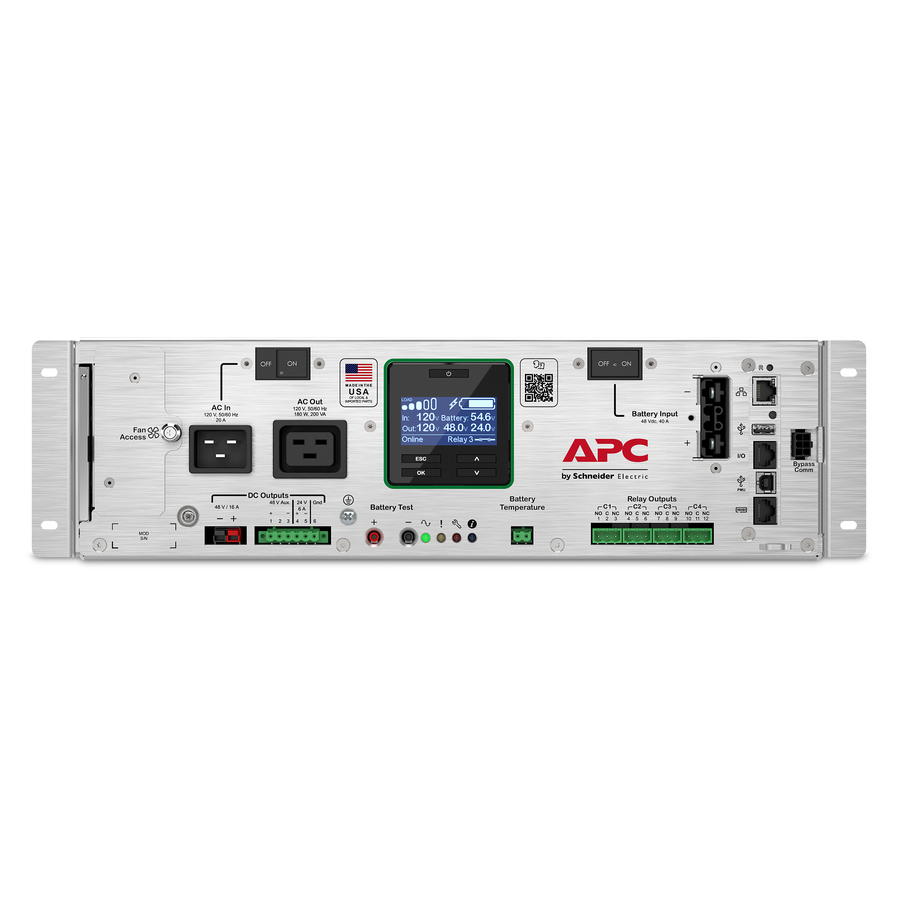

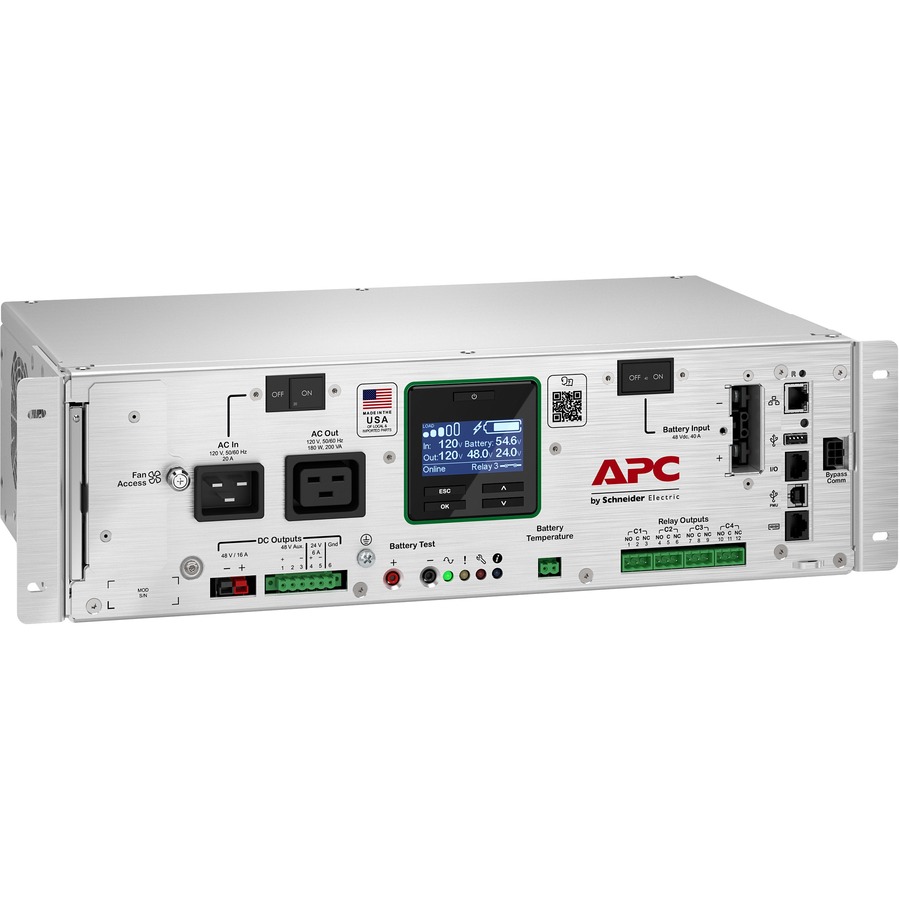

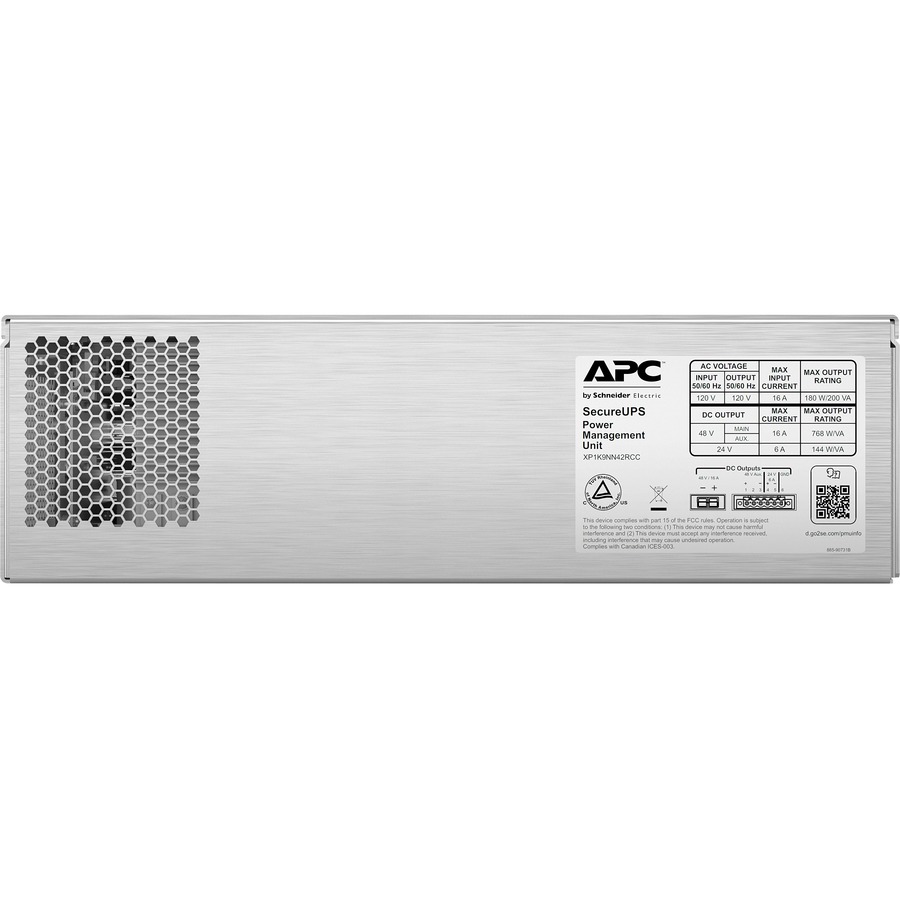

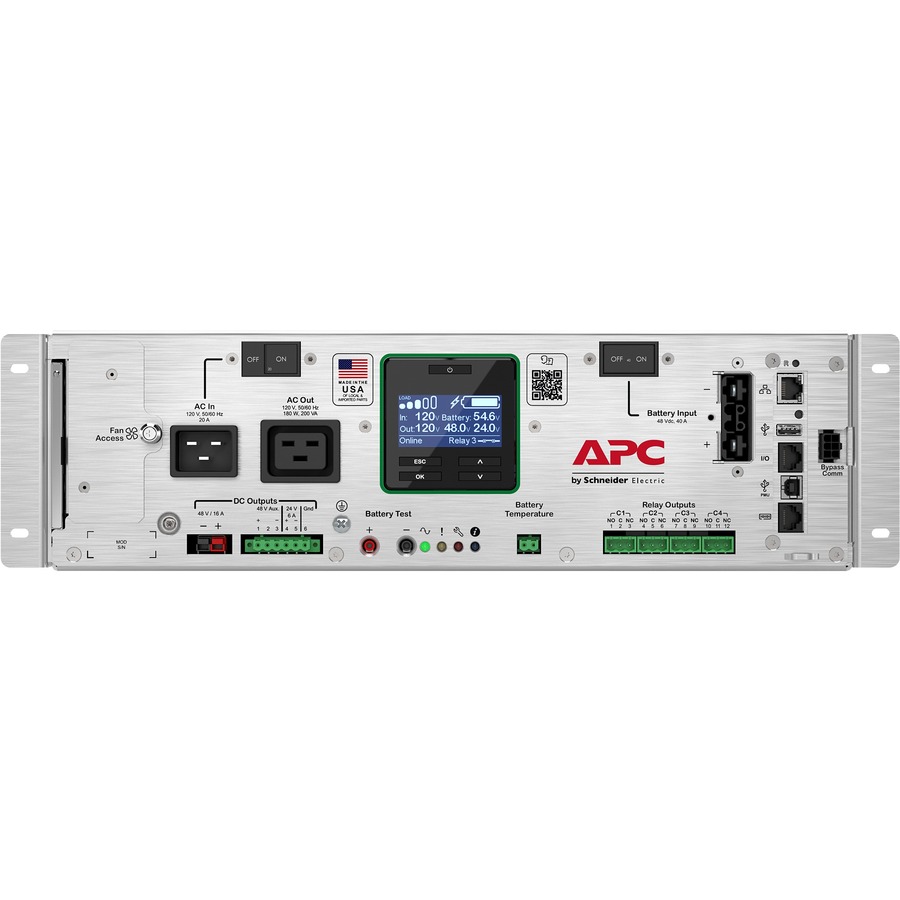

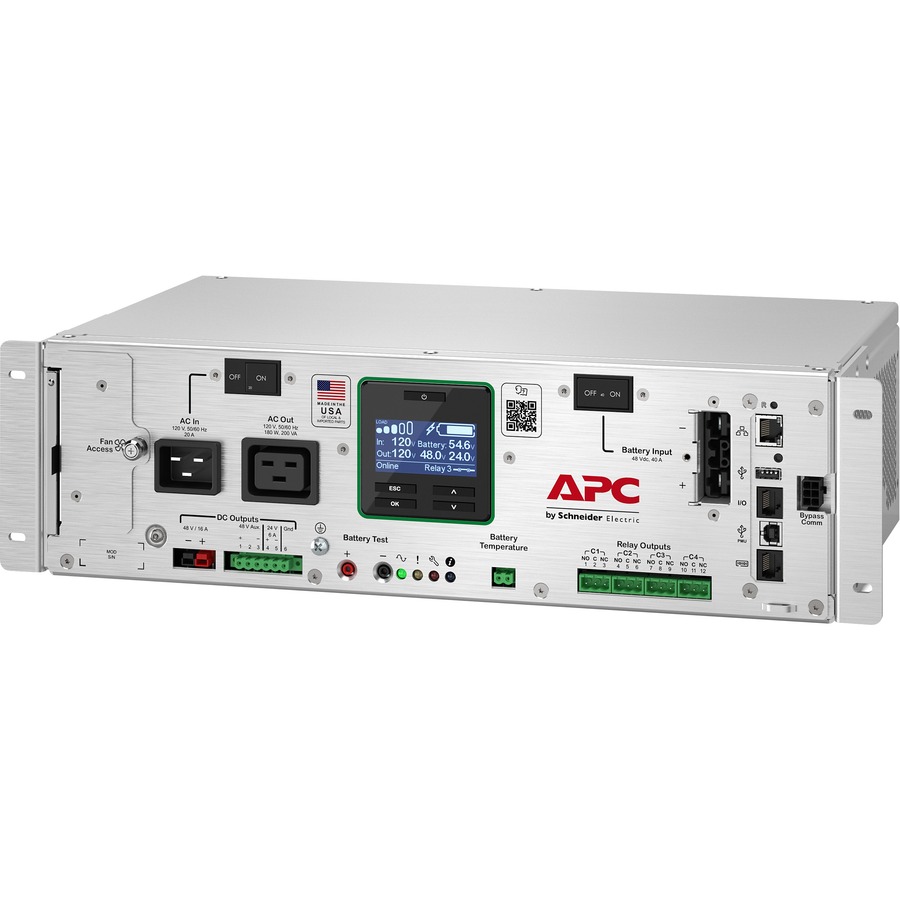

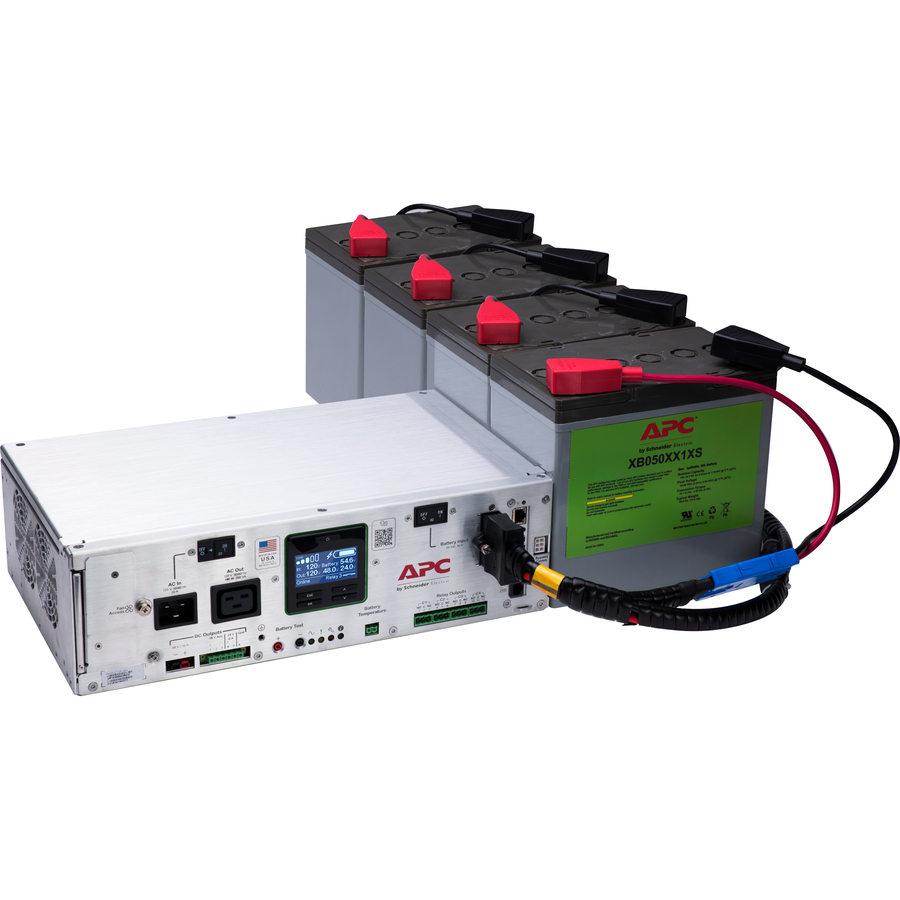

SecureUPS Power Management Unit 1900W 115/120VAC In/Out with 48/24VDC Out RM Conformal Coated
Proven Industrial UPS power protection for control applications and harsh environments.
Includes: Dust filter, Integrated network management, Qty 2- Detachable IEC Power Cord, Rack Mounting brackets, Rack mounting hardware, Temperature Probe, User Manual, Warranty card, Web/SNMP Management Card
Specifications
Battery Information
DC System Voltage
48 V DC
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Hot Swappable
Yes
Replaceable Battery
Yes
Environmental Conditions
Maximum Operating Elevation
9842.52 ft
Maximum Operating Temperature
165.2°F (74°C)
Maximum Storage Elevation
49212.60 ft
Storage Temperature
-40°F (-40°C) - 185°F (85°C)
Operating Humidity
0% - 95%
Storage Relative Humidity
0% - 95%
Sound Emission (A-Weighted)
55 dB(A)
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
XP1K9NN42RCC
Brand Name
APC by Schneider Electric
Product Line
SecureUPS
Product Model
XP1K9NN42RCC
Product Name
SecureUPS XP1K9NN42RCC Desktop UPS
Product Type
Double Conversion Online UPS
Physical Characteristics
Height
5.12"
Width
17.09"
Depth
10.31"
Form Factor
Desktop
Weight (Approximate)
19.40 lb
Power Description
Load Capacity (VA)
2000 VA
Load Capacity (Watt)
1900 W
Input Voltage
120 V AC
Input Voltage Range
88 V AC - 137 V AC
Output Voltage
120 V AC
Input Frequency
65 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
Plug/Connector Type
IEC 60320 C20
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
SecureUPS XP1K9NN42RCC Desktop UPS
Dust Filter
Integrated Network Management
2 x Detachable IEC Power Cord
Rack Mounting Brackets
Rack Mounting Hardware
Temperature Probe
User Manual
Warranty Card
Web/SNMP Management Card
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
