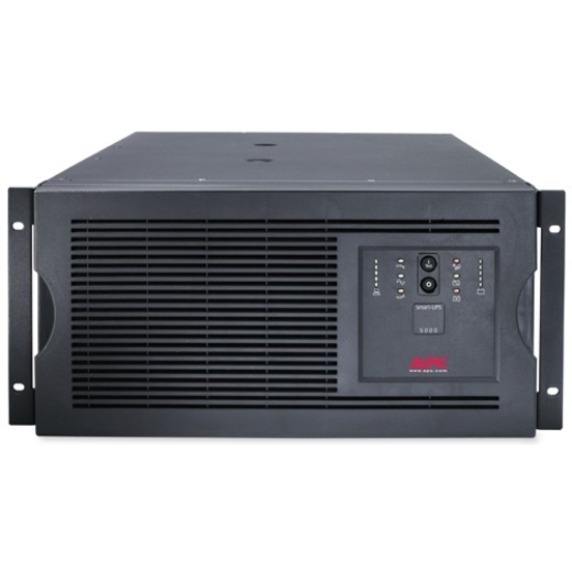

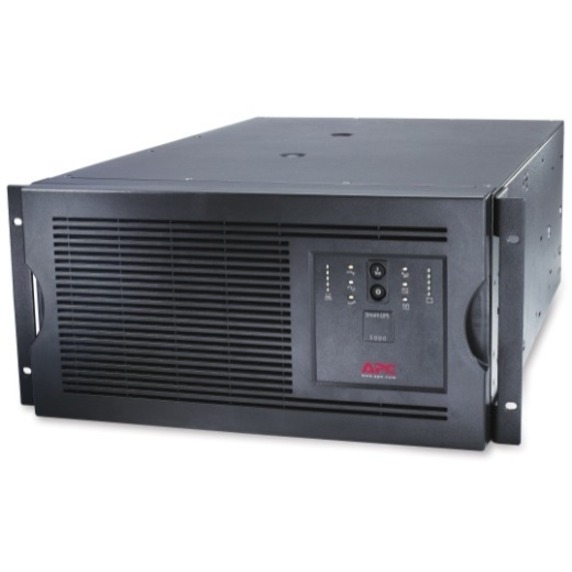

APC Smart-UPS 5000VA Rackmountable UPS
5000VA/4000W - 9.4 Minute Full Load - 8 x IEC 320-C13, 2 x IEC 320-C19, 6 x IEC Jumper
- SKU
- SUA5000RMI5U
- Category
- General Purpose UPS
MSRP$14,085.00
$9,031.72
Save 36%Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SUA5000RMI5U
- Category
- General Purpose UPS
Overview
APC Smart-UPS 5000VA Rackmountable UPS protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS 5000VA Rackmountable UPS is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS.
Warranty
Limited Warranty: 2 Year
Highlights
- Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms - Provides notification of changing utility power and UPS power conditions
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Disconnected battery notification - Warns when a battery is not available to provide backup power.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network manageable - Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

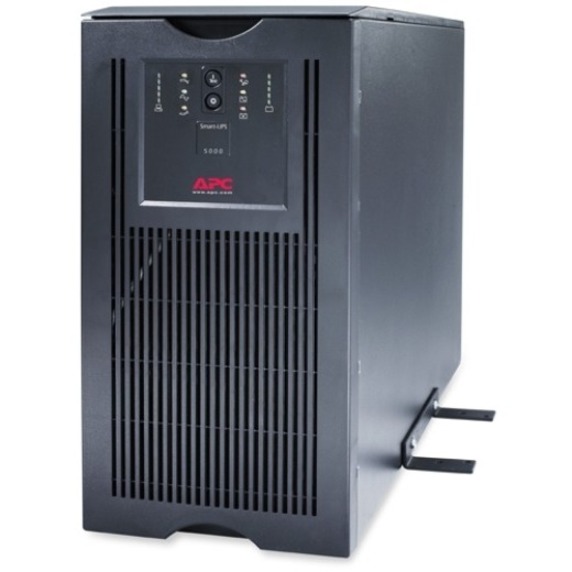

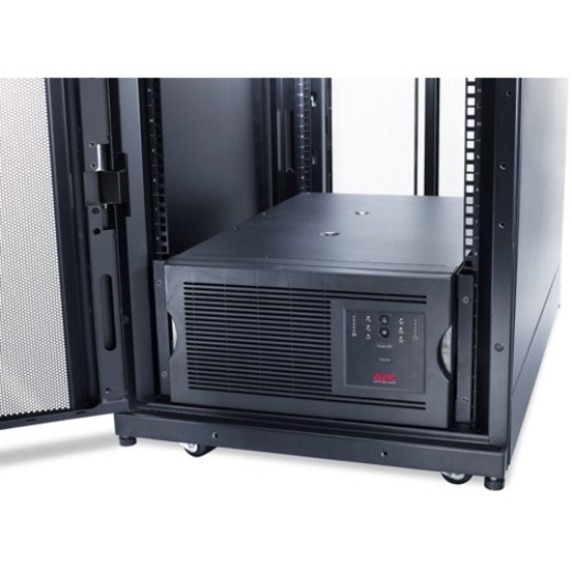

- Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Resettable circuit breakers - Enables a quick recovery from overload events.
- Safety-agency approved - The UPS is UL1778 Listed
- Serial connectivity - Provides management of the UPS via a serial port.
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 220 V AC |
| Manufacturer Part Number | SUA5000RMI5U |
| Packaged Quantity | 1 Each |
| Limited Warranty | 2 Year |
| Output Voltage | 230 V AC |
| Weight (Approximate) | 215.46 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Model | SUA5000RMI5U |
| Product Name | Smart-UPS 5000VA Rackmountable UPS |
| Network Management | SNMP Manageable |
| Product Line | Smart-UPS |
| Waveform Type | Sine Wave |
| Product Series | SUA |
| Rack Height | 5U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | Hard Wire 3-wire |
| Country of Origin | Philippines |
| Height | 8.74" |
| Width | 19.02" |
| Depth | 25.98" |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Environmentally Friendly | Yes |
| Number of Batteries | 2 |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 4000 W |
| Number of Battery & Surge Outlets | 14 |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |

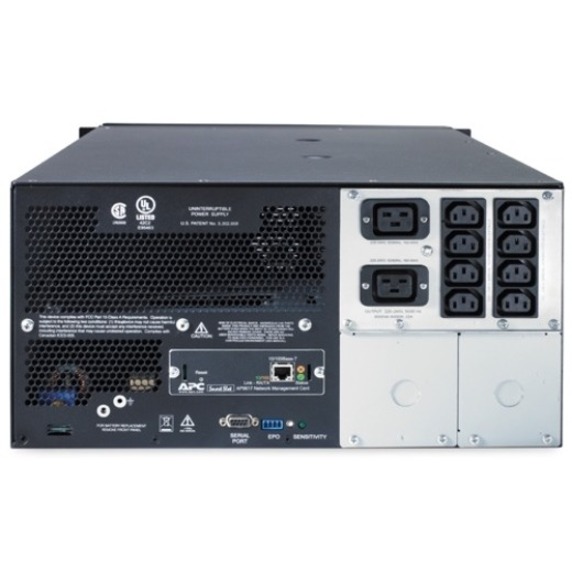

| Receptacle Detail | 8 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
