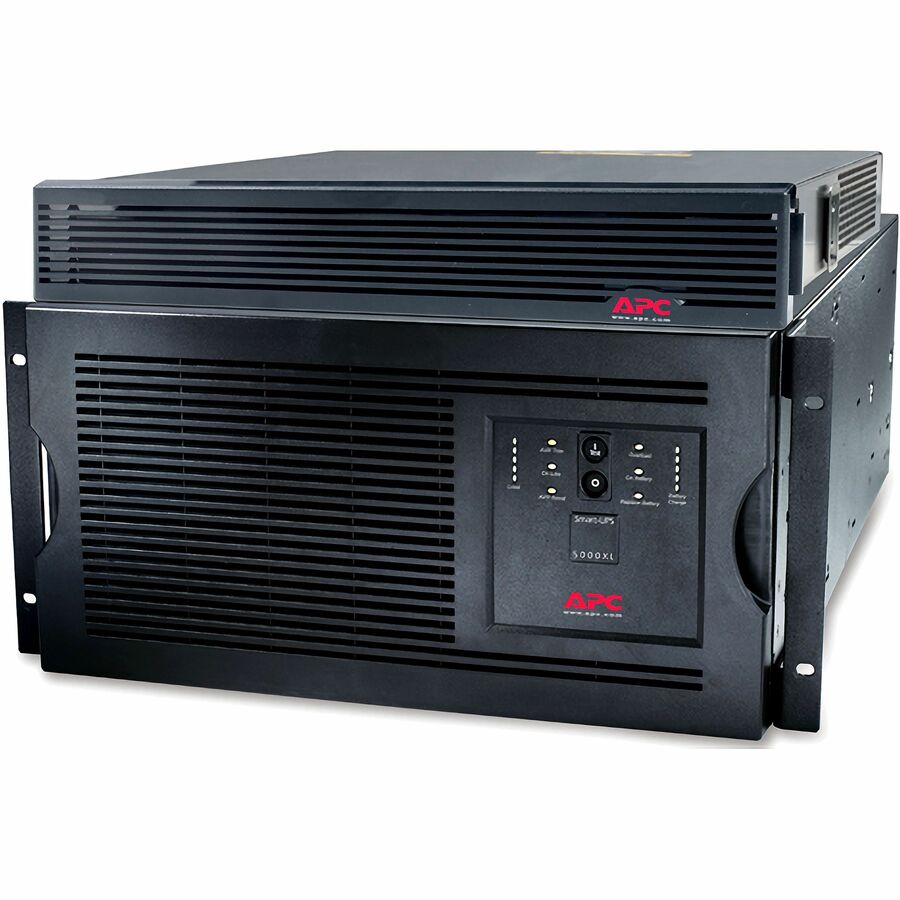

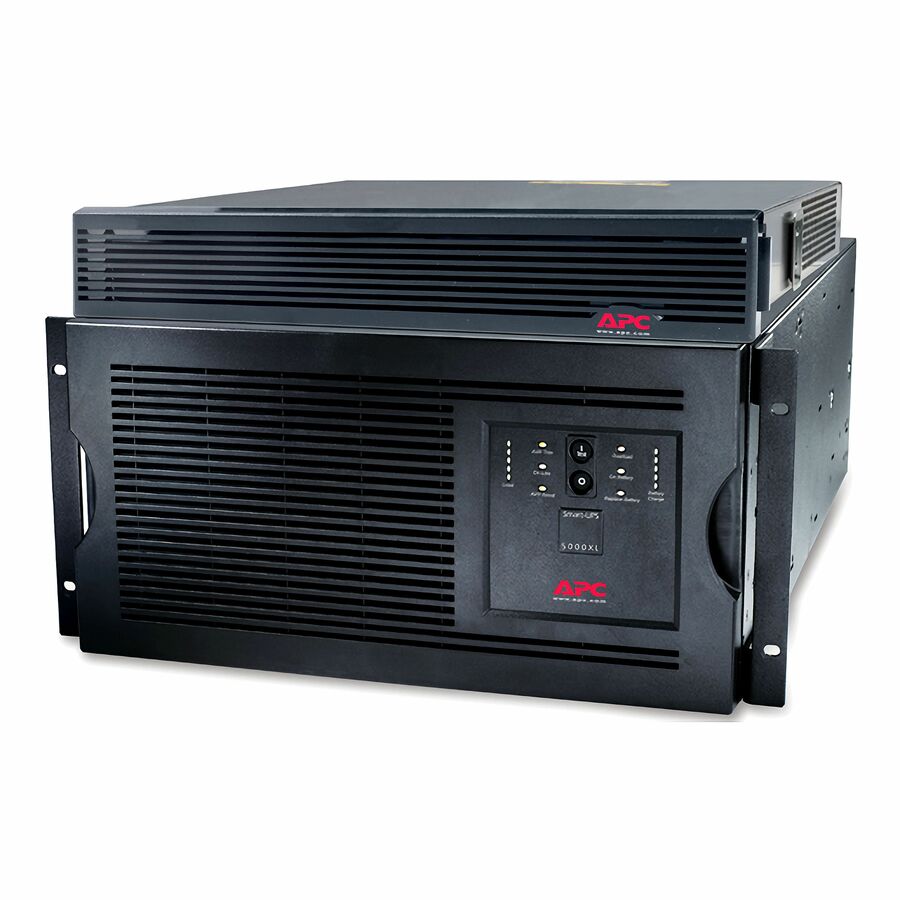

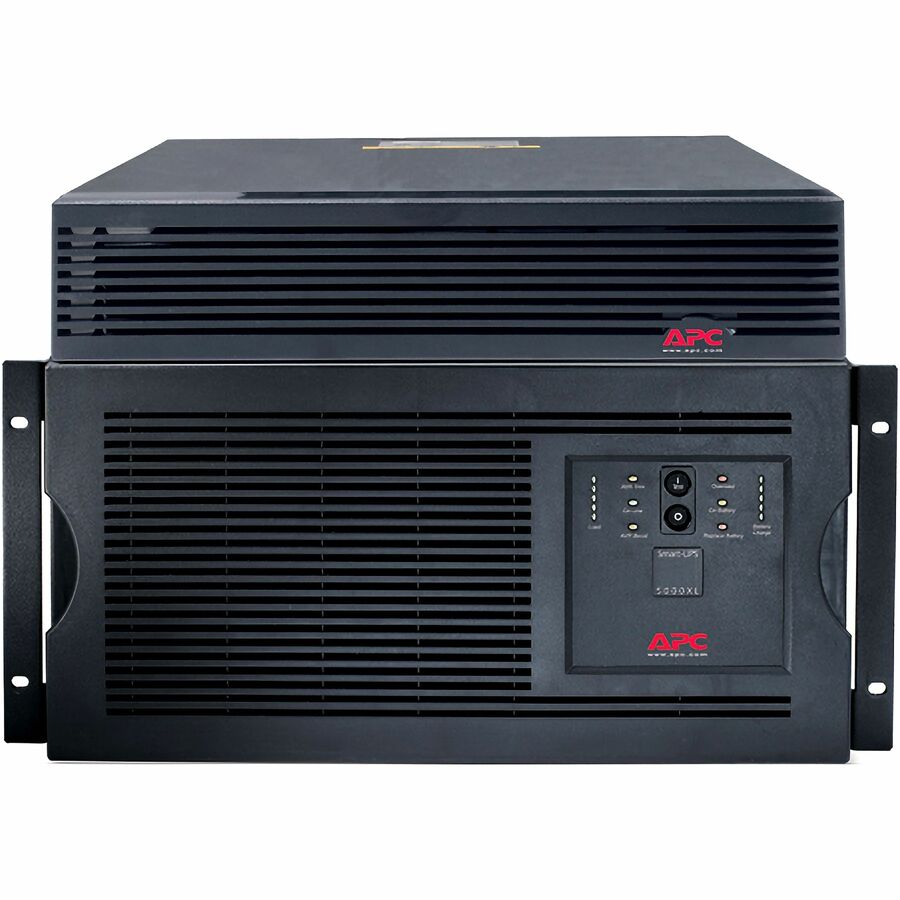

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output

7U Rack-mountable - 3 Hour Recharge - 9.40 Minute Stand-by - 208 V AC Input - 208 V AC Output - Single Phase - Sine Wave - 1 x NEMA L6-30R, 12 x NEMA 5-20R, 2 x NEMA L6-20R Receptacle(s) - 15 x Battery/Surge Outlet - SNMP Manageable

SKU: SUA5000R5TXFMR
Category: General Purpose UPS

MSRP$10,500.00

$6,742.02

Save 36%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SUA5000R5TXFMR
Category: General Purpose UPS

Overview

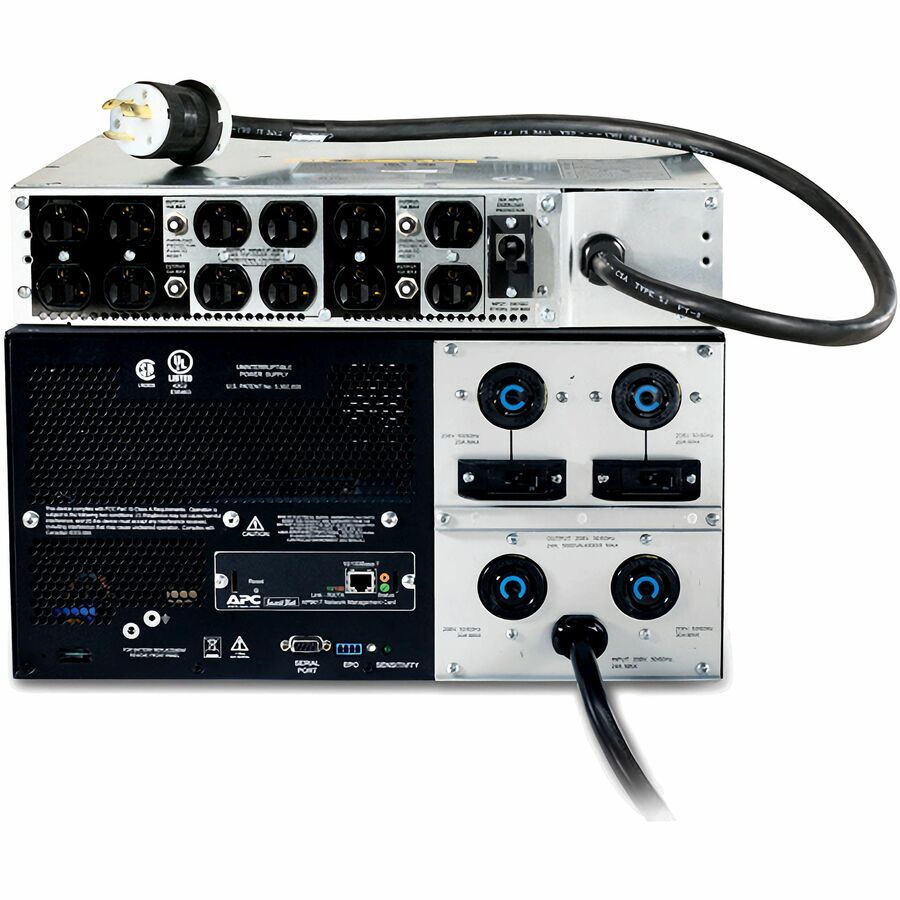

The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.

Warranty

Limited Warranty: 2 Year

Highlights

APC Smart-UPS 5000VA RM w/Transformer
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Maximizes battery performance, life, and reliability through intelligent, precision charging.
2 years repair or replace, optional on-site warranties available, optional extended warranties available

Specifications

Battery Chemistry	Lead Acid
Package Contents	Smart-UPS 5000VA Rack-mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual
Software Included	PowerChute Management Software
Product Type	Line-interactive UPS
Input Voltage	208 V AC
Manufacturer Part Number	SUA5000R5TXFMR
Limited Warranty	2 Year
Output Voltage	208 V AC
Weight (Approximate)	320.66 lb
Dataline Protection	RJ-45
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS 5000VA Rack-mountable UPS
Network Management	SNMP Manageable
Product Line	Smart-UPS
Surge Energy Rating	1020 J
Waveform Type	Sine Wave
Rack Height	7U
Brand Name	APC
Plug/Connector Type	NEMA L6-30P
Country of Origin	India
Cord Length	8 ft
Height	12.24"
Width	19.02"
Depth	25"
Phase	Single Phase
Receptacle Type	NEMA L6-30P
Environmentally Friendly	Yes
Network (RJ-45)	Yes
Backup/Run Time (Half Load)	26.70 Minute
Backup/Run Time (Full Load)	9.40 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Load Capacity (VA)	5000 VA
Load Capacity (Watt)	4000 W
Number of Battery & Surge Outlets	15
Typical Battery Recharge Time	3 Hour
Product Color	Black
Receptacle Detail	1 x NEMA L6-30R, 12 x NEMA 5-20R, 2 x NEMA L6-20R
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
