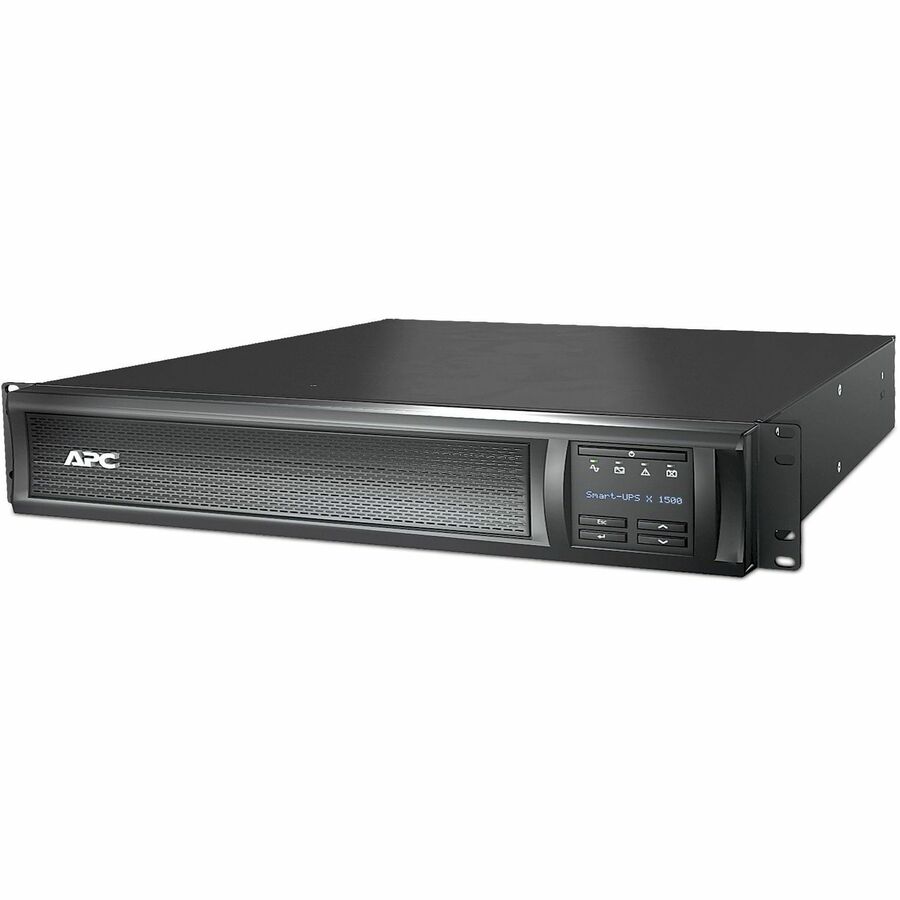

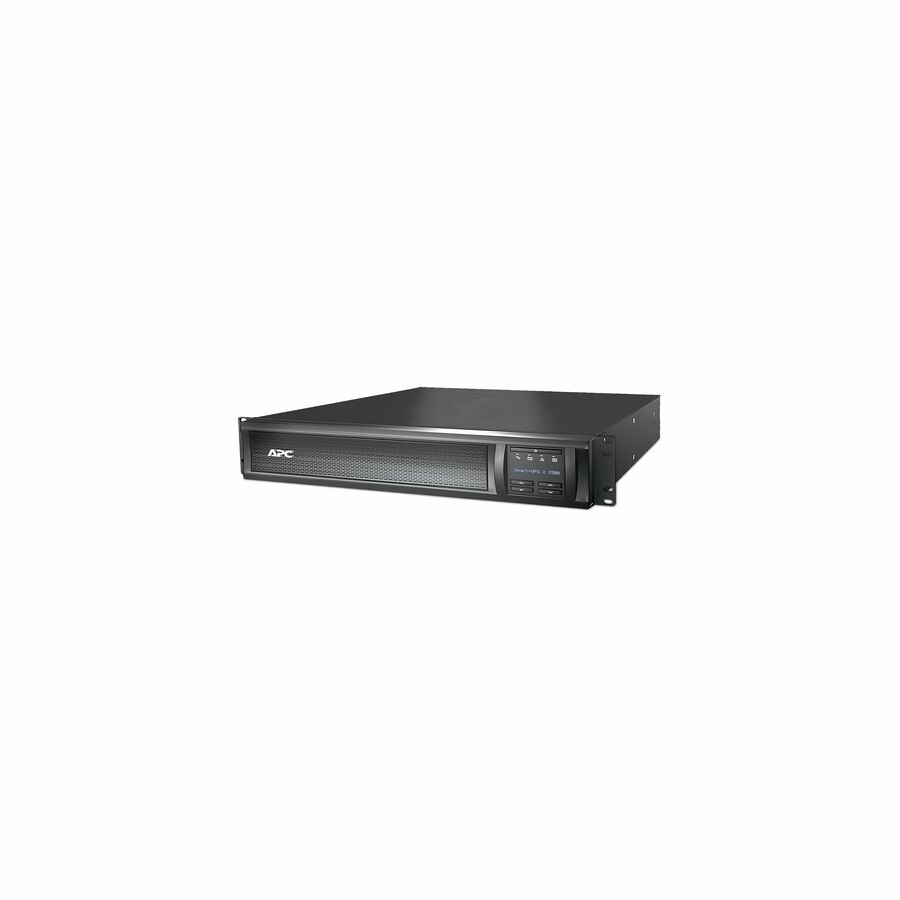

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime [TAA]

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1440VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.

More from the Manufacturer

Key Features

Specifications and Software Capabilities

Hot Spots

2U design with flexible installation

2U design saves valuable space for IT. Rackmount and tower.

Graphical LCD display

Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.

SmartSlot™ for network management card

Add a network management card or purchase an -NC model with a pre-installed AP9641 network card.

SmartConnect Ethernet Port

Built-in secure cloud monitoring with the SmartConnect Ethernet Port.

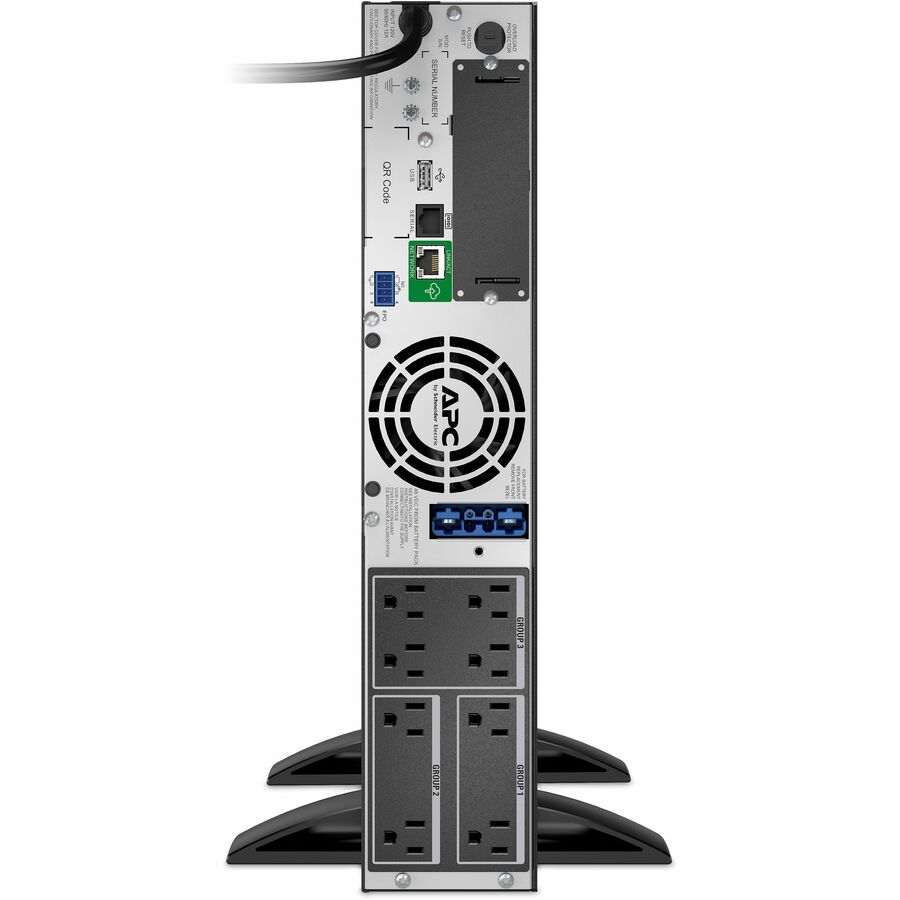

8 outlets in 2U

(8) NEMA 5-15R outlets, including 3 switched outlet groups.

Extended runtime option

External Battery pack connector for extended runtime needs.

Emergency Power Off connector

Immediately turns off UPS and disconnects power to all connected equipment

FAQ

Can I add external battery packs? How many?

Yes, Smart-UPS SMX1500RM2UCUS supports up to 5 APC external battery pack SMX48RMBP2U.

Do all models come with a preinstalled Network Management Card?

Select models with an "NC" suffix come with the network management card preinstalled.

How does the 'green' mode operating mode increase efficiency?

APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.

What do switched outlet groups allow me to do?

Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.

How does SmartConnect advance plan differ from SmartConnect standard plan?

All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.

Does this UPS come with PowerChute Serial Shutdown software?

PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.
