2U Tower/Rack Convertible - 8 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - 8 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet - TAA Compliant
MSRP$1,670.00
$1,096.17
Save 34%Back-ordered — ships when restocked.
Special order — estimated available by September 10, 2026.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.
More from the Manufacturer
Key Features
Specifications and Software capabilities
Hot Spots
1 2U design with flexible installation
2U design saves valuable space for IT. Rackmount and tower.

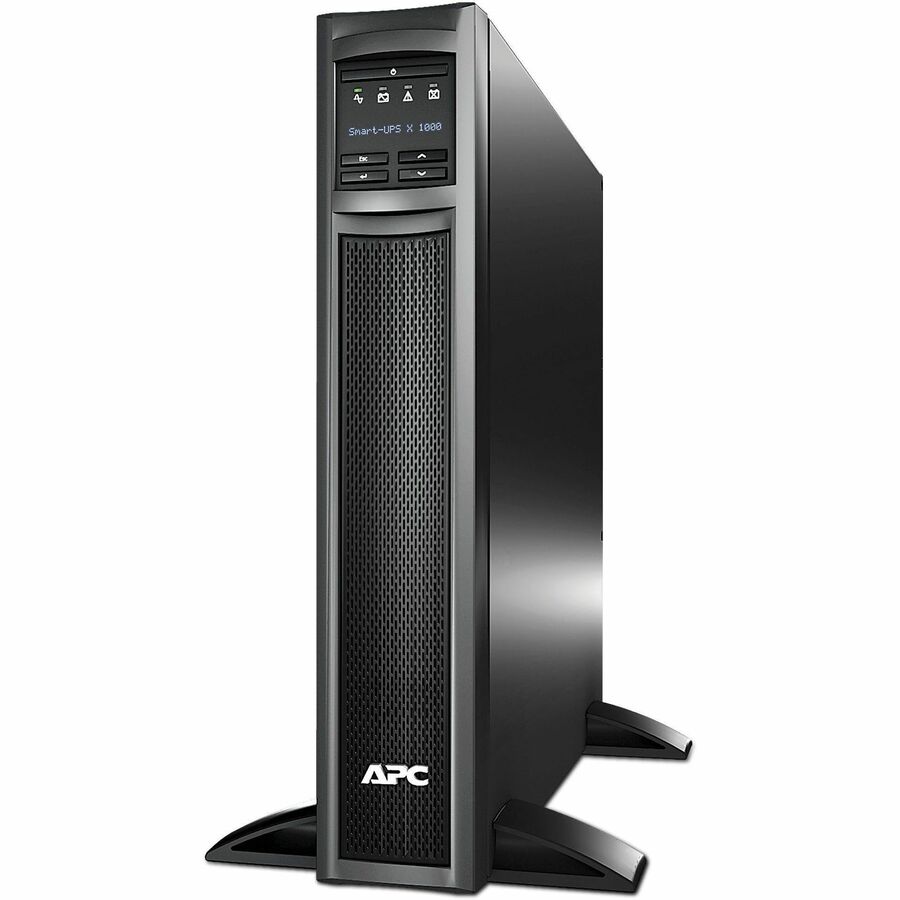

2 Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.
3 SmartSlot™ for network accessory card
Add a network accessory card or purchase an -NC model with a pre-installed AP9641 network card.
4 SmartConnect Ethernet Port
Built-in secure cloud monitoring with the SmartConnect Ethernet Port.
5 8 outlets in 2U
(8) NEMA 5-15R outlets, including 2 switched outlet groups.
6 Extended runtime option
External battery pack connector for extended runtime needs.
7 Emergency Power Off
Immediately turns off UPS and disconnects power to all connected equipment
FAQ
Can I add external battery packs? How many?
Yes, Smart-UPS supports up to 5 APC external battery pack SMX48RMBP2U.
Do all models come with a preinstalled Network Management Card?
Select models with an "NC" suffix come with the network management card preinstalled.
How does the 'green' mode operating mode increase efficiency?
APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.
What do switched outlet groups allow me to do?
Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.
How does SmartConnect advance plan differ from SmartConnect standard plan?
All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.
Does this UPS come with PowerChute Serial Shutdown software?
PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.
Comparison Table
Limited Warranty: 3 Year
| Application/Usage | Server, POS, Router, Switch, Hub, Network Device |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SMX1000CUS |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 50.40 lb |
| Form Factor | Tower/Rack Convertible |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS X 1000VA Tower/Rack Convertible UPS |
| Product Line | Smart-UPS X |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 75 V AC - 154 V AC |
| Output Frequency | 60 Hz |
| Country of Origin | United States |
| Cord Length | 8 ft |
| Height | 17.01" |
| Width | 3.50" |
| Depth | 19.29" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15P |
| Environmentally Friendly | Yes |
| Backup/Run Time (Full Load) | 8 Minute |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Number of Battery & Surge Outlets | 8 |
| Storage Relative Humidity | 0% - 95% |
| Product Color | Black |
| Receptacle Detail | 8 x NEMA 5-15R |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
