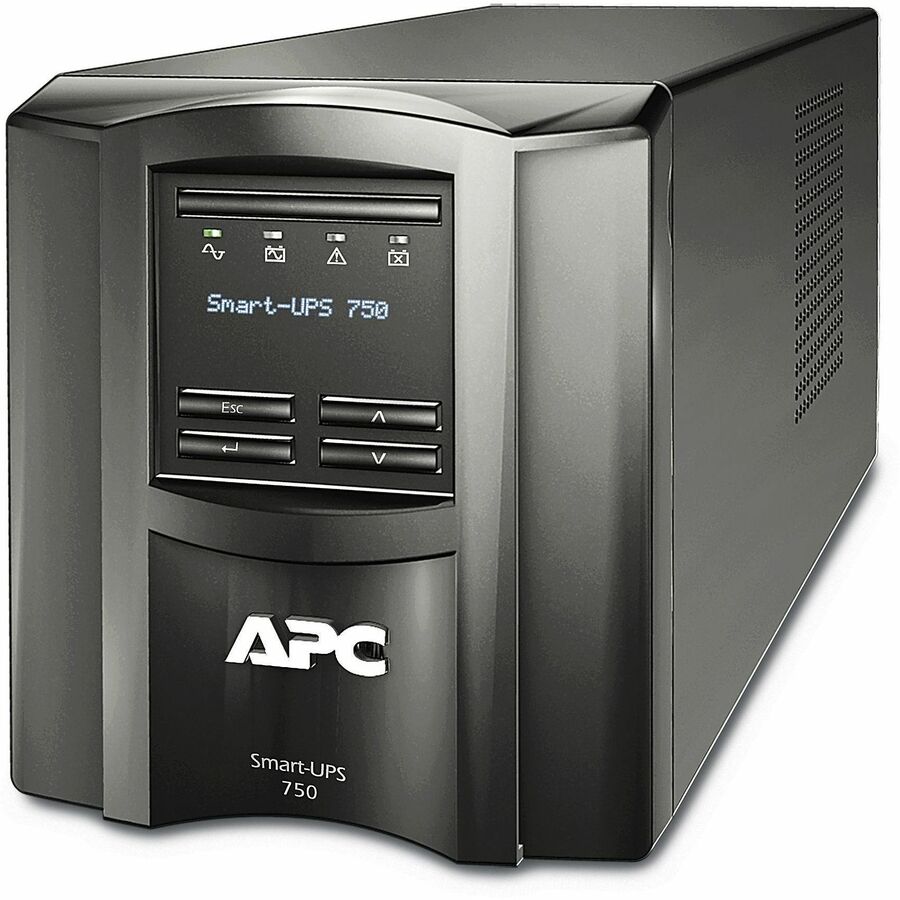

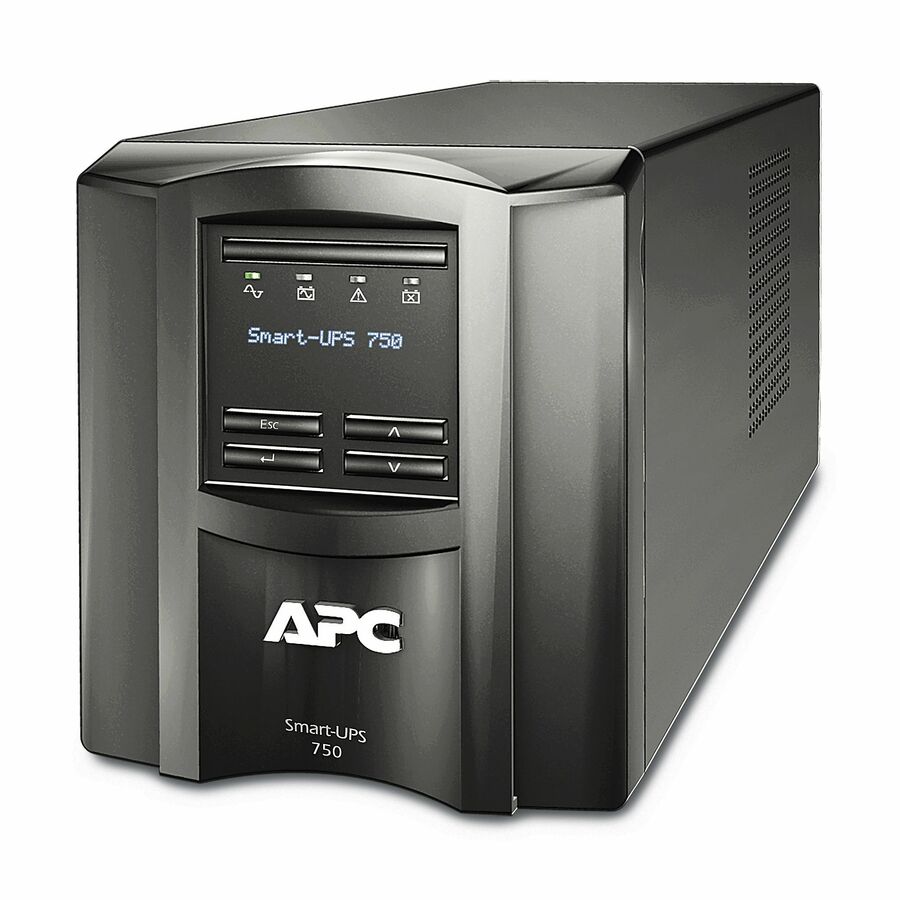

APC Smart-UPS 750VA 120V SHIPBOARD

Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet - TAA Compliant

SKU: SMT750X93
Category: General Purpose UPS

MSRP$1,635.00

$1,102.28

Save 33%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SMT750X93
Category: General Purpose UPS

Overview

The APC Smart-UPS 750VA 120V Shipboard (SMT750X93) is a robust and reliable uninterruptible power supply (UPS) designed specifically for marine and shipboard applications. This UPS ensures continuous power supply during outages, protecting critical equipment and preserving data integrity.

Warranty

Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year

Highlights

750VA load capacity, work without any interruption during power outages
Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
Provides enhanced protection in shipboard environments
Provides quick access and control of the UPS in case of an emergency

Specifications

Additional Warranty Information	UPS: 36 month(s)\|Battery: 24 month(s)
Application/Usage	IT, Server, Storage, Network Device, Business, POS, Security System, Communication System
Battery Life	5 Year
Battery Chemistry	Lead Acid
Product Type	Line-interactive UPS
Input Voltage	120 V AC
Manufacturer Part Number	SMT750X93
Limited Warranty	3 Year
Output Voltage	120 V AC
Weight (Approximate)	27.56 lb
Form Factor	Tower
Status Indicators	LED Status: Load Battery Bar-Graphs On Line On Battery Replace Battery Overload Indicators
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS 750VA Tower UPS
Product Line	Smart-UPS
Surge Energy Rating	593 J
Thermal Dissipation	26.38 W
Waveform Type	Sine Wave
Brand Name	APC
Plug/Connector Type	NEMA 5-15P
Input Voltage Range	82 V AC - 144 V AC
Output Frequency	60 Hz
Height	6.34"
Width	5.43"
Depth	14.53"
Input Frequency	60 Hz
Phase	Single Phase
Receptacle Type	NEMA 5-15P
Environmentally Friendly	Yes
Maximum Operating Temperature	104°F (40°C)
Backup/Run Time (Half Load)	15 Minute
Backup/Run Time (Full Load)	5 Minute
Load Capacity (VA)	750 VA
Load Capacity (Watt)	500 W
TAA Compliant	Yes
USB (HID Compliant) Port	Yes
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49212.60 ft
Number of Battery & Surge Outlets	6
Storage Relative Humidity	0% - 95%
Storage Temperature	-4°F (-20°C) - 131°F (55°C)
Transfer Time	10 ms
Typical Battery Recharge Time	3 Hour
Product Color	Black
Receptacle Detail	6 x NEMA 5-15R
Sound Emission (A-Weighted)	41 dB(A)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
