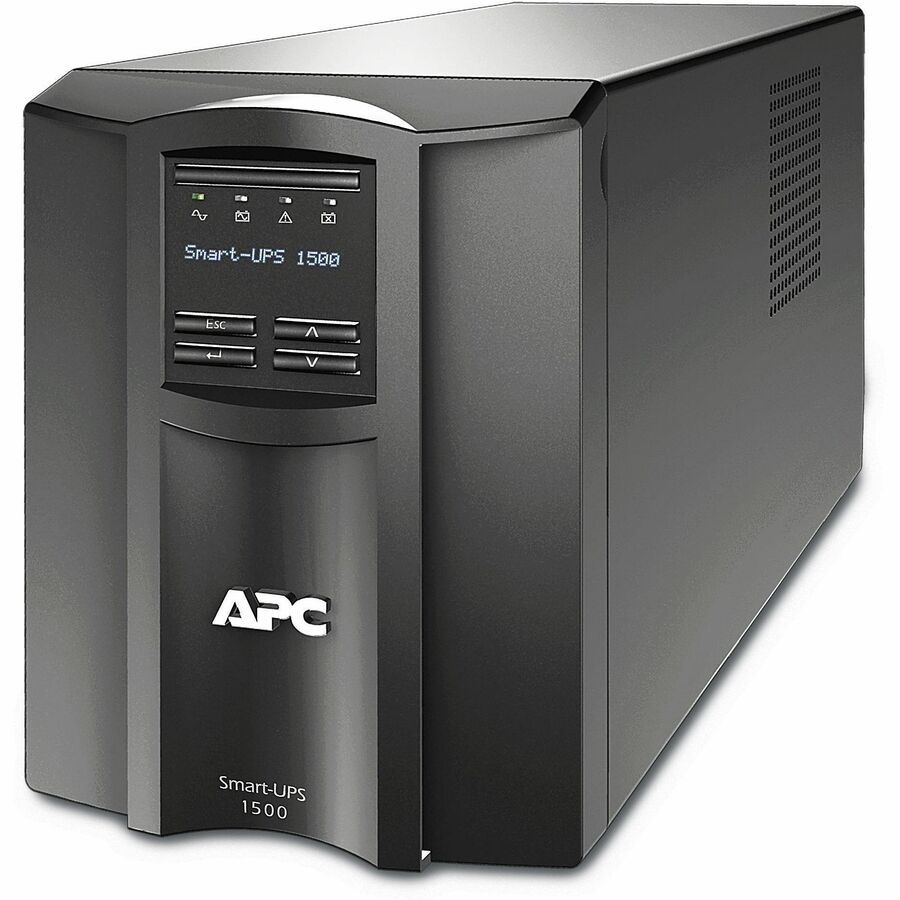

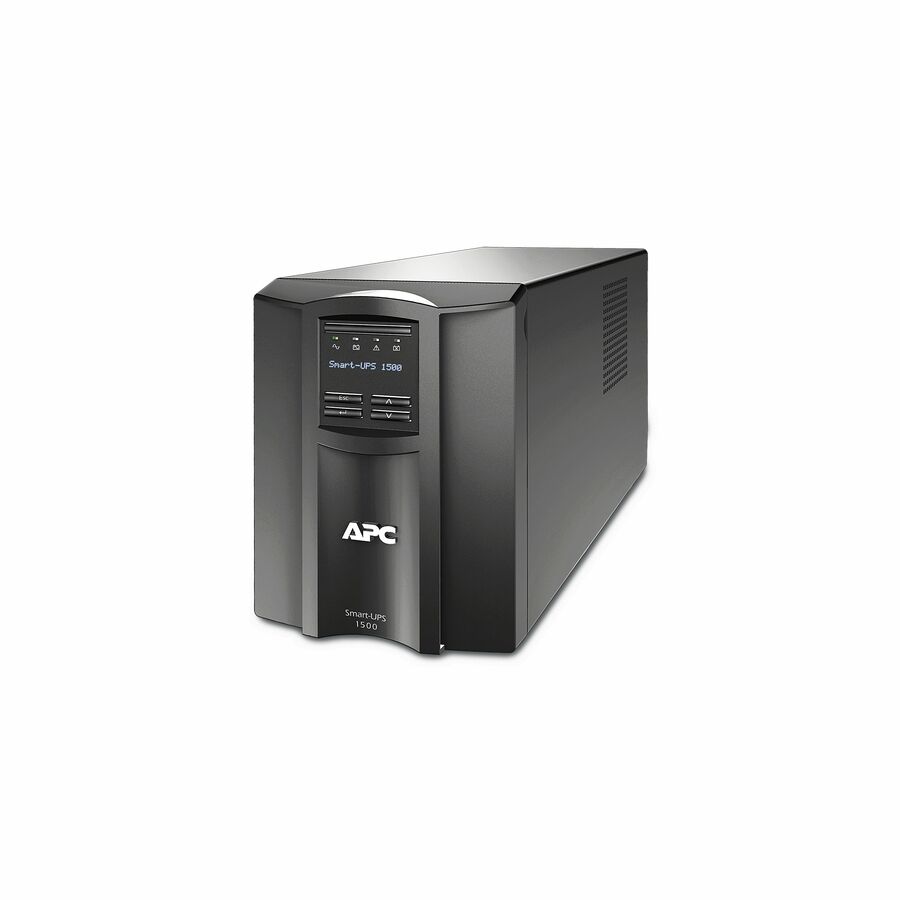

APC Smart-UPS 1.5kVA 120V SHIPBOARD

Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - 8 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet - TAA Compliant

SKU: SMT1500X93
Category: General Purpose UPS

MSRP$2,410.00

$1,628.45

Save 32%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SMT1500X93
Category: General Purpose UPS

Overview

It is a Smart-UPS with a power capacity of 1440VA and 1000W. It is used for shipboard applications and operates at a nominal voltage of 120V. The UPS includes 8 NEMA 5-15R outlets and supports hot-swappable batteries for continuous operation. It is compliant with various safety and environmental standards, ensuring reliable and safe operation in IT and data center environments.

Warranty

Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year

Highlights

Provides 1440VA of power capacity
Energy efficieny feature reduces operational costs
Features an intuitive LCD display for easy monitoring and management
Designed for shipboard applications

Specifications

Additional Warranty Information	UPS: 36 month(s)\|Battery: 24 month(s)
Application/Usage	Network Device, POS, Server, Security System, Communication System
Battery Life	5 Year
Battery Chemistry	Lead Acid
Product Type	Line-interactive UPS
Input Voltage	120 V AC
Manufacturer Part Number	SMT1500X93
Limited Warranty	3 Year
Output Voltage	120 V AC
Weight (Approximate)	54.23 lb
Form Factor	Tower
Status Indicators	LED status display: Load bar-graphs Battery bar-graphs On line On battery Replace battery Overload indicators
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS 1.5kVA 120V RM Shipboard
Product Line	Smart-UPS
Surge Energy Rating	693 J
Thermal Dissipation	65.94 W
Waveform Type	Sine Wave
Brand Name	APC
Plug/Connector Type	NEMA 5-15P
Input Voltage Range	82 V AC - 144 V AC
Output Frequency	60 Hz
Alarm	Alarm
Country of Origin	United States
Height	8.62"
Width	6.73"
Depth	17.28"
Input Frequency	60 Hz
Phase	Single Phase
Receptacle Type	NEMA 5-15P
Environmentally Friendly	Yes
Maximum Operating Temperature	104°F (40°C)
Number of Batteries	1
Backup/Run Time (Half Load)	17 Minute
Backup/Run Time (Full Load)	5 Minute
Load Capacity (VA)	1440 VA
Load Capacity (Watt)	1000 W
TAA Compliant	Yes
USB (HID Compliant) Port	Yes
Number of Battery & Surge Outlets	8
Storage Relative Humidity	0% - 95%
Storage Temperature	-4°F (-20°C) - 131°F (55°C)
Transfer Time	10 ms
Typical Battery Recharge Time	3 Hour
Receptacle Detail	8 x NEMA 5-15R
Sound Emission (A-Weighted)	45 dB(A)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
