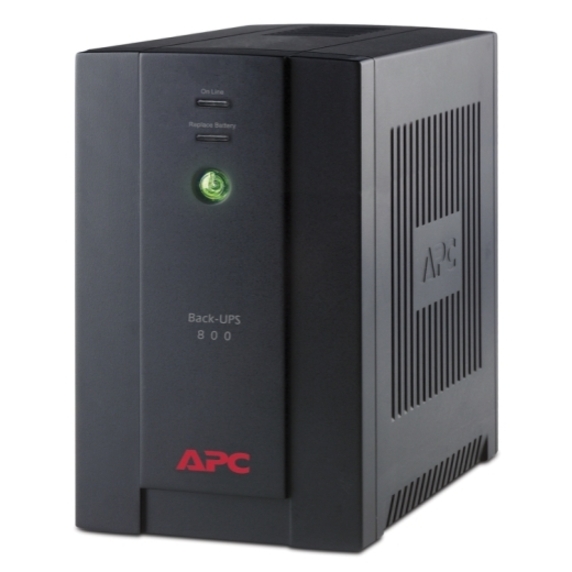

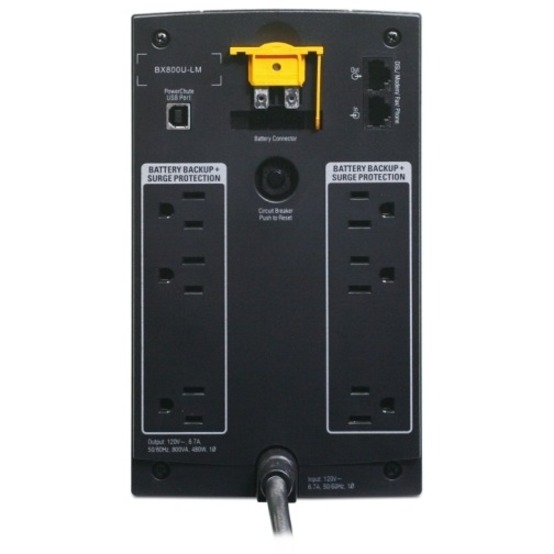

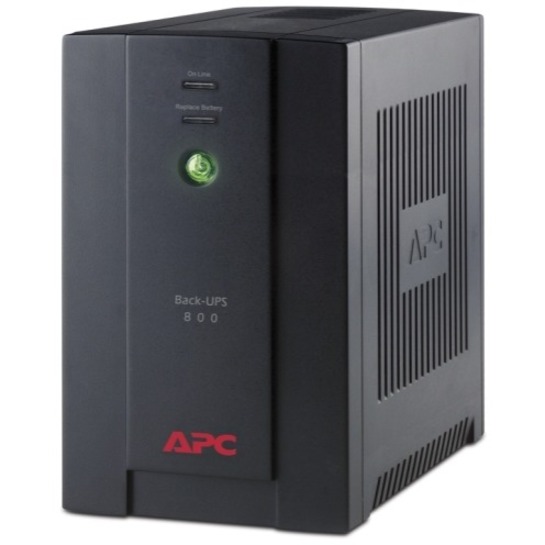

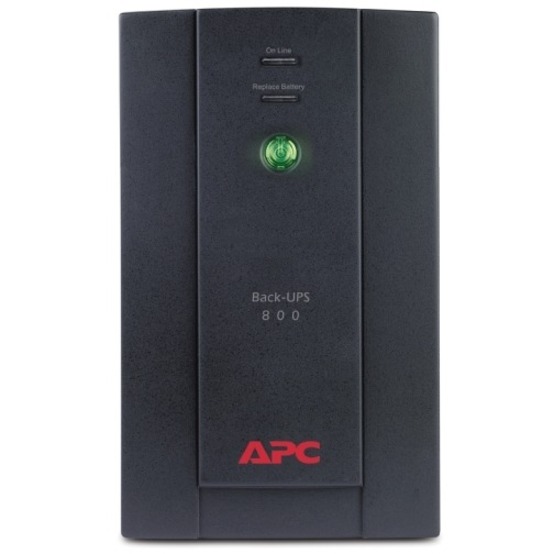

APC by Schneider Electric Back-UPS 800VA Tower UPS
Schneider Electric

APC by Schneider Electric Back-UPS 800VA Tower UPS

Tower - 8 Hour Recharge - 120 V AC Input - 120 V AC Output - Stepped Sine Wave - USB - 10 x AC Power Receptacle(s) - 6 x Battery/Surge Outlet

SKU
BX800U-LM
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BX800U-LM
Category
General Purpose UPS

Overview

Warranty

Limited Warranty: 3 Year

Highlights

  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Replace Battery LED - An external Replace Battery LED informs the end-user that the battery needs to be replaced.
  • Telephone dataline surge protection - Provides protection of connected equipment from power surges traveling on telephone lines.
  • USB connectivity - Provides management of the UPS via a USB port (not available on all models).

Specifications

Battery Life5 Year
Battery ChemistryLead Acid
Package Contents
  • Back-UPS 800VA Tower UPS
  • User manual
  • Warranty card
Product TypeStandby UPS
Circuit BreakerYes
Input Voltage120 V AC
Manufacturer Part NumberBX800U-LM
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)17.64 lb
Form FactorTower
Status IndicatorsLED
ManufacturerSchneider Electric SA
Product NameBack-UPS 800VA Tower UPS
Product LineBack-UPS
Surge Energy Rating378 J
Waveform TypeStepped Sine Wave
Brand NameAPC by Schneider Electric
AlarmPower On, On Battery, Low Battery, Replace Battery, Overload, Sleep Mode
Height8.46"
Width5.12"
Depth13.23"
Receptacle TypeAC Power
Environmentally FriendlyYes
USBYes
Maximum Operating Temperature104°F (40°C)
Network (RJ-45)Yes
Battery CharacteristicsMaintenance-free
Load Capacity (VA)800 VA
Load Capacity (Watt)480 W
Number of Battery & Surge Outlets6
Typical Battery Recharge Time8 Hour
Receptacle Detail10 x AC Power
