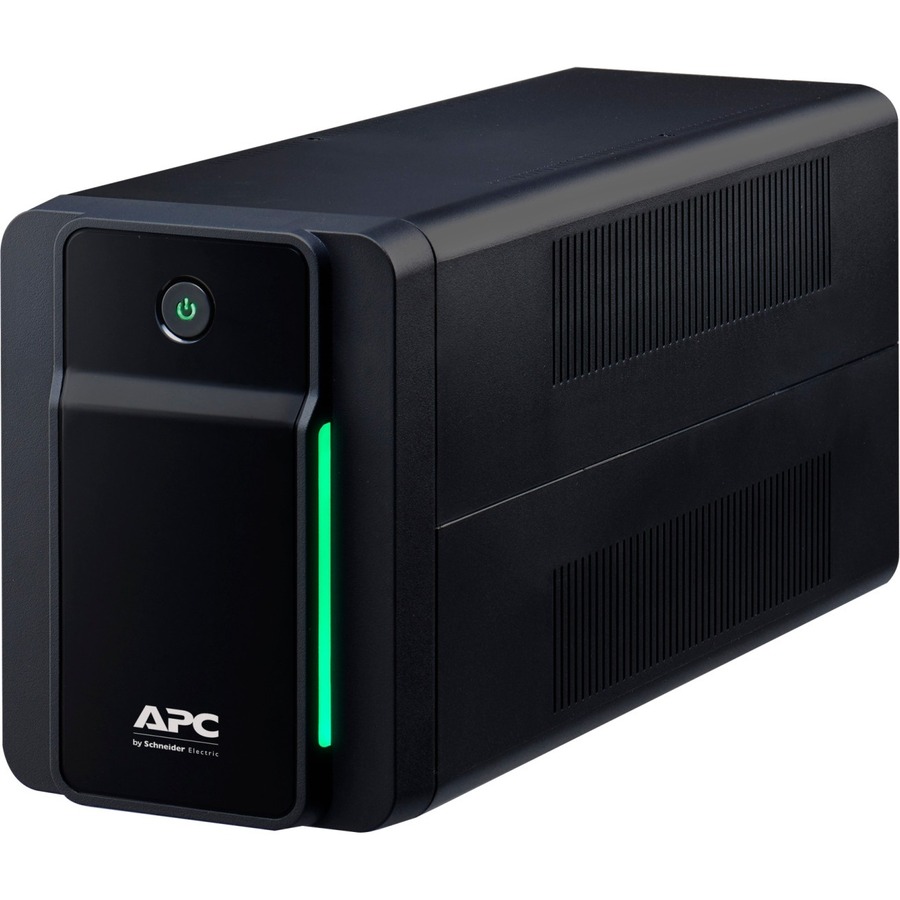

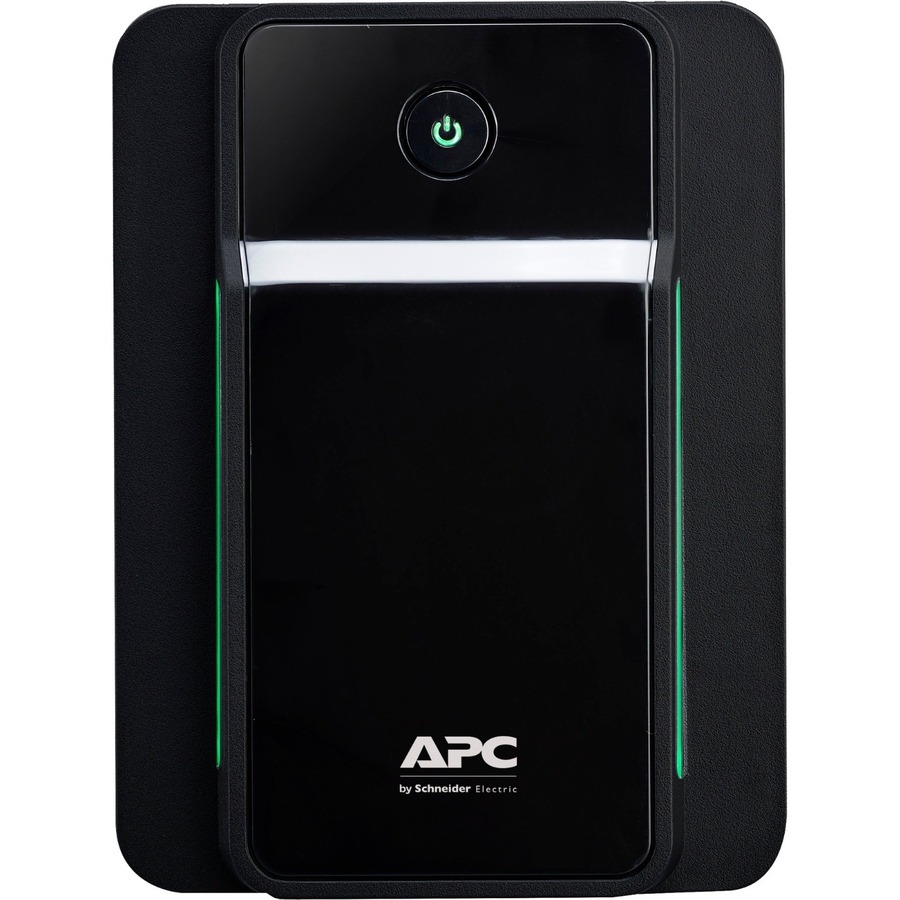

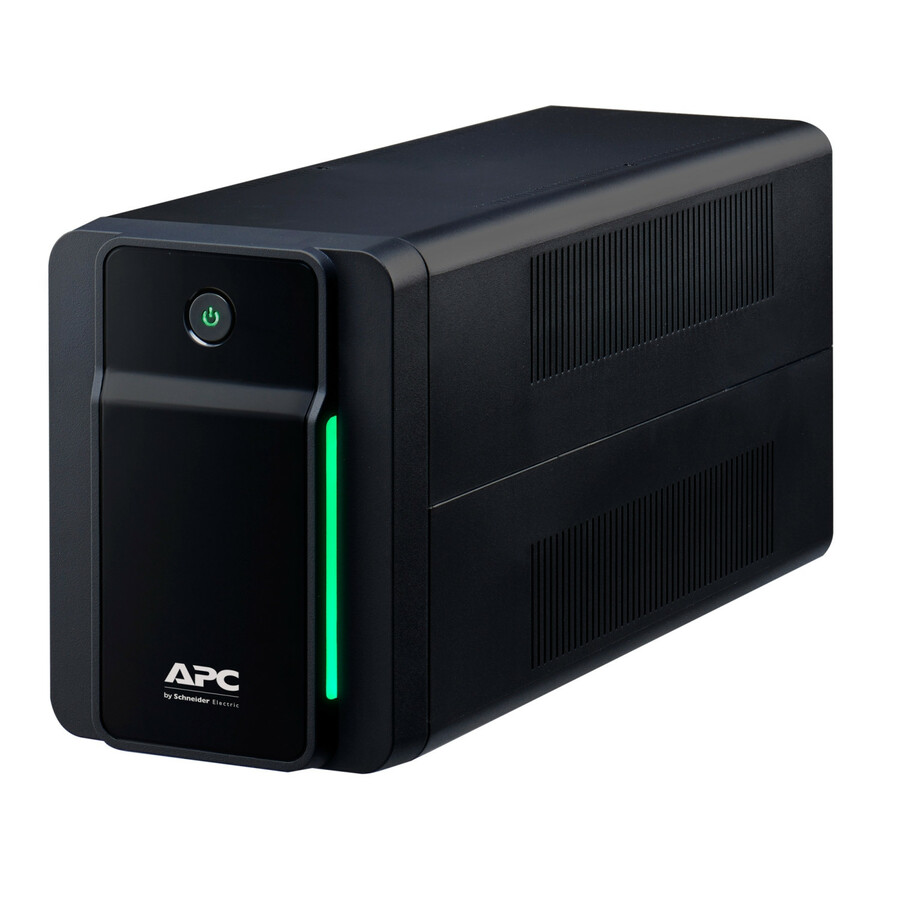

APC by Schneider Electric Back-UPS BX 750VA Tower UPS
Tower - AVR - 8 Hour Recharge - 1 Minute Stand-by - 120 V AC Input - 4 x NEMA 15-20R Receptacle(s)
- SKU
- BX750M-LM
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BX750M-LM
- Category
- General Purpose UPS
Overview
750VA /410W line-interactive UPS Controls LED brightness , Quick Mute and Generator Setting by pressing one single power button. Our New BX Series offers Dataline protection for data transmission through Network with 1 gigabit speed. Ideal for Home and Office Users USB communication cable ready to use
Warranty
Limited Warranty: 2 Year
Highlights
- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 1 minute at full load
- 410 W load capacity - backup power for your valuable electronics
- 750 VA load capacity provides sufficient backup during power failures
- 12V battery size for maximum productivity with added dependability
- 7000 mAh battery capacity for convenient and prolonged usage to ensure maximum productivity
- 8 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Lead Acid battery chemistry delivers energy to the home through an easily controlled reaction
- NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
- Line-interactive UPS with home application/usage to ensure maximum dependability and optimal performance
Specifications
| Application/Usage | Home, Office |
|---|---|
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | BX750M-LM |
| Packaged Quantity | 1 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 11.90 lb |
| Dataline Protection | RJ-45 |
| Form Factor | Tower |
| Status Indicators | LED Status Display: On Line On Battery |
| Manufacturer | Schneider Electric SA |
| Product Name | Back-UPS BX 750VA Tower UPS |
| Product Line | Back-UPS |
| Surge Energy Rating | 350 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Product Series | BX |
| Brand Name | APC by Schneider Electric |
| Input Voltage Range | 89 V AC - 145 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery |
| Height | 6.30" |
| Width | 4.72" |
| Depth | 13.98" |
| Input Frequency | 60 Hz |
| Battery Size | 12V |

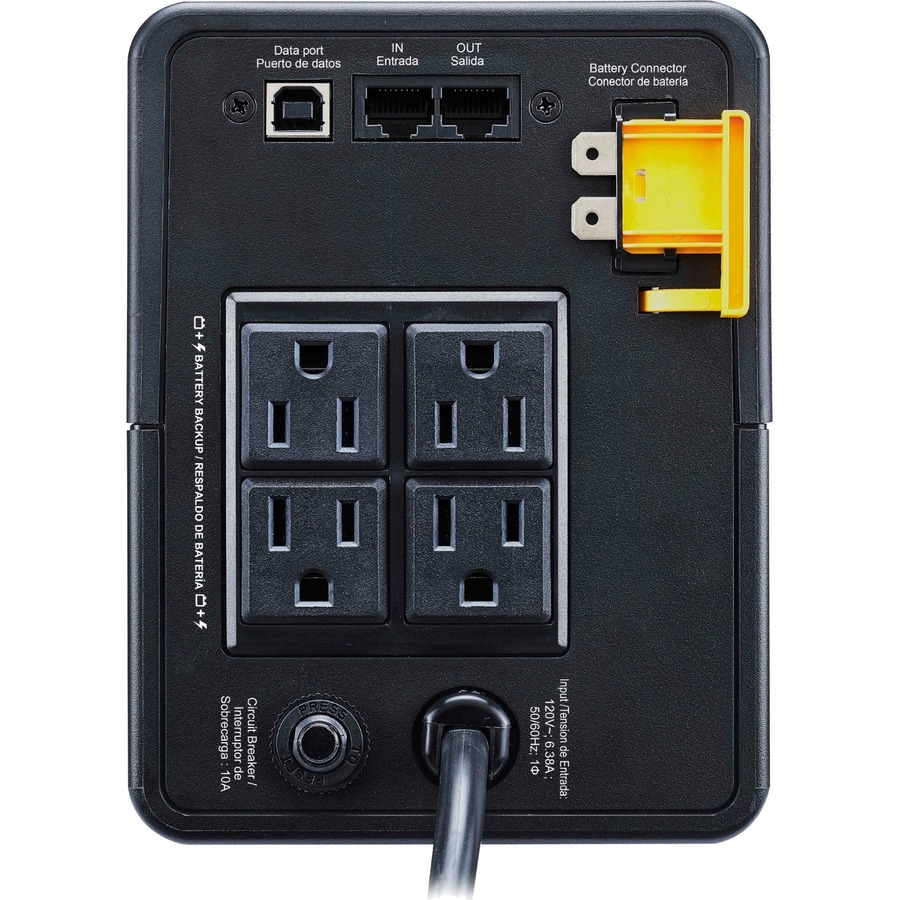

| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Battery Capacity | 7000 mAh |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 1 Minute |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 410 W |
| AVR | Yes |
| USB (HID Compliant) Port | No |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 9842.52 ft |
| Storage Relative Humidity | 95% |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 8 Hour |
| Product Color | Black |
| Receptacle Detail | 4 x NEMA 15-20R |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
