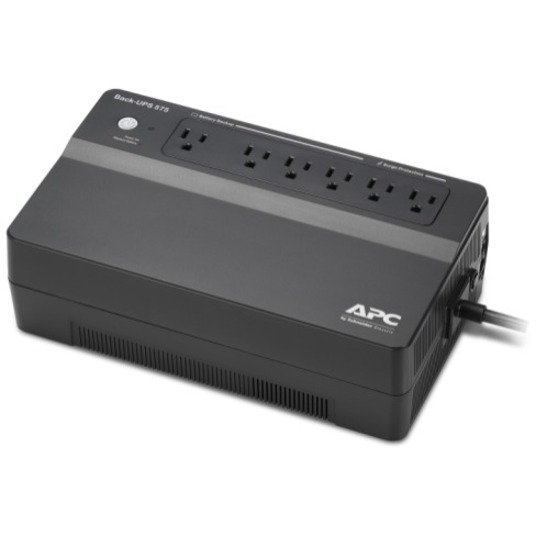

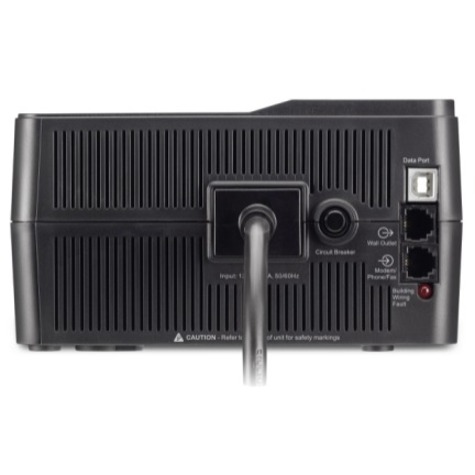

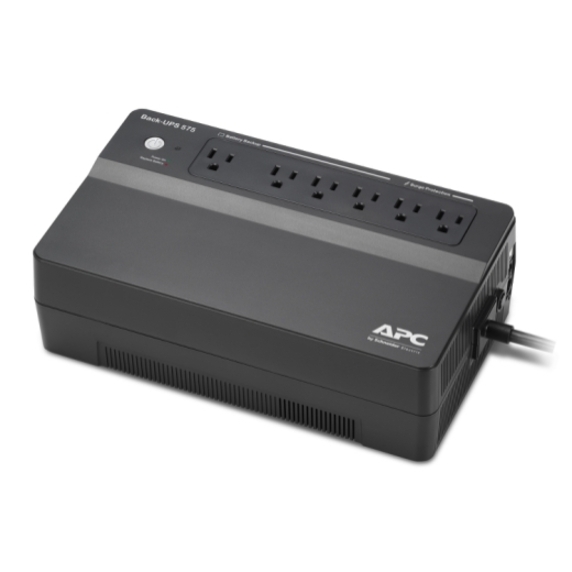

APC by Schneider Electric Back-UPS 575
Schneider Electric

APC by Schneider Electric Back-UPS 575

Tower - AVR - 6 Hour Recharge - 2.80 Minute Stand-by - 120 V AC Input - 120 V AC Output - Square Wave - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet

SKU
BX575U-LM
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BX575U-LM
Category
General Purpose UPS

Overview

Battery Backup with Automatic Voltage Regulation for Electronics and Computers

The Back-UPS 575 by APC protects your electronic equipment from damage due to power outages, surges and spikes while providing short term battery power during an outage. The Automatic Voltage Regulation feature instantly corrects voltage fluctuations without using the battery, allowing you to work indefinitely throughout voltage fluctuations and power disruptions. The Back-UPS 575 protects your PC and network connection in harsh power environments, ensuring maximum productivity and maintaining work efficiency.

Warranty

Limited Warranty: 3 Year

Highlights

  • Audible alarms - Provides notification of changing utility power and UPS power conditions
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Overload protection - Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
  • Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
  • Telephone dataline surge protection - Provides protection of connected equipment from power surges traveling on telephone lines.
  • USB connection - Use your PC to access additional power protection and management features for your UPS via a USB Port.

Specifications

Application/UsageDesktop Computer, Computer Peripheral, Router, Modem, Network Storage Device, Gaming Console, Telephone System
Battery ChemistryLead Acid
Package Contents
  • Back-UPS 575
  • User manual
Product TypeLine-interactive UPS
Input Voltage120 V AC
Manufacturer Part NumberBX575U-LM
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)11.46 lb
Dataline ProtectionRJ-11
Form FactorTower
Status IndicatorsLED Status Display
ManufacturerSchneider Electric SA
Product ModelBX575U-LM
Product NameBack-UPS 575
Overload ProtectionYes
Product LineBack-UPS
Surge Energy Rating273 J
Waveform TypeSquare Wave
Brand NameAPC by Schneider Electric
Plug/Connector TypeNEMA 5-15P
Input Voltage Range78 V AC - 150 V AC
Output Frequency60 Hz
AlarmLow Battery, Overload
Height10.94"
Width6.30"
Depth3.46"
Input Frequency60 Hz
Battery Size12V
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Battery Capacity7000 mAh
Maximum Operating Temperature104°F (40°C)
Backup/Run Time (Half Load)12.10 Minute
Backup/Run Time (Full Load)2.80 Minute
Battery CharacteristicsMaintenance-free
Load Capacity (VA)575 VA
Load Capacity (Watt)320 W
AVRYes
Operating Humidity0% - 95%
Number of Battery & Surge Outlets6
Storage Relative Humidity0% - 95%
Storage Temperature5°F (-15°C) - 113°F (45°C)
Number of Surge-only Outlets2
Transfer Time10 ms
Typical Battery Recharge Time6 Hour
Product ColorBlack
Receptacle Detail6 x NEMA 5-15R
Sound Emission (A-Weighted)45 dB(A)
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
