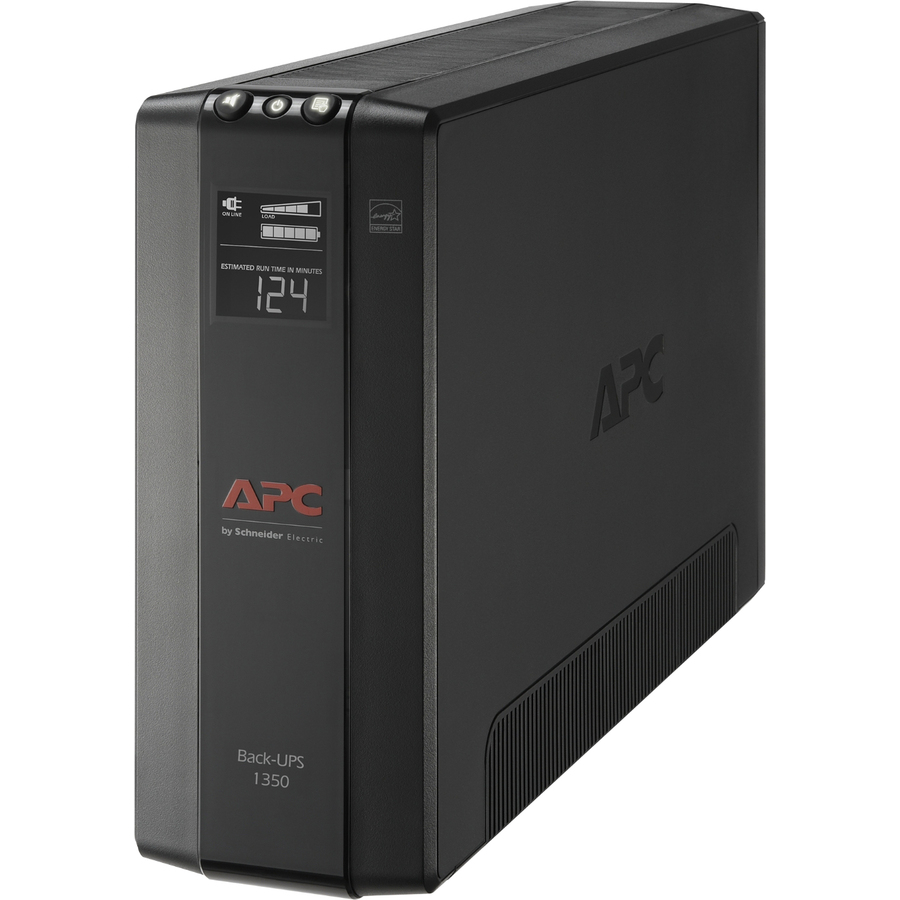

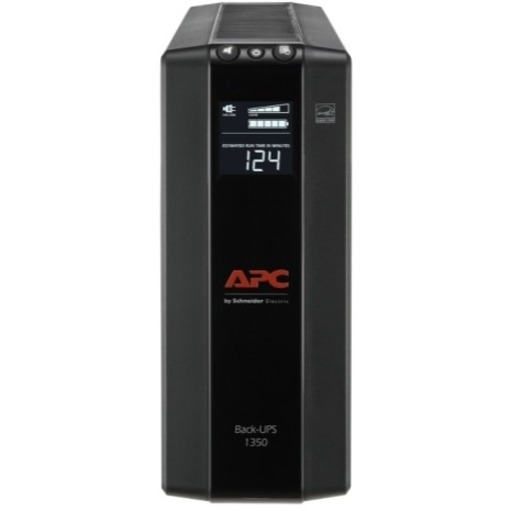

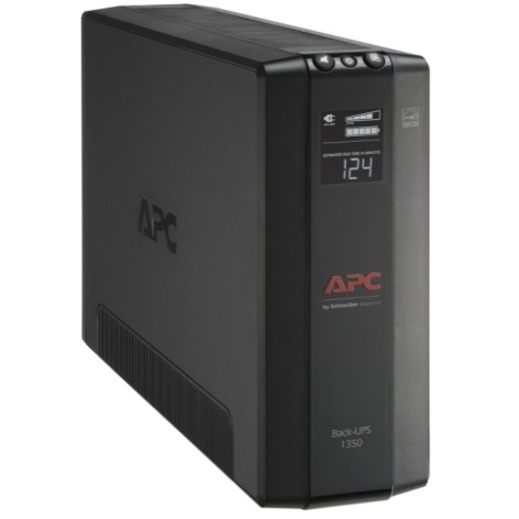

APC by Schneider Electric Back UPS Pro BX 1350VA, 10 Outlets, AVR, LCD interface, LAM 60Hz
Tower - AVR - 16 Hour Recharge - 2.48 Minute Stand-by - 120 V AC Input - 120 V AC Output - Stepped Approximated Sine Wave - 10 x NEMA 5-15R Receptacle(s) - 10 x Battery/Surge Outlet
- SKU
- BX1350M-LM60
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BX1350M-LM60
- Category
- General Purpose UPS
Overview
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
Warranty
Limited Warranty: 3 Year
Highlights
- Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Battery replacement without tools - Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
- Battery-protected and surge-only outlets - Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
- Boost Automatic Voltage Regulation (AVR) - Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
- Building Wiring Fault Indicator - This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Dataline surge protection - Provides protection of connected equipment from power surges on the data lines.
- Disconnected battery notification - Warns when a battery is not available to provide backup power.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Specifications
| Application/Usage | Computer System, Router, Modem, Gaming Console, External Hard Drive |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | BX1350M-LM60 |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 22.49 lb |
| Dataline Protection | RJ-45, Coax |
| Form Factor | Tower |
| Status Indicators | Multifunction LCD status |
| Manufacturer | Schneider Electric SA |
| Product Name | Back UPS Pro BX 1350VA, 10 Outlets, AVR, LCD interface, LAM 60Hz |
| Product Line | Back-UPS Pro |
| Surge Energy Rating | 789 J |
| Waveform Type | Stepped Approximated Sine Wave |
| Product Series | BX |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 88 V AC - 139 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload |
| Height | 9.84" |
| Width | 3.94" |
| Depth | 15.04" |
| Input Frequency | 60 Hz |
| Receptacle Type | NEMA 5-15P |
| Environmentally Friendly | Yes |
| Battery Energy | 540 kJ |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 10.25 Minute |
| Backup/Run Time (Full Load) | 2.48 Minute |
| Load Capacity (VA) | 1350 VA |
| Load Capacity (Watt) | 810 W |
| Replaceable Battery | Yes |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Number of Battery & Surge Outlets | 10 |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Number of Surge-only Outlets | 5 |
| Transfer Time | 8 ms |
| Typical Battery Recharge Time | 16 Hour |
| Product Color | Black |
| Receptacle Detail | 10 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
