SKU
AR8728
Category
Cable Management
Overview

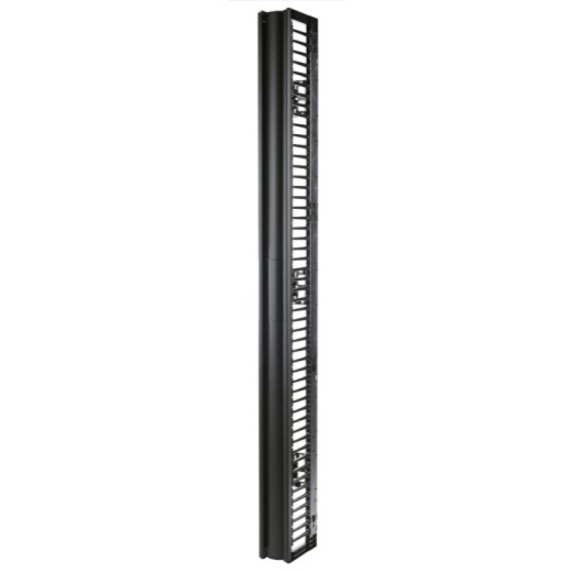

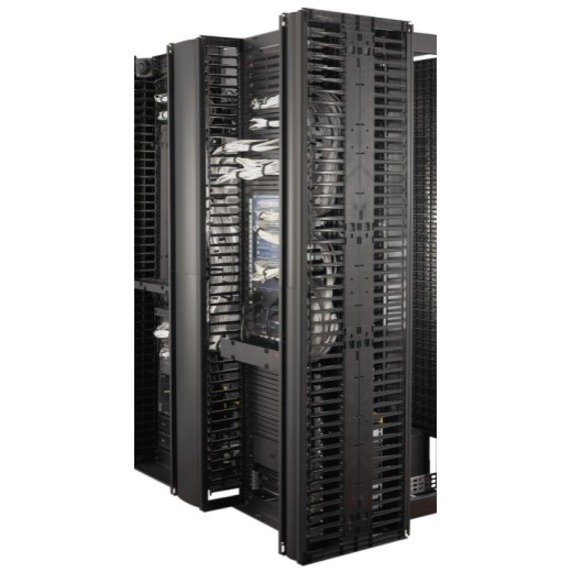

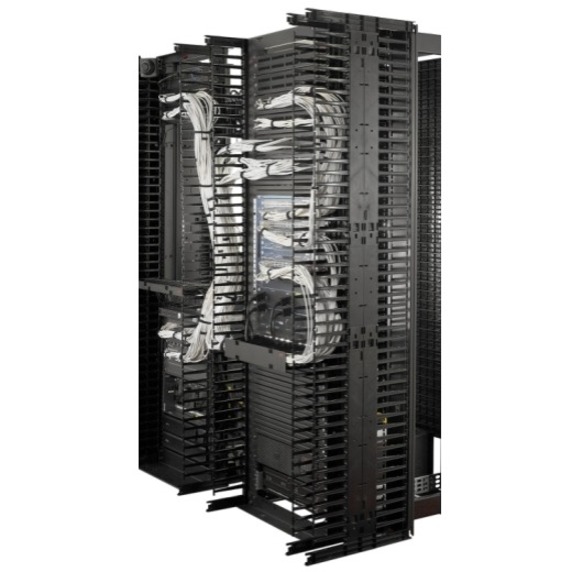

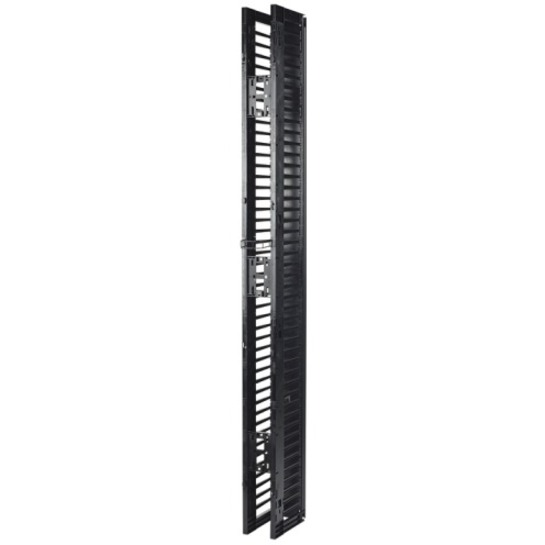

This 6" wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.
Warranty
Limited Warranty: 2 Year
Highlights
Cable management tie-off backplate for accessories - Backplates feature multiple mounting holes for toolless accessory installation of cable management accessories such as hook-and-loop cable managers and straps (AR8621) and fiber spools for excess fiber slack management (AR8444).

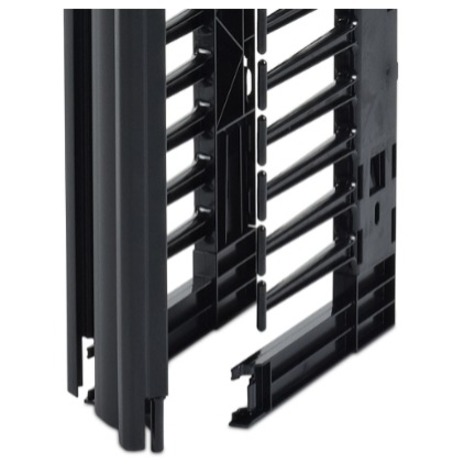

Cable protection - Smooth plastic fingers provide proper bend radius.
Dual-hinging full length door - Door installs quickly without tools and hinges from the left or right to allow access inside the vertical cable manager channel.
Fiber management - Supports toolless installation of AR8444 fiber spools.
High capacity cable finger design - Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
Horizontal cable routing front-to-back - Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Unassembled for rapid assembly onsite - Vertical cable managers are packaged unassembled and designed with a simple snap together design for rapid onsite assembly and installation.
Specifications
Package Contents
Cable Manager
Door
Installation Guide
Mounting Hardware
Product Type
Cable Organizer
Compatibility
APC 2 and 4 Post Open Frame Racks
Manufacturer Part Number
AR8728
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
17.70 lb
Manufacturer
Schneider Electric SA
Product Model
AR8728
Product Name
AR8728 Cable Manager
Brand Name
APC by Schneider Electric
Height
94.40"
Width
6"
Depth
11.30"
Cable Manager Type
Cable Manager
Environmentally Friendly
Yes
Product Color
Black
Color Family
Black
Product Material
Plastic
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
