For Server, Storage, Converged Infrastructure - Floor Standing - Gray, Oak - 1002.11 lb Static/Stationary Weight Capacity - TAA Compliant
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Marketing Information from the Manufacturer
Overview
NetShelter CX

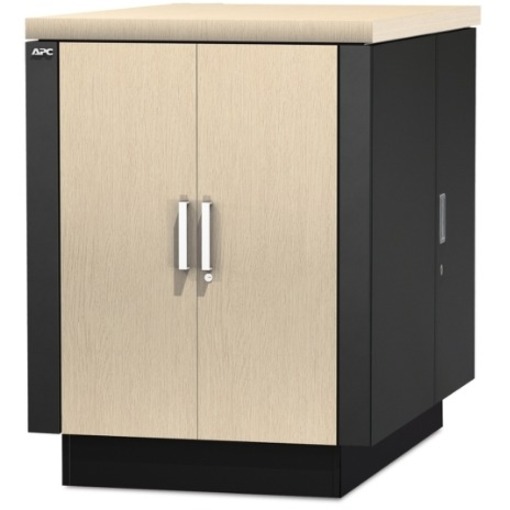

A soundproofed server room in a box which allows for IT deployment wherever and whenever it is needed, saving space, cost and deployment time.
The solution for deploying IT in non-dedicated spaces
Designed for
branch offices ,
small offices and any
non-IT space where there isn’t the room, the time or the budget to build a dedicated IT zone - the NetShelter CX server enclosure is an ultra-portable, secure, economic, plug-and-play IT solution. You simply roll it in to the open office, put your equipment inside, plug it in and close the doors. With the NetShelter CX Soundproofed ‘Server Room in a Box’ you can get back to focusing on your core business quickly.
Use it to:
Reduce your capital costs by avoiding construction.
Avoid wasting space – use the space for something else.
Keep your business agile – use a portable IT infrastructure.
Standardize on one solution for branch offices and remote sites.
Silence noisy equipment inside a Quiet Enclosure.
The NetShelter CX server enclosure is an innovative answer to today’s, and tomorrow’s, dynamic IT infrastructure requirements.
The NetShelter CX Family has been enhanced by a new solution designed for housing tower servers in small & home offices and other non-dedicated IT spaces - The Netshelter CX Mini. Find out more about this highly economic and adaptable acoustic server enclosure by clicking on the 'Netshelter CX Mini' link below.
AR4018A Features

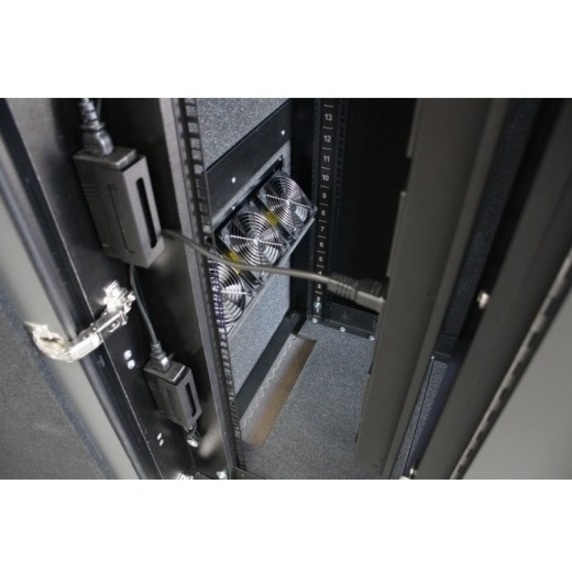

Integrated power distribution
Provided with a rack power distribution unit servers and other equipment are ready for deployment.
Acoustic foam lining for noise dampening
Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.

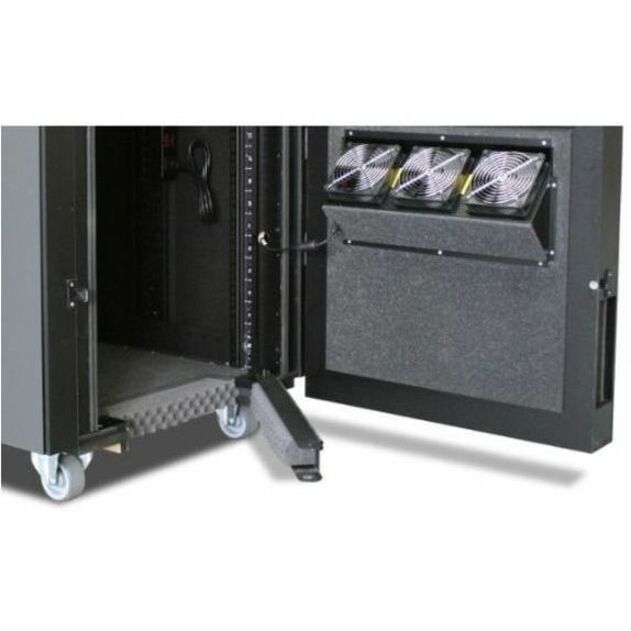

Integrated heat removal
High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
Dedicated rear cable access point
The cable port has a capacity of up to 400 cables and is situated perfectly for ground or under-floor cabling.

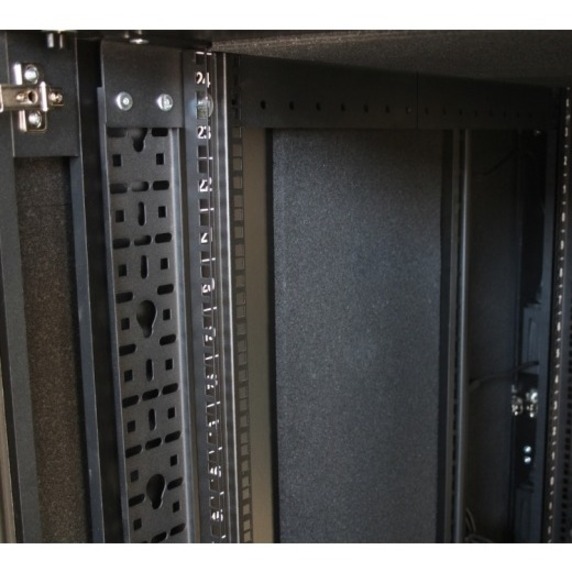

Six vertical 0U accessory channels
Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.

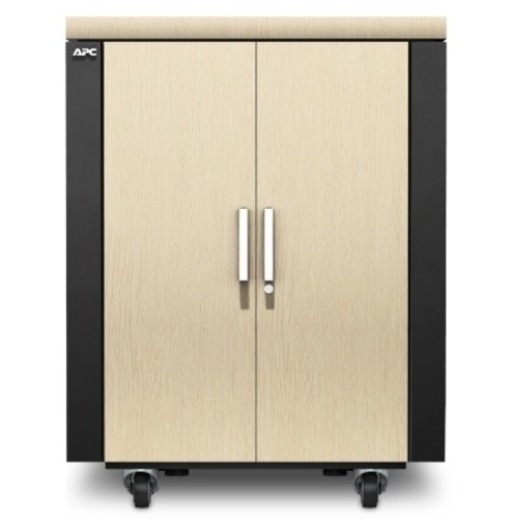

Light oak veneer finish
The enclosure blends discretely into almost any office environment.
Adjustable equipment mounting rails
The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.
Agility
Plug and Play setup
Fast and Easy set up
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Lockable front doors
Protect IT equipment from unwanted access
Light oak veneer finish
The enclosure blends discretely into almost any office environment.
Acoustic foam lining for noise dampening
Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.
Technical Specifications
Input
Nominal Input Voltage
100V, 120V
Input Frequency
50/60 Hz
Input Connections
NEMA 5-15P
Physical
Net Weight
303.60 lbs. (138.00 kg)
Maximum Height
39.96 inches (1015 mm)
Maximum Width
29.53 inches (750 mm)
Maximum Depth
44.49 inches (1130 mm)
Weight Capacity (static load)
1000.00 lbs. (454.55 kg)
Minimum Mounting Depth
28.35 inches (720 mm)
Maximum Mounting Depth
31.50 inches (800 mm)
Rack Height
18U
Rack Width
19"
Color
Grey, Oak
Conformance
Regulatory Approvals
EN 60950
Standard Warranty
2 year (manufacturer's defect)
Standards
EIA 19 Inch, TAA compliance
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
| Application/Usage | Server, Storage, Converged Infrastructure |
|---|---|
| Package Contents |
|
| Product Type | Rack Cabinet |
| Manufacturer Part Number | AR4018A |
| Features | Cable Management, Lockable Door, Adjustable Mounting Rails, Cooling Fan, Casters |
| Form Factor | Floor Standing |
| Manufacturer | Schneider Electric SA |
| Product Name | NetShelter CX 18U Secure Soundproof Server Room in a Box Enclosure |
| Product Line | NetShelter CX |
| Brand Name | APC by Schneider Electric |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Static/Stationary Weight Capacity | 1002.11 lb |
| TAA Compliant | Yes |
| Product Color | Gray, Oak |
| Color Family | Dual Color |
