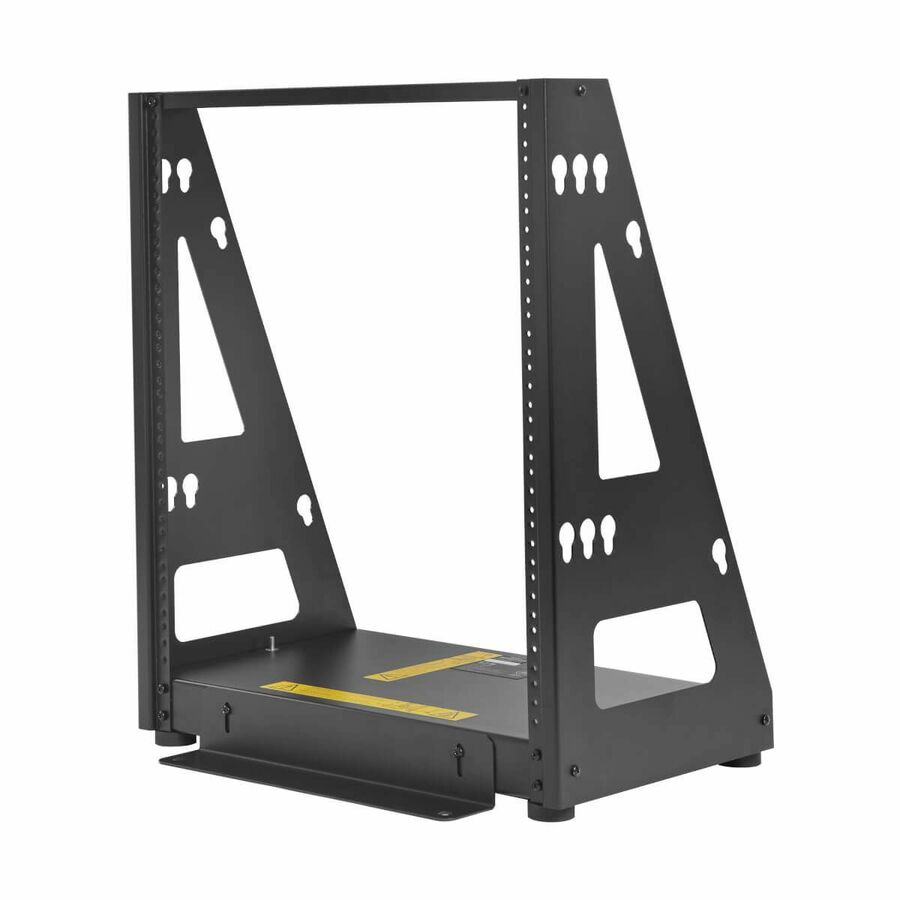

Eaton Tripp Lite Series SmartRack Heavy-Duty 12U 2-Post Open Frame Rack
For Server, PDU, UPS, Networking, Patch Panel - 12U Rack Height x 19? Rack Width x 12.01? Rack Depth - Floor Standing Open Frame - 2 Post - Black Powder Coat - Steel - 350.53 lb Static/Stationary Weight Capacity
- SKU
- SR2POST12HD
- Category
- Rack Equipment
MSRP$262.48
$171.18
Save 35%In stock: 253
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SR2POST12HD
- Category
- Rack Equipment
Overview
Features | Compact 12U 2-Post Rack Houses Equipment up to 12 in. Deep
This SmartRack® EIA-310 open frame rack is designed to house 12U of equipment, including servers, UPS systems, switches, cable managers and PDUs. It's recommended for mounting equipment in retail locations, classrooms, back offices, audio/video editing bays and radio/television studios. Constructed from heavy-duty steel with a durable black powder-coated finish, the 2-post rack has a maximum load capacity of 350 pounds (159 kilograms).

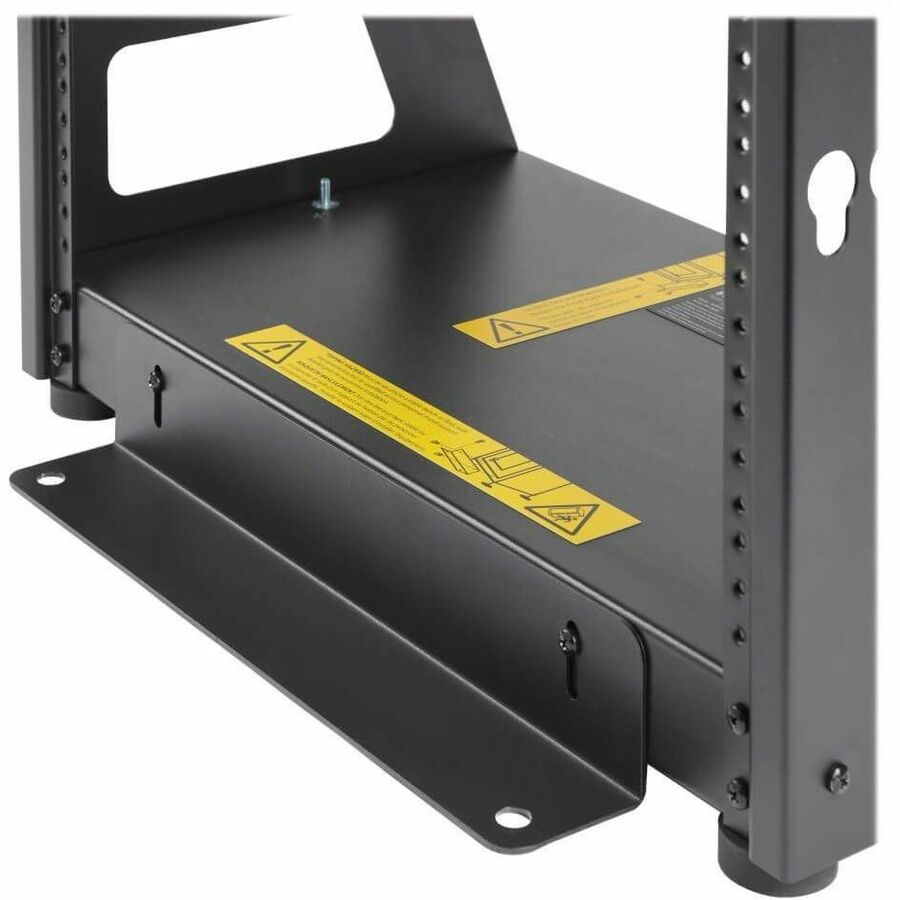

Bolts Down Almost Anywhere to Protect Equipment and Save Space
The special cantilever design allows the SR2POST12HD to house heavy equipment up to 12 inches (30.5 centimeters) deep without the risk of tipping over. Securement brackets and rubber feet are included for anchoring the rack to a flat surface with user-supplied hardware. The rack offers a small footprint and is able to fit almost anywhere in virtually any environment. You can position the open frame rack on any flat surface, including a floor, shelf or workbench.
Open Frame Design Allows Easy Access
The SR2POST12HD gives you instant access to equipment and cabling in both the front and rear. Install equipment using the 12-24 threaded and numbered mounting positions. Keyhole slots on the sides accept toolless 0U mounting of PDUs and cable managers.
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- 12U 2-post rack made from powder-coated steel that stands up to tough environments
- Stable cantilever design allows mounting of heavy equipment without threat of tipping
- Keyhole slots accept toolless 0U vertical mounting of PDUs and cable managers
- Heavy-duty open frame rack allows maximum equipment load up to 350 lb.
- Easy to assemble with included hardware for immediate mounting of rack equipment
- 5-year limited warranty
Specifications
| Application/Usage | Server, PDU, UPS, Networking, Patch Panel |
|---|---|
| Package Contents | SmartRack Heavy-Duty 12U 2-Post Open Frame Rack 2 x Upright Brackets Support Bar 2 x Securement Brackets 16 x M5 x 12 mm Screws 4 x Rubber Feet Installation Guide |
| Product Type | Rack Frame |
| Manufacturer Part Number | SR2POST12HD |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 22 lb |
| Features | Heavy Duty |
| Form Factor | Floor Standing |
| Manufacturer | Eaton Corporation |
| Product Model | SR2POST12HD |
| Product Name | SmartRack Heavy-Duty 12U 2-Post Open Frame Rack |
| Product Line | SmartRack |
| Rack Width | 19" |
| Rack Height | 12U |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Assembly Required | Yes |
| Height | 24.6" |
| Width | 20.7" |
| Depth | 11.7" |
| Environmentally Friendly | Yes |
| Static/Stationary Weight Capacity | 350.53 lb |
| Rack Depth | 12.01" |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Rack Type | Open Frame |
| Rack Post Quantity | 2 |
| Product Material | Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
