SKU
DS-UNHC
Category
Drive Cabinets
Overview
Product Features | Connect, Clone and Go
Supports single- and dual-drive modes, including PCIe and SATA simultaneously. 2.5"/3.5" drives supported along with M.2 PCIe. Drives can be accessed at the same time. Offline clone functionality.
Everything Included
Includes USB Type-A to Type-C and Type-C to Type-C cables. External power adapter is included, required for 3.5" and multi-drive use. Thermal padding is also in the box for your convenience for cool M.2 PCIe SSD operation.
Designed to Last
Constructed of high-quality ABS plastic to improve device ruggedness. The built-in aluminum M.2 heatsink also helps dissipate heat away from your drives during operation.
Easy to Use
Plug & play with no drivers required. Hot-swappable. Easy, tool-less installation of drives into the device. LED indicators keep you informed of status.
Simplify Your Life
Reliably access and clone your 2.5"/3.5" SATA SSDs/HDDs and M.2 PCIe SSDs with the Sabrent USB Type-C Docking Station. Simultaneous SATA and PCIe access is supported. An external power adapter is included to ensure a consistent connection for all drives, but is not necessary for single SSD operation. Both Type-A to Type-C and Type-C to Type-C USB cables are also included to match any host. The docking station can transfer at up to 10Gbps (USB 3.2 Gen 2) with a compatible port, but will fallback to earlier USB revisions if necessary.
Built to last with additional features to keep your drives healthy, such as a dustguard and built-in M.2 heatsink with applicable silica thermal padding. If you're constantly working drives, this product can be a lifesaver. The docking station is plug and play with modern operating systems. Drive installation is tool-less and straightforward. Convenient LED indicators indicate device and drive power statuses with an additional four to gauge cloning progress. This attractive docking station will fit into your gaming décor and simplify your life.
Warranty
Limited Warranty: 1 Year
Highlights
Supports single and dual-drive modes, including PCIe and SATA simultaneously.
2.5"/3.5" drives supported along with M.2 PCIe. Offline clone functionality.
Includes USB Type-A to Type-C and Type-C to Type-C cables, External power adapter and thermal padding.
Built-in aluminum M.2 heatsink also helps dissipate heat away from your drives during operation.
Plug & play with no drivers required. Hot-swappable.
Supports up to USB 3.2 Gen 2 10Gbps speeds with an appropriate host port, but is backward compatible at respective speeds.
Specifications
General Information
Manufacturer
Sabrent, Inc
Manufacturer Part Number
DS-UNHC
Brand Name
Sabrent
Product Name

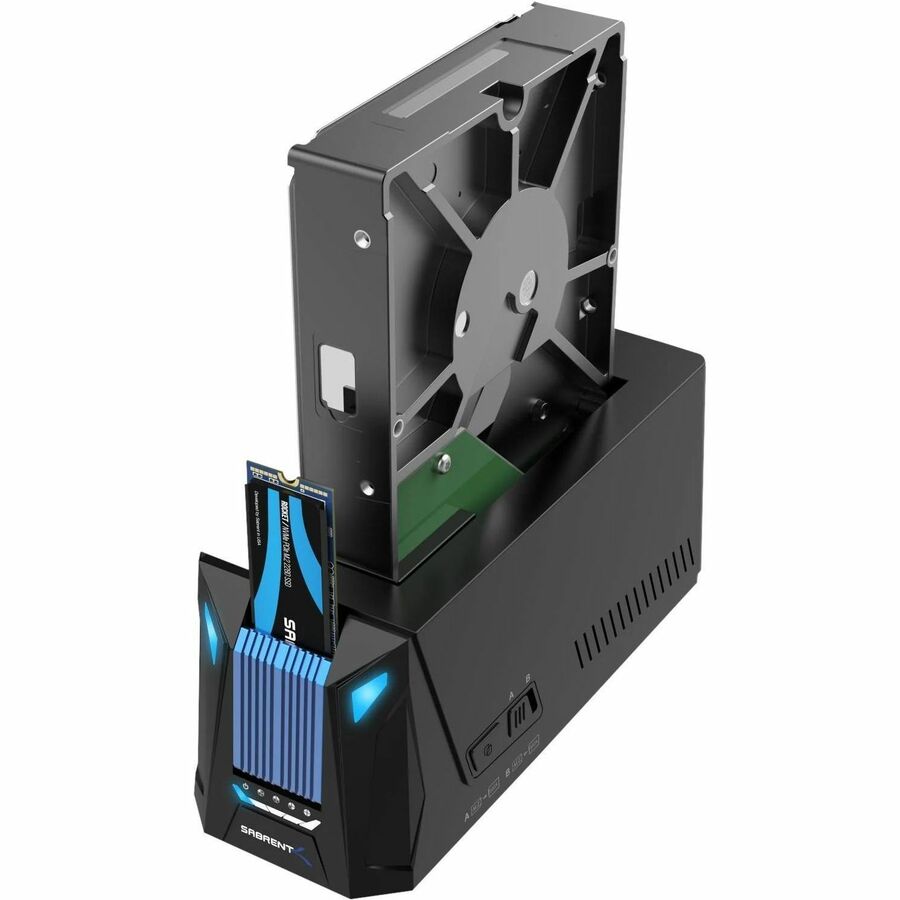

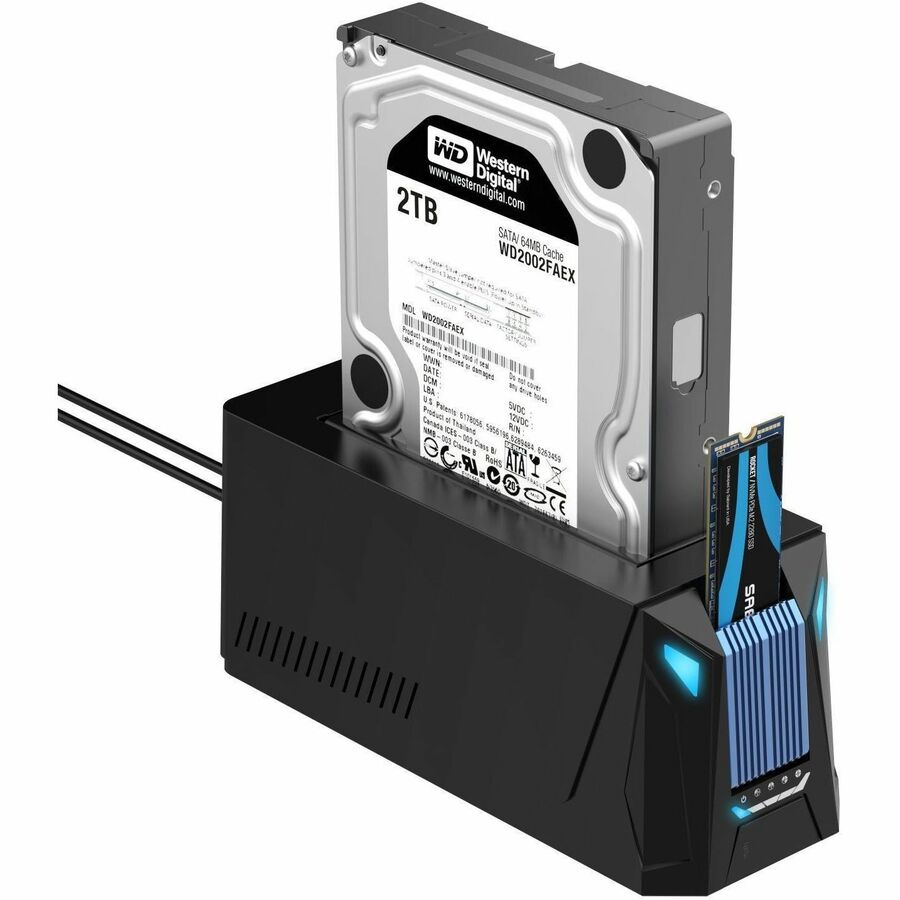

USB-C Docking Station for M.2 PCIe/NVMe and SATA 2.5/3.5-Inch SSD & HDD
Product Type
Drive Dock
Interfaces/Ports
Drive Interface
PCI Express NVMe, SATA
Host Interface
USB 3.2 (Gen 2)
Number of USB Ports
1
Physical Characteristics
Product Material
ABS Plastic
Compatible Drive Bay Width
3.5", 2.5"
Height
2.6"
Width
2.4"
Depth
6.1"
Weight (Approximate)
7 oz
Software
Operating System Supported
Windows 8.1, Windows 7, Windows 8
Technical Information
Number of Hard Drives Supported
1
Number of Hard Drives Installed
0
Number of Solid State Drive Supported
1
Number of Solid State Drive Installed
0
Maximum Data Transfer Rate
10 Gbit/s
I/O Expansions
Number of Total Expansion Bays
1
Number of 2.5"/3.5" Bays
1
Hot Swappable Bays
Yes
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
USB-C Docking Station for M.2 PCIe/NVMe and SATA 2.5/3.5-Inch SSD & HDD
12V/2A Power Adapter
40-Inch USB Type-A To Type-C And Type-C To Type-C Cables.
