Compatible with Windows, Linux, macOS, OBS Streaming
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Plugable Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The Plugable Performance Nix HDMI Video Game Capture Card supports Windows, macOS, and Linux based operating systems.
Whether you're streaming on Twitch, YouTube Gaming, Mixer, or preparing footage for upload, the NIX Capture Card provides 1080p/60FPS capture in a compact, plug-and-play package. A great addition to your live streaming equipment.
For step-by-step instructions on setting up the capture card with Windows, macOS, or Linux and a wide variety of popular supported sources (Xbox One, Xbox One S, Xbox One X, PS4, PS4 Pro, Nintendo Switch), and other important information, please see the 'Get Started' and 'FAQ' sections of this product page.

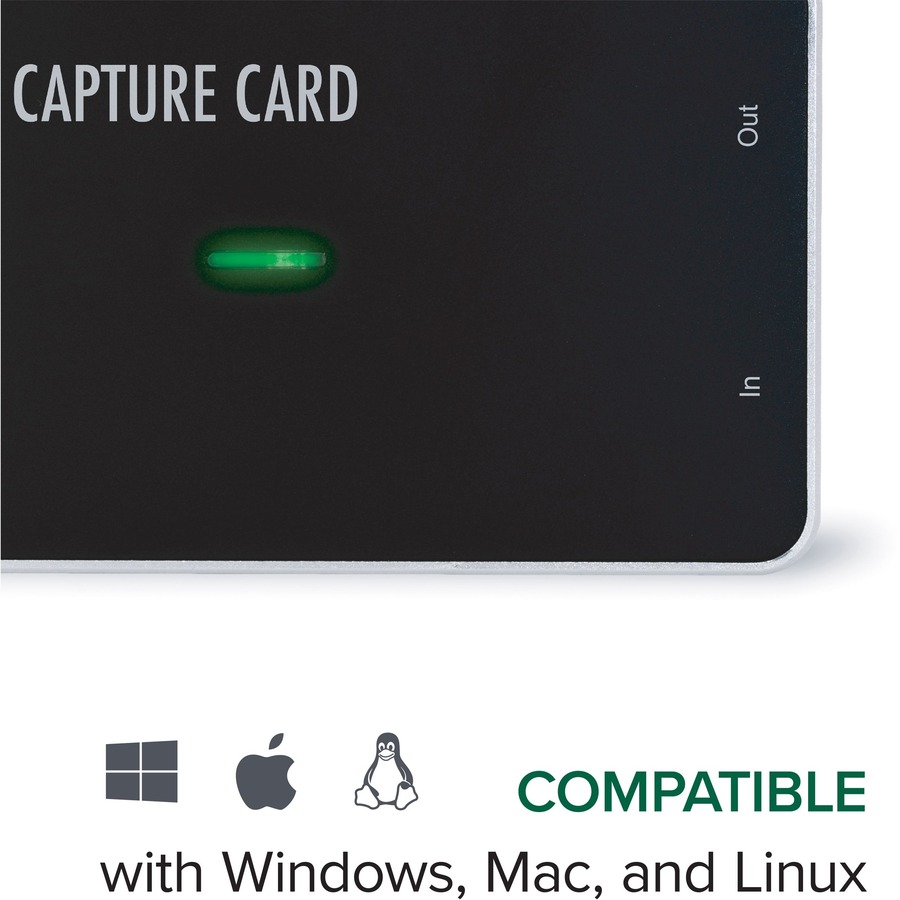

Extensive Compatibility

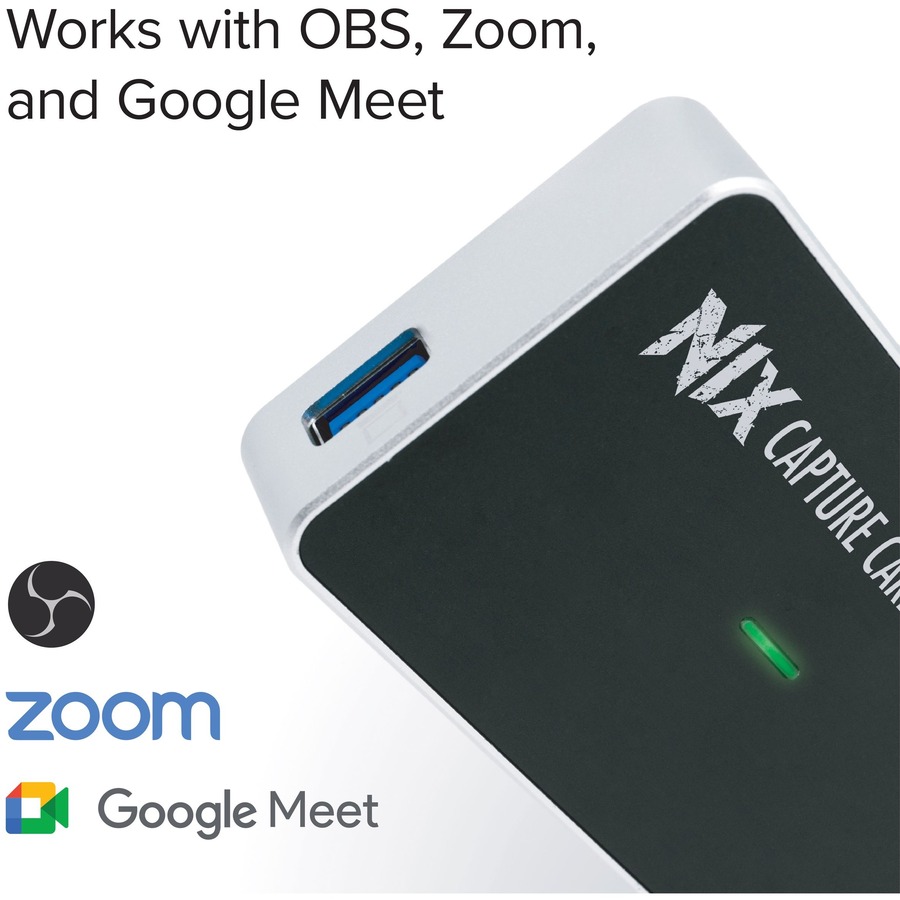

The NIX capture card works with popular software streaming solutions such as OBS, StreamLabs OBS, and XSplit on Windows, macOS, and Linux!
Streaming, capturing, and pass through are supported at a max resolution of 1080p 60Hz (1920x1080 @ 60Hz), via supported streaming platforms such as Twitch, YouTube, or Mixer.
HDMI 1.4 Pass Through with Near-Zero Latency
With 1080p 60FS HDMI Pass-Through, a splitter is not required for capturing all of your exciting gaming moments.
Plug your console or PC in the HDMI input port and your display in the HDMI output port for latency-free and hassle-free pass-through so you won't need an HDMI splitter just to get a video feed to your display.
Note: Monitor modes above 1920x1080 @ 60Hz are not supported via pass through.

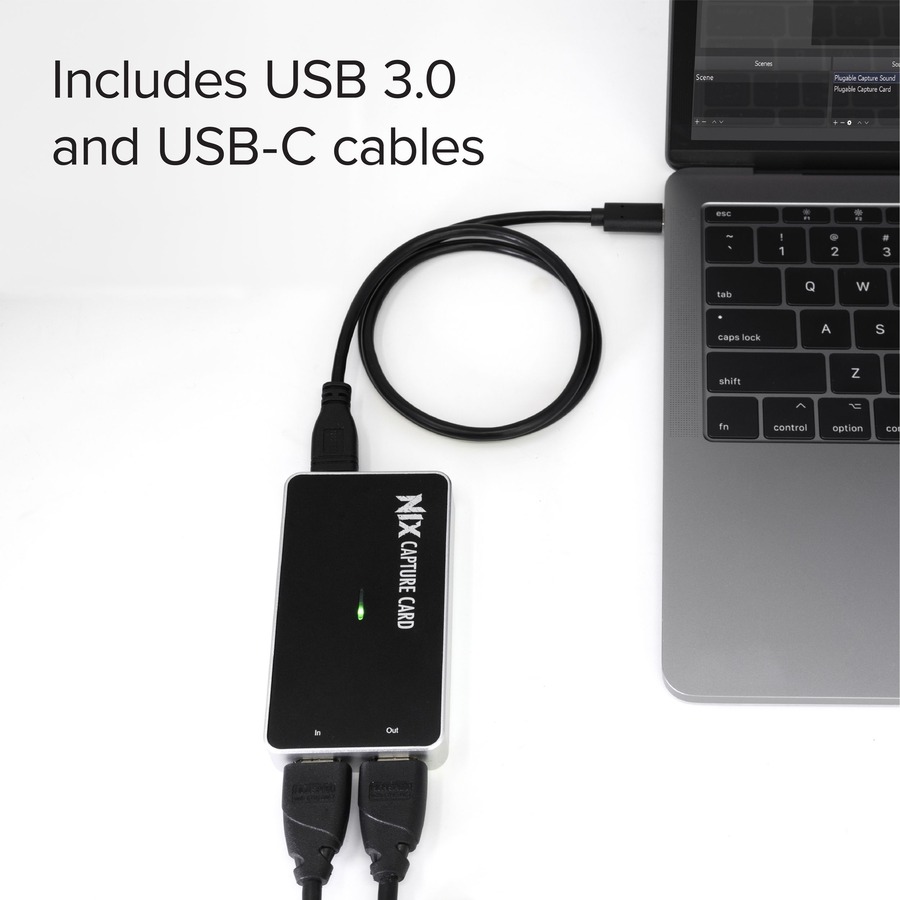

Supports USB 3.0 and USB-C Connections
The NIX capture card includes both USB-C and USB 3.0 (USB-A) cables, so you can connect to virtually any modern Windows, macOS*, or Linux system with USB 3.0 (or higher) ports.
USB-A is the traditional rectangular USB port. USB-C is a newer standard with an oblong oval-shaped connector found on more recent computers. Thunderbolt 3 ports also function as USB-C ports.
USB 3.0 is also listed as USB 3.1 (Gen 1)/USB 3.2 (Gen 1) by some computer manufacturers. USB 2.0 connections will limit capture quality.
Plug and Play, Not Proprietary
By utilizing built-in drivers in your operating system for direct capture, you don't have to take away from battling it out online trying to manage clunky additional software or drivers.
With the lowest resource usage around, the NIX capture card doesn't waste precious memory capacity or CPU/GPU performance to capture your gaming footage.
More from the Manufacturer
Whether you’re streaming on Twitch, YouTube Gaming, Mixer, or preparing footage for upload, the Plugable Performance NIX Capture Card features the ability to capture at 1080p and 60 frames per second, a no-latency HDMI display pass through, and low system resource usage.
Record and stream exciting moments, full playthroughs, and more—from popular consoles like the Xbox One, PlayStation 4, Nintendo Switch, or even your PC!
The capture card uses drivers built into modern operating systems (Windows, macOS, and Linux), and works with popular open streaming solutions such as OBS, XSplit, and more. No proprietary bloatware. Minimal system resources required. Game on!
For step-by-step instructions on setting up the capture card with Windows, macOS, or Linux and a wide variety of popular supported sources (Xbox One, Xbox One S, Xbox One X, PS4, PS4 Pro, Nintendo Switch), and other important information, please view the "Installation Manual.pdf" and "User Guide.pdf" located in the Product Information section of this listing.
Note: The input does not allow recording from HDCP-enabled sources such as Blu-ray players, set-top boxes, older consoles with HDMI output (i.e. PlayStation 3 or Xbox 360), or streaming devices. The PlayStation 4 must have HDCP manually disabled in its settings.
Extensive Compatibility
The NIX capture card works with popular software streaming solutions such as OBS, StreamLabs OBS, and XSplit on Windows, macOS, and Linux!
Streaming, capturing, and pass through are supported at a max resolution of 1080p 60Hz (1920x1080 @ 60Hz), via supported streaming platforms such as Twitch, YouTube, or Mixer.
For step-by-step instructions and FAQs about setting up your capture card with Windows, macOS, or Linux, and many popular supported sources, please view the "Installation Manual.pdf" and "User Guide.pdf" located below.
HDMI 1.4 Pass Through with Near-Zero Latency
With 1080p 60Hz (1920x1080 @ 60Hz) HDMI pass through, a splitter is not required for capturing all of your exciting gaming moments.
Plug your console or PC into the HDMI input port, and your display into the HDMI output port, for latency-free and hassle-free pass through. So you won't need an HDMI splitter just to get a video feed to your display.
Note: Monitor modes above 1920x1080 @ 60Hz are not supported via pass through.
Supports USB 3.0 and USB-C Connections
The NIX capture card includes both USB-C and USB 3.0 (USB-A) cables, so you can connect to virtually any modern Windows, macOS*, or Linux system with USB 3.0 (or higher) ports.
USB-A is the traditional rectangular USB port. USB-C is a newer standard with an oblong oval-shaped connector found on more recent computers. Thunderbolt 3 ports also function as USB-C ports.
USB 3.0 is also listed as USB 3.1 (Gen 1)/USB 3.2 (Gen 1) by some computer manufacturers. USB 2.0 connections will limit capture quality.
* Mac systems can be used for recording other platforms but are not compatible as input source.
Plug and Play, Not Proprietary
By utilizing built-in drivers in your operating system for direct capture, you don’t have to take away from battling it out online trying to manage clunky additional software or drivers.
With the lowest resource usage around, the NIX capture card doesn’t waste precious memory capacity or CPU/GPU performance to capture your gaming footage.
Compatibility Details
The NIX capture card is able to capture HDMI output from popular gaming consoles such as PlayStation 4, Xbox One, and the Nintendo Switch!
Note: macOS, and platforms which require High-bandwidth Digital Content Protection (HDCP), such as Blu-ray/DVD players, Roku, Netflix, etc, are not supported as sources. Older consoles such as the Xbox 360 and PlayStation 3 require HDCP on their HDMI outputs and are not supported.
The capture card uses Frame Rate Up Conversion (FRUC) to take input from the source platform (PC, Xbox One, PlayStation 4) and upsample the video to 1920x1080 at 60 frames per second. In some cases streamed text may appear smaller in appearance compared to the pass through display.

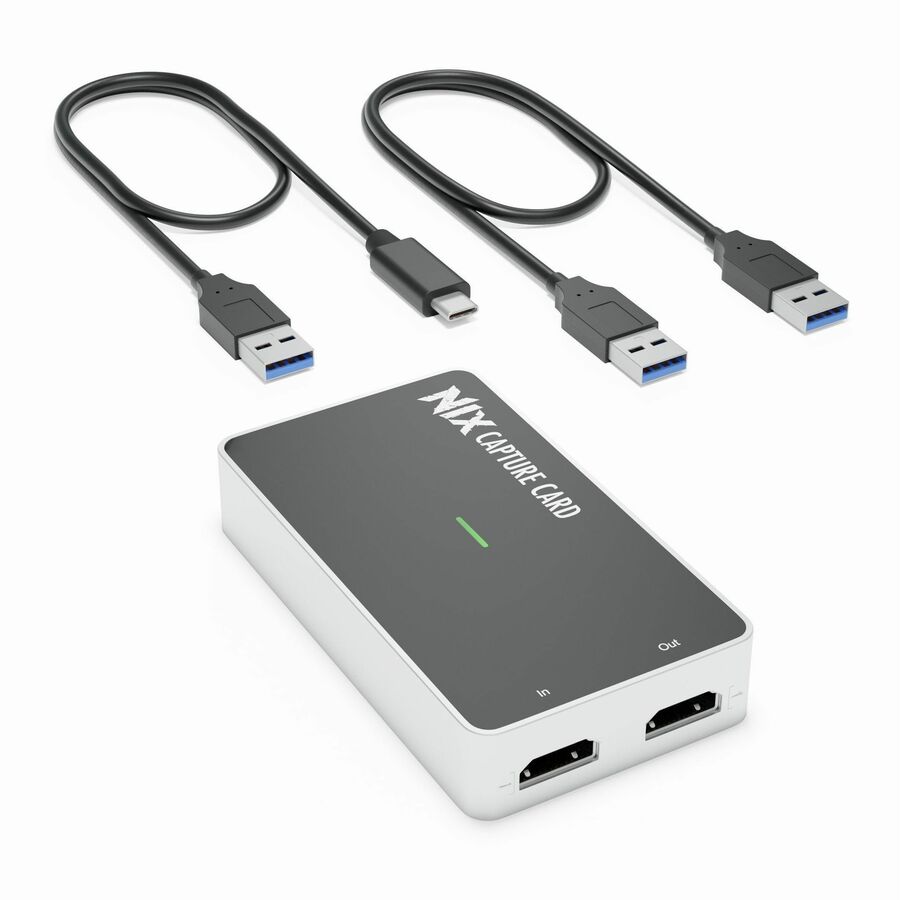

In the Box
The Plugable NIX HDMI Streaming & Capture Card includes:
1x Plugable Performance NIX Capture Card
1x USB-A 3.0 to USB-A 3.0 Cable
1x USB-C 3.0 to USB-C 3.0 Cable
Quick Start Guide
Note: Pass through requires two HDMI cables (no HDMI cables are included).
Limited Warranty: 2 Year
About Plugable Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility. Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business. Connect This With That .
| General Information | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | USBC-CAP60 |
| Brand Name | Plugable |
| Product Name | Performance NIX Video Game Capture Card 1080P 60FPS, USB C & USB 3.0 |
| Packaged Quantity | 1 |
| Product Type | Game Capturing Device |
| Interfaces/Ports | |
| Host Interface | USB 3.0 |
| USB | Yes |
| HDMI | Yes |
| Physical Characteristics | |
| Form Factor | External |
| Technical Information | |
| Functions | Video Game Capturing, Video Game Streaming, Video Game Recording |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Platform Supported | Linux, PC |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
