(Supports Mac, Windows, Linux, and Displays up to 4K 3840x2160@30Hz, Passive), Driverless
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Plugable Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

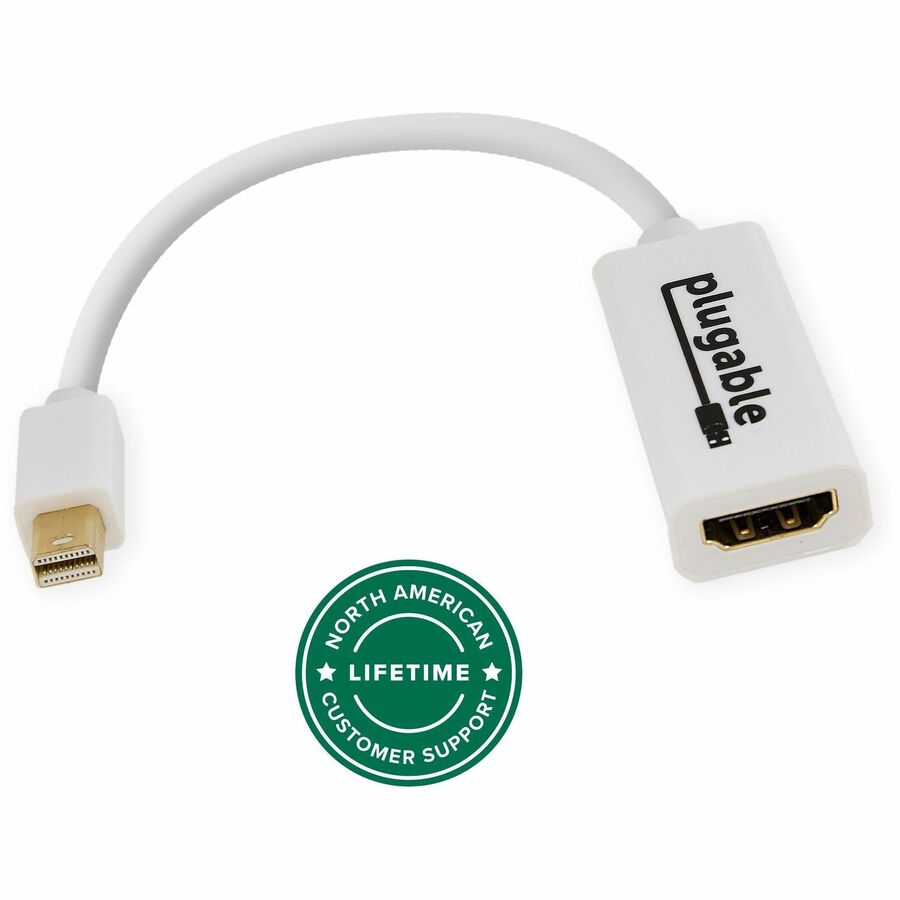

Plugable's Mini DisplayPort to HDMI passive adapter (MDPM-HDMIF) allows you to connect from a Thunderbolt 2 or Mini Dual-Mode DisplayPort (DP++) output on your laptop, desktop, or tablet to virtually any HDMI-enabled display.
Passive adapters rely on the DisplayPort output of the host system to provide the necessary signaling to support an HDMI display.
The adapter supports resolutions up to 4K 30Hz (3840x2160 @ 30Hz). All resolutions below 4K-such as 2560x1440 and 1080p-are supported at 60Hz refresh rate.
Are you wondering if your DisplayPort output supports DP++? These ports are often noted with a DP++ symbol next to the port itself. If you may be unsure if your DisplayPort port is DP++ capable, please check with your system manufacturer.
More from the Manufacturer
Plugable's Mini DisplayPort to HDMI passive adapter allows you to easily and inexpensively connect the Dual-Mode DisplayPort (DP++)/Thunderbolt 2 output on your Mac or PC laptop, desktop, or tablet to virtually any HDMI-enabled display. Passive adapters rely on the Dual-Mode DisplayPort output (DP++) on your system in order to pass video and audio signals to an HDMI display. Adapter supports resolutions up to 3840x2160 @ 30Hz (4K) refresh rate. 2560x1440 and 1080p resolutions and lower support 60Hz.
Dual-Mode DisplayPort source ports are often noted with a DP++ symbol next to the port itself. If unsure if your DisplayPort is DP++ capable, please check with your system manufacturer.
Apple Notes: While our mDP adapters work with Apple Thunderbolt ports, the maximum supported resolution will depend on the model of Mac and monitor in use. Please be aware that with an update to OSX Mavericks, Apple disabled 4K video output on the vast majority of Mac models – even models which previously were able to output 4K. Only Macs with “official” 4K support from Apple will be capable of 4K output using the HDMI version of this adapter, while most will be limited to 1080P output.
Compatibility
Compatible with PC and Mac laptops, desktops, or tablets that have Dual-Mode Mini DisplayPort or Thunderbolt 2 output ports (DP++) to add a HDMI-capable monitor, TV, or projector.
In order to display a 4K resolution the host's graphics processor and attached display need to be 4K capable.
Applications

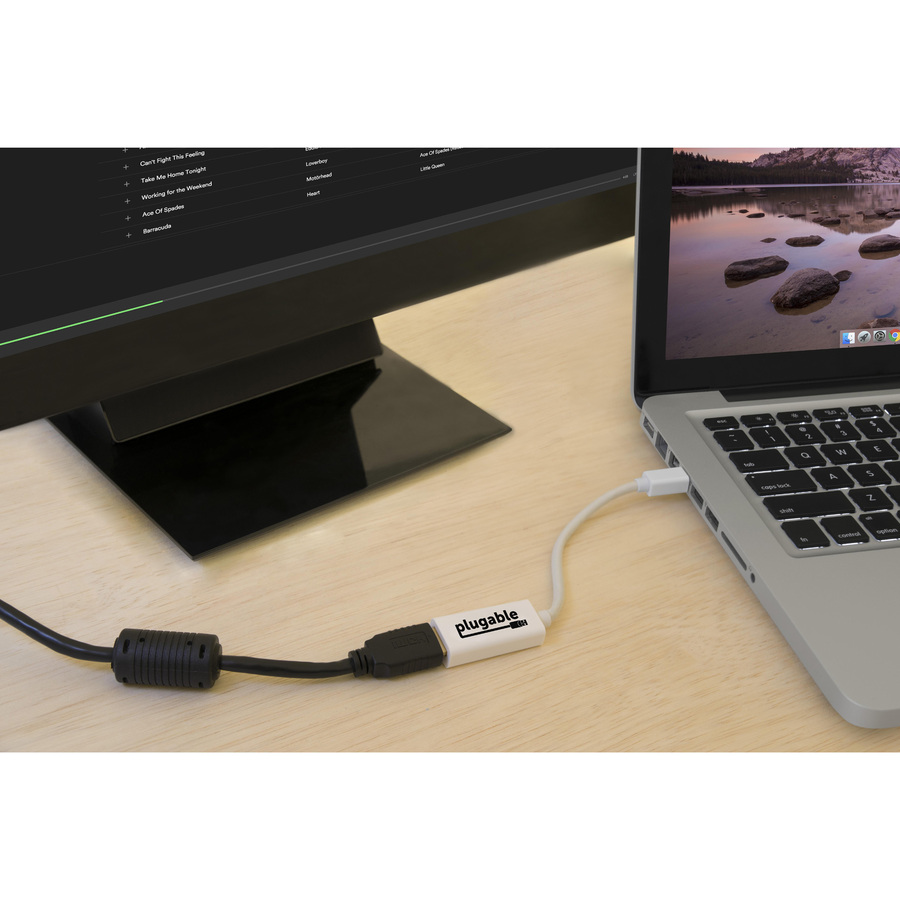

Connect a HDMI-equipped monitor to a Dual-Mode Mini DisplayPort (DP++) or Thunderbolt 2 output from your computer.
Portable for traveling professionals to connect to other HDMI displays.
Non-Compatible Setups

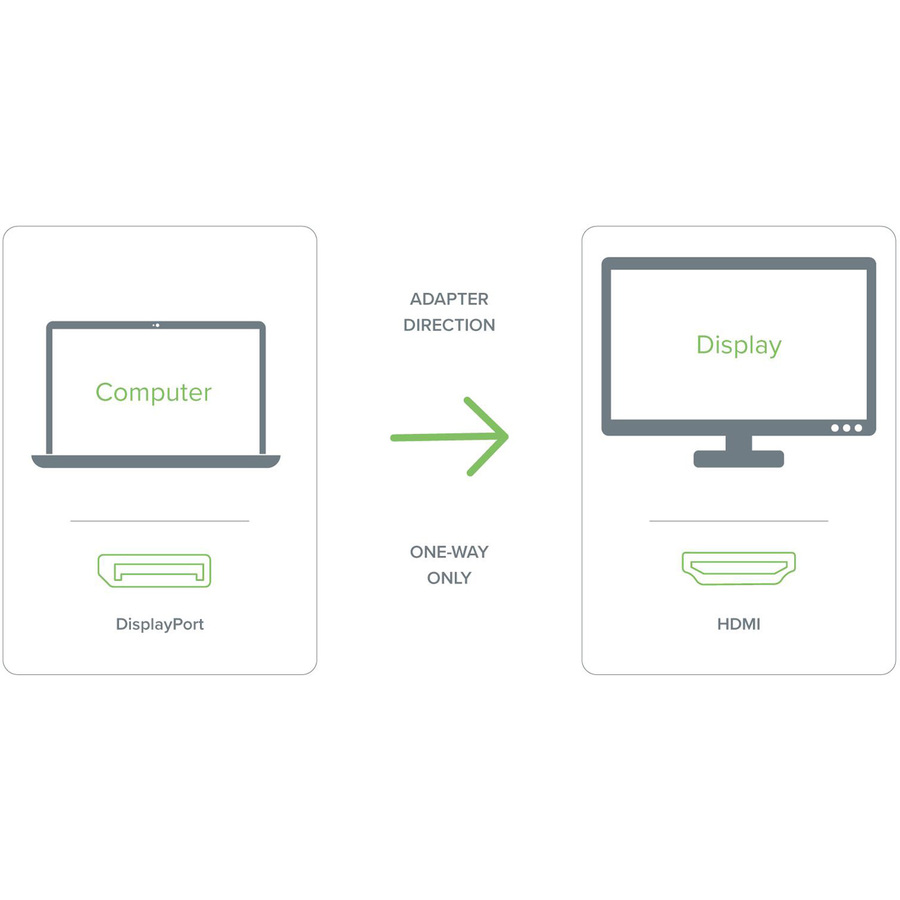

This adapter is not bi-directional and will not convert video in the other direction.
Not compatible with Microsoft Surface Docking Stations.
Does not support AMD Eyefinity or NVIDIA Surround.
In the Bag

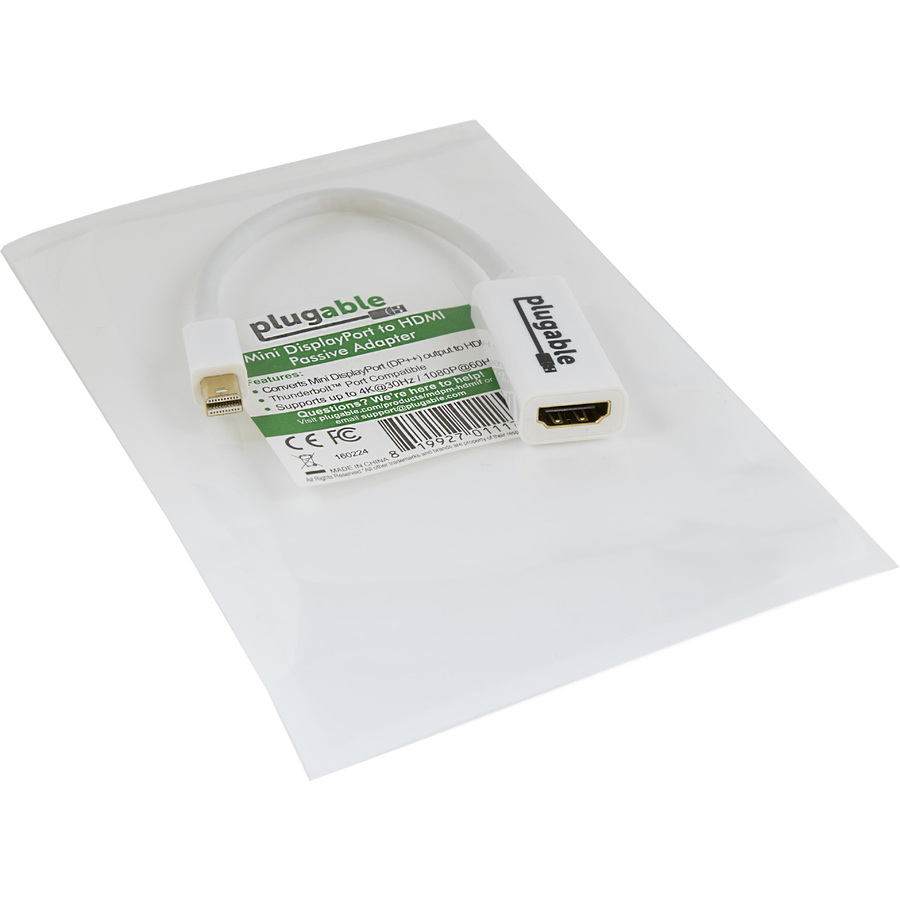

Plugable Mini DisplayPort (Thunderbolt 2) to HDMI Passive Adapter.
Please note that an HDMI cable is not included.
Limited Warranty: 2 Year
About Plugable Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility. Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business. Connect This With That .
| General Information | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | MDPM-HDMIF |
| Brand Name | Plugable |
| Product Name | Mini Displayport TO HDMI Adapter (Passive) |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | HDMI/Mini DisplayPort |
| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector on First End Details | 1 x Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Female |
| Connector on Second End Details | 1 x HDMI Digital Audio/Video - Female |
| Device Supported | Monitor, Desktop Computer, TV, Tablet PC, Notebook, PC, Projector, Audio/Video Device, MAC |
| Supported Resolution | 3840 x 2160 |
| Features | Passive, Plug & Play, Eyefinity Technology |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Country of Origin | China |
